Introduction
This manual provides essential instructions for the safe and efficient use of your Kärcher CS90 Circular Sprinkler. Designed for watering small areas, this sprinkler offers 360-degree coverage and features a robust anchoring spike for stability on various terrains. Please read these instructions carefully before initial operation and retain them for future reference.
Пакеттин мазмуну
- 1 x Kärcher CS90 Circular Sprinkler (Model 2.645-024.0)
Ensure all components are present and undamaged. If any parts are missing or damaged, contact Kärcher customer support.
Жайгашуу
- Туташтыруу шланг: Attach your garden hose to the sprinkler's inlet connection. The Kärcher CS90 is compatible with all standard click systems. Ensure a secure, leak-free connection.
- Спринклердин орду: Place the sprinkler in the desired watering area. The robust anchoring spike allows for stable placement on uneven or sloping ground. Push the spike firmly into the soil until the sprinkler base is stable.

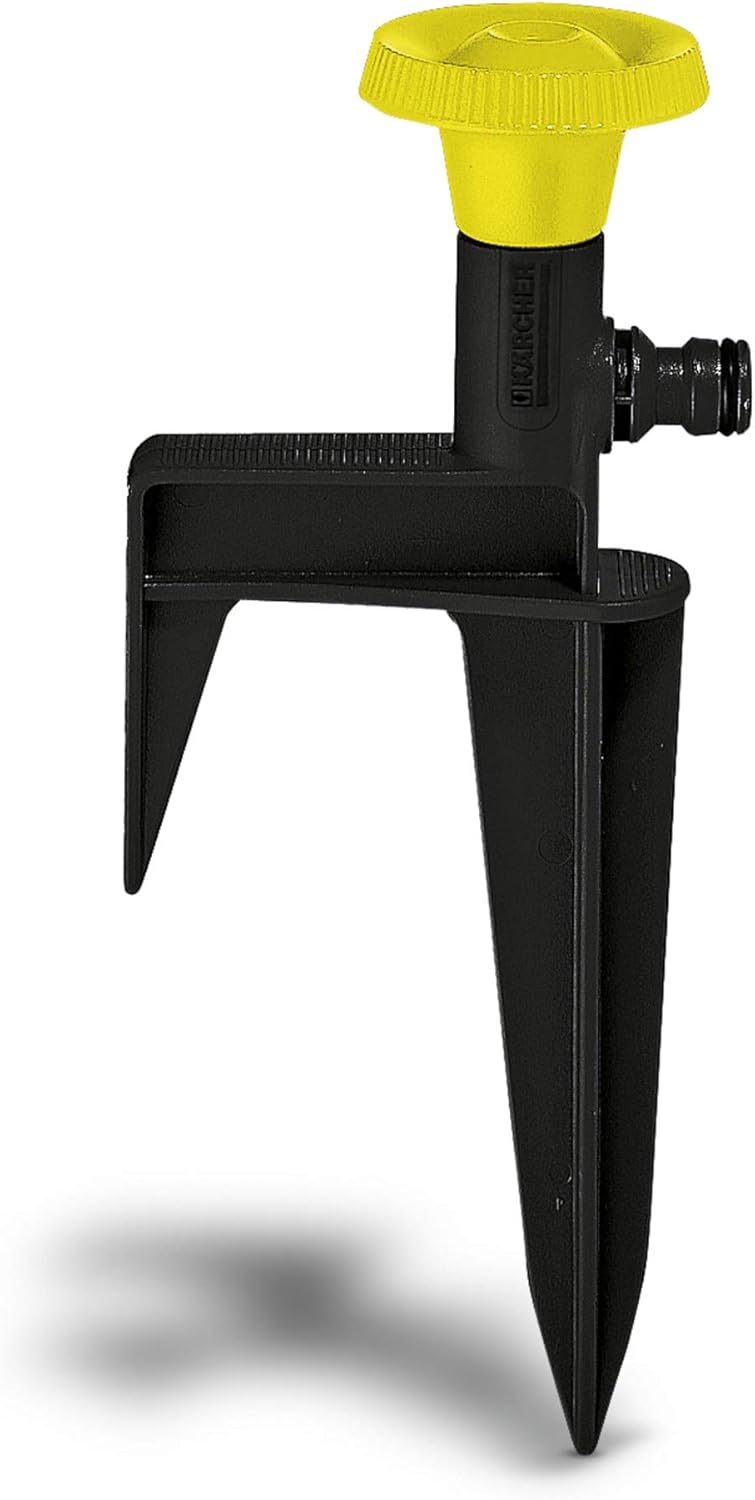

Сүрөт 1: The Kärcher CS90 Circular Sprinkler, showing its black spike base and yellow spray head with a hose connection point.
Иштөө нускамалары
- Activate Water Supply: Slowly turn on the water supply from your tap. The sprinkler will begin to spray water in a circular pattern.
- Adjust Coverage: The water pressure from your hose will determine the spray radius. Adjust the tap to increase or decrease the water flow, thereby controlling the watering circle's size. The sprinkler provides a 360-degree circular watering area.
- Watering Area: The Kärcher CS90 is designed to water areas up to 64 square meters (approximately 689 square feet).
- Өчүрүү: When watering is complete, turn off the water supply at the tap.
Сүрөт 2: The Kärcher CS90 Circular Sprinkler actively spraying water in a wide, circular pattern across a green lawn, connected to a yellow garden hose.
Техникалык тейлөө
- Тазалоо: Periodically check the sprinkler nozzle for any debris or mineral buildup that might obstruct the spray pattern. Clean with a soft brush and water if necessary.
- Сактагыч: Before storing for extended periods, especially during freezing temperatures, drain all water from the sprinkler and hose to prevent damage. Store in a dry, protected area.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Uneven or weak spray pattern | Low water pressure; clogged nozzle; kinked hose. | Increase water pressure at the tap; clean the nozzle; straighten the hose. |
| Sprinkler does not rotate (if applicable) or spray in full circle | Insufficient water pressure; internal obstruction. | Ensure adequate water pressure; check for and remove any obstructions in the spray head. |
| Water leakage at hose connection | Loose connection; damaged washer. | Tighten hose connection; replace washer if damaged. |
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модел | CS90 Circular Sprinkler (2.645-024.0) |
| Бренд | Kärcher |
| Watering Area | 64 м² (689 чарчы фут) чейин |
| Spray Pattern | 360-degree circular |
| Материал | Пластик |
| Түс | Кара/Сары |
| Өлчөмдөрү (L x W x Y) | 2.28 x 4.13 x 9.57 дюйм (5.8 x 10.5 x 24.3 см) |
| Элемент Салмагы | 2.39 унция |
| Шайкештик | All standard click systems |
