Маанилүү коопсуздук маалыматы
Read and understand all safety instructions before operating the Troy-Bilt TB154E Electric Garden Cultivator. Failure to follow these instructions may result in serious injury or property damage.
- Always wear appropriate safety gear, including gloves and eye protection, when operating the cultivator.
- Keep bystanders, especially children and pets, at a safe distance from the operating area.
- Do not operate the cultivator on hard or uneven surfaces to prevent loss of control and potential damage to the unit.
- Always turn off and unplug the cultivator from the power source before performing any maintenance, cleaning, or when clearing debris from the tines.
- Never leave the cultivator unattended while it is connected to a power source or in operation.
- Ensure the power cord is in good condition and positioned to avoid entanglement with the tines or other obstacles.
Продукт бүттүview
The Troy-Bilt TB154E Electric Garden Cultivator is designed for soil preparation and bed maintenance. It features an electric motor for quiet operation and ease of use in various garden settings.

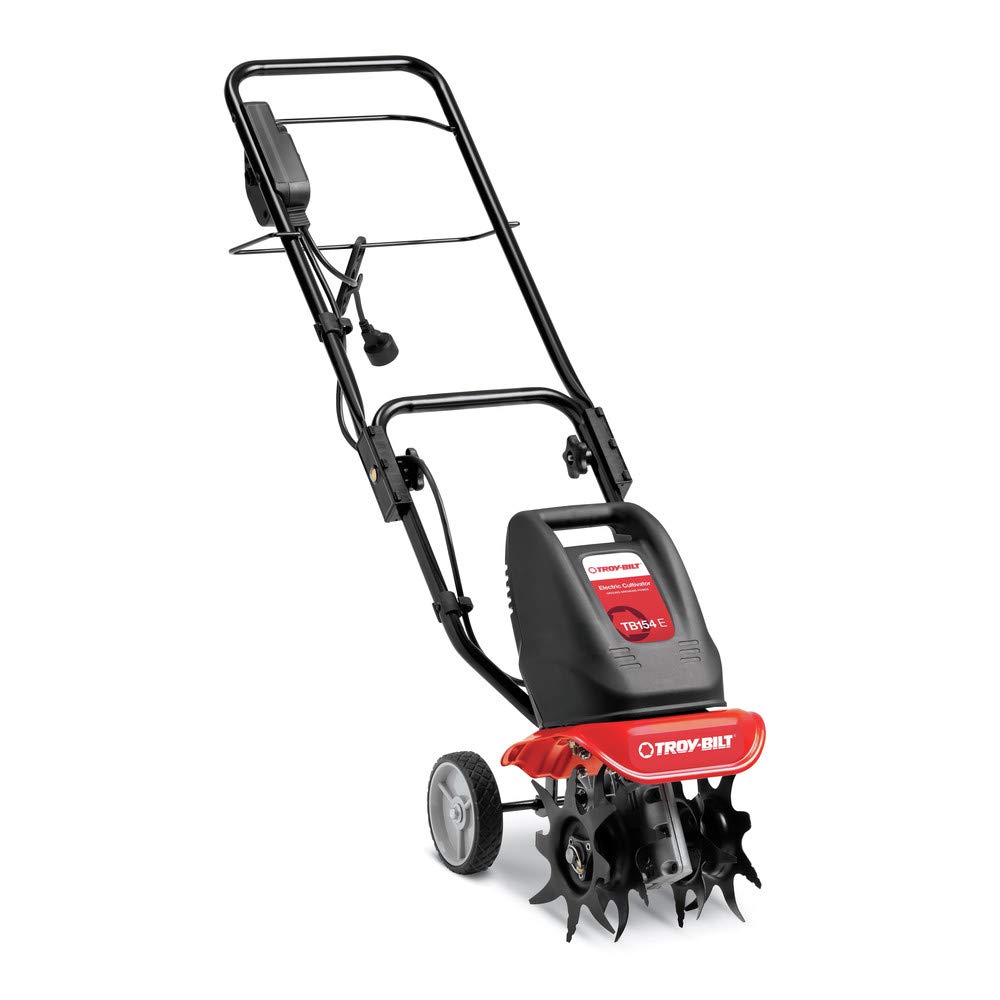

1-сүрөт: Алдыңкы жагы view of the Troy-Bilt TB154E Electric Garden Cultivator, showing the motor housing, handle, and tines.
Негизги өзгөчөлүктөрү
- Күчтүү 6.5 amp electric motor for efficient cultivation.
- Four forward-rotating, 8-inch steel tines with 8 total blades for effective soil turning.
- Advanced 3-way tines designed to dig, tear, and turn soil.
- Adjustable tilling width from 6 inches to 9 inches for versatility in small areas and between plants.
- Lightweight and well-balanced ergonomic design for comfortable operation.
2-сүрөт: Жакын план view of the cultivator's steel tines and transport wheels.
Жайгашуу
The Troy-Bilt TB154E cultivator requires minimal assembly before first use.
Ассамблея туткасы
- Carefully remove the cultivator from its packaging.
- Attach the handle to the main unit. Ensure all fasteners are securely tightened. No tools are typically required for this step, as components often clip or screw into place by hand.
Power Connection
- Ensure the cultivator's power switch is in the "OFF" position.
- Connect a suitable outdoor-rated extension cord to the cultivator's power inlet. Ensure the cord is rated for the cultivator's ampкарылык (6.5 ampс).
- Secure the extension cord to the handle using the integrated cord hanger or clip to prevent accidental disconnection during operation.
Иштөө нускамалары
Операция алдында
- Inspect the work area for any large rocks, debris, or obstacles that could damage the tines or cause the cultivator to jam. Remove them if present.
- Check that all nuts, bolts, and screws are securely fastened.
- Ensure the power cord is free from damage and positioned safely away from the tilling path.
- For optimal results, lightly water the soil the day before cultivating. This helps minimize dust and makes the soil easier to work.
Starting the Cultivator
To start the TB154E, simply press the safety button and then squeeze the operating lever on the handle. The tines will begin to rotate.
Cultivating Techniques
- Баштапкы өтүү: Allow the cultivator to pull forward slightly to break the surface of the soil.
- Deep Tilling: For deeper cultivation, pull the unit backward slowly. The tines will dig more effectively as you pull it towards you.
- Working in Sections: Work in small, manageable sections, overlapping each pass slightly to ensure even cultivation.
- тууралоо туурасы: The tilling width can be adjusted between 6 and 9 inches to suit your specific needs, such as working in narrow rows or between plants.
Stopping the Cultivator
Release the operating lever to stop the tines. Always unplug the cultivator from the power source when finished or before leaving it unattended.
Техникалык тейлөө
Regular maintenance ensures the longevity and optimal performance of your cultivator.
Тазалоо
- After each use, unplug the cultivator and clean any soil, grass, or debris from the tines and housing. A stiff brush or scraper can be used.
- Remove any tangled weeds or roots from around the tines. This is crucial for preventing performance issues.
- Сырткы беттерин жарнама менен сүртүңүзamp cloth. Do not use water jets or immerse the unit in water.
3-сүрөт: Close-up of the tines, illustrating areas where soil and debris may accumulate.
Tine Removal and Inspection
The tines can be easily removed for thorough cleaning or replacement.
- Ensure the cultivator is unplugged.
- Locate the pins securing the tines to the axle shaft.
- Remove the pins and slide the tines off the shaft.
- Inspect tines for wear, damage, or bending. Replace if necessary.
- Clean the axle shaft and apply a light coat of grease before reattaching the tines and securing them with the pins.
Сактагыч
Store the cultivator in a dry, protected area. The handle can be folded down for compact storage. Adjust the wheels to their highest position to facilitate hanging on a sturdy wall hook if desired.
Проблемаларды чечүү
Бул бөлүмдө сиз иштөө учурунда кабылышы мүмкүн болгон жалпы маселелер каралат.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Cultivator tines tangle frequently. | Heavy weeds or roots in the soil. | Clear the area of heavy weeds or cut them down before cultivating. Stop the unit and clear tangled debris from tines. |
| Cultivator jumps or bounces excessively. | Large rocks or hard debris in the soil. | Stop the unit and remove any large rocks or hard objects from the tilling path. |
| Motor stops or unit loses power. | Overload, thermal protection activated, or power supply issue. | Unplug the unit and allow it to cool for several minutes. Check the extension cord for damage or improper connection. Reduce load by taking shallower passes. |
| Tines not digging effectively. | Dry, compacted soil or worn tines. | Lightly water the soil before cultivating. Pull the cultivator backward for deeper penetration. Inspect and replace worn tines if necessary. |
Техникалык шарттар
| Спецификация | Деталь |
|---|---|
| Модель номери | TB154E |
| Power Source | Электр зымдары |
| Мотор | 6.5 Amp |
| Тиштин түрү | Forward-rotating, 8-inch steel tines (8 blades total) |
| Айдоо туурасы | Adjustable 6 to 9 inches |
| Материал | Болот |
| Элемент Салмагы | 32 фунт |
| Продукциянын өлчөмдөрү (D x W x Y) | 5"D x 7.5"W x 5"H |
Кепилдик жана колдоо
Чектелген Кепилдик
The Troy-Bilt TB154E Electric Garden Cultivator is backed by a 2 жылдык чектелген кепилдикБул кепилдик кадимки колдонуудагы материалдардагы жана жасалгалоодогу кемчиликтерди камтыйт. Толук шарттар жана эрежелер үчүн өнүмүңүз менен кошо берилген кепилдик картасын караңыз.
Кардарларды колдоо
For technical assistance, parts, or warranty claims, please contact Troy-Bilt customer service. Contact information can typically be found on the manufacturer's webсайтында же продуктунун таңгагында.
