Nikon DSLR үчүн DÖRR DAF-14 шакек жаркылдаткычы колдонуучунун колдонмосу

1. Киришүү

This manual provides comprehensive instructions for the safe and effective use of your DÖRR DAF-14 Ring Flash. The DAF-14 is specifically designed for Nikon DSLR cameras, offering automatic TTL flash control and a guide number of 14 (ISO 100, 105mm). It is ideal for macro photography and other applications requiring even, shadow-free illumination.

Аппараттын туура иштешин камсыз кылуу жана зыян келтирбөө үчүн аны иштетүүдөн мурун бул колдонмону кылдат окуп чыгыңыз.

2. Коопсуздук маалыматы

• Батареянын коопсуздугу: Use only specified AA batteries (alkaline, NiCd, or NiMH). Do not mix old and new batteries, or different types of batteries. Ensure correct polarity when inserting. Remove batteries if the flash will not be used for an extended period.
• Суу жана ным: This device is not water-resistant. Do not expose the flash to rain, moisture, or high humidity.
• Жылуулук: Avoid exposing the flash to direct sunlight or high temperatures. Do not cover the flash head during operation, as this may cause overheating.
• Колдонуу: Handle the flash unit with care. Avoid dropping or subjecting it to strong impacts.
• Демонтаж: Do not attempt to disassemble or repair the flash unit yourself. Refer all servicing to qualified personnel.
• Көздү коргоо: Do not fire the flash directly into eyes at close range, as this may cause temporary vision impairment.

3. Пакеттин мазмуну

Төмөндө тизмеленген нерселердин баары пакетиңизде бар экенин текшериңиз:

• DÖRR DAF-14 Ring Flash Unit
• Adapter Rings (55mm, 58mm, 67mm)
• Lens Filter Thread (52mm)
• Көрсөтмө (бул документ)

3.1-сүрөт: The DÖRR DAF-14 Ring Flash packaging, showing the flash unit and included accessories.

4. Продукт бүтүп калдыview

The DÖRR DAF-14 Ring Flash is a dedicated macro flash unit designed to provide even and consistent illumination for close-up photography. Its ring-shaped design minimizes shadows, making it ideal for detailed subjects.

Негизги өзгөчөлүктөрү:

• Guide Number of 14 (ISO 100, 105mm)
• Fully Automatic TTL Flash Control
• Automatic TTL Range: 0.9 to 7 meters
• Auto Exposure Confirmation
• Flash Duration: 1/700 second (at full power)
• Түс температурасы: 5600K
• Compatible with Nikon DSLR cameras
• Includes adapter rings for various lens filter threads

4.1-сүрөт: The DÖRR DAF-14 Ring Flash unit, showing the main control box and the ring flash head connected by a cable.

4.2-сүрөт: Арткы view of the DAF-14 control unit, displaying the TTL Dedicated Macro Digital Flash label, power switch (OFF/ON), and ready indicator light.

4.3-сүрөт: Detail of the hot shoe mount on the DAF-14 control unit, used for attaching the flash to a Nikon DSLR camera.

5. Орнотуу

5.1 Батареяны орнотуу

1. Locate the battery compartment on the DAF-14 control unit.
2. Батарея уясынын капкагын ачыңыз.
3. Insert 4 x AA batteries (alkaline, NiCd, or NiMH) according to the polarity indicators inside the compartment. Ensure batteries are inserted correctly to avoid damage.
4. Батарея уясынын капкагын бекем жабыңыз.

5.2 Mounting the Flash to the Camera

1. Камераңыз өчүрүлгөнүн текшериңиз.
2. Slide the hot shoe mount of the DAF-14 control unit into your Nikon DSLR camera's hot shoe.
3. Secure the flash by tightening the locking wheel on the hot shoe mount until it is firmly attached. Do not overtighten.

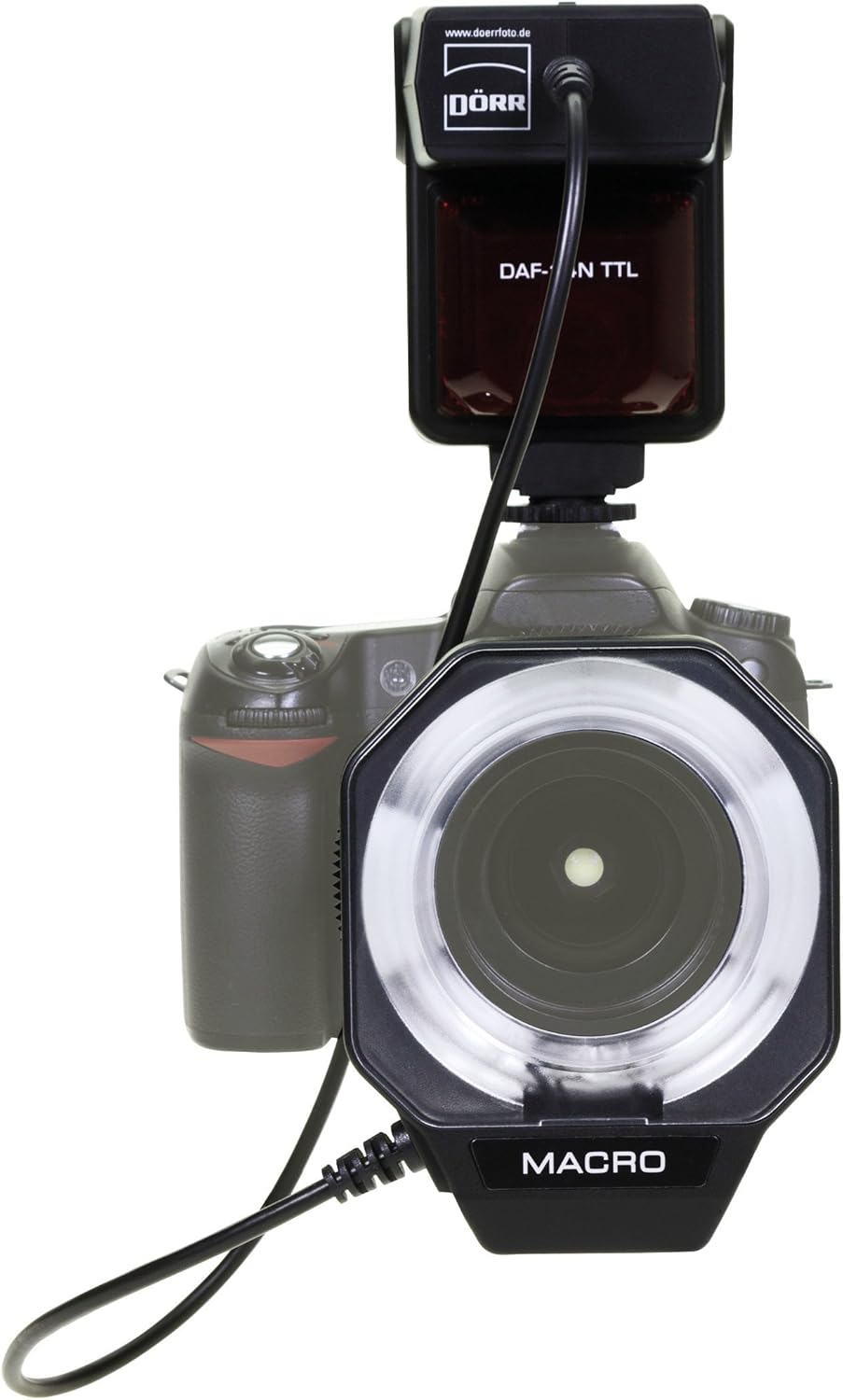

5.1-сүрөт: The DAF-14 Ring Flash head attached to a camera lens, with the control unit mounted on the camera's hot shoe.

5.2-сүрөт: Side view of the DAF-14 Ring Flash mounted on a Nikon DSLR, illustrating the connection between the flash head and the control unit.

5.3 Attaching Adapter Rings

The DAF-14 Ring Flash head connects to your camera lens via adapter rings. The flash includes a 52mm lens filter thread and additional adapter rings for 55mm, 58mm, and 67mm lens filter threads.

1. Determine the filter thread size of your camera lens. This is usually printed on the front of the lens or on the lens cap.
2. Select the appropriate adapter ring (52mm, 55mm, 58mm, or 67mm) that matches your lens filter thread.
3. Screw the chosen adapter ring onto the front filter thread of your camera lens.
4. Attach the DAF-14 Ring Flash head to the adapter ring by aligning it and twisting gently until it locks into place.

5.3-сүрөт: The included adapter rings (55mm, 58mm, 62mm, 67mm) for attaching the ring flash head to various lens filter threads.

6. Иштөө нускамалары

6.1 Күйгүзүү/өчүрүү

• To turn on the flash, slide the OFF/ON switch on the rear of the control unit to the ON позиция.
• The ДАЯР indicator light will illuminate when the flash is charged and ready to fire.
• To turn off the flash, slide the OFF/ON га өтүү ӨЧҮРҮҮ позиция.

6.2 Automatic TTL Flash Control

The DAF-14 Ring Flash features fully automatic TTL (Through-The-Lens) flash control. This means the flash output is automatically adjusted by your camera to achieve optimal exposure. Simply set your camera to a compatible flash mode (e.g., Program, Aperture-priority, Shutter-priority, or Manual with flash enabled) and the flash will synchronize with the camera's metering system.

• Гид номери: 14 (at ISO 100, 105mm equivalent).
• Automatic TTL Range: The effective range for automatic TTL operation is approximately 0.9 to 7 meters (3.0 to 23.0 feet).
• Auto Exposure Confirmation: The flash system provides confirmation when correct exposure has been achieved. Refer to your camera's manual for specific indicators.

6.3 Сүрөткө тартуу

1. Ensure the flash is securely mounted and powered on, and the ДАЯР жарык күйүп турат.
2. Set your camera to the desired shooting mode. For macro photography, Aperture-priority mode (A/Av) is often recommended to control depth of field.
3. Focus on your subject. The camera's autofocus system will typically work with the flash.
4. Press the shutter button halfway to allow the camera to meter and the flash to pre-flash (if applicable for TTL).
5. Press the shutter button fully to take the picture. The flash will fire automatically.

7. Техникалык тейлөө

• Тазалоо: Жаркылдаткычтын сыртын тазалоо үчүн жумшак, кургак чүпүрөктү колдонуңуз. Өжөр кир үчүн бир азamp кездеме, андан кийин кургак чүпүрөк колдонсо болот. Эриткичтерди же абразивдик тазалагычтарды колдонбоңуз.
• Линзаны тазалоо: The front of the ring flash head can be cleaned with a lens cleaning cloth and solution, similar to a camera lens.
• Батареяга кам көрүү: Эгерде жарк агып кетпеши үчүн узак убакыт бою колдонулбаса, батарейкаларды алып салыңыз. Батареяларды салкын, кургак жерде сактаңыз.
• Сактагыч: Store the flash unit in a dry, dust-free environment, away from extreme temperatures.

8. Кыйынчылыктарды

If you encounter issues with your DAF-14 Ring Flash, please refer to the following common problems and solutions:

• Жарк этпейт:
  • Ensure the flash is turned ON.
  • экендигин текшериңиз ДАЯР light is illuminated. If not, the batteries may be low or incorrectly inserted. Replace batteries or check polarity.
  • Verify the flash is securely mounted to the camera's hot shoe and the locking wheel is tightened.
  • Check camera settings to ensure flash is enabled and in a compatible mode.
• Photos are too dark (underexposed):
  • The subject may be outside the effective TTL range (0.9 to 7 meters). Move closer to the subject.
  • Batteries may be low, affecting flash power. Replace with fresh batteries.
  • Check camera's ISO setting. A higher ISO can help in low light conditions.
  • Ensure the lens aperture is not too small (high f-number), which limits light reaching the sensor.
• Photos are too bright (overexposed):
  • The subject may be too close to the flash. Increase distance or use flash exposure compensation on your camera if available.
  • Check camera's ISO setting. A lower ISO can help reduce overall brightness.
• Inconsistent flash firing or power:
  • This can sometimes be caused by loose battery contacts. Ensure batteries are firmly seated.
  • Clean the hot shoe contacts on both the flash and the camera with a clean, dry cloth.
  • If the issue persists, batteries may be faulty or nearing end-of-life. Try a new set of high-quality batteries.

If these steps do not resolve the issue, please contact DÖRR customer support.

9. Техникалык шарттар

10. Кепилдик жана колдоо

For information regarding warranty coverage, technical support, or service, please refer to the warranty card included with your product or visit the official DÖRR webсайт. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.
