Progress Lighting Trinity P3476-20 2-Light 15-Inch Close-to-Ceiling Fixture Instruction Manual

1. Продукт бүтүп калдыview

The Progress Lighting Trinity P3476-20 is a 2-light close-to-ceiling fixture from the Trinity Collection. It features soft angles, curving lines, and etched glass shades, designed for indoor use. The fixture has an Antique Bronze finish and is suitable for various transitional interior settings.

Figure 1: Progress Lighting Trinity P3476-20 Close-to-Ceiling Fixture in Antique Bronze.

Негизги өзгөчөлүктөрү:

• Модел: P3476-20
• Коллекция: Троица
• Бүтүрүү: Antique Bronze
• Көлөкө материалы: Эчтелген айнек
• Жарыктардын саны: 2
• Өлчөмдөрү: 15-inch Diameter x 7.5-inch Height
• Орнотуу түрү: Surface Mount
• Кубат булагы: AC
• Лампанын негизи: E26 (Орто база)
• Макс Ватtage: лампочка үчүн 60 ватт
• Тtage: 120 вольт
• Жарык чыгаруу: Up to 1600 Lumens (depending on bulb)

2. Коопсуздук маалыматы

Always turn off the main power supply at the circuit breaker before installing, servicing, or changing any part of the lighting fixture. Consult a qualified electrician if you are unsure about the installation process. Ensure all electrical connections comply with local codes and ordinances.

ЭСКЕРТҮҮ: Бул продукт сизди Калифорния штатында рак жана тубаса кемтиктер же башка репродуктивдик зыян келтирүүчү химиялык заттарга дуушар кылышы мүмкүн. Көбүрөөк маалымат алуу үчүн, төмөнкү дарекке өтүңүз www.P65Warnings.ca.gov.

3. Компоненттер камтылган

Пакет төмөнкү компоненттерди камтыйт:

• Lighting Fixture Assembly
• Etched Glass Shade
• Mounting Hardware (typically includes mounting strap, outlet box screws, wire nuts)
• Орнотуу баракчасы

Note: Bulbs are not included and must be purchased separately.

4. Орнотуу боюнча нускамалар

This fixture is designed for surface mount installation. Professional installation is recommended. Please refer to the included installation sheet for detailed, step-by-step instructions specific to your model.

Жалпы орнотуу кадамдары:

1. Кубатты өчүрүү: Ensure power is completely off at the circuit breaker before beginning installation.
2. Монтаждоо бетин даярдоо: Secure the mounting strap to the electrical outlet box in the ceiling.
3. Электр байланыштарын жасоо: Connect the fixture's wires to the house wires according to the wiring diagram provided in the installation sheet. Typically, black to black (live), white to white (neutral), and bare copper/green to bare copper/green (ground). Secure connections with wire nuts.
4. Монтаждык арматура: Carefully tuck wires into the outlet box and attach the fixture canopy to the mounting strap using the provided screws.
5. Көз айнек жана лампаларды орнотуу: Install the etched glass shade and insert the recommended E26 base bulbs (max 60W each).
6. Күчтү калыбына келтирүү: Электрди өчүргүчтөн кайра күйгүзүңүз.

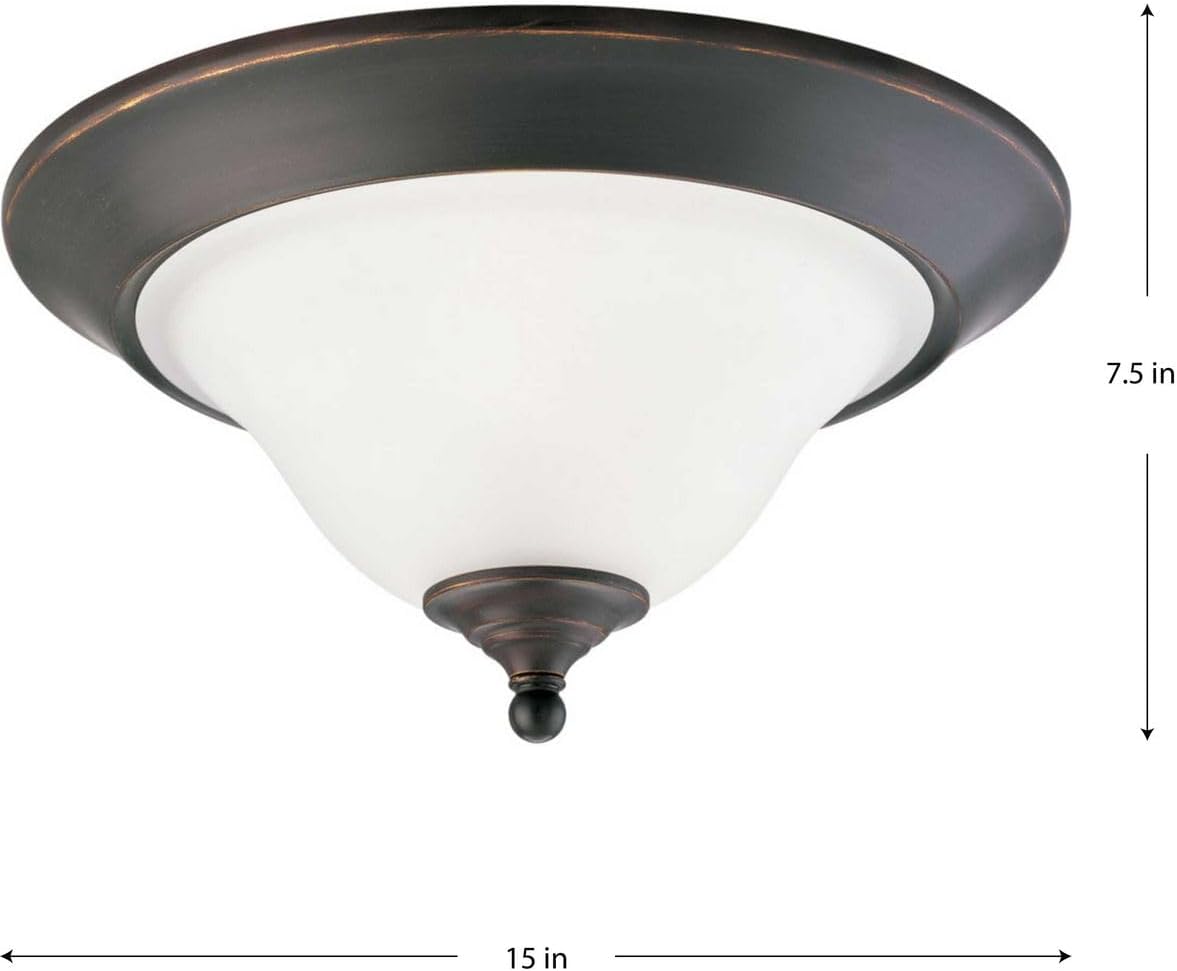

Figure 2: Product dimensions for the P3476-20 fixture, showing a 15-inch diameter and 7.5-inch height.

3-сүрөт: Мисamples of flush mount lighting applications in different home environments.

Video: Close-to-Ceiling Lighting Trends

5. Иштөө нускамалары

Once installed and bulbs are in place, operate the fixture using a standard wall switch. Ensure the correct bulb type and wattage are used to prevent damage to the fixture or fire hazard.

Лампочкага коюлган талаптар:

• Түрү: Incandescent (or compatible LED/CFL)
• Негизги: E26 (Орто база)
• Максималдуу Wattage: Ар бир лампочка 60 Ватт
• Лампалар саны: 2

Figure 4: Lumens calculator for comparing brightness across different bulb types.

6. Техникалык тейлөө

To maintain the appearance and functionality of your Progress Lighting fixture, follow these guidelines:

• Тазалоо: Always disconnect power before cleaning. Wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners, polishes, or solvents as they may damage the finish.
• Айнек көлөкө: The etched glass shade can be removed for cleaning. Wash with mild soap and water, rinse thoroughly, and dry completely before reattaching.
• Лампаны алмаштыруу: Ensure power is off. Allow bulbs to cool before replacing. Use only E26 base bulbs with a maximum of 60 watts.

Figure 5: Close-up of the etched glass shade, highlighting its texture and design.

7. Кыйынчылыктарды

Эгерде сиздин шайманыңыз туура иштебей жатса, төмөнкү кеңири таралган көйгөйлөрдү жана чечимдерди караңыз:

• Жарык күйбөйт:
  • Автоматтык өчүргүчтө кубат күйүп турганын текшериңиз.
  • Ensure bulbs are securely tightened and not burnt out.
  • Бардык зым байланыштары коопсуз экендигин текшериңиз.
• Жарык жымыңдайт:
  • Ensure bulbs are fully screwed in.
  • Зымдардын бош туташууларын текшериңиз.
  • Confirm bulbs are compatible with any dimmer switch, if installed.
• Жабдуунун ызы-чуусу:
  • This can sometimes occur with certain LED or CFL bulbs on dimmer switches. Try different bulbs or a different dimmer.

If issues persist, contact Progress Lighting customer support or a qualified electrician.

8. Техникалык шарттар

9. Кепилдик жана колдоо

Your Progress Lighting Trinity P3476-20 fixture is covered by a 1 жылдык Чектелген Кепилдик. This warranty guarantees your satisfaction with your purchase and includes professional after-sales customer service support.

For warranty claims, technical assistance, or any questions regarding your product, please contact Progress Lighting customer service. You can find more information and contact details on the official Progress Lighting webсайты же алардын Amazon дүкөнү аркылуу:
