Introduction
This manual provides essential information for the proper use, care, and maintenance of your Stanley FatMax Level. Designed for precision and durability, this tool is an indispensable asset for various leveling and alignment tasks. Please read this manual thoroughly before operation to ensure safe and effective use.
Жайгашуу
Таңгактан чыгаруу жана алгачкы текшерүү
Carefully remove the Stanley FatMax Level from its packaging. Inspect the level for any signs of damage that may have occurred during transit. Ensure all components, including the level itself and any included accessories like a carrying bag, are present and in good condition.
Figure 1: Stanley FatMax Level (Model 1-43-536)
This image displays the full length of the yellow Stanley FatMax Level, highlighting its robust construction, three integrated vials for horizontal and vertical measurements, and protective black end caps. The central vial is bridged, allowing for continuous marking.
Компоненттер
- Level Body: Heavy-duty, machine-milled aluminum profile.
- Флакондор: Three vials for horizontal, vertical, and angled measurements. Improved view колдонуунун жөнөкөйлүгү үчүн.
- Аяк тамгалар: Shock-absorbing end caps for enhanced durability.
- туткалары: Integrated handles for comfortable grip and handling.
Figure 2: Stanley FatMax Level with Carrying Bag
This image shows the Stanley FatMax Level alongside its dedicated black carrying bag, which features the Stanley FatMax logo. The bag provides convenient storage and transport for the level.
Иштөө нускамалары
The Stanley FatMax Level is designed for accurate measurement of horizontal, vertical, and 45-degree angles. Its robust design ensures reliability in demanding work environments.
Checking Horizontal Level
- Place the bottom edge of the level firmly on the surface you wish to check.
- Observe the bubble in the central horizontal vial.
- For a perfectly level surface, the bubble should be centered precisely between the two indicator lines.
Checking Vertical Plumb
- Place one of the side edges of the level against the vertical surface.
- Observe the bubble in one of the vertical vials (located at each end of the level).
- For a perfectly plumb surface, the bubble should be centered precisely between the two indicator lines.
Figure 3: Checking Vertical Plumb
This image shows a person wearing work gloves holding the yellow Stanley FatMax Level against a vertical wooden stud, demonstrating how to check for plumb. The level's handles are visible, providing a secure grip.

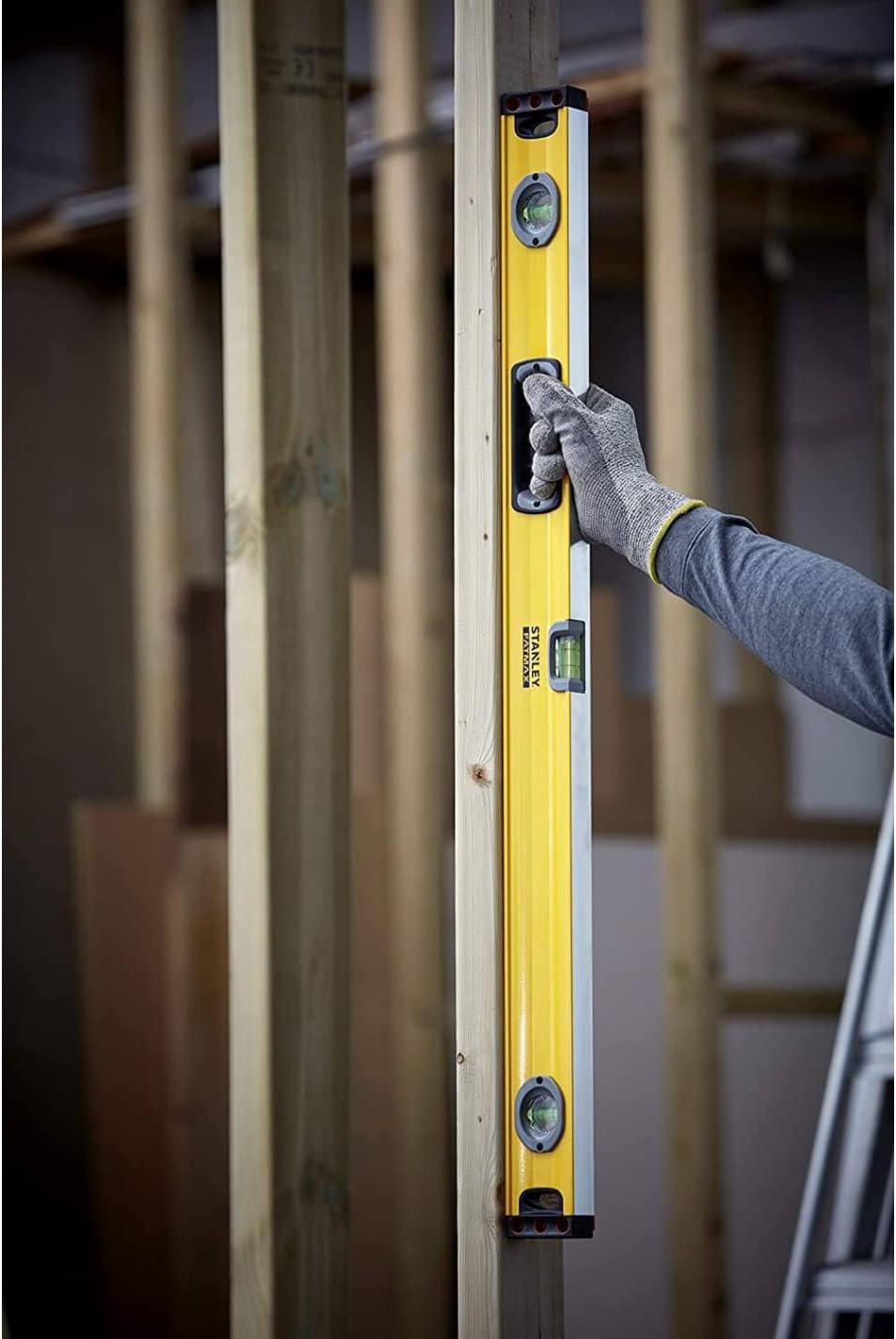

4-сүрөт: Альтернатива View of Vertical Plumb Check
This image provides another perspective of the Stanley FatMax Level being used to verify the vertical alignment of a wooden stud. The user's hand is visible, holding the level firmly against the surface.
Checking 45-Degree Angles
The level also features a 45-degree vial for checking specific angles. Position the level appropriately and observe the bubble in the 45-degree vial to ensure accuracy.
Тактык
The Stanley FatMax Level offers an accuracy of +/- 0.5 mm/m on one face and +/- 0.7 mm/m on the other. This accuracy is covered by a five-year guarantee.
Техникалык тейлөө
Тазалоо
After each use, wipe the level clean with a soft, damp cloth to remove any dust, dirt, or debris. Avoid using abrasive cleaners or solvents, as these can damage the level's finish or vials.
Сактагыч
Store the level in a dry place, away from extreme temperatures and direct sunlight. If a carrying bag is provided, use it to protect the level from scratches and impacts during storage and transport.
Vial Care
The vials are sealed and require no internal maintenance. If a vial becomes cracked or damaged, the level's accuracy may be compromised, and it should be replaced or serviced.
Проблемаларды чечүү
Туура эмес окуулар
- Текшерүү бети: Ensure the surface you are measuring is clean and free of obstructions that might prevent the level from sitting flat.
- Inspect Level: Check the level body for any bends, dents, or damage that could affect its straightness.
- Vial Integrity: Verify that the vials are not cracked and the liquid inside is clear and free of bubbles (other than the main indicator bubble).
- Температуранын өзгөрүшү: Extreme temperature changes can temporarily affect vial performance. Allow the level to acclimate to the ambient temperature.
If you suspect the level is consistently providing inaccurate readings despite these checks, it may require professional calibration or replacement. Refer to the warranty information for details on accuracy guarantee.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Стэнли ФАТМАКС |
| Модель номери | 1-43-536 |
| Узундук | 900 мм (36 дюйм) |
| Материал | Металл |
| Түс | Сары |
| Продукциянын өлчөмдөрү | 35.43"L x 2.68"W |
| Элемент Салмагы | 0.89 килограмм (1.96 фунт) |
| Тактык | +/- 0.5 mm/m (one face), +/- 0.7 mm/m (other face) |
| Флакондор | 3 (Horizontal, Vertical, 45-degree) |
| Иштөө режими | Manual |
Кепилдик жана колдоо
Тактык кепилдиги
The Stanley FatMax Level comes with a five-year accuracy guarantee. This ensures that the level maintains its specified accuracy under normal use conditions for a period of five years from the date of purchase.
Кардарларды колдоо
For any questions, concerns, or warranty claims regarding your Stanley FatMax Level, please refer to the contact information provided with your product packaging or visit the official STANLEY FATMAX webколдоо булактары үчүн сайт.
