1. Киришүү
This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your Pfister 0X6-440R Roman Tub Rough-in Valve. Please read all instructions carefully before beginning installation and retain this manual for future reference.
The Pfister 0X6-440R is a high-flow rough-in valve designed for Roman tub applications. It features 1/2-inch sweat inlets and 1/2-inch sweat outlets, with 1/2-inch male pipe thread adjustable centers, making it suitable for use with 4-hole Roman tub trim kits.
Image 1.1: Components of the Pfister 0X6-440R Roman Tub Rough-in Valve, showing the main valve body and associated parts.
Негизги өзгөчөлүктөрү:
- 4-Hole installation compatibility
- Includes union nuts
- 1/2-inch Union Inlets and 1/2-inch I.P. Outlets
- Pforever Warranty covers finish and function for life
2. Коопсуздук маалыматы
Кранды орнотуудан же тейлөөдөн мурун ар дайым негизги суу түтүгүн жаап коюңуз. Орнотуу учурунда коопсуздук көз айнеги сыяктуу тиешелүү жеке коргонуу каражаттарын тагыныңыз. Эгерде сиз орнотуу процессинин кайсы бир бөлүгүнөн күмөн санасаңыз, квалификациялуу сантехникке кайрылыңыз.
ЭСКЕРТҮҮ: Бул продукт Калифорния штатына рак жана тубаса кемтиги же башка репродуктивдүү зыян келтирүү үчүн белгилүү болгон коргошунду камтыган химиялык заттарга дуушар болушу мүмкүн. Көбүрөөк маалымат алыш үчүн www.P65Warnings.ca.gov.
3. Пакеттин мазмуну
Орнотууну баштоодон мурун бардык компоненттер бар экендигин текшериңиз:
- Pfister 0X6-440R Roman Tub Rough-in Valve (main assembly)
- Union Nuts
- Орнотуу жабдыктары
4. Орнотуу жана орнотуу
This section outlines the general steps for installing the Pfister 0X6-440R Roman Tub Rough-in Valve. Refer to the detailed diagrams for specific measurements and configurations.
4.1. General Installation Overview

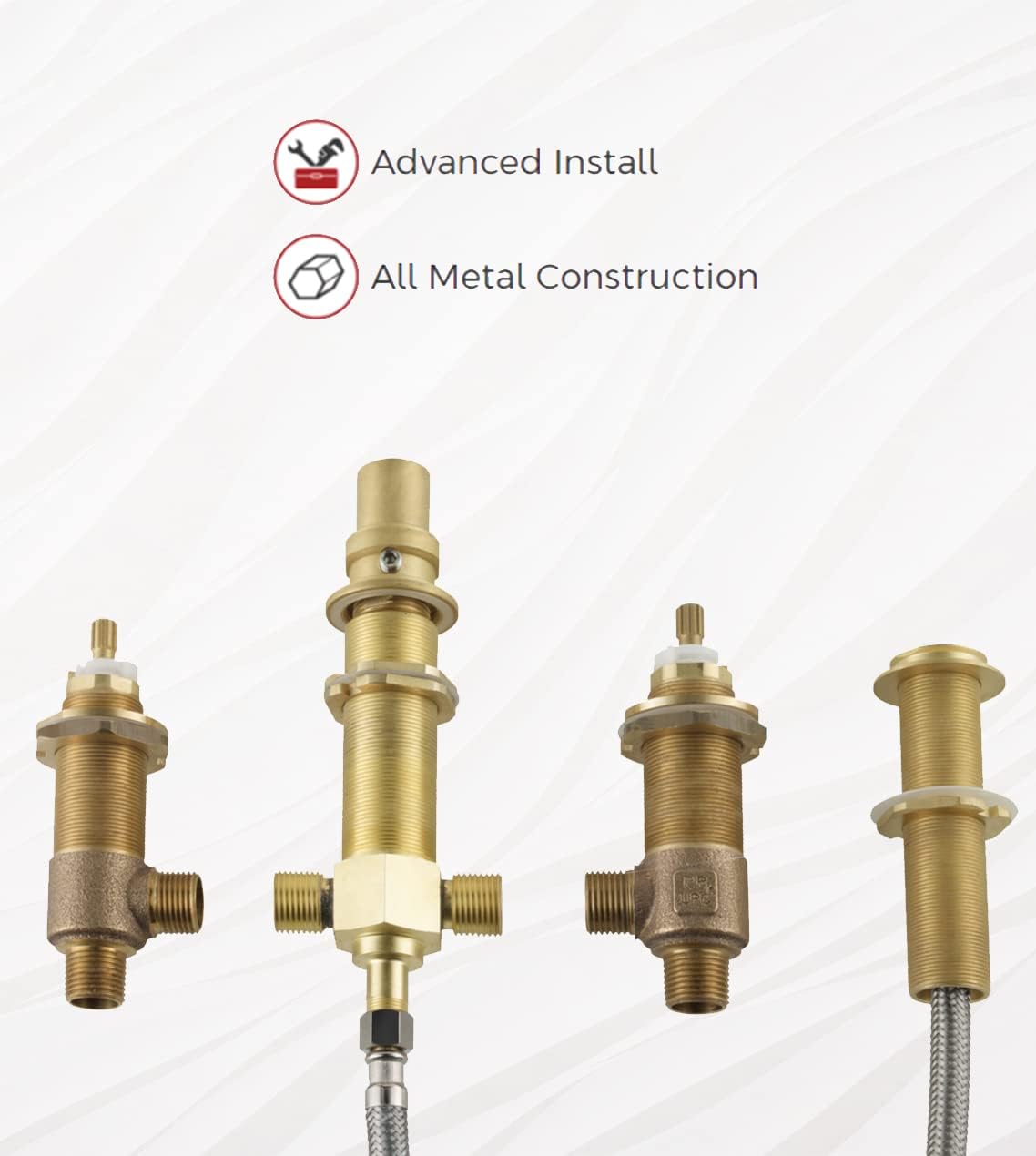

Image 4.1: Illustration highlighting the advanced installation design and all-metal construction of Pfister rough-in valves.
- Монтаждоо бетин даярдаңыз: Ensure the tub deck or mounting surface is clean and clear of debris. The valve is designed for 4-hole installations.
- Position the Valve: Place the rough-in valve assembly into the prepared holes. The 1/2-inch male pipe thread adjustable centers allow for flexibility in positioning.
- Клапанды бекитиңиз: Use the provided hardware and union nuts to firmly secure the valve to the mounting surface. Ensure the valve is level and stable.
- Суу линияларын туташтыруу: Connect the 1/2-inch sweat inlets to your hot and cold water supply lines. Connect the 1/2-inch sweat outlets to the Roman tub trim kit components (spout, handles, hand shower if applicable).
- Агышуу үчүн сыноо: Once all connections are made, slowly turn on the main water supply and check for any leaks. Tighten connections as necessary.
4.2. Installation Diagrams
Image 4.2: Diagram illustrating the dimensions and hole spacing for an inline installation of the Roman tub rough-in valve.
Image 4.3: Diagram illustrating the dimensions and hole spacing for an offset installation of the Roman tub rough-in valve.
Image 4.4: Diagram showing the valve assembly for thin surface installations, detailing connections and component placement.
Image 4.5: Diagram showing the valve assembly for thick surface installations. For thick surface installations, order STEM EXTENSION KIT 974-375.
5. Иштөө нускамалары
The Pfister 0X6-440R is a rough-in valve and does not have external operating components. Its function is to control water flow and temperature to the Roman tub trim kit (handles and spout) that will be installed over it. Refer to the instruction manual provided with your specific Pfister Roman tub trim kit for detailed operating instructions.
Generally, Roman tub faucets operate by turning the hot and cold handles to achieve the desired water temperature and flow rate through the spout.
6. Техникалык тейлөө
Proper maintenance ensures the longevity and optimal performance of your Pfister Roman Tub Rough-in Valve.
6.1. Жалпы кам көрүү
- Regularly inspect visible connections for any signs of leaks or corrosion.
- Ensure the area around the rough-in valve remains dry and free from standing water to prevent potential damage.
6.2. Тазалоо
Since the rough-in valve is typically concealed, direct cleaning is not usually required. For the visible Roman tub trim kit, follow the cleaning instructions provided with that specific product. Avoid abrasive cleaners or harsh chemicals that could damage the finish of any exposed components.
7. Кыйынчылыктарды
If you experience issues with your Roman tub faucet, the problem may originate from the rough-in valve or the trim kit. Here are some common troubleshooting steps:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Төмөн суу агымы | Partially closed shut-off valves; debris in water lines or aerator (if applicable to trim kit). | Ensure shut-off valves are fully open. Clean aerator on trim kit spout. Check for kinks in supply lines. |
| Байланыштардан агып чыгуу | бош байланыштар; бузулган O-шакекчелер же пломбалар. | Turn off water supply. Carefully tighten connections. Replace any damaged O-rings or seals. |
| Суунун температурасы маселелери | Incorrect hot/cold supply connections; issue with trim kit cartridge. | Verify hot and cold supply lines are connected correctly. Consult trim kit manual for cartridge troubleshooting. |
If problems persist after attempting these solutions, contact Pfister customer support or a qualified plumber.
8. Техникалык шарттар
| Спецификация | Деталь |
|---|---|
| Модель номери | 0X6-440R |
| Бренд | Pfister |
| Материал | Жез |
| Сырткы бүтүрүү | Copper (Unfinished) |
| Элементтин өлчөмдөрү (L x W x Y) | 0.02 x 10.5 x 13.5 дюйм |
| Элемент Салмагы | 3.63 фунт |
| Inlet Connection Size | 0.5 дюйм |
| Inlet Connection түрү | Тер |
| Розетка туташуу өлчөмү | 0.5 дюйм |
| Розетка туташуу түрү | Тер |
| Порттардын саны | 2 |
| Flow Rate | Мүнөтүнө 18 галлон |
| Туткалардын саны | 2 (for compatible trim kits) |
| Өзгөчөлүктөр | Орнотуу оңой |
| Камтылган компоненттер | Price-Pfister 0X6-440R Roman Tub Rough in Valve |
| UPC | 038877526439 |
9. Кепилдик маалыматы
The Pfister 0X6-440R Roman Tub Rough-in Valve is backed by the Pforever Warranty. This warranty covers both the finish and function of the product for life, ensuring peace of mind and long-term reliability.
Image 9.1: Pfister Limited Lifetime Warranty logo, signifying comprehensive coverage for the product.
For full details regarding the Pforever Warranty, please visit the official Pfister webсайтка же кардарларды колдоо менен байланышыңыз.
10. Колдоо жана байланыш
For further assistance, technical support, or warranty claims, please contact Pfister customer service or visit their official webсайт.
- Pfister Official Webсайт: www.pfisterfaucets.com
