Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Powermaster 48237 High-Amp Alternator. Please read these instructions carefully before proceeding with installation or use to ensure optimal performance and safety.
Коопсуздук маалыматы
- Always disconnect the vehicle's battery before working on the electrical system to prevent electrical shock or damage.
- Тиешелүү жеке коргоочу шаймандарды, анын ичинде коопсуздук көз айнектерин жана кол каптарды кийиңиз.
- Эгерде унаанын астында иштеп жатсаңыз, анын бекем тирелип турганын текшериңиз.
- Эгерде сиз орнотуунун кандайдыр бир кадамдары боюнча күмөн санасаңыз, квалификациялуу автоунаа технигине кайрылыңыз.
- Бул продукт Калифорния штатында рак жана тубаса кемтик же башка репродуктивдүү зыян алып келүүчү химиялык заттарды камтыйт (65 эскертүүсү).
Орнотуу жана орнотуу
The Powermaster 48237 High-Amp Alternator is designed for vehicle-specific applications. While it is a direct replacement for many GM AD244 applications, some modifications may be necessary for optimal fit and performance, as detailed below.
Орнотууга чейинки текшерүүлөр
- Шайкештикти текшерүү: Confirm this alternator is suitable for your specific vehicle model and year.
- Inspect Pulley: Compare the pulley on the new alternator with your existing one. If the pulley size differs, you may need a different length belt.
- Check Electrical Connector: If your vehicle's alternator plug is square instead of oval, an adapter plug may be required.
Орнотуу кадамдары
- Батареяны ажыратыңыз: Disconnect the negative battery terminal first, then the positive terminal.
- Эски генераторду алып салуу: Loosen and remove the serpentine belt. Disconnect all electrical connections from the old alternator. Remove mounting bolts and carefully extract the old alternator.
- Prepare New Alternator:
- Power Wire Upgrade: It is highly recommended to upgrade the main power wire from the alternator to the battery to a 4 AWG (American Wire Gauge) cable. The power post on this alternator is 3/8 inch in diameter, so ensure your terminal connector matches this size or enlarge it if necessary.
- Жер зымы: If your vehicle uses a separate ground wire for the alternator, ensure it is properly connected. If not, the alternator grounds through its mounting to the engine block.
- Mount New Alternator: Carefully position the Powermaster 48237 into the mounting cradle. Due to its robust construction, it may be slightly larger than a stock unit.
- The mounting bolt-hole distance (center-to-center) should be identical to stock. However, the bolt hole "width" may be slightly longer. Gentle persuasion (e.g., using a rubber mallet and wooden wedge) may be needed to align the mounting holes.
- Once aligned, insert and tighten the mounting bolts securely.
- Электрди кайра туташтыруу: Connect the main power wire to the 3/8 inch power post. Reconnect the vehicle's electrical plug.
- Серпентин курун орнотуу: Route the serpentine belt correctly and tension it according to your vehicle's specifications.
- Батареяны кайра туташтыруу: Reconnect the positive battery terminal first, then the negative terminal.
- Сыноо системасы: Start the vehicle and check for proper charging voltage (typically 13.8V to 14.8V). Monitor the dashboard warning lights.
Сүрөт 1: Алдыңкы view of the Powermaster 48237 High-Amp Alternator, showing the pulley and mounting points.

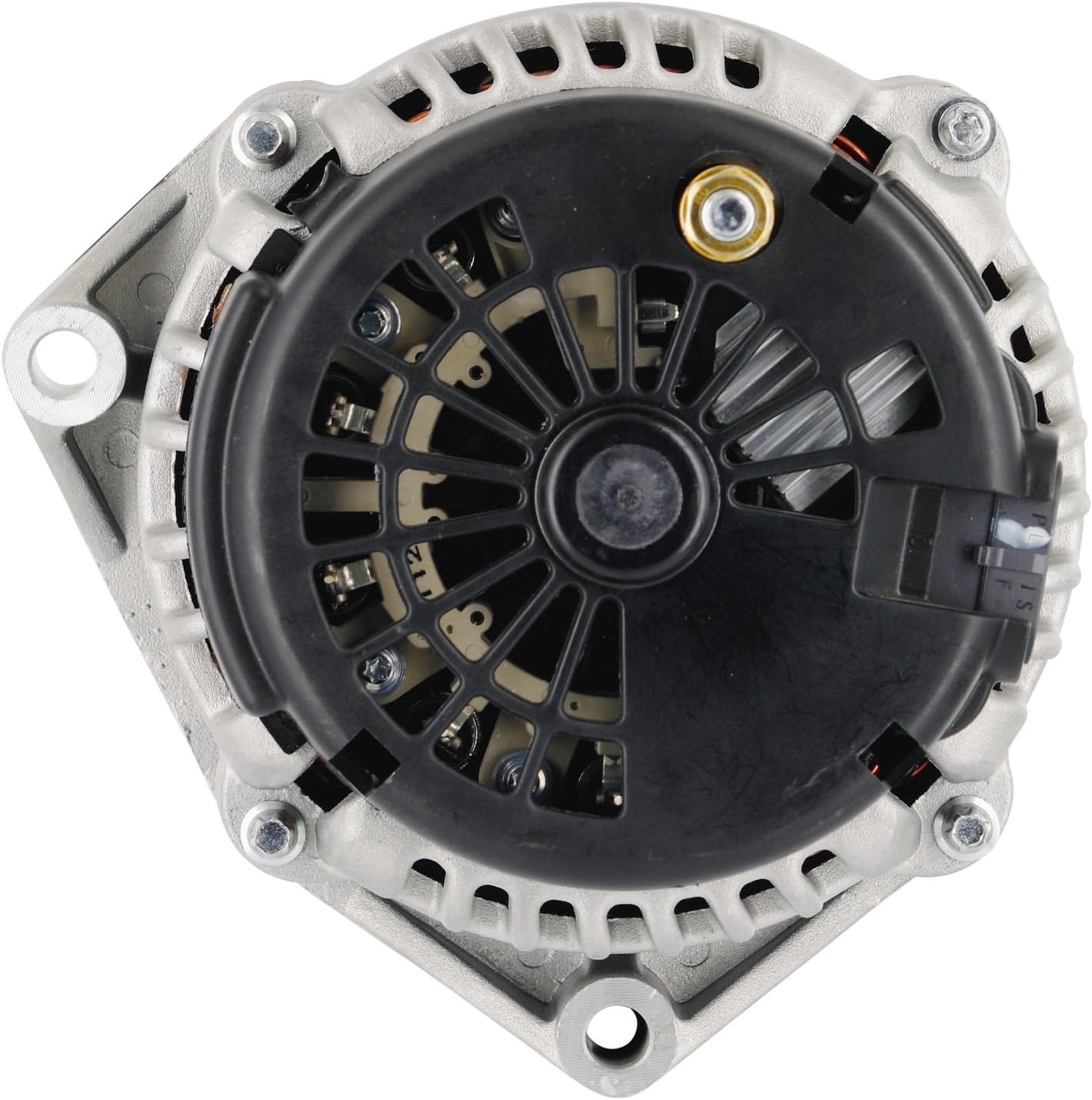

Сүрөт 2: Арткы view of the Powermaster 48237 High-Amp Alternator, highlighting the electrical connections and cooling fan.
Иштөө нускамалары
The Powermaster 48237 High-Amp Alternator is designed to provide superior electrical output for vehicles with increased power demands. Once correctly installed, it operates automatically as part of your vehicle's charging system.
- This alternator is rated for approximately 140-160 amps at idle and 195-222 amps at cruising speeds, depending on the specific unit and vehicle setup.
- Ensure your battery is in good condition to fully utilize the high output of this alternator. An AGM battery is often recommended for high-amp колдонмолор.
- Monitor your vehicle's voltage gauge to ensure stable charging.
Техникалык тейлөө
Regular maintenance helps ensure the longevity and performance of your alternator.
- Белдик текшерүү: Periodically check the serpentine belt for cracks, fraying, or excessive wear. Ensure it is properly tensioned.
- Электр байланыштары: Генераторго туташкан бардык электр туташууларын дат баскан же бошоп калган жерлерин текшериңиз. Зарылчылыкка жараша тазалап, бекемдеңиз.
- Батареянын ден соолугу: A healthy battery is crucial for the charging system. Have your battery tested regularly.
- Тазалык: Keep the alternator free from excessive dirt, oil, and debris, which can impede cooling.
Проблемаларды чечүү
If you experience issues with your charging system, consider the following common troubleshooting steps:
| Симптом | Мүмкүн себеп | Чечим |
|---|---|---|
| Battery Light On / Low Voltage |
|
|
| Bearing Noise from Alternator |
|
|
| Тtage Drop at High RPMs |
|
|
For persistent issues or problems not listed here, please contact Powermaster customer support or a certified automotive technician.
Техникалык шарттар
- Модель номери: 48237
- Бренд: ПЕРЕМАСТЕР
- Түрү: Жогорку -Amp Alternator (GM AD244 style)
- Чыгуу: 220ге чейин Amps (typically 140-160A at idle, 195-222A at cruise)
- Бөлүмдүн номери: 48237
- Элемент Салмагы: Болжол менен 15 фунт (6.8 кг)
- Элементтин өлчөмдөрү (LxWxH): Болжол менен 9 x 7.5 x 7.5 дюйм (22.86 x 19.05 x 19.05 см)
- Материал: Mixed (Metal, Plastic)
- Камтылган компоненттер: Powermaster - Alt GM AD244 Natural 220A 6 grv Pull
- Fit түрү: Унаанын өзгөчөлүгү
Кепилдик маалымат
This Powermaster alternator is covered by a Manufacturer Warranty. For specific details regarding warranty duration, coverage, and claims process, please refer to the warranty documentation included with your purchase or visit the official Powermaster webсайт. Кепилдик үчүн сатып алуу далилиңизди сактаңыз.
Кардарларды колдоо
If you have any questions, require technical assistance, or need to report an issue with your Powermaster 48237 High-Amp Alternator, please contact Powermaster customer support directly. Contact information can typically be found on the product packaging or the manufacturer's official webсайт.
