1. Киришүү
The TRENDnet 8-Port Mini Gigabit Switch, model TEG-S80g, is designed to provide high-bandwidth network performance in a compact, durable metal enclosure. This unmanaged switch features GREENnet technology for automatic power consumption adjustment, contributing to energy savings without requiring any configuration. It is suitable for expanding network connectivity in small office or home environments, offering reliable gigabit speeds for connected devices.
Видео 1: Продукт бүттүview. This video provides a brief visual introduction to the TRENDnet 8-Port Mini Gigabit Switch.
2. Өзгөчөлүктөрү
- 8 гигабиттик порттор: Provides high-speed network connections to devices.
- 16 Гбит/сек коммутациялык кубаттуулук: Allows smooth data traffic flow, reducing bottlenecks.
- GREENnet Technology: Automatically adjusts power consumption for energy savings.
- желдеткичсиз дизайн: Тынч иштөөнү камсыздайт, тынч чөйрөлөр үчүн идеалдуу.
- Узак металл корпус: Compact and robust design for desktop or wall-mountable installations.
- Plug and Play: No configuration required for easy installation.
- NDAA + TAA шайкеш келет: Meets U.S. integrity and supply chain standards for government contracts.
- LED көрсөткүчтөрү: Provides visual status for link/activity and speed for each port.
3. Пакеттин мазмуну
Пакетиңизде төмөнкү заттар бар экенин текшериңиз:
- TRENDnet 8-Port Mini Gigabit Switch (TEG-S80g)
- Кубаттуу адаптер
- Ыкчам орнотуу колдонмосу
4. Орнотуу
The TEG-S80g switch is designed for simple plug-and-play installation. Follow these steps to set up your device:
- Кубат адаптерин туташтыруу: Plug the power adapter into the DC IN port on the switch and then into a standard electrical outlet. The Power LED on the front panel will illuminate.
- Connect to Your Network: Connect an Ethernet cable from your router or modem to any of the 8 Gigabit ports on the switch.
- Тармак түзмөктөрүн туташтыруу: Connect your network devices (e.g., computers, game consoles, NAS, Smart TVs) to the remaining Gigabit ports on the switch using Ethernet cables.
- Байланышты текшерүү: The Link/ACT LED for each connected port will light up (green for Gigabit speed, orange for 10/100 Mbps speed) and blink to indicate data activity.

Image 1: The TRENDnet 8-Port Mini Gigabit Switch integrated into a home entertainment setup, connecting a Smart TV and other devices.
For wall mounting, the switch features a convenient design with mounting holes on the bottom. Ensure proper spacing for screws to securely attach the device to a wall.

Сүрөт 2: Төмөнкү view of the switch, highlighting the integrated wall mount holes for flexible installation.
5. Иштөө
The TEG-S80g is an unmanaged switch, meaning it operates automatically without requiring any software configuration. Once connected, it will intelligently manage data flow between your connected devices.
LED көрсөткүчтөрү:
- Power LED: Ажыраткыч күйгүзүлгөндө күйөт.
- Link/ACT LEDs (1-8):
- Жашыл: Indicates a Gigabit (1000 Mbps) connection.
- Ачык күрөң: Indicates a 10/100 Mbps connection.
- Жылтылдап: Indicates data activity on the port.
- Өчүк: No device is connected or the connected device is not powered on.

Сүрөт 3: Алдыңкы view of the switch, showing the Power LED and individual Link/ACT LEDs for each of the 8 ports.
6. Техникалык тейлөө
To ensure optimal performance and longevity of your TRENDnet 8-Port Mini Gigabit Switch, follow these maintenance guidelines:
- Жайгашкан жери: Ашыкча ысып кетпеши үчүн өчүргүчтү жакшы желдетилген жерге коюңуз. Аны жылуулук булактарынын жанына же күндүн түз тийген жерине койбоңуз.
- Тазалоо: Түзмөктү таза жана чаңсыз кармаңыз. Тазалоо үчүн жумшак, кургак чүпүрөк колдонуңуз. Суюк же аэрозоль тазалоочу каражаттарды колдонбоңуз.
- Кабелдик башкаруу: Ensure all Ethernet cables are securely connected and properly routed to avoid strain or damage.
- Электр камсыздоо: Аппарат менен кошо берилген кубат адаптерин гана колдонуңуз.
7. Кыйынчылыктарды
Эгерде сиз коммутаторуңуз менен көйгөйлөргө туш болсоңуз, төмөнкү жалпы көйгөйлөрдү чечүү кадамдарын карап көрүңүз:
- Кубат жок: Ensure the power adapter is securely connected to the switch and a working electrical outlet. Check if the Power LED is illuminated.
- Шилтеме жок/Аракет: Verify that Ethernet cables are securely connected to both the switch and the network device. Ensure the connected device is powered on and functioning correctly. Try using a different Ethernet cable or port.
- Жай тармак ылдамдыгы: Confirm that both the switch and your connected devices support Gigabit Ethernet for optimal speeds. Check the Link/ACT LED color (green for Gigabit). Ensure your Ethernet cables are Cat5e or higher.
- Үзгүлтүксүз туташуу: Кабелдик туташуулардын бош эместигин текшериңиз. Коммутатордун күчтүү электромагниттик тоскоолдуктардан алыс, туруктуу чөйрөдө жайгашканын текшериңиз.
If problems persist, refer to the Technical Support section for further assistance.
8. Техникалык шарттар
| Өзгөчөлүк | Description |
|---|---|
| Модель номери | TEG-S80G |
| Порттардын саны | 8 x Gigabit Ports |
| Switching Capacity | 16Gbps (full-duplex) |
| Өлчөмдөрү (L x W x Y) | 4.96 x 2.04 x 0.94 дюйм (126 x 51.8 x 24 мм) |
| Салмагы | 14.4 унция (408 г) |
| Турак жай | Металл |
| Күйөрмансыз | Ооба |
| Энергияны үнөмдөө | GREENnet Technology |
| Монтаждоо | Иш такта, дубалга орнотулган |
| Шайкештик | NDAA + TAA Compliant (U.S. and Canada Only) |

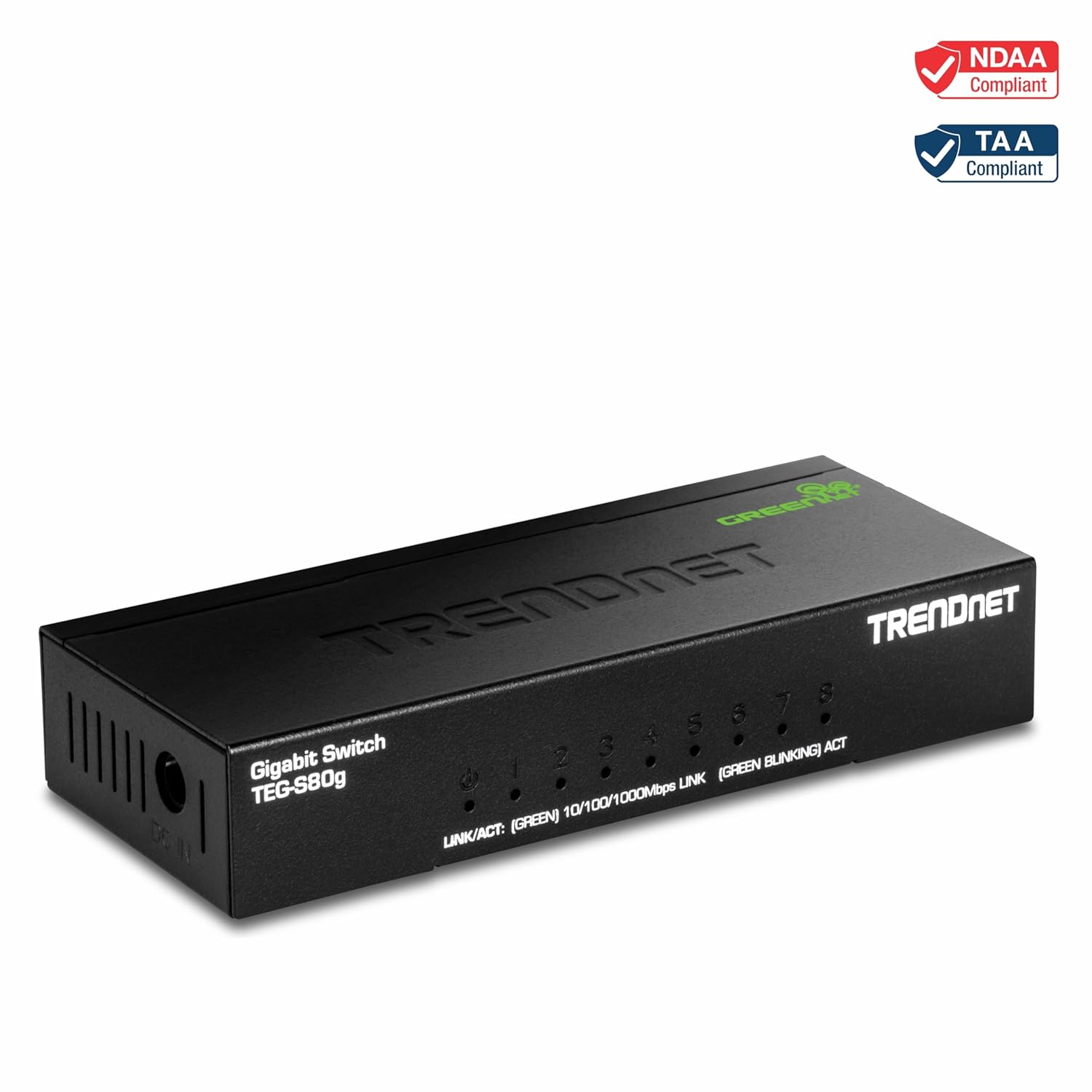

Image 4: Visual representation of the compact dimensions of the TRENDnet 8-Port Mini Gigabit Switch.
9. Кепилдик
The TRENDnet 8-Port Mini Gigabit Switch (TEG-S80g) is secured with Lifetime Manufacturer Protection from TRENDnet (U.S. and Canada Only). This warranty covers defects in materials and workmanship under normal use.
10. Техникалык колдоо
For any technical assistance or inquiries, TRENDnet offers reliable technical support. Our team of English-speaking advisors and experts are available during normal business hours to assist you with your needs.
Please visit the official TRENDnet webбайланыш маалыматы жана кошумча ресурстар үчүн сайт: www.trendnet.com
