1. Киришүү
This manual provides essential information for the proper installation, operation, and maintenance of the Rittal SK Filter Mat. This filter mat is designed for use with Rittal SK 3273, 3382/83/84/85/59 series roof assembly cooling units to ensure optimal performance and longevity of your equipment by filtering incoming air.
The Rittal SK Filter Mat is a crucial component for maintaining the efficiency of your cooling unit by preventing dust and debris from entering the system. Regular inspection and replacement are vital for effective operation.
2. Коопсуздук маалыматы
Please read and understand all safety instructions before handling or installing the filter mat. Failure to do so may result in damage to the product or associated equipment.
- Always disconnect power to the cooling unit before attempting any installation, maintenance, or replacement of the filter mat.
- Handle the filter mat carefully to avoid damage.
- Ensure the filter mat is correctly oriented and securely fitted to prevent bypass airflow.
- Dispose of used filter mats according to local environmental regulations.
3. Пакеттин мазмуну
Таңгакты ачканда бардык компоненттердин бар экенин жана бузулбаганын текшериңиз.
- 1 x Rittal SK Filter Mat (SK 3286.500)

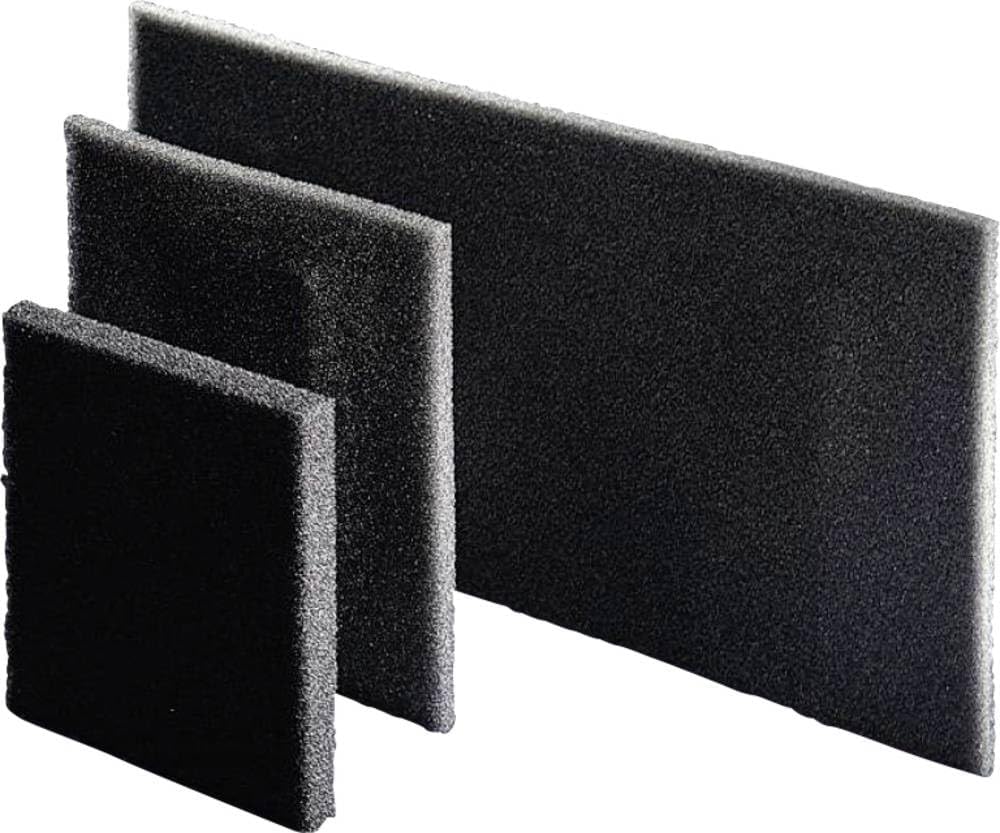

Figure 3.1: Rittal SK Filter Mat. This image displays three rectangular black foam filter mats of varying sizes, illustrating the product's appearance and texture.
4. Орнотуу жана орнотуу
The Rittal SK Filter Mat is designed for easy installation into compatible Rittal SK series cooling units.
- Электр энергиясын өчүрүү: Before beginning, ensure the cooling unit is completely powered off and disconnected from the main power supply. This is a critical safety step.
- Фильтр бөлүмүн табыңыз: Identify the filter compartment on your Rittal SK 3273, 3382/83/84/85/59 roof assembly cooling unit. Refer to your cooling unit's specific manual if you are unsure of its location.
- Эски чыпканы алып салуу (эгер бар болсо): If replacing an existing filter, carefully remove the old, soiled filter mat from the compartment. Note its orientation for correct installation of the new filter.
- Жаңы чыпка киргизүү: Place the new Rittal SK Filter Mat into the designated compartment. Ensure it fits snugly and completely covers the air intake opening. The filter mat should be oriented so that the air flows through it correctly (typically, the coarser side faces the incoming air, if distinguishable).
- Коопсуз бөлүм: Close and secure the filter compartment cover.
- Күчтү калыбына келтирүү: Reconnect the cooling unit to the power supply and restore power.
Figure 4.1: Rittal SK Filter Mat in a darker environment. This image provides a close-up view of the filter mat's porous texture, emphasizing its material composition.
5. Иштөө принциптери
The Rittal SK Filter Mat operates passively as part of your cooling unit's air intake system. Its primary function is to capture airborne dust, dirt, and other particulate matter before they can enter the cooling unit's internal components. This protection helps to:
- Maintain optimal airflow and cooling efficiency.
- Prevent buildup on heat exchangers and fans, which can lead to overheating.
- Extend the lifespan of the cooling unit's sensitive electronic and mechanical parts.
No active user interaction is required for the filter mat's operation once installed correctly. Its effectiveness depends on regular inspection and timely replacement.
6. Техникалык тейлөө
Regular maintenance of the filter mat is crucial for the efficient and reliable operation of your Rittal cooling unit.
6.1 Inspection Frequency
Inspect the filter mat regularly, typically every 2-4 weeks, or more frequently in dusty environments. A visible accumulation of dust and debris indicates the need for replacement.
6.2 Алмаштыруу процедурасы
- Өчүрүү: Disconnect power to the cooling unit.
- Кирүү чыпкасы: Чыпка бөлүмүн ачыңыз.
- Эски чыпканы алып салуу: Carefully remove the saturated filter mat.
- Таза бөлүм: Wipe down the filter compartment to remove any loose dust.
- Жаңы чыпканы орнотуу: Insert a new Rittal SK Filter Mat (Part No. SK 3286.500) into the compartment, ensuring correct fit and orientation.
- Жабуу жана күйгүзүү: Close the compartment cover and restore power to the cooling unit.
Эскертүү: Rittal SK Filter Mats are designed for single use and should be replaced, not cleaned, to ensure optimal filtration performance.
7. Кыйынчылыктарды
This section addresses common issues related to the filter mat's performance.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Reduced airflow from cooling unit | Filter mat is clogged with dust and debris. | Replace the filter mat with a new one. |
| Cooling unit overheating | Severely clogged filter mat restricting airflow. | Immediately replace the filter mat. Ensure proper ventilation around the cooling unit. |
| Dust inside cooling unit enclosure | Filter mat not installed correctly or damaged. | Check filter mat for proper seating and damage. Replace if necessary. Ensure filter compartment is sealed. |
8. Техникалык шарттар
Detailed specifications for the Rittal SK Filter Mat (Part No. SK 3286.500):
- Өндүрүүчү: Риттал
- Бөлүмдүн номери: SK 3286.500(VE3)
- Модел: SK
- Материал: Пластик
- Түсү: Ак
- Өлчөмдөрү (L x W x Y): 1 см х 26.8 см х 34.4 см
- Салмагы: 0.38 килограмм (380 г)
- EMC Design: Жок
- With Filter Mat: Yes (This product is the filter mat itself)
- Буюм пакетинин саны: 1
- Compatible Cooling Units: Rittal SK 3273, 3382/83/84/85/59 series
9. Кепилдик жана колдоо
Specific warranty information for the Rittal SK Filter Mat is not provided in the product data. For details regarding warranty coverage, technical support, or to purchase replacement filter mats, please contact Rittal customer service or visit the official Rittal webсайт.
Адатта байланыш маалыматын жана колдоо булактарын өндүрүүчүнүн расмий өкүлүнөн таба аласыз webсайт: www.rittal.com
