Cartrend 80127 12V/24V Battery Tester User Manual

1. Киришүү

The Cartrend 80127 is a versatile and essential tool for monitoring the health of your vehicle's battery. Designed for both 12-volt and 24-volt lead-acid batteries, this tester provides clear and accurate voltage readings via its large, blue backlit LCD screen. Its robust design and multiple connection options make it suitable for continuous monitoring in various applications, from personal automobiles to commercial trucks.

2. Продукциянын өзгөчөлүктөрү

• Тtage Шайкештик: 12V жана 24V батарея системаларын колдойт.
• Батарея түрү: Compatible with all standard lead-acid batteries.
• Дисплей: Features a large, blue backlit LCD screen for clear visibility in various lighting conditions.
• Үзгүлтүксүз мониторинг: Suitable for ongoing assessment of battery status.
• Ар тараптуу колдонмо: Ideal for use with automobiles, trucks, and other vehicles.
• Туташуу параметрлери: Equipped with three different connection methods for user convenience.

3. Орнотуу жана туташуу

To ensure accurate readings and safe operation, follow these steps for setting up your Cartrend 80127 Battery Tester:

1. Батареяны даярдоо: Ensure the battery terminals are clean and free from corrosion. Use a wire brush if necessary to remove any buildup.
2. Туташуу ыкмасын тандаңыз: The tester comes with three connection options. Choose the most appropriate method for your application (e.g., alligator clamps for direct battery terminal connection, ring terminals for semi-permanent installation, or a cigarette lighter plug for in-cabin monitoring).

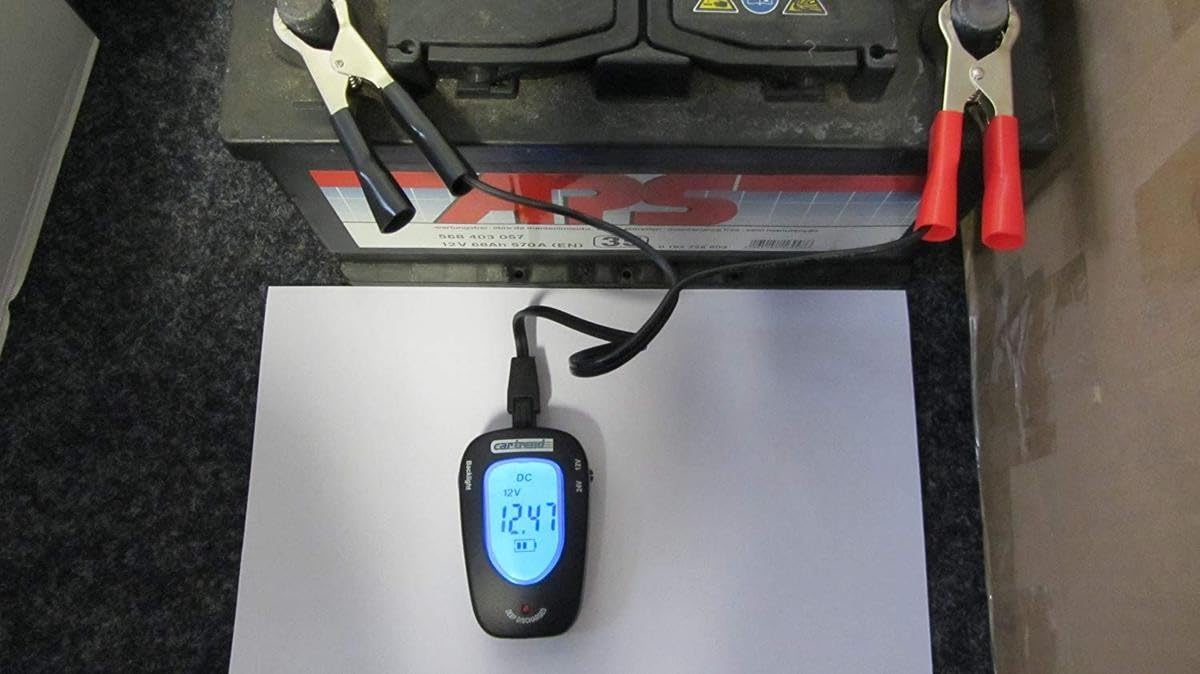

3. Сыноочуну туташтыруу: Securely attach the chosen connector to the battery. For alligator clampс, кызыл cl туташтырууamp оң (+) терминалга жана кара clamp to the negative (-) terminal. Ensure a firm connection to prevent inaccurate readings or disconnections.
4. Күйгүзүү: The device will typically power on automatically once connected to a live battery. The blue backlit LCD screen will illuminate.

4. Иштөө нускамалары

Once connected, the Cartrend 80127 provides real-time battery voltagмаалымат:

• Тtage Дисплей: The large LCD screen will immediately display the current DC voltage of the connected battery. The device automatically detects whether it is a 12V or 24V system and indicates this on the screen (e.g., "DC 12V" or "DC 24V").
• Окууларды которуу:
  • For a 12V battery, a fully charged battery typically reads around 12.6V to 12.8V. A reading below 12.0V indicates a discharged battery.
  • For a 24V battery, a fully charged battery typically reads around 25.2V to 25.6V. A reading below 24.0V indicates a discharged battery.
• Deep Discharged Indicator: The tester features a red LED indicator labeled "DEEP DISCHARGED." This light will illuminate if the battery voltage drops to a critically low level, signaling that the battery is severely discharged and may require immediate charging or replacement.

5. Техникалык тейлөө

Proper care will extend the life and accuracy of your battery tester:

• Тазалоо: Түзмөктү таза жана кургак кармаңыз. Сыртын жумшак, кургак чүпүрөк менен сүртүңүз.amp кездеме. Абразивдүү тазалоочу каражаттарды, эриткичтерди колдонбоңуз же түзмөктү сууга салбаңыз.
• Сактагыч: When not in use, store the tester in a cool, dry place, away from direct sunlight, extreme temperatures, and corrosive materials.
• Кабелдик текшерүү: Periodically inspect the connection cables and clampэскирүүнүн, бузулуунун же дат басуунун кандайдыр бир белгилерин байкасаңыз, алмаштырыңыз. Зарыл болсо, алмаштырыңыз.

6. Кыйынчылыктарды

If you encounter issues with your Cartrend 80127 Battery Tester, consider the following:

• Дисплей жок/кубат жок:
  • Ensure all connections to the battery are secure and clean.
  • Verify that the battery itself has some charge; the tester requires minimal power from the battery to operate.
• Туура эмес окуулар:
  • Check for loose or corroded connections at both the battery terminals and the tester's input.
  • Ensure the battery is not actively charging or under heavy load during the test, as this can affect static voltagэ окуулар.
• 'Deep Discharged' Indicator On:
  • Бул батареянын көлөмүн көрсөтөтtage is critically low. Attempt to charge the battery immediately.
  • If the battery does not hold a charge after recharging, it may need to be replaced.

7. Техникалык шарттар

8. Кепилдик жана колдоо

For detailed warranty information, technical assistance, or customer support regarding your Cartrend 80127 Battery Tester, please refer to the official Cartrend webсайтына кириңиз же продуктуну сатып алган сатуучуга кайрылыңыз. Кепилдик боюнча дооматтар үчүн сатып алгандыгыңызды тастыктаган документти сактап коюу сунушталат.
