Introduction
The Scosche HY10B Car Radio Wiring Harness is designed to facilitate the installation of an aftermarket stereo receiver in select non-amplified Hyundai and Kia vehicles manufactured between 2008 and 2013. This harness provides a seamless connection, eliminating the need to cut or modify your vehicle's factory wiring, ensuring a clean and secure installation.
Шайкештик
This wiring harness is compatible with specific Hyundai and Kia vehicle models and years. Please refer to the fit guide below to confirm compatibility with your vehicle.

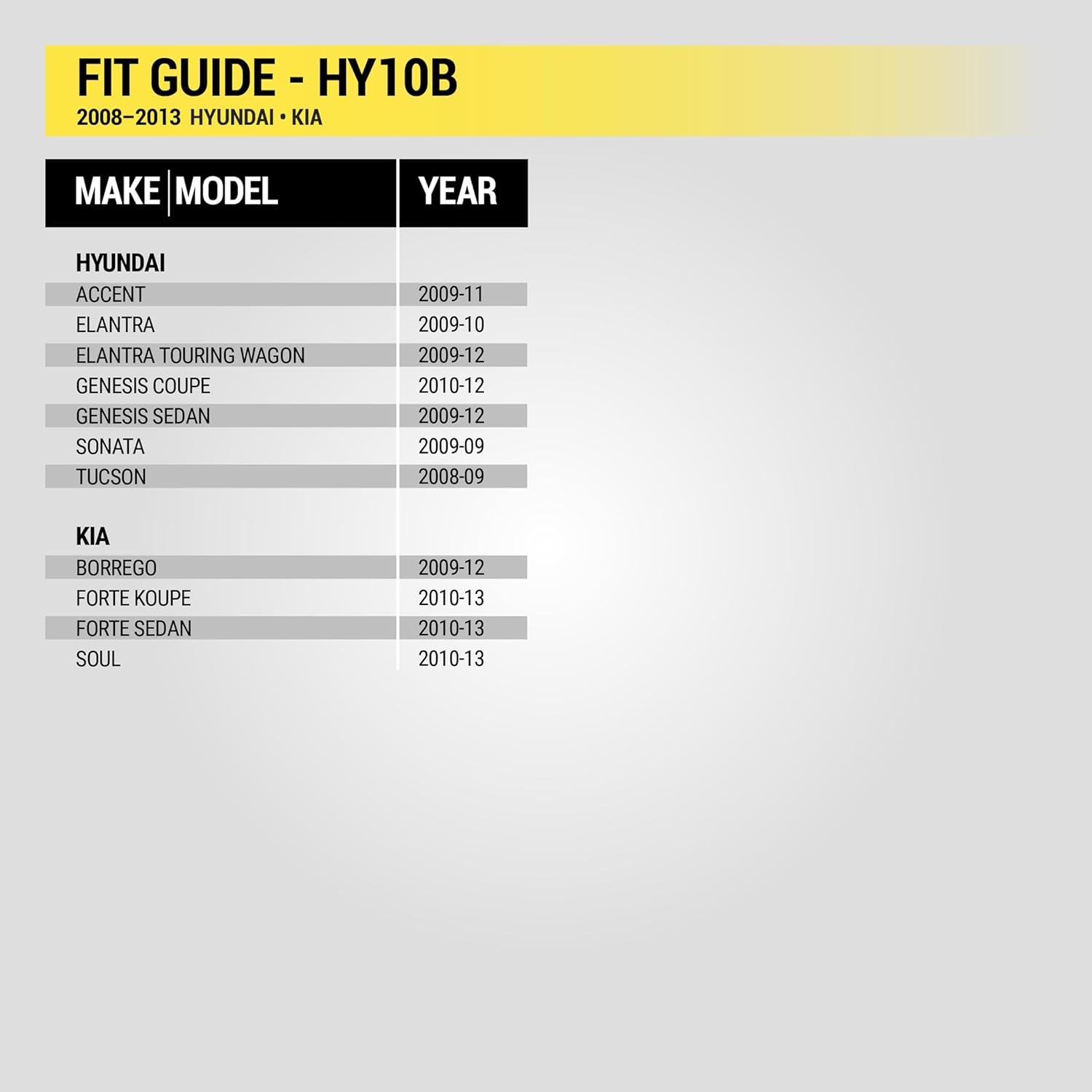

Сүрөт: Fit Guide for Scosche HY10B. This image displays a table listing compatible Hyundai models (Accent 2009-11, Elantra 2009-10, Elantra Touring Wagon 2009-12, Genesis Coupe 2010-12, Genesis Sedan 2009-12, Sonata 2009-09, Tucson 2008-09) and Kia models (Borrego 2009-12, Forte Koupe 2010-13, Forte Sedan 2010-13, Soul 2010-13).
Пакеттин мазмуну
- Scosche HY10B Wiring Harness
- Көрсөтмө (бул документ)
Өзгөчөлүктөрү
The Scosche HY10B wiring harness offers several key features designed for ease of installation and reliable performance:
- Үзгүлтүксүз интеграция: Ensures a perfect fit for select vehicles without cutting any factory wiring.
- Ыңгайлуу чечим: Allows quick installation of a new aftermarket car stereo using factory wire harness and connectors.
- Оңой орнотуу: Features standard color-coded wires and a user-friendly design.
- Жогорку шайкештик: Designed to fit various Hyundai and Kia models.
- Жакшыртылган аудио сапаты: Crafted with factory-quality automotive-grade wires and connectors for optimal signal transmission.
Сүрөт: Scosche HY10B Car Stereo Wire Harness. This image illustrates the harness and points out its features: Easy to Install (quickly connects factory wiring), Factory Quality, and Direct Connection. It also notes that wires are standard colors and labeled to easily match your new stereo.
Орнотуу жана орнотуу
Proper installation of the HY10B wiring harness is crucial for the correct functioning of your aftermarket stereo. Follow these general steps:
- Даярдоо: Before beginning, ensure your vehicle's battery is disconnected to prevent electrical shorts. Gather all necessary tools and your aftermarket stereo's wiring diagram.
- Зымдарды аныктоо: The HY10B harness uses EIA standard color-coded wires. Match the wires on the HY10B harness to the corresponding wires on your aftermarket stereo's harness. Refer to the EIA Wire Color Code Chart provided below and your stereo's owner's manual for specific wiring details.
- Зымдарды туташтыруу: Securely connect the wires from the HY10B harness to your aftermarket stereo's harness. It is recommended to solder and heat-shrink connections for the most reliable bond, or use high-quality crimp connectors. Ensure each connection is insulated to prevent short circuits.
- Зымды унаага туташтырыңыз: Once all connections between the HY10B harness and your aftermarket stereo are made, plug the vehicle-specific connector of the HY10B harness into your vehicle's factory radio wiring harness.
- Сыноо жана коопсуз: Reconnect the vehicle's battery. Test the functionality of your new stereo, including power, audio output for all speakers, and any other features. Once confirmed, secure the stereo and wiring in the dashboard.
Сүрөт: Фронт view of the Scosche HY10B Car Radio Wiring Harness. This image shows the black plastic connector on the left and the multi-colored wires extending from it on the right, with some wires labeled (e.g., CHASSIS, GROUND, RIGHT, POSITIVE).
Сүрөт: Бурчтуу view of the Scosche HY10B Car Radio Wiring Harness. This image provides a different perspective of the harness, showing the connector and the array of color-coded wires, including labels like ANTENNA, POWER, and FRONT.

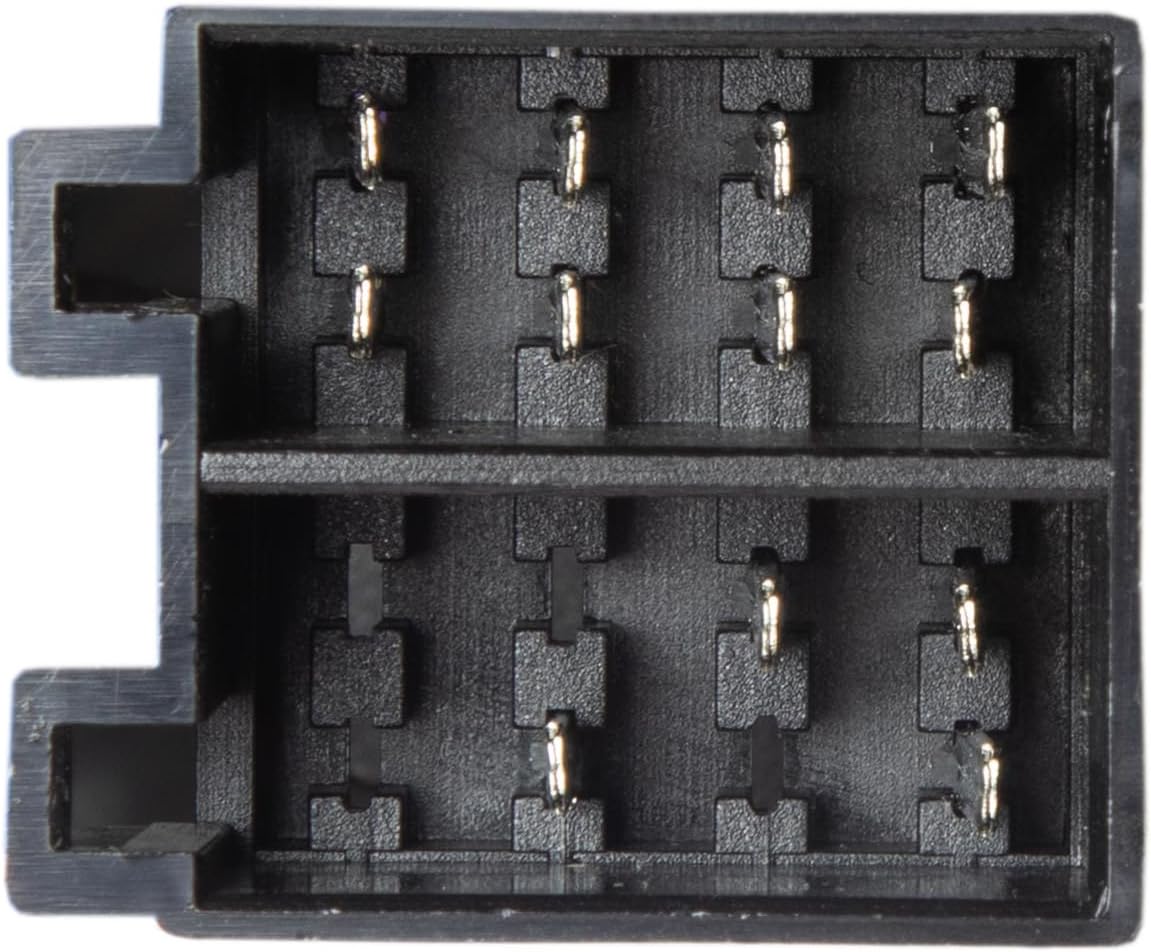

Сүрөт: Жакын план view of the Scosche HY10B connector pins. This image shows the internal pin configuration of the black plastic connector, which interfaces with the vehicle's factory wiring.
EIA зымынын түс кодунун диаграммасы
The following chart details the standard color codes used on this car stereo connector harness, conforming to the E.I.A. (Electronics Industry Association) standard. These colors may differ from the wiring codes found on your stereo. Always refer to your stereo owner's manual for specific wiring details before making any connections.
Сүрөт: EIA Wire Color Code Chart. This chart lists various wire colors (e.g., Yellow, Red, Black, Blue, Green, Purple) and their corresponding functions (e.g., 12V Battery: Constant (+), 12V Battery: Switched (+), Chassis Ground (-), Antenna Power, Left Front Speaker (+)).
Иштеп жатат
Once the Scosche HY10B wiring harness is correctly installed and connected to your aftermarket stereo, the stereo should operate as intended. The harness acts as an adapter, ensuring that power, ground, speaker signals, and other necessary connections are properly routed from your vehicle's factory wiring to your new stereo.
Refer to your aftermarket stereo's instruction manual for details on its specific operation, features, and settings.
Техникалык тейлөө
The Scosche HY10B wiring harness is designed for long-term reliability and requires minimal maintenance. Once installed, ensure that all connections remain secure and free from moisture or excessive vibration. There are no user-serviceable parts within the harness itself.
- Periodically check connections if you experience intermittent issues with your stereo.
- Keep the area around the wiring harness clean and dry.
Проблемаларды чечүү
If you encounter issues after installing the HY10B wiring harness, consider the following troubleshooting steps:
- Стерео үчүн кубат жок:
- Check the vehicle's fuse box for any blown fuses related to the radio or accessory power.
- Verify that the constant 12V (Yellow wire) and switched 12V (Red wire) connections are secure and correctly matched.
- Ensure the ground wire (Black wire) is securely connected to a bare metal chassis point.
- Динамиктерден үн жок:
- Confirm that all speaker wires (Green, White, Gray, Purple, and their black-striped counterparts) are correctly matched and securely connected to the aftermarket stereo's speaker outputs.
- Check the balance and fader settings on your aftermarket stereo.
- Ensure your vehicle does not have a factory amplified system, as this harness is designed for non-ampлифттүү системалар.
- Intermittent Power or Sound:
- Inspect all wire connections for looseness or poor insulation. Re-crimp or re-solder any questionable connections.
- Ensure the harness connector is fully seated into the vehicle's factory harness.
- Radio Not Receiving Stations:
- Verify that the antenna adapter (if used) is correctly connected.
- Ensure the blue wire (Antenna Turn On) from the aftermarket stereo is connected to the corresponding wire on the harness (if applicable for powered antenna).
If issues persist after following these steps, it is recommended to consult a professional car audio installer or contact Scosche customer support.
Техникалык шарттар
| Бренд | Scosche |
| Модель номери | HY10B |
| Материал | Metal core with plastic insulation/jacketing (e.g., copper with PVC or PE) |
| Элементтин өлчөмдөрү (L x W x Y) | 6 x 4 x 0.5 дюйм |
| Элемент Салмагы | 0.634 унция |
| Туташтыргыч түрү | Proprietary Vehicle-specific Connector |
| UPC | 033991022133 |
| Түс | Кара |
| Дата биринчи жеткиликтүү | 23-декабрь, 2009-жыл |
Кепилдик жана колдоо
The Scosche HY10B Car Radio Wiring Harness is backed by Scosche's Lifetime Tech Support and Limited Warranty. For technical assistance or warranty claims, please refer to the contact information provided with your product packaging or visit the official Scosche webсайт.
Scosche is committed to providing quality car audio solutions and exceptional performance from their products.
