Sierra International 18-7748 Carburetor Kit Instruction Manual

1. Киришүү

This manual provides instructions for the installation and maintenance of the Sierra International 18-7748 Carburetor Kit. This kit is designed for specific marine engine applications to restore carburetor function.

Шайкештик: The Sierra 18-7748 Carburetor Kit is interchangeable with the following carburetor models and part numbers:

• Carter/Weber: 9600, 9662, 9663, 9665, 9666, 9772, 9773, 9774, 9776, 9777, 9780, 9782, 9665S, 9772SA, 9776S, 9776SA, 9776SB, 9779S, 9780S
• Mallory: 9-37639
• Mercruiser: 809064, 8M0120193, 808697

It is specifically designed for: 1987-1997 MCM/MIE/Tow Sports 350 Mag & 5.7L/LX Engines With 9665 & 9781 Weber Carbs, and 1990-1997 MCM/MIE 454 Mag 7.4L & 8.2L Engines.

2. Коопсуздук маалыматы

Always prioritize safety when working with fuel systems. Gasoline is highly flammable and its vapors are explosive. Ensure adequate ventilation and work in a well-lit area free from ignition sources.

• Disconnect the battery before beginning any work to prevent accidental engine starting or electrical shorts.
• Тиешелүү жеке коргоочу шаймандарды (ЖКК), анын ичинде коопсуздук көз айнектерин жана кол каптарды кийиңиз.
• Өрт өчүргүч даяр болушу керек.
• Эски күйүүчү майды жана тетиктерди жергиликтүү эрежелерге ылайык жок кылыңыз.
• If you are unsure about any step, consult a qualified marine mechanic.

3. Пакеттин мазмуну

The Sierra International 18-7748 Carburetor Kit includes all necessary components for a comprehensive carburetor rebuild. Please verify all parts are present before beginning installation.

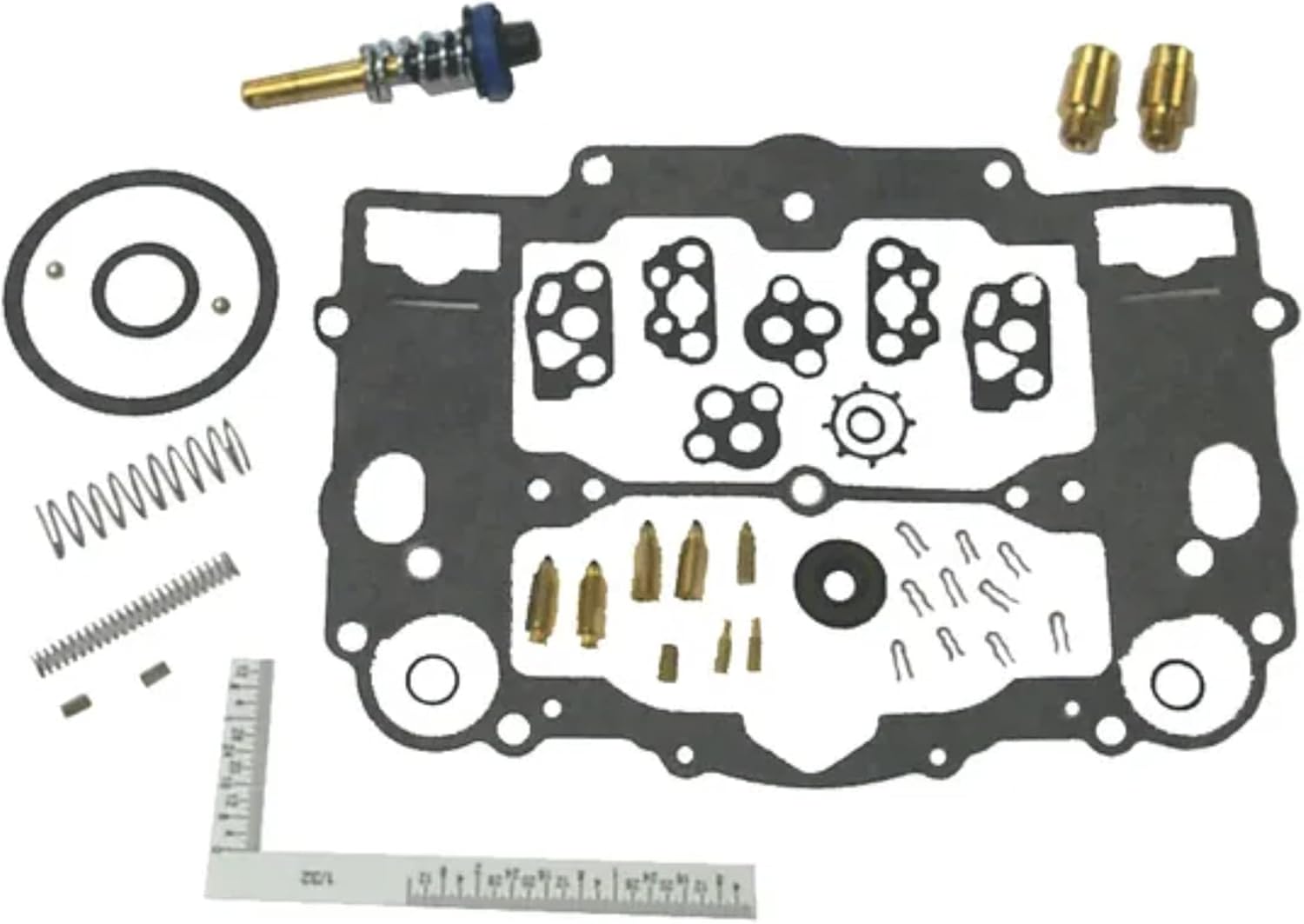

3.1-сүрөт: The complete Sierra International 18-7748 Carburetor Kit. It includes a main carburetor gasket, several smaller gaskets, various brass jets of different sizes, springs, a needle valve assembly with a blue cap, and other small components necessary for a carburetor rebuild. A small ruler is visible at the bottom for scale.

Комплект төмөнкүлөрдү камтыйт:

• Main carburetor gasket
• Assorted smaller gaskets and O-rings
• Various brass jets
• Springs
• Needle valve assembly
• Other small components for rebuild

4. Орнотуу жана орнотуу

Installation of a carburetor kit requires mechanical aptitude and specific tools. If you are not confident in your ability to perform this procedure, it is recommended to seek professional assistance.

4.1. Даярдоо

1. Ensure the engine is cool and the battery is disconnected.
2. Күйүүчү май берүүчү клапанды жабыңыз.
3. Gather all necessary tools, including screwdrivers, wrenches, pliers, and a clean workspace.
4. Have a container ready to catch any spilled fuel.

4.2. Disassembly of Old Carburetor

1. Carefully remove the air cleaner assembly.
2. Disconnect all fuel lines, vacuum lines, and electrical connections from the carburetor. Label them if necessary for reassembly.
3. Remove the carburetor mounting bolts and lift the carburetor from the engine.
4. Disassemble the carburetor, noting the position and orientation of all components. Take photographs if helpful.
5. Clean all carburetor components thoroughly with a suitable carburetor cleaner. Inspect for wear or damage beyond what the kit replaces.

4.3. Kit Installation and Reassembly

1. Replace all old gaskets, O-rings, jets, and the needle valve assembly with the new components from the Sierra 18-7748 kit.
2. Ensure all new parts are installed correctly and securely. Refer to your engine's specific service manual for detailed diagrams and torque specifications.
3. Reassemble the carburetor, ensuring all linkages move freely.
4. Mount the rebuilt carburetor onto the engine, using a new base gasket if provided. Tighten mounting bolts to specifications.
5. Reconnect all fuel lines, vacuum lines, and electrical connections.
6. Аба тазалагычтын түзүлүшүн кайра орнотуңуз.

5. Иштетүү (орнотуудан кийин)

After installation, perform the following checks before operating the engine:

• Open the fuel supply valve and check for any fuel leaks around the carburetor and fuel lines.
• Батареяны кайра туташтырыңыз.
• Моторду иштетип, аны жылытууга мүмкүнчүлүк бериңиз.
• Check for proper idle speed and smooth operation. Adjust idle mixture and speed screws as necessary, referring to your engine's service manual for specific procedures.
• Monitor for any unusual noises, smells, or performance issues.

6. Техникалык тейлөө

Regular maintenance helps ensure the longevity and optimal performance of your carburetor:

• Periodically inspect fuel lines and connections for leaks or deterioration.
• Ensure the fuel filter is clean and replace it as recommended by your engine manufacturer.
• Use fresh, clean fuel. Stale or contaminated fuel can cause carburetor issues.
• If the engine is stored for an extended period, consider using a fuel stabilizer or draining the fuel system to prevent gumming and varnish buildup.

7. Кыйынчылыктарды

This section addresses common issues that may arise after carburetor kit installation.

For persistent issues, consult your engine's service manual or a qualified marine technician.

8. Техникалык шарттар

9. Кепилдик жана колдоо

All Sierra parts qualify for and are covered under Sierra's industry-leading customer satisfaction warranty. For specific warranty details or technical support, please refer to the official Sierra International webсайтка же кардарларды тейлөө бөлүмүнө кайрылыңыз.

Өндүрүүчү: Sierra
