SCOSCHE GM1504 General Motors Stereo Install Dash Kit

1. Киришүү

This dash kit facilitates the installation of an aftermarket stereo into your vehicle, replacing the factory unit. The GM1504 is constructed from high-quality automotive-grade ABS plastic, designed to integrate with the texture of your factory dash. Installation is designed to be straightforward, requiring no specialized tools, and includes step-by-step instructions.

Негизги өзгөчөлүктөрү:

• Easy-to-follow, illustrated, step-by-step instructions are included with the product.
• Features a heavy-duty mounting panel, designed to avoid the need for dash modifications.
• Compatible with various stereo types, including DIN and removable face units.
• Manufactured from high-quality automotive-grade ABS plastic with a factory-style texture.
• Installation typically does not require special tools.

2. Пакеттин мазмуну

The Scosche GM1504 dash kit includes all necessary plastic mounting brackets and hardware for a secure installation of your aftermarket stereo.

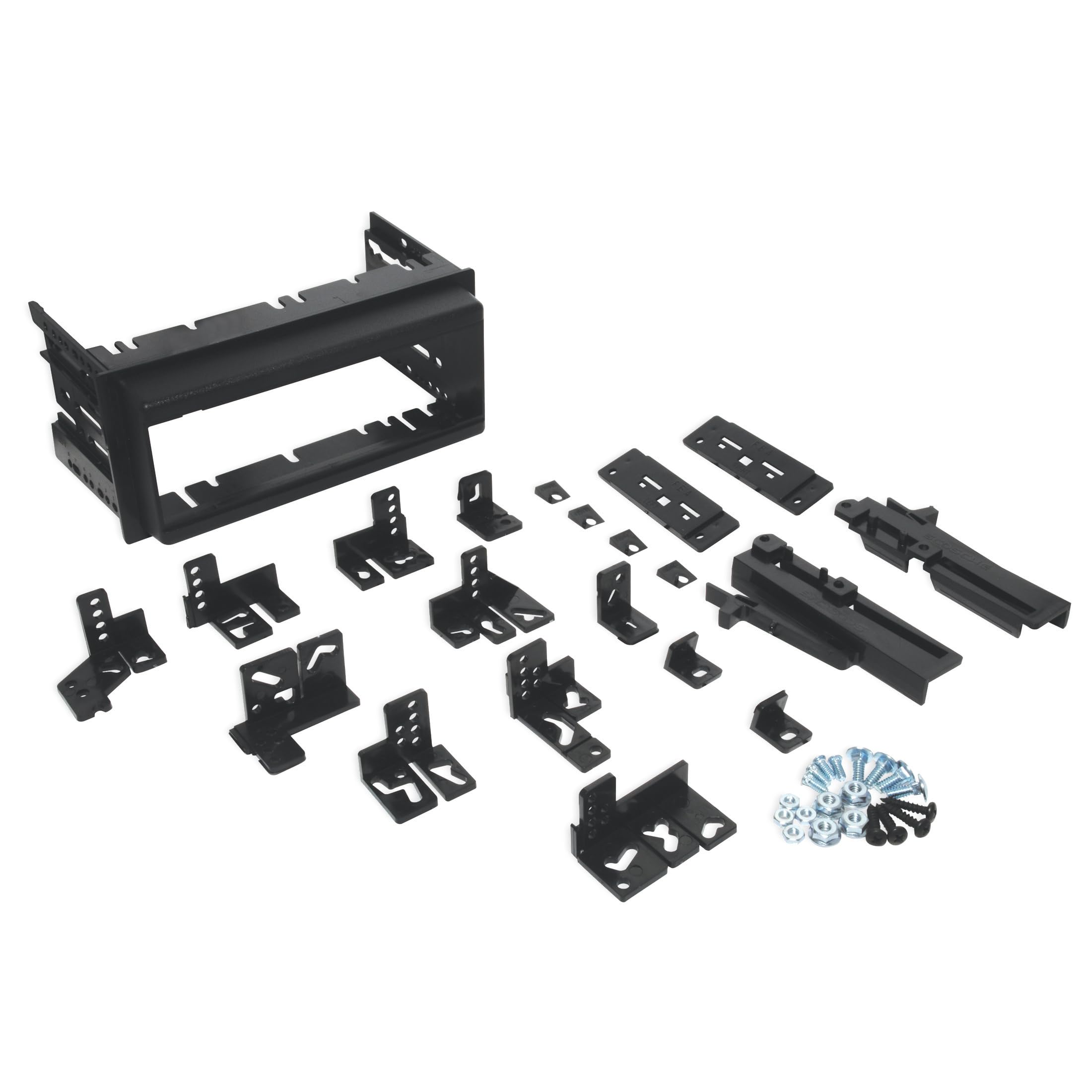

Үстүбүздөгү чыгым view of all components included in the Scosche GM1504 dash kit, featuring various mounting brackets, the main dash frame, and a small bag of screws and nuts.

A diagram illustrating the key features of the Scosche GM1504B dash kit, highlighting its automotive-grade ABS plastic construction, factory-matched texture, and indicating that wire harnesses/interfaces and antenna adapters are sold separately.

3. Унаа шайкештиги

The GM1504 dash kit is designed for a wide range of General Motors vehicles manufactured between 1982 and 2005. Please refer to the detailed fitment guide below to confirm compatibility with your specific vehicle make, model, and year.

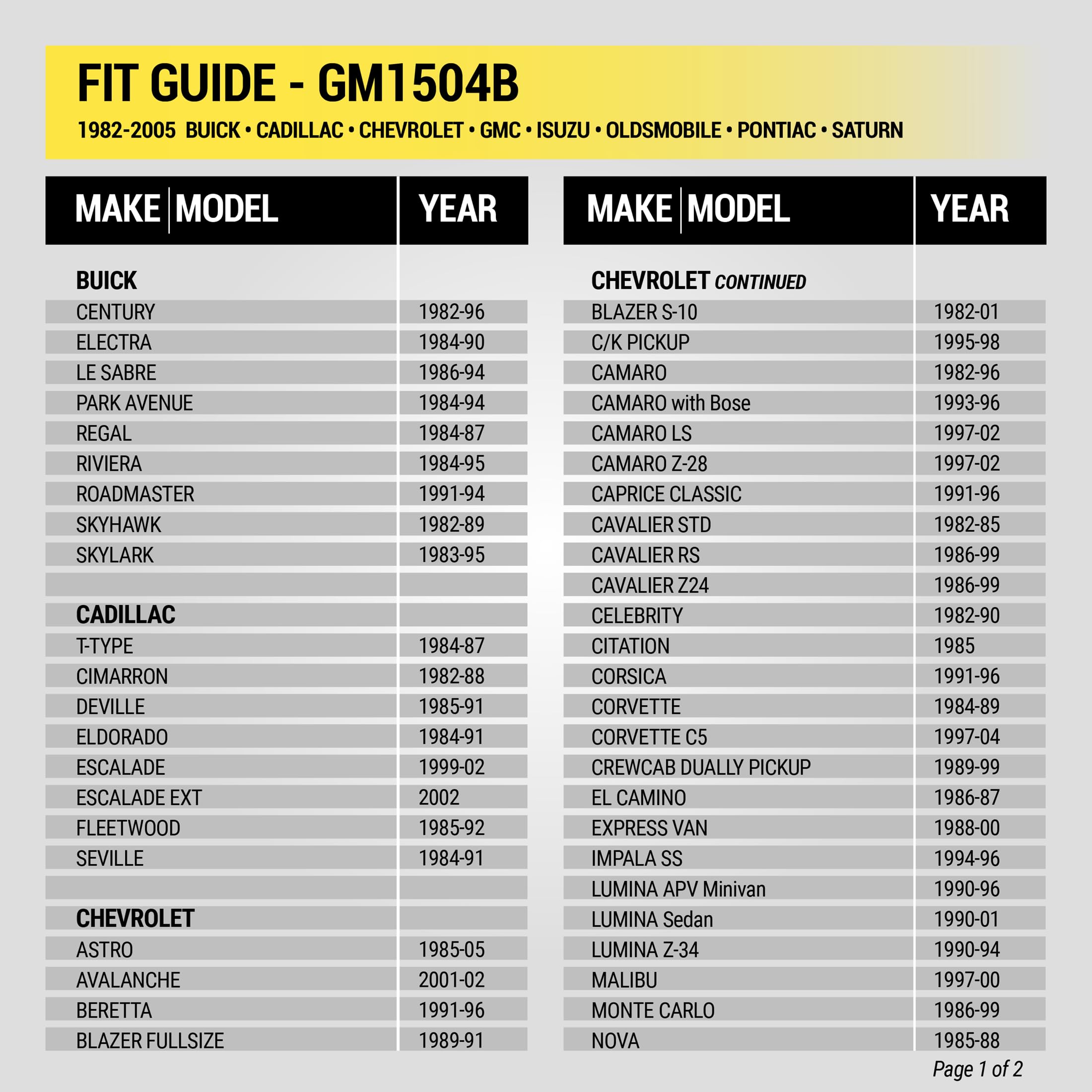

Page 1 of the vehicle compatibility guide for the Scosche GM1504B dash kit, listing various Buick, Cadillac, Chevrolet, GMC, Isuzu, Oldsmobile, Pontiac, and Saturn models from 1982-2005.

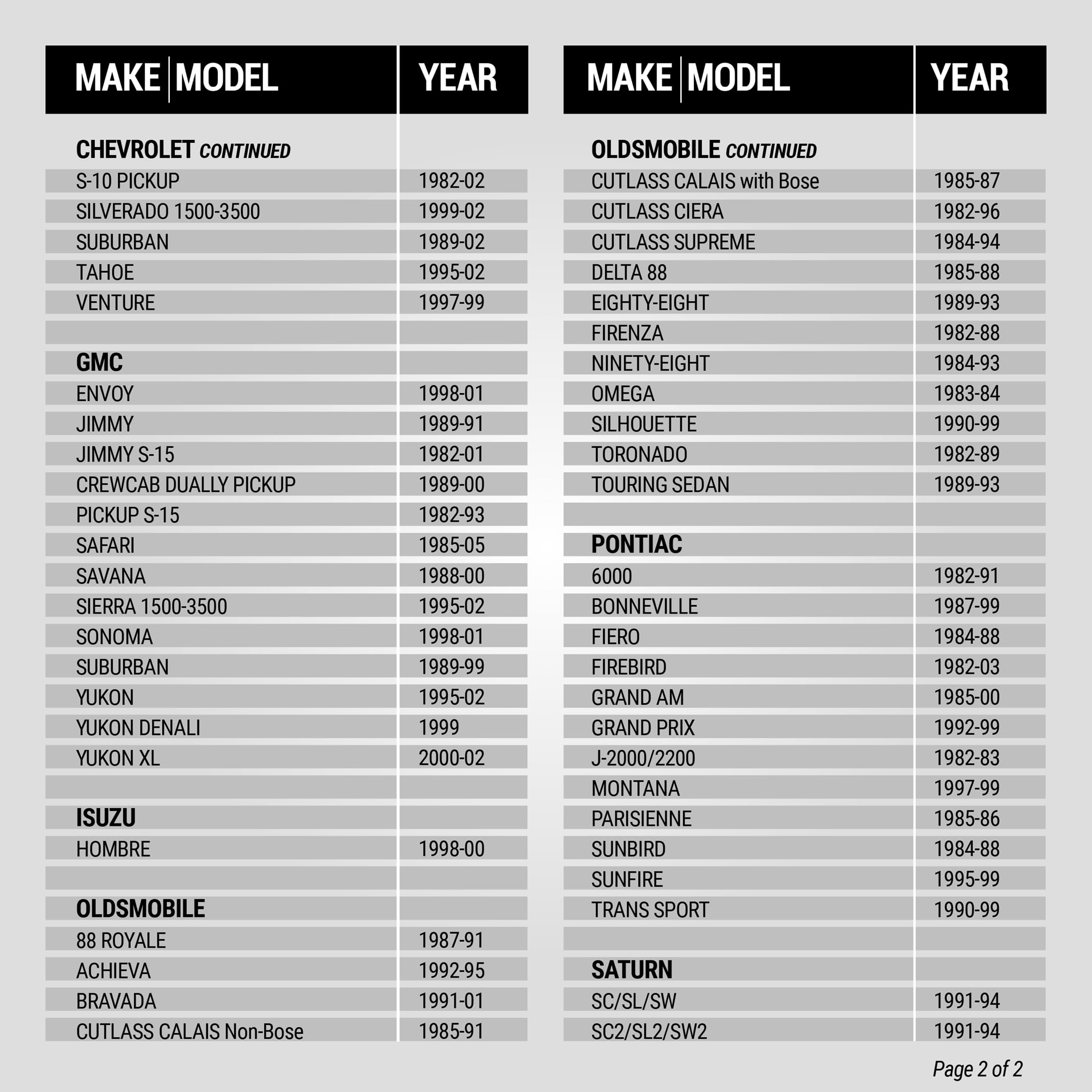

Page 2 of the vehicle compatibility guide for the Scosche GM1504B dash kit, continuing the list of compatible Chevrolet, GMC, Isuzu, Oldsmobile, Pontiac, and Saturn models.

4. Орнотуу боюнча нускамалар

The Scosche GM1504 dash kit is designed for a straightforward installation process. Detailed, illustrated, step-by-step instructions are included with your product. Always refer to these specific instructions for your vehicle model.

Жалпы кадамдар:

1. Carefully remove the factory radio and any surrounding dash trim according to your vehicle's service manual.
2. Assemble the appropriate mounting brackets from the kit to your aftermarket stereo, ensuring a secure fit.
3. Connect the necessary wiring harness (sold separately) and antenna adapter (sold separately) to your new stereo and vehicle's wiring.
4. Slide the assembled stereo and dash kit into the vehicle's dash opening until it clicks or secures into place.
5. Reinstall any removed dash trim.

A pair of hands installing a single DIN aftermarket car stereo into the vehicle's dashboard, with the Scosche GM1504 dash kit providing the mounting frame. The image notes 'Radio Not Included. Shown for Reference Only.'

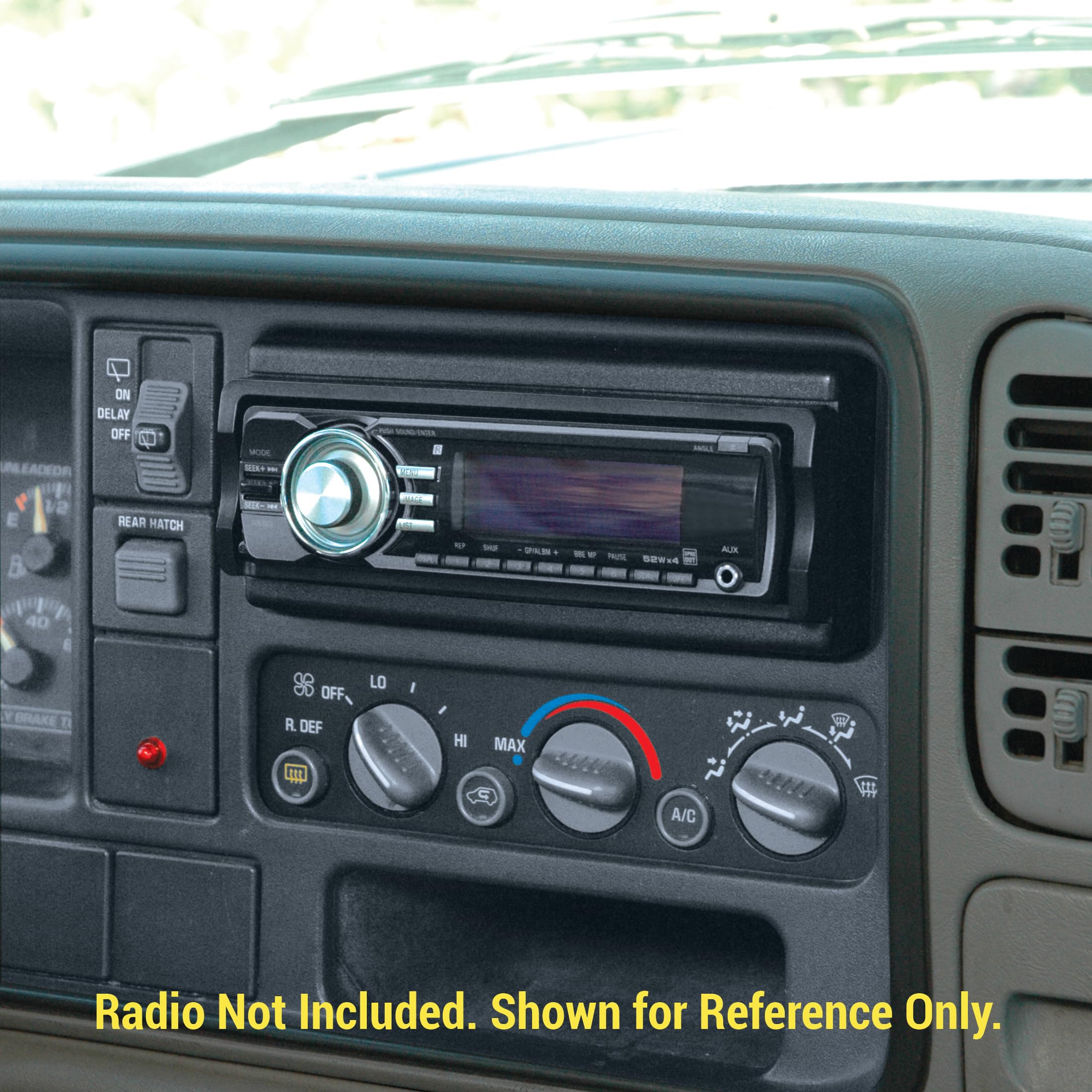

A single DIN aftermarket car stereo fully installed in a vehicle's dashboard using the Scosche GM1504 dash kit, blending seamlessly with the surrounding dash components. The image notes 'Radio Not Included. Shown for Reference Only.'

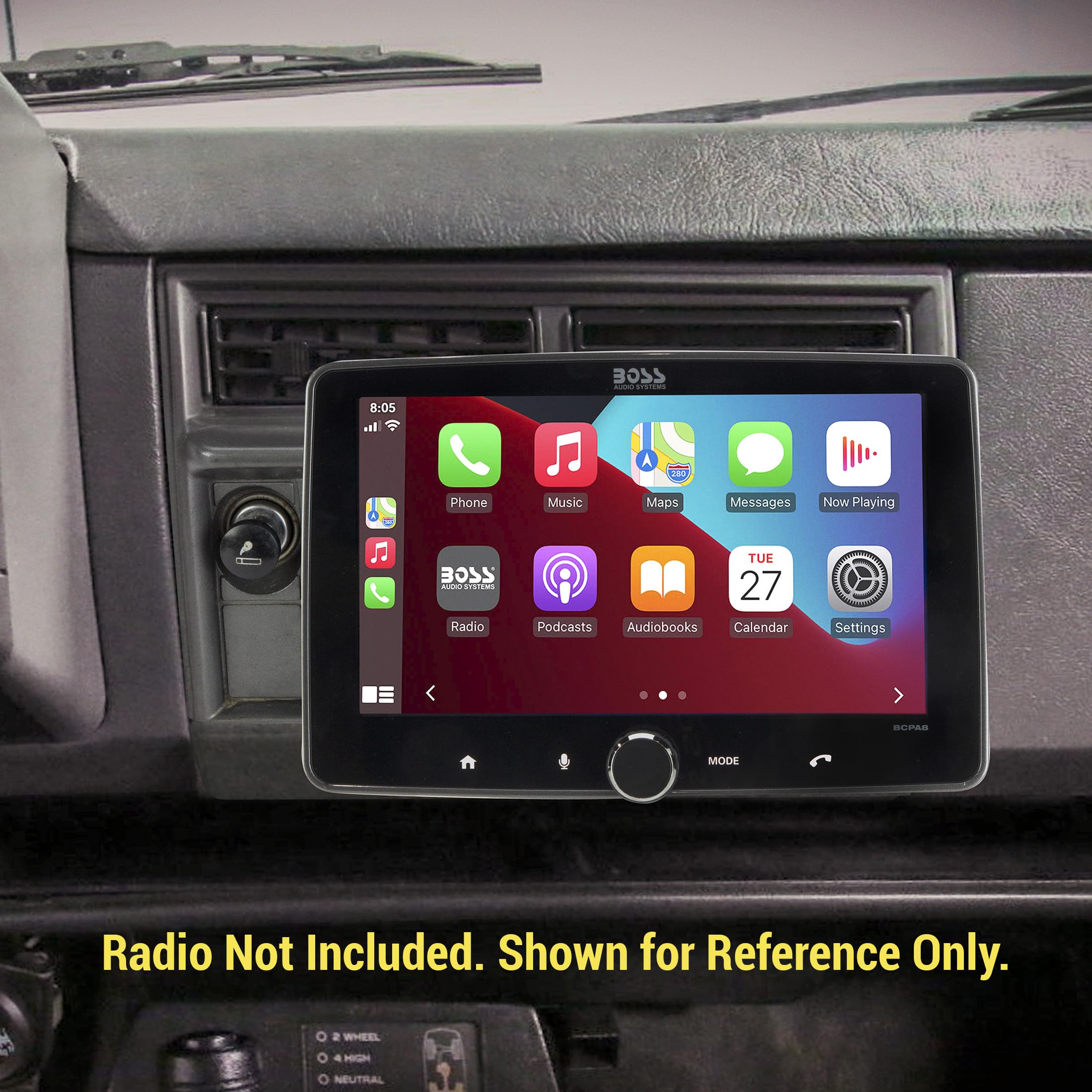

A modern floating screen aftermarket head unit installed in a vehicle's dashboard using the Scosche GM1504 dash kit, viewed from the front. The image notes 'Radio Not Included. Shown for Reference Only.'

A modern floating screen aftermarket head unit installed in a vehicle's dashboard using the Scosche GM1504 dash kit, viewed from a side angle to show its profile. The image notes 'Radio Not Included. Shown for Reference Only.'

5. Орнотуу

Before beginning installation, ensure you have all components of the GM1504 kit, your aftermarket stereo, and any necessary wiring harnesses or antenna adapters (sold separately). Disconnect the vehicle's battery to prevent electrical issues during installation. Review the included instructions thoroughly to identify the specific brackets and steps required for your vehicle and stereo type.

6. Иштөө

The Scosche GM1504 dash kit is a passive mounting solution and does not have operational functions itself. Its purpose is to securely house and integrate your aftermarket car stereo into the vehicle's dashboard, allowing the stereo to operate correctly within the factory dash opening.

7. Техникалык тейлөө

The GM1504 dash kit requires minimal maintenance. To clean the visible surfaces of the dash kit, use a soft, damp cloth with a mild automotive interior cleaner. Avoid abrasive cleaners or solvents, as these may damage the plastic finish. Ensure the area around the stereo remains free of debris to prevent interference with stereo operation or ventilation.

8. Кыйынчылыктарды

Орнотуу учурунда же андан кийин көйгөйлөргө туш болсоңуз, төмөндөгүлөрдү карап көрүңүз:

• Орнотуу маселелери: Double-check the vehicle compatibility guide to ensure the kit is correct for your specific make, model, and year.
• Loose Stereo: Ensure all mounting brackets are securely attached to both the stereo and the dash kit, and that the kit is firmly seated in the dash opening.
• Dash Gaps: Verify that all factory dash trim pieces are correctly reinstalled and aligned. Some installations may require minor trimming of factory plastic, as detailed in the included instructions.
• Электрдик көйгөйлөр: If the stereo is not powering on or functioning correctly, re-check all wiring connections, including the wiring harness and antenna adapter. Ensure the vehicle's battery is properly reconnected.
• Башаламан көрсөтмөлөр: If the included instructions are unclear for your specific setup, review them carefully, paying close attention to diagrams and vehicle-specific notes. Online resources or professional installation assistance may also be helpful.

9. Техникалык шарттар

10. Кепилдик маалыматы

For detailed warranty information regarding the Scosche GM1504 dash kit, please refer to the documentation included with your purchase or visit the official Scosche webсайт. Кепилдиктин шарттары жана шарттары ар кандай болушу мүмкүн.

11. Кардарларды колдоо кызматы

If you require further assistance with the installation or have questions about the Scosche GM1504 dash kit, please contact Scosche customer support directly. Contact information can typically be found on the product packaging or the official Scosche webсайт.
