Introduction
The Bazooka BTA850FH Big EZ Bass Amplified Subwoofer Kit is designed to enhance your audio system with powerful bass response. This 8-inch subwoofer features an integrated 50-watt amplifier, providing a complete bass solution for both OEM and aftermarket integration. Its unique tube design and corner-loading optimization ensure efficient sound output and flexible installation in various vehicles.
Сүрөт: алдыңкы view of the Bazooka BTA850FH Big EZ Bass Amplified Subwoofer Kit.
Негизги өзгөчөлүктөрү
- 8-inch subwoofer for deep bass.
- Integrated 50-watt amplifier for efficient power delivery.
- Complete bass solution for universal OEM and aftermarket integration.
- High-efficiency woofer specifically designed and reinforced for Bass Tubes enclosures.
- Includes universal FAST-9999 and BTAH extension cables for simplified installation.
- Optimized for corner-loading to maximize bass performance.
- Frequency Response: 39Hz - 250Hz (crossover at 250Hz).
- Durable tube enclosure design for optimal sound pressure.
Пакеттин мазмуну
Your Bazooka BTA850FH kit includes the following items:
- Bazooka BTA850FH Big EZ Bass Amplified Subwoofer Kit
- Электр зымдары
- Орнотуу жабдыктары
- Instruction Manual
- Universal FAST-9999 and BTAH Extension Cables
Техникалык мүнөздөмөлөр
| Өзгөчөлүк | Деталь |
|---|---|
| Модель аты | BTA850FH |
| Динамик түрү | Сабвуфер |
| Сабвуфердин диаметри | 8 дюйм |
| Power Output | 50 Ватт (RMS) |
| Максималдуу кубаттуулук | 90 Ватт |
| Импеданс | 2 Ом |
| Frequency Response | 39Гц - 250Гц |
| Кроссовер диапазону | 250Hz |
| Байланыш технологиясы | RCA, Wired |
| Зымсыз байланыш | Bluetooth |
| Башкаруу ыкмасы | тийүү |
| Продукциянын өлчөмдөрү | 23.5"D x 10.5"W x 10.2"H |
| Элемент Салмагы | 5 фунт |
| Power Source | Батарея менен иштейт |
| Кепилдик түрү | Чектелген |
Image: Diagram showing the dimensions of the Bazooka BTA850FH subwoofer.
Орнотуу жана орнотуу
The Bazooka BTA850FH is designed for straightforward installation in various vehicle types, including cars and trucks. The kit includes a wiring harness, installation hardware, and universal FAST-9999 and BTAH extension cables to simplify the process.
Understanding Bazooka Bass Tubes Design
The unique tube design of Bazooka subwoofers is engineered for optimal sound output and efficient bass delivery. This design, combined with corner-loading optimization, helps amplify the bass within your vehicle's interior.
Видео: Бүттүview explaining the design principles and benefits of Bazooka Bass Tubes.
Байланыш бүттүview
интеграцияланган amplifier simplifies wiring by eliminating the need for a separate external amplifier. Connections typically involve power, ground, remote turn-on, and audio input (RCA or high-level).

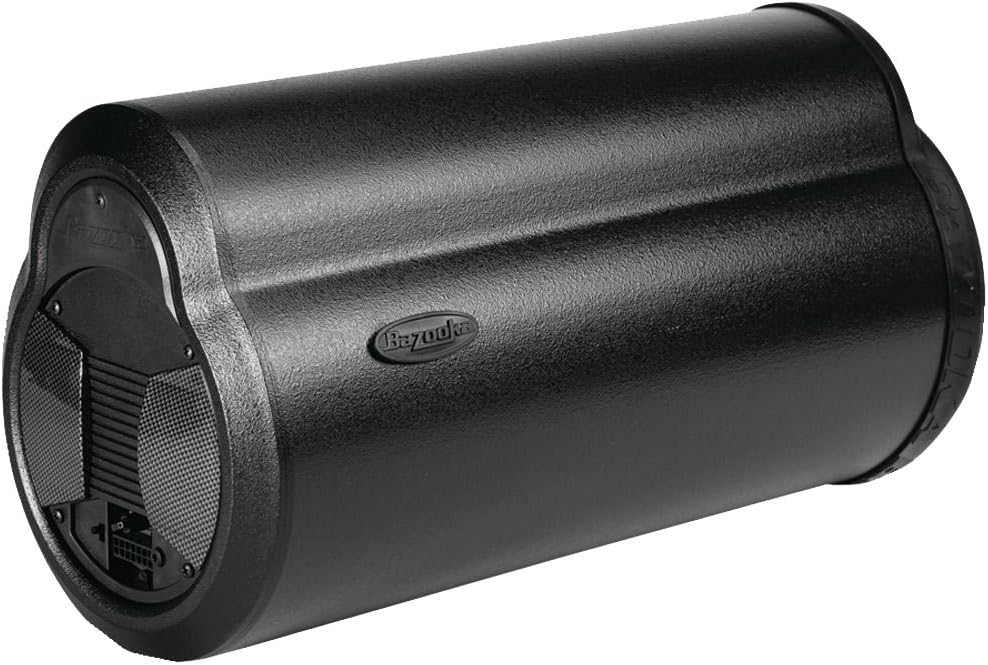

Сүрөт: Арткы view of the Bazooka BTA850FH showing input and power connections.
Монтаждоо
The BTA850FH comes with straps for secure mounting. These straps allow for quick removal if additional cargo space is needed. For a more permanent installation, optional UMS Brackets can be used.
- Позициялоо: Place the subwoofer in a corner of your vehicle's cargo area or trunk for optimal bass ampжашоо.
- Камсыздоо: Use the provided straps to firmly secure the subwoofer, preventing movement during driving.
- Зымдар: Connect the power, ground, remote turn-on, and audio input cables according to the detailed instructions in the included manual. Ensure all connections are tight and properly insulated.
Иштөө нускамалары
Once installed, the Bazooka BTA850FH is ready to deliver enhanced bass to your audio system. The unit features touch controls for easy adjustment.
- Күйгүзүү/өчүрүү: The subwoofer typically turns on automatically with your vehicle's audio system via the remote turn-on wire.
- Үндүн катуулугун көзөмөлдөө: Adjust the gain setting on the amplifier to match the output of your head unit. Start with the gain low and gradually increase it until the desired bass level is achieved without distortion.
- Бас жогорулатуу: Utilize the bass boost feature to fine-tune the low-frequency impact to your preference.
- Кроссовер жөндөө: The integrated crossover is set at 250Hz, ensuring that only low frequencies are reproduced by the subwoofer for clear, deep bass.
- Bluetooth байланышы: If your head unit supports Bluetooth audio output, you can connect wirelessly to the subwoofer for convenient audio streaming.
Техникалык тейлөө
To ensure the longevity and optimal performance of your Bazooka BTA850FH subwoofer, follow these general maintenance guidelines:
- Тазалоо: Regularly wipe the exterior of the tube with a soft, dry cloth to remove dust and debris. Avoid using harsh chemicals or abrasive cleaners.
- Туташуу текшерүүлөрү: Periodically inspect all wiring connections (power, ground, remote, RCA) to ensure they remain secure and free from corrosion.
- Вентиляция: камсыз кылуу amplifier section has adequate ventilation to prevent overheating. Do not obstruct any vents.
- Физикалык текшерүү: Check the woofer and grille for any signs of damage. The grille is designed to protect the subwoofer from accidental impact.
Проблемаларды чечүү
This section provides general guidance for common issues. For detailed troubleshooting steps, please refer to the comprehensive instruction manual included with your product.
- Кубат жок: Check all power connections, including the fuse. Ensure the remote turn-on wire is properly connected and receiving a signal from your head unit.
- Үн жок: Verify audio input connections (RCA or high-level). Check the gain settings and ensure the head unit's volume is up.
- Бурмаланган үн: Reduce the gain setting on the subwoofer amplifier. Ensure your head unit's output is not clipping. Check for loose wiring.
- Алсыз басс: Confirm proper placement (corner-loading is recommended). Adjust gain and bass boost settings. Ensure the subwoofer is receiving adequate power.
Кепилдик жана колдоо
The Bazooka BTA850FH Big EZ Bass Amplified Subwoofer Kit comes with a Чектелген Кепилдик. For specific terms and conditions of your warranty, please refer to the warranty information provided in your product packaging or contact Bazooka customer support.
For technical assistance, service, or further inquiries, please visit the official Bazooka website or consult your product's instruction manual for contact details.
