Introduction
Thank you for choosing the Streamlight Stinger 75783 HP LED Flashlight. This high-performance, rechargeable flashlight is designed for durability and optimal illumination in various conditions. It features a robust anodized aluminum construction, a comfortable non-slip rubber grip, and a deep parabolic reflector for a powerful, long-range beam with excellent peripheral light.
This manual provides essential information for the proper setup, operation, and maintenance of your Stinger HP LED Flashlight to ensure its longevity and performance.

Сүрөт: бурчтуу view of the Streamlight Stinger 75783 HP LED Flashlight, showcasing its sleek black design and textured grip.
Орнотуу жана заряддоо
The Streamlight Stinger 75783 HP LED Flashlight comes with a 120V AC Piggyback Charger. Ensure the flashlight is fully charged before its first use to maximize battery life and performance.
- Пакеттен чыгаруу: Carefully remove all components from the packaging. Verify that the flashlight, 120V AC Piggyback Charger, and any included accessories are present.
- Заряддагычтын жайгашуусу: Select a dry, stable location for the charger. Plug the 120V AC charger into a standard wall outlet.
- Алгачкы заряддоо: Insert the flashlight into the charging cradle. Ensure it is securely seated. The charging indicator light on the charger will illuminate, typically red, to indicate charging is in progress.
- Толук заряд: Allow the flashlight to charge for approximately 10-12 hours for the initial charge. Subsequent charges typically take less time, depending on battery depletion. The indicator light will change color (e.g., green) or turn off when fully charged, depending on the charger model.
- Battery Installation (if replacing): The flashlight includes a rechargeable battery. If replacing, ensure the battery is inserted with the correct polarity as indicated inside the battery compartment.

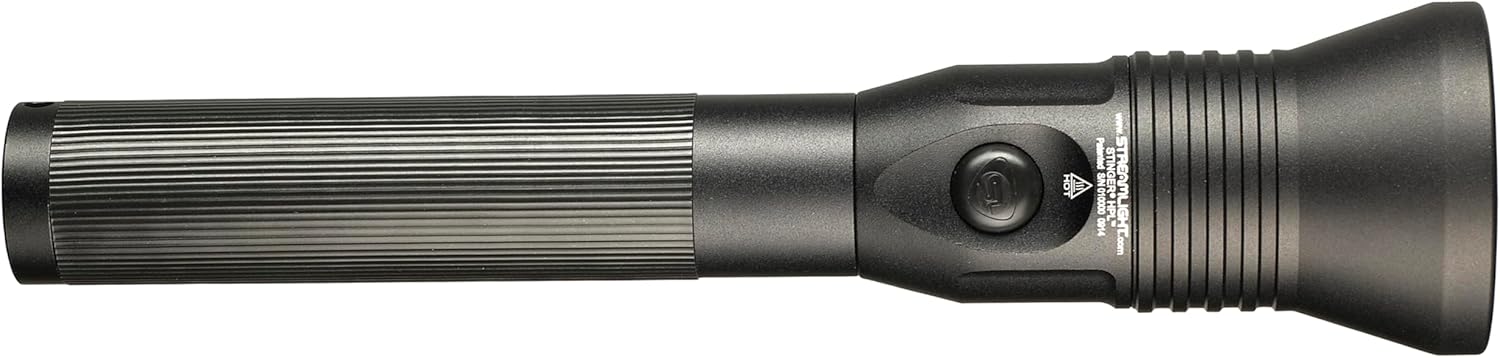

Сүрөт: каптал view of the Streamlight Stinger 75783 HP LED Flashlight, highlighting the power button and ribbed grip.
Операция
The Stinger HP LED Flashlight features a multi-function push-button switch for easy mode selection.
- Күйгүзүү/өчүрүү: Press the push-button switch once to turn the flashlight on. Press again to turn it off.
- Режим тандоо: From the ON position, rapidly press the switch to cycle through the different output modes:
- Жогорку: Maximum brightness for intense illumination.
- Орточо: Balanced brightness for general use and extended run time.
- Төмөн: Reduced brightness for close-up work or when minimal light is needed, conserving battery.
- Strobe функциясы: To activate the strobe mode, rapidly double-press the switch from any ON mode. Press once more to return to the previous steady mode.
- Нур өзгөчөлүктөрү: The deep parabolic reflector is engineered to produce a concentrated, long-range targeting beam while also providing optimal peripheral illumination, allowing for a wide field of view.

Image: Diagram illustrating the High Performance (HP) beam pattern, showing a focused central beam with wide peripheral spill.

Image: A man using the Streamlight Stinger flashlight to illuminate and inspect intricate components of an engine, demonstrating its utility in detailed work.
Техникалык тейлөө
Proper maintenance will ensure the longevity and optimal performance of your Streamlight Stinger HP LED Flashlight.
- Тазалоо: Кол чырактын корпусун жумшак, гamp cloth. Avoid abrasive cleaners or solvents that could damage the anodized finish or rubber grip.
- Линзага кам көрүү: The unbreakable polycarbonate lens has an anti-scratch coating. Clean the lens gently with a clean, soft cloth. For stubborn smudges, a small amount of lens cleaner designed for optics can be used. Do not use harsh chemicals.
- O-шакектери: The flashlight is O-ring sealed for water resistance. Periodically inspect the O-rings for any signs of wear or damage. If necessary, apply a thin coat of silicone grease to keep them pliable and maintain the seal. Replace damaged O-rings promptly.
- Батареяга кам көрүү:
- Always use the provided 120V AC Piggyback Charger.
- Do not overcharge the battery. Once fully charged, remove the flashlight from the charger if not needed for immediate use.
- If storing the flashlight for an extended period, ensure the battery is partially charged (around 50%) and recharge it every few months to prevent deep discharge.
- Сактагыч: Кол чыракты салкын, кургак жерде күндүн тике тийген нурунан жана экстремалдык температурадан алыс сактаңыз.
Проблемаларды чечүү
If you encounter issues with your Streamlight Stinger HP LED Flashlight, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Кол чырак күйбөйт. | Батарея түгөнүп калган же туура орнотулган эмес. | Charge the battery fully. Ensure the battery is correctly inserted with proper polarity. |
| Жарык күңүрт же бүлбүлдөп турат. | Low battery charge or loose connections. | Recharge the battery. Check the battery cap and ensure it is tightened securely. |
| Charger indicator light not illuminating. | Charger not plugged in, faulty outlet, or poor contact with flashlight. | Verify the charger is securely plugged into a working outlet. Ensure the flashlight is properly seated in the charging cradle. |
| Суу кириши. | Damaged or improperly seated O-rings. | Inspect O-rings for damage or debris. Clean and lubricate O-rings, or replace if damaged. Ensure all caps are tightly sealed. |
If the problem persists after attempting these solutions, please contact Streamlight customer support for further assistance.
Техникалык шарттар
Detailed specifications for the Streamlight Stinger 75783 HP LED Flashlight:
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Streamlight |
| Модель номери | 75783 |
| Түс | Кара |
| Power Source | Батарея менен иштейт (кайра заряддалуучу) |
| Тtage | 14.4 вольт (ток) |
| Салмагы | 386 г (13.6 унция) |
| Курулуш материалы | Anodized Aluminum with Non-slip Rubber Grip |
| Линзанын материалы | Unbreakable Polycarbonate with Anti-scratch Coating |
| Мөөр басуу | O-шакек мөөр басылган |
| Заряддоочу түрү | 120V AC Piggyback Charger |
Performance Specifications (FL1 Standard)

Image: Table detailing the FL1 Standard performance metrics for High, Medium, and Low modes, including Lumens, Run Time, Beam Distance, and Candela.
| Mode | Lumens | Run Time | Beam Distance | Peak Beam Intensity (Candela) |
|---|---|---|---|---|
| Жогорку | 350 | 2 саат | 473 метр | 56,000 CD |
| Орто | 175 | 3 саат 45 минута | 335 метр | 28,000 CD |
| Төмөн | 85 | 7 саат 15 минута | 237 метр | 14,000 CD |
Кепилдик жана колдоо
Streamlight products are known for their quality and durability. For specific warranty information regarding your Stinger 75783 HP LED Flashlight, please refer to the warranty card included with your product or visit the official Streamlight webсайт.
For technical support, service, or to inquire about replacement parts, please contact Streamlight Customer Service directly. Contact information can typically be found on the Streamlight webсайтында же продуктунун таңгагында.
Note: Information regarding spare parts availability is not provided in this manual. Please contact the manufacturer for details.
