1. Киришүү
This manual provides essential instructions for the safe and efficient use of your Rothenberger Industrial Blowtorch Model 35930. Please read all instructions carefully before operating the device to ensure proper function and to prevent injury or damage.
The Rothenberger Industrial Blowtorch is designed for various soft soldering tasks, defrosting pipes, and service work in sanitary, heating, refrigerating, and air conditioning sectors. It operates with a C200 gas cartridge (not included).
2. Коопсуздук нускамалары
WARNING: Failure to follow these safety instructions may result in fire, explosion, electric shock, or other serious injury or property damage.
- Always use the blowtorch in a well-ventilated area.
- Keep away from flammable materials, liquids, and gases.
- Do not point the flame at yourself, other people, or animals.
- Ensure the gas cartridge is securely attached and free from leaks before ignition.
- Never leave an ignited blowtorch unattended.
- Allow the blowtorch to cool completely before storing.
- Store the blowtorch and gas cartridges in a cool, dry place, away from direct sunlight and heat sources.
- Балдар жетпеген жерде сактаңыз.
- Wear appropriate personal protective equipment (PPE), such as safety glasses and heat-resistant gloves.
- Only use with Rothenberger C200 gas cartridges or equivalent plug-in butane pressure cartridges.
3. Продукт бүтүп калдыview
The Rothenberger Industrial Blowtorch Model 35930 features a robust design for reliable performance. Key components include:
- Torch Head: Directs the flame.
- Газды башкаруу баскычы: Adjusts flame intensity.
- От алдыруу баскычы: For lighting the torch.
- туткасы: Эргономикалык жактан ыңгайлуу кармоо үчүн иштелип чыккан.
- Cartridge Housing: Secures the C200 gas cartridge.
4. Орнотуу
Before first use, ensure you have a compatible C200 gas cartridge. The blowtorch is designed for plug-in butane pressure cartridges.
- аймакты даярдоо: Work in a well-ventilated space, clear of any flammable materials.
- Газ картриджди салыңыз:
- Ensure the gas control knob on the blowtorch is in the "OFF" position.
- Carefully align the C200 gas cartridge with the cartridge housing on the blowtorch.
- Push the cartridge firmly into the housing until it clicks into place and is securely seated. Do not force it.
- Check for any gas leaks by listening for a hissing sound or using a leak detection spray. If a leak is detected, remove the cartridge and re-insert it. If the leak persists, do not use the blowtorch.
- Алгачкы текшерүү: Verify all connections are tight and the torch head is clear of obstructions.
5. Иштөө нускамалары
Follow these steps for safe ignition and operation of your blowtorch:
- От алдыруу:
- Slowly turn the gas control knob counter-clockwise to release a small amount of gas.
- Press the ignition button to ignite the gas. If the torch does not light immediately, close the gas valve, wait a few seconds, and repeat the process.
- Once ignited, a stable flame should appear. The manual notes that it may take a moment for the flame to stabilize.
- Отту жөндөө:
- Turn the gas control knob clockwise to decrease the flame size and intensity.
- Turn the gas control knob counter-clockwise to increase the flame size and intensity.
- Adjust the flame to suit the specific task, ensuring it is not excessively large or unstable.
- Жалынды өчүрүү:
- Turn the gas control knob fully clockwise until the flame extinguishes completely.
- Ensure no gas is still flowing.
- Колдонгондон кийин: Allow the blowtorch to cool down naturally before handling or storing. Do not touch the metal parts immediately after use as they will be extremely hot.
6. Тиркемелер
The Rothenberger Industrial Blowtorch Model 35930 is suitable for a range of tasks, including:

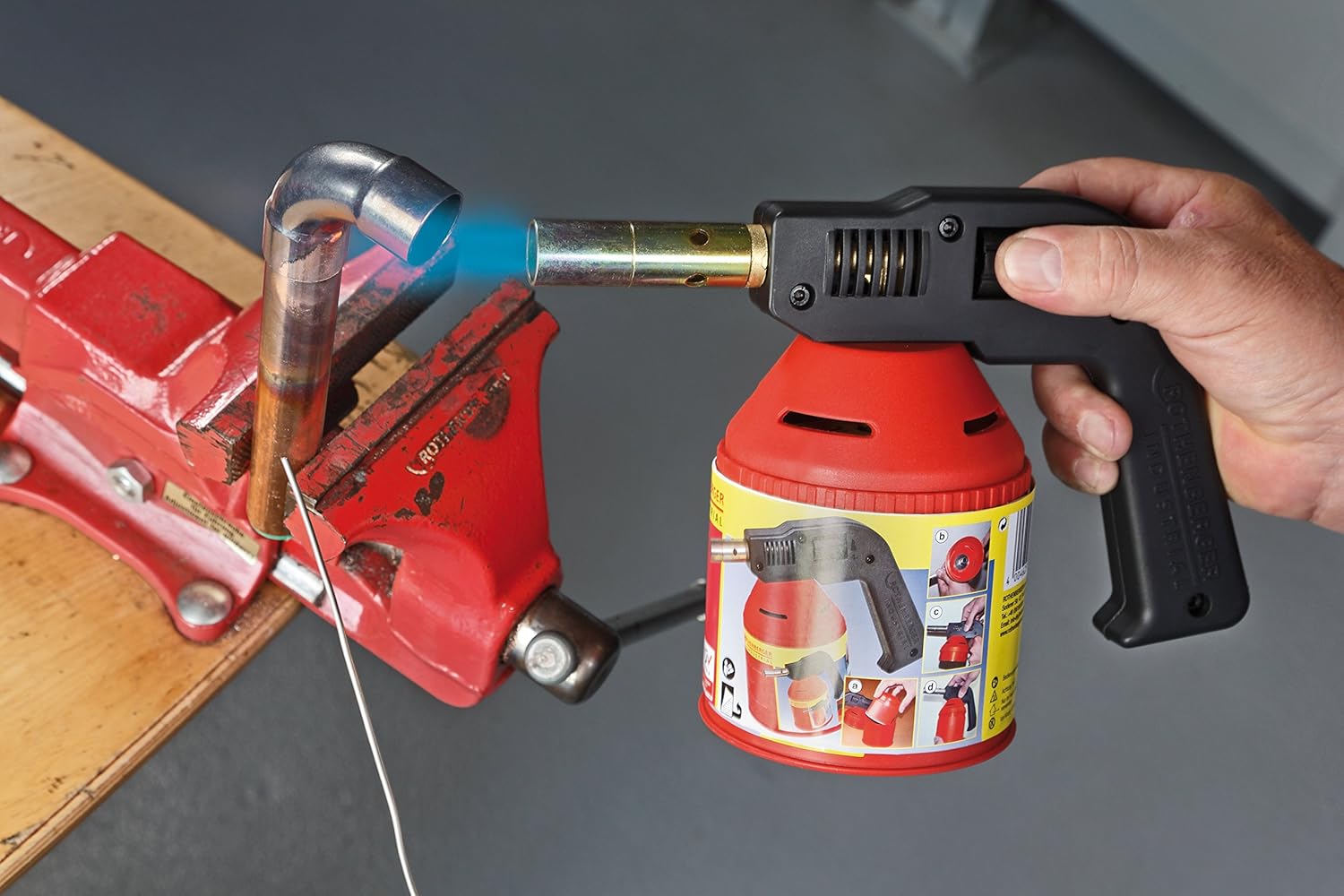

- Soft Soldering: Ideal for joining copper pipes, electrical wires, and other metal components.
- Defrosting Pipes: Safely thaw frozen water pipes. Exercise caution to avoid overheating or damaging pipes.
- Repair and Service Work: Useful in sanitary, heating, cooling, and air conditioning systems.
- Ignition of Grills: Can be used to light charcoal grills or fireplaces.
7. Техникалык тейлөө
Proper maintenance ensures the longevity and safe operation of your blowtorch.
- Тазалоо: After the blowtorch has cooled completely, wipe down the exterior with a damp cloth to remove any dirt or residue. Do not use abrasive cleaners or solvents.
- Текшерүү: Regularly inspect the torch head, gas connections, and cartridge housing for any signs of wear, damage, or blockages. Ensure the brass gas-pipe parts are clean.
- Сактагыч: When not in use, remove the gas cartridge and store the blowtorch in a cool, dry place, away from direct sunlight, heat sources, and out of reach of children.
- Картридж менен иштөө: Always follow the manufacturer's instructions for handling and disposing of gas cartridges.
8. Кыйынчылыктарды
If you encounter issues with your blowtorch, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Факел күйбөйт. |
|
|
| Flame is weak or unstable. |
|
|
| Газ агып жатканы аныкталды. |
|
|
9. Техникалык шарттар
Detailed technical specifications for the Rothenberger Industrial Blowtorch Model 35930:
- Модель номери: 35930
- Бренд: Ротенбергер
- Максималдуу Температура: 650°C (Working temperature)
- Материал: Пластик вasing, brass gas-pipe parts
- Продукциянын өлчөмдөрү: 25 x 20 x 8 см
- Элемент Салмагы: 0.51 килограмм
- Compatible Gas Cartridge: C200 Supergas cartridge (butane pressure cartridge)
- Келип чыккан өлкө: Кытай
- GTIN: 04004625359303
