Introduction
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Maax Palace Acrylic Bathtub Model 100082 with Massage System. Please read this manual thoroughly before installation and use to ensure proper function and safety.
The Maax Palace bathtub is designed to provide a relaxing bathing experience with its integrated massage system, offering options for Hydromax, Aerofeel, or a combination of both.
Орнотуу жана орнотуу
Installation of the Maax Palace bathtub should be performed by a qualified professional in accordance with local plumbing and electrical codes. Proper preparation of the installation site is crucial for optimal performance and longevity of the unit.
Сайтты даярдоо
- Ensure the floor structure can support the weight of the bathtub when filled with water and occupied.
- Verify that all necessary plumbing connections (hot and cold water supply, drain) are correctly positioned according to the bathtub's specifications.
- For models with a massage system, ensure a dedicated electrical circuit with appropriate voltagд жана amperage is available, as specified in the electrical requirements section.
Dimensions and Technical Drawings
Refer to the following technical drawing for precise dimensions and system layouts, which are critical for accurate rough-in and installation planning.

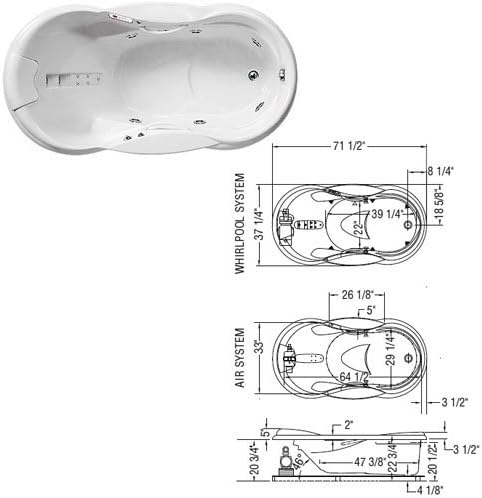

Сүрөттүн сүрөттөлүшү: This technical drawing illustrates the Maax Palace Acrylic Bathtub from multiple perspectives, providing critical dimensions for installation. The top section shows an overhead view of the bathtub. Below this, there are two detailed top-down schematics: one for the Whirlpool System and another for the Аба системасы, each indicating specific measurements such as length (71 1/2"), width (37 1/4" for whirlpool, 33" for air system), and internal basin dimensions (e.g., 39 1/4" length, 22" width for whirlpool seating area). The bottom schematic provides a side profile view, detailing height (20 3/4" to 26 1/8" depending on system), drain position, and overall depth. Key dimensions like 47 3/8" for the base length and 22 3/4" for the internal depth are also marked. These drawings are essential for plumbers and electricians to ensure correct rough-in and placement of water lines, drains, and electrical connections.
Plumbing and Electrical Connections
- Connect hot and cold water lines to the faucet assembly according to manufacturer's instructions.
- Securely connect the drain assembly and test for leaks before final enclosure.
- For massage systems, connect the electrical supply to the control box, ensuring all connections are waterproof and grounded as per electrical codes.
Иштөө нускамалары
Your Maax Palace bathtub features an advanced massage system designed for comfort and relaxation. Familiarize yourself with the controls before first use.
Ваннаны толтуруу
- Ensure the drain is closed.
- Fill the bathtub with water to at least 2 inches above the highest jet opening to prevent damage to the pump.
- Adjust water temperature to your preference.
Using the Massage System
The Maax Palace bathtub offers Hydromax (water jets) and Aerofeel (air jets) massage options.
- Hydromax System: Press the designated button to activate the water jets. Adjust intensity if applicable via the control panel.
- Aerofeel System: Press the designated button to activate the air jets, which provide a gentle, effervescent massage.
- Combined System: Some models allow simultaneous operation of both Hydromax and Aerofeel systems for a comprehensive massage experience. Refer to your specific control panel for this function.
To turn off the massage system, press the respective buttons again. Always turn off the system before draining the bathtub.
Техникалык тейлөө
Regular maintenance will ensure the longevity and optimal performance of your Maax Palace bathtub.
Cleaning the Bathtub Surface
- Clean the acrylic surface with a soft cloth and a non-abrasive, mild bathroom cleaner.
- Avoid using abrasive cleaners, scouring pads, or harsh chemicals (e.g., acetone, paint thinner) as they can damage the acrylic finish.
- Тазалагандан кийин таза суу менен жакшылап чайкаңыз.
Maintaining the Massage System
- Системаны тазалоо: Periodically (e.g., monthly or after heavy use), fill the tub with warm water and add a small amount of low-foaming, non-abrasive cleaner specifically designed for jetted tubs. Run the massage system for 10-15 minutes, then drain and rinse thoroughly.
- Jet тазалоо: Inspect jets for any buildup and clean with a soft brush if necessary.
Проблемаларды чечүү
This section addresses common issues you might encounter with your Maax Palace bathtub. For problems not listed here, please contact Maax customer support.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Massage system does not activate. | No power supply; GFCI tripped; water level too low. | Check power connection; reset GFCI breaker; ensure water level is above jets. |
| Алсыз реактивдүү басым. | Jets clogged; air intake blocked; pump issue. | Clean jets; ensure air intake is clear; contact service if pump issue suspected. |
| Water leaks from plumbing. | бош байланыштар; бузулган пломбалар. | Tighten connections; inspect and replace seals if damaged. Professional assistance recommended. |
Техникалык шарттар
Key specifications for the Maax Palace Acrylic Bathtub Model 100082:
- Модель номери: 100082
- Материал: Акрил
- Өндүрүүчү: MAAX
- Өлчөмдөрү (болжолдуу):
- Overall Length: 72 inches (approx. 71 1/2" from drawing)
- Overall Width: 37 inches (approx. 37 1/4" for whirlpool system)
- Overall Height: 26 inches (approx. 20 3/4" to 26 1/8" from drawing)
- Ички Бasin Length: Approx. 39 1/4" (whirlpool) / 64 1/2" (air system)
- Ички Бasin Width: Approx. 22" (whirlpool) / 29 1/4" (air system)
- Массаж системасы: Hydromax, Aerofeel, or Combined
- Орнотуу түрү: түшүү
Кепилдик жана колдоо
Maax products are manufactured to high-quality standards and come with a manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation provided at the time of purchase or visit the official Maax webсайт.
For technical support, parts, or service inquiries, please contact Maax customer service directly. Have your model number (100082) and purchase date ready when contacting support.
Maax Customer Service: Please refer to your purchase documentation or the official Maax webучурдагы байланыш маалыматы үчүн сайт.
