1. Киришүү
This manual provides essential information for the proper installation, operation, and maintenance of your Beverage-Air UCR48A 48-inch Two-Section Undercounter Refrigerator. Please read these instructions thoroughly before operating the unit to ensure safe and efficient performance. Retain this manual for future reference.

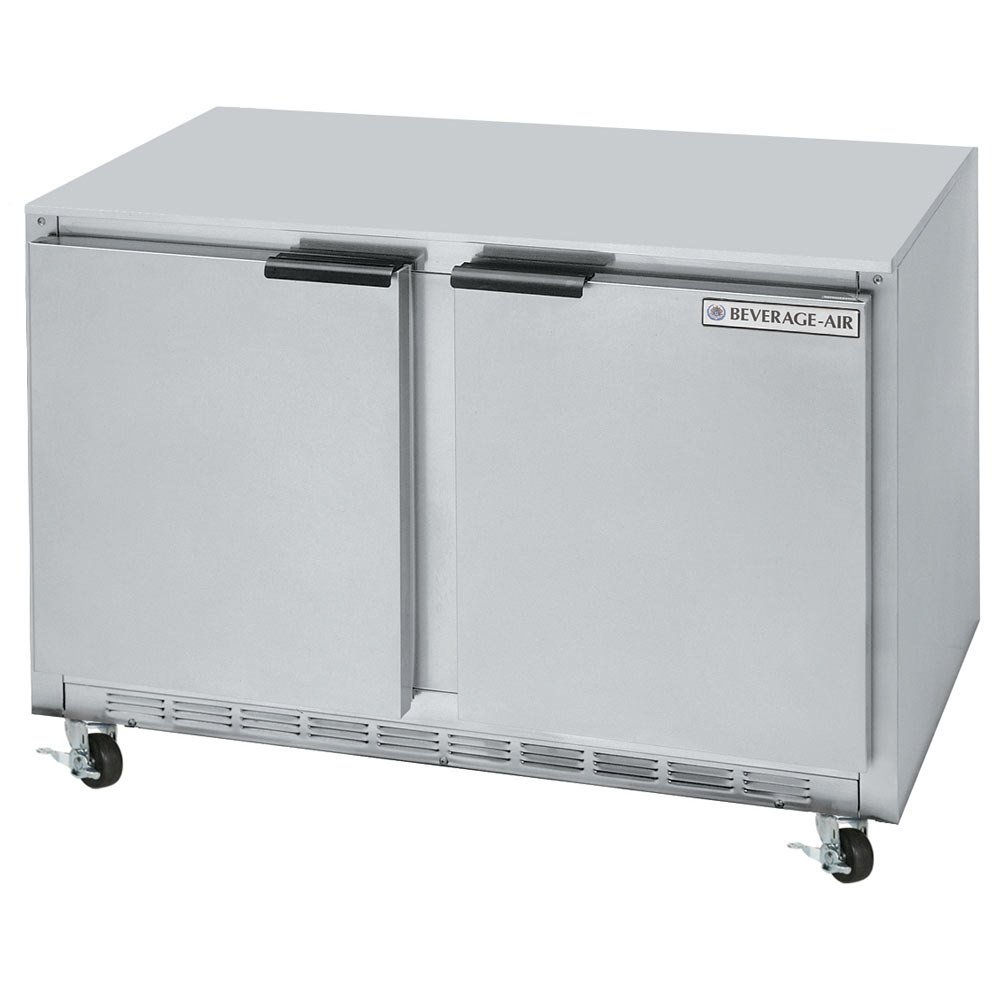

An image showing the Beverage-Air UCR48A undercounter refrigerator. It features a stainless steel exterior with two self-closing doors and black handles. The unit is equipped with casters for mobility. Dimensions are indicated: 51 inches wide, 32 inches deep, and 38 inches high.
2. Коопсуздук маалыматы
Өрт, электр шок же жаракат алуу коркунучун азайтуу үчүн бул шайманды колдонууда ар дайым негизги коопсуздук чараларын сактаңыз.
- Электр коопсуздугу: Ensure the unit is connected to a properly grounded 120V electrical outlet. Do not use extension cords or adapter plugs. Disconnect power before cleaning or servicing.
- Вентиляция: Maintain adequate clearance around the unit for proper airflow and heat dissipation. Blocked vents can lead to overheating and reduced efficiency.
- Жайгашкан жери: Place the unit on a strong, level surface capable of supporting its weight when fully loaded.
- Тазалоо: Use non-abrasive cleaners. Avoid spraying water directly onto electrical components.
- Кызмат: All service and repairs should be performed by qualified service personnel.
3. Орнотуу жана орнотуу
3.1 Пакеттен чыгаруу
- Бардык таңгактоочу материалдарды, анын ичинде скотчту жана коргоочу пленканы этияттык менен алып салыңыз.
- Түзмөктү жеткирүүдөгү кандайдыр бир бузулууларды текшериңиз. Ар кандай бузулуулар жөнүндө дароо ташуучуга жана дилериңизге кабарлаңыз.
3.2 Орнотуу
- Position the refrigerator on a level, stable floor. The unit is equipped with 6-inch casters for mobility, which should be locked once the unit is in its final position.
- Allow at least 6 inches of clearance at the rear and sides for proper ventilation. Do not install near heat-producing appliances or in direct sunlight.
3.3 Электрдик туташуу
- The unit requires a dedicated 120V, 60Hz, single-phase electrical supply.
- Plug the 8-foot power cord directly into a grounded three-prong outlet. Do not use extension cords or multi-outlet adapters.
- Allow the unit to sit for at least 2 hours after moving before plugging it in to allow compressor oils to settle.
4. Иштөө нускамалары
4.1 Баштапкы баштоо
- After connecting to power, the unit will begin to cool.
- Allow the refrigerator to operate for several hours empty to reach its set temperature before loading with products.
4.2 Температураны көзөмөлдөө
- The UCR48A is designed to maintain temperatures between +35°F and +38°F (+1.7°C and +3.3°C).
- Adjust the digital thermostat (if applicable) according to your specific temperature requirements. Refer to the separate thermostat manual for detailed instructions.
4.3 Door Operation and Shelving
- The unit features two solid self-closing doors with a 120° stay-open feature for convenient loading and unloading.
- Each door section includes two epoxy-coated wire shelves, which are adjustable to accommodate various product sizes.
5. Техникалык тейлөө
Үзгүлтүксүз техникалык тейлөө муздаткычыңыздын оптималдуу иштешин камсыздайт жана анын иштөө мөөнөтүн узартат.
5.1 Интерьерди тазалоо
- Тазалоодон мурун электрди өчүрүңүз.
- Clean the corrosion-resistant aluminum interior regularly with a mild soap and water solution. Rinse thoroughly and dry.
- Remove and clean the epoxy-coated wire shelves as needed.
5.2 Сырты тазалоо
- Wipe down the stainless steel front, top, and sides with a soft cloth and a non-abrasive stainless steel cleaner.
- Avoid using abrasive pads or cleaners that can scratch the surface.
5.3 Конденсатордун катушкаларын тазалоо
- The condenser coil should be cleaned every 30 days or more frequently in dusty environments.
- Disconnect power. Use a stiff brush or vacuum cleaner to remove dust and debris from the coil fins.
- A dirty condenser coil reduces cooling efficiency and increases energy consumption.
5.4 Прокладкага кам көрүү
- Inspect door gaskets regularly for cracks or tears.
- Clean gaskets with warm water and mild soap to maintain flexibility and ensure a proper seal.
6. Кыйынчылыктарды
Кызматка чакыруудан мурун, кайраview төмөнкү жалпы маселелер жана чечимдер:
- Агрегат иштебейт: Check if the power cord is securely plugged in. Verify the circuit breaker or fuse. Ensure the power switch (if present) is on.
- Unit Not Cooling Properly: Check if the condenser coil is clean. Ensure doors are closing completely and gaskets are sealing. Verify the thermostat setting. Ensure there is adequate ventilation around the unit. Avoid overloading the refrigerator.
- Ашыкча ызы-чуу: Check if the unit is level. Ensure no objects are vibrating against the cabinet. Fan motor may require service if noise persists.
- Полго суу: Check the drain pan for overflow or blockage. Ensure the unit is level.
If these steps do not resolve the issue, contact a qualified service technician.
7. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд | Суусундук Аба |
| Модель номери | UCR48A |
| Type | Two-Section Undercounter Refrigerator |
| Кубаттуулугу | 13.9 куб фут |
| Продукциянын өлчөмдөрү (D x W x Y) | 32" x 51" x 38" (болжол менен) |
| Элемент Салмагы | 225 фунт |
| Электрдик талаптар | 120V, 60Hz |
| Компрессор | 1 / 5 HP |
| Температура диапазону | +35°F – +38°F (+1.7°C – +3.3°C) |
| Эшиктердин саны | 2, Self-Closing with 120° Stay-Open Feature |
| Текчелер | 2 Epoxy-Coated Wire Shelves per door |
| Сырткы материал | Stainless Steel (Front, Top, Sides) |
| Ички материал | Коррозияга туруктуу алюминий |
| Изоляция | Insulated 1/2" Sub-Top |
| Casters | 6 дюймдук |
| Сертификация | UL |
8. Кепилдик жана колдоо
For warranty information, please refer to the documentation provided with your purchase or contact your authorized Beverage-Air dealer. For technical support or service inquiries, please contact Beverage-Air customer service or your local service provider, providing your model number (UCR48A) and serial number.
