1. Киришүү
This manual provides detailed instructions for the installation, operation, and maintenance of your BOSS Audio Systems NX2500.4 Onyx 4-Channel MOSFET Bridgeable Ampкөтөргүч. Туура колдонууну камсыз кылуу жана түзмөккө же унааңыздын аудио системасына зыян келтирбөө үчүн, орнотуудан же иштетүүдөн мурун ушул колдонмону кылдаттык менен окуп чыгыңыз.
The NX2500.4 amplifier is designed to deliver high-quality audio performance with versatile configuration options, including 4-channel and bridged modes, making it suitable for various car audio setups.
2. Негизги өзгөчөлүктөрү
- Four-Channel/Bridged Mode: Operates in 4-channel mode (625 Watts x 4 peak at 2 ohms; 250 Watts x 4 at 4 ohms) or bridged mode (1250 Watts x 2 peak at 4 ohms).
- MOSFET кубаттуулугу: Ensures high performance with efficient power delivery and low heat generation.
- Variable Gain Controls: Allows matching the input gain to your receiver for optimal sound quality and reduced distortion.
- Сабвуфердин деңгээлин алыстан башкаруу: Included for convenient adjustment of subwoofer output levels when connected.
- Full Range Crossovers: Features variable high-pass and low-pass crossovers for precise audio tuning and speaker protection.
- Line/Speaker Level Inputs: Accommodates both RCA line-level inputs and speaker-level inputs for compatibility with various head units.
- Бас жогорулатуу: Adjustable bass boost (0 to +18dB) for enhanced low-frequency response.
- Tri-mode Operation: Supports sending signals to a tri-way crossover for integrating a subwoofer with front/rear two-channel outputs.
- Power and Protection LEDs: Indicators for operational status and fault conditions.
3. Пакеттин мазмуну
Пакетте бардык буюмдар бар экенин текшериңиз:
- BOSS NX2500.4 Ampөмүрлүү
- Алыскы сабвуфердин деңгээлин көзөмөлдөө
- Колдонуучунун колдонмосу (бул документ)
4. Орнотуу жана орнотуу
Туура орнотуу оптималдуу иштөө жана коопсуздук үчүн абдан маанилүү. Эгерде сиз орнотуу процессинин кайсы бир бөлүгүнөн күмөн санасаңыз, кесипкөй орнотуучуга кайрылыңыз.
4.1 Коопсуздук чаралары
- Зымдарды баштоодон мурун унаанын терс батарея терминалын ажыратыңыз.
- Ensure all wiring is securely connected and properly insulated to prevent short circuits.
- монтаждоо ampадекваттуу вентиляцияга мүмкүндүк берген жана нымдуулуктан жана ашыкча ысыктан корголгон жерде көтөргүч.
- Көрсөтүлгөндөй, кубат, жерге жана динамик туташтыруу үчүн тиешелүү ченегич зымдарын колдонуңуз.
4.2 Wiring Connections Overview
The following image illustrates the general layout of the amplifier and its connection points. Refer to this for visual guidance during installation.

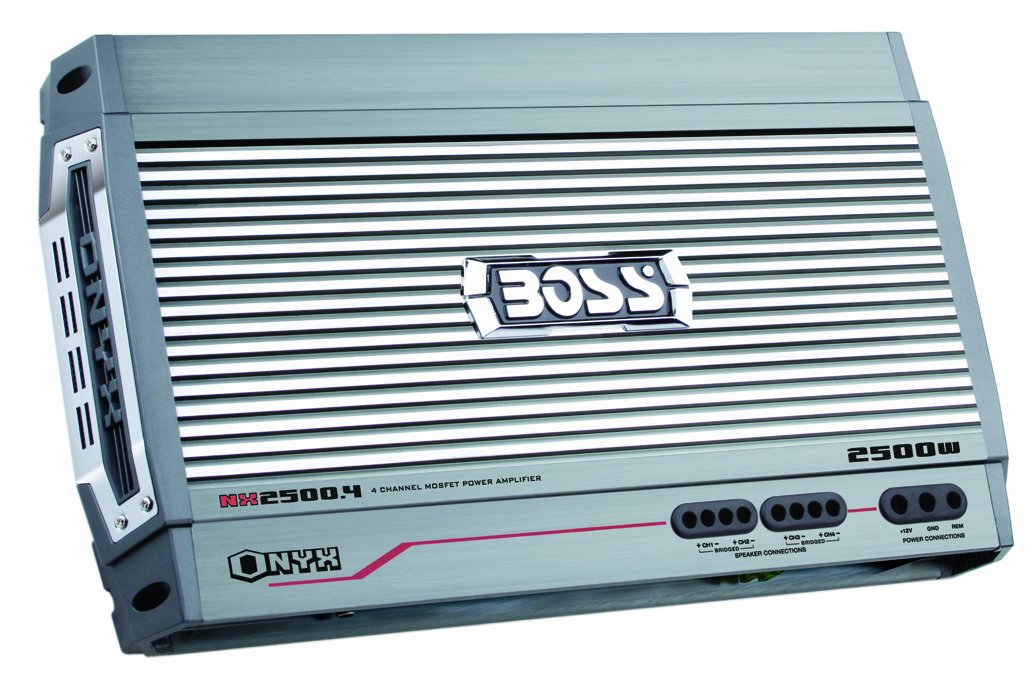

An image showing the BOSS Audio Systems NX2500.4 Onyx 4-Channel Amplifier, highlighting its compact design and connection terminals for power, ground, remote, inputs, and outputs.
4.3 Power Connection (BATT+)
Connect a heavy-gauge wire directly from the positive (+) terminal of the vehicle's battery to the BATT+ terminal on the amplifier. An in-line fuse holder with a fuse of appropriate rating (not supplied) must be installed within 18 inches (45 cm) of the battery.
4.4 Жерге туташтыруу (GND)
Connect a heavy-gauge wire from the GND terminal on the amplifier to a clean, unpainted metal surface on the vehicle's chassis. Ensure a good electrical connection by scraping away any paint or rust from the contact point.
4.5 Remote Turn-On (REM)
REM терминалынан кичирээк калибрлүү зымды туташтырыңыз amplifier to the remote turn-on output of your head unit. This wire signals the amplifier to turn on when the head unit is activated.
4.6 Аудио киргизүү туташуусу
- RCA киргизүүлөр: If your head unit has RCA pre-amp outputs, connect RCA cables from the head unit to the amplifier's RCA INPUT terminals.
- Динамик деңгээлиндеги киргизүүлөр: If your head unit lacks RCA outputs, use the speaker-level inputs. Connect the speaker wires from your head unit's speaker outputs to the amplifier's high-level input connector (if provided).
4.7 Динамиктин чыгышын туташтыруу
Динамиктерге туташтырыңыз amplifier's speaker output terminals. Observe correct polarity (+ to + and – to –). The NX2500.4 supports various configurations:
- 4-канал режими: Connect four speakers, one to each channel output.
- Көпүрө режими: Connect two speakers (e.g., subwoofers) by bridging two channels together. Refer to the amplifier's terminal markings for correct bridging connections.
- Trimode Operation: Allows for a combination of stereo speakers and a subwoofer. Consult a wiring diagram for specific trimode connections.
5. Операция
орнотулгандан кийин, тууралоо ampоптималдуу үн аткаруу үчүн көтөргүч орнотуулары.
5.1 Башкаруу
The variable gain control (often labeled 'Input Level' or 'Gain') matches the amplifier's input sensitivity to the output level of your head unit. Start with the gain set to minimum, then slowly increase it until you achieve a clear, undistorted sound at your desired volume level from the head unit.
5.2 Кроссовер орнотуулары
The NX2500.4 features variable high-pass (HPF) and low-pass (LPF) crossovers:
- Жогорку өтүүчү чыпка (HPF): Allows frequencies above the set point to pass through, blocking lower frequencies. Use for full-range speakers to prevent distortion from bass frequencies.
- Төмөн өткөрүүчү чыпка (LPF): Allows frequencies below the set point to pass through, blocking higher frequencies. Use for subwoofers to ensure they only reproduce bass.
Adjust these settings based on the frequency response of your speakers and subwoofers to achieve a balanced sound.
5.3 Bass Boost
The variable bass boost control (0 to +18dB) allows you to enhance the low-end frequencies. Use this feature sparingly to avoid distortion and potential speaker damage. Adjust to your preference for added bass impact.
5.4 Remote Subwoofer Level Control
If a subwoofer is connected to the amplifier, the included remote level control allows for convenient, on-the-fly adjustments of the subwoofer's output level from the driver's seat.
5.5 Иштөө режимдери
The amplifier can be configured for different operating modes:
- 4 каналдуу стерео: For driving four full-range speakers.
- 2-Channel Bridged: For driving two subwoofers or high-power speakers.
- Tri-mode: A combination of 2-channel stereo and 1-channel bridged for a subwoofer.
Ensure the correct mode is selected via any switches on the amplifier and that wiring corresponds to the chosen mode.
6. Техникалык тейлөө
Үзгүлтүксүз тейлөө сиздин узак мөөнөттүү жана натыйжалуулугун камсыз кылууга жардам берет ampөмүрлүү.
- Тазалоо: Мезгил-мезгили менен сүртүп туруңуз ampliifier сыртын жумшак, кургак чүпүрөк менен. Катуу химиялык заттарды же абразивдүү тазалагычтарды колдонуудан алыс болуңуз.
- Вентиляция: камсыз кылуу amplifier's cooling fins are free from dust and obstructions to maintain proper airflow.
- Байланыштары: Occasionally check all power, ground, and speaker connections to ensure they are secure and free from corrosion.
7. Кыйынчылыктарды
Эгер сиз менен көйгөйлөр пайда болсо ampкөтөргүч, төмөнкү кеңири таралган көйгөйлөрдү жана чечимдерди караңыз.
7.1 Protection LED Indicator
The amplifier is equipped with protection circuitry. If the protection LED illuminates, the amplifier has detected a fault and has shut down to prevent damage. Common causes include:
- Ашыкча ысып кетүү: айланасында жетиштүү желдетүүнү камсыз кылуу amplifier. Allow it to cool down.
- Кыска туташуу: Check speaker wiring for shorts to ground or between positive and negative terminals.
- Төмөн импеданс: Ensure the total impedance of connected speakers meets the ampкөтөргүчтүн спецификациялары.
- DC Offset: A fault within the ampкөтөргүч өзү.
After resolving the issue, turn the vehicle's ignition off and then on again to reset the ampөмүрлүү.
7.2 Үн жок
- Check power, ground, and remote turn-on connections.
- Verify RCA or speaker-level input connections from the head unit.
- Ensure the head unit is on and functioning correctly.
- Check speaker wires for proper connection and continuity.
7.3 Бурмалоо
- тууралаңыз amplifier's gain control to prevent clipping.
- Check speaker impedance and ensure it is within the amplifier's acceptable range.
- Verify that the head unit's output is not distorted.
- Adjust crossover settings to prevent speakers from playing frequencies they cannot handle.
8. Техникалык шарттар
| Спецификация | Нарк |
|---|---|
| Модель номери | NX2500.4 |
| Чыгуу күчү (чоку) | 2500 Ватт |
| Каналдардын саны | 4 |
| 4-Channel Mode (2 Ohms) | 625 Ватт x 4 |
| 4-Channel Mode (4 Ohms) | 250 Ватт x 4 |
| Bridged Mode (4 Ohms) | 1250 Ватт x 2 |
| Электр булагы түрү | MOSFET |
| Тtage | 12 вольт (ток) |
| Элементтин өлчөмдөрү (L x W x Y) | 18.3 x 2.38 x 10 дюйм |
| Элемент Салмагы | 12.6 фунт |
| Монтаж түрү | Surface Mount |
| UPC | 791489113762 |
9. Кепилдик маалыматы
The BOSS Audio Systems NX2500.4 ampкөтөргүч а менен келет SIX-YEAR warranty. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by improper installation, accident, misuse, abuse, neglect, or unauthorized modification.
10. Кардарларды колдоо кызматы
If you have further questions or require technical assistance that is not covered in this manual, please contact BOSS Audio Systems customer support. Before contacting support, ensure you have reviewed this manual and performed basic troubleshooting steps.
