Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Weiser Welcome Home Toluca Lever Lock Entry. This product features the innovative SmartKey cylinder technology, offering enhanced security and convenient rekeying capabilities. Please read this manual thoroughly before beginning installation or operation to ensure proper function and longevity of your lock.
Кутуда эмне бар
Carefully unpack all components and verify that all items listed below are present. If any parts are missing or damaged, please contact Weiser customer support.
Image: Contents of the Weiser Welcome Home Toluca Lever Lock Entry package.
- Сырткы рычаг
- Ички рычаг
- Adjustable Latch (with Round Front Option or a Drive-In Collar)
- Strike Plate
- SmartKey® Tool
- 2 Weiser® ачкычы
- Орнотуу жабдыктары (бурамалар)
- Аллен Wrench
Орнотуу жана орнотуу
The Weiser Welcome Home Toluca Lever Lock is designed for easy installation and is reversible for both right-handed and left-handed doors. Ensure your door is prepared according to standard door lock specifications (adjustable backset 2-3/8" or 2-3/4").
Эшик тапшыруу
Image: The reversible design allows installation on both left-handed and right-handed doors.
This lever is non-handed, meaning it can be used with both right and left-hand doors without modification. The reversible design simplifies installation.
Орнотуу кадамдары
Ийгиликтүү орнотуу үчүн бул кадамдарды аткарыңыз:
Image: Visual guide for the easy installation process.
- Install Latch and Exterior Lever: Screw in the adjustable latch into the door edge. Place the exterior lever assembly onto the door, ensuring the spindle passes through the latch mechanism.
- Коопсуз монтаждоо плитасы: Easily access mounting screw holes by removing the rosette. Secure the mounting plate to the door with the provided screws. Ensure the turn button is kept horizontal as shown in the diagram.
- Attach Interior Lever: Reattach the rosette to the mounting plate. Position the interior handle onto the chassis, aligning the spindle.
- Акыркы камсыздоо: Secure the interior handle to the chassis using the supplied Allen wrench. Install the strike plate on the door frame, aligning it with the latch.
For detailed visual instructions, refer to the "Easy Install" diagram provided.
Иштөө нускамалары
SmartKey® Cylinder Technology
Your Weiser Toluca Lever Lock features SmartKey cylinder technology, which allows you to rekey your lock yourself in seconds. This is particularly useful for situations such as moving to a new home, losing keys, or consolidating multiple locks to a single key.
Image: SmartKey Security allows for easy re-keying.
To rekey your lock:
- Иштөөчү ачкычты цилиндрге толугу менен киргизиңиз.
- Ачкычты саат жебеси боюнча 90 градуска буруңуз.
- Insert the SmartKey tool fully into the small hole on the cylinder face.
- SmartKey куралын жана иштеп жаткан баскычты алып салыңыз.
- Insert the new key you wish to use fully into the cylinder.
- Жаңы ачкычты саат жебесине каршы 90 градуска буруңуз.
- Remove the new key. Your lock is now rekeyed to the new key.
The SmartKey cylinder is designed to be bump-resistant and highly pick-resistant, providing enhanced security.
Техникалык тейлөө
To ensure the long-lasting performance and appearance of your Weiser Toluca Lever Lock, follow these maintenance guidelines:
- Тазалоо: Кулпуну жумшак, d менен тазалаңызamp кездеме. Абразивдүү тазалагычтардан, эриткичтерден же катуу химиялык заттардан алыс болуңуз, алар финишке зыян келтириши мүмкүн.
- Майлоо: Periodically apply a silicone-based lubricant to the latch mechanism and cylinder to ensure smooth operation. Do not use oil-based lubricants as they can attract dirt.
- Текшерүү: Regularly inspect all screws and connections to ensure they are tight. Loose components can affect the lock's performance and security.
- Негизги кам көрүү: Keep keys clean and free of debris. Do not force a key into the cylinder if it does not insert smoothly.
Проблемаларды чечүү
If you encounter issues with your Weiser Toluca Lever Lock, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Ачкыч айланбайт же киргизүү кыйын. | Debris in cylinder, worn key, or misaligned cylinder. | Clean key and cylinder. Try a spare key. If issue persists, contact customer support. |
| Рычаг бош же солкулдап турат. | Loose mounting screws or worn internal components. | Tighten mounting screws. If wobble persists, the premium chassis ensures long-term stability, but contact support if excessive. |
| Latch does not retract fully or sticks. | Misalignment with strike plate, dirt in latch mechanism, or dry lubricant. | Check strike plate alignment. Clean and lubricate the latch mechanism with silicone spray. |
| Кулпуну кайра ачуу мүмкүн эмес. | Incorrect rekeying procedure, wrong key, or damaged SmartKey tool. | Review the "Operating Instructions" section for the correct rekeying steps. Ensure the original working key is used first. |
If you are unable to resolve an issue using the troubleshooting guide, please contact Weiser customer support for assistance.
Техникалык шарттар
Key technical specifications for the Weiser Welcome Home Toluca Lever Lock Entry:
Image: Internal features and premium chassis design of the lever lock.

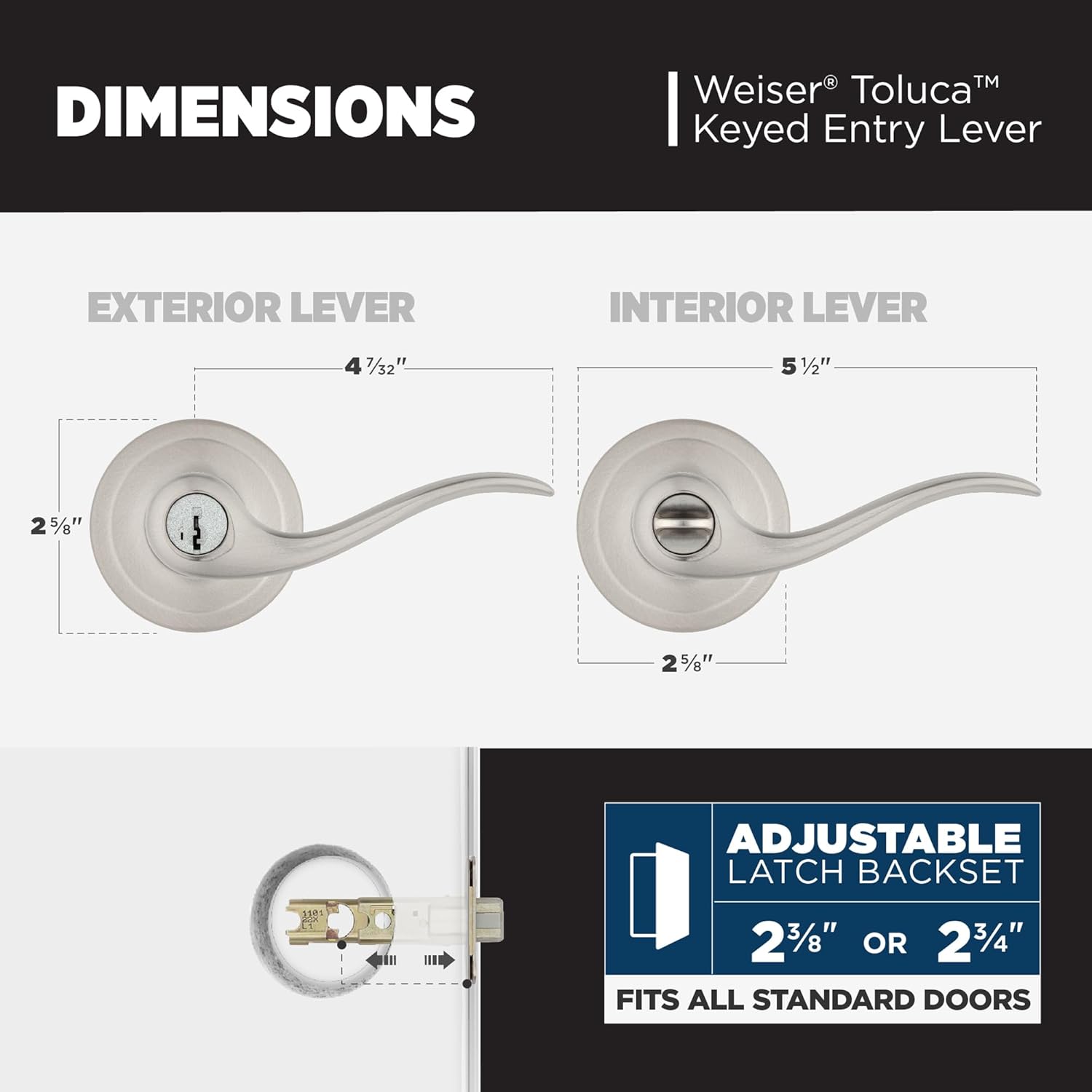

Image: Dimensional specifications for the Weiser Toluca Lever Lock.
- Модель номери: 9GLA5350-071
- Бүтүрүү: Satin Nickel
- Колдун багыты: Right (non-handed, reversible for left)
- Кулпу түрү: Key Lock (Entry Function)
- Цилиндр түрү: SmartKey® Cylinder Technology
- Артка: Жөнгө салынуучу 2-3/8" же 2-3/4"
- Эшик калыңдыгы: Бардык стандарттуу эшиктерге туура келет
- Материал: Zinc (Handle Material)
- Өлчөмдөрү: 4.6 x 8.88 x 3.1 дюйм (Өнүмдүн өлчөмдөрү)
- Элемент Салмагы: 1 фунт
- Өзгөчөлүктөр: Easy to Install, Bump-resistant, Higher Pick-resistant
- Сертификаттар: ANSI Grade 2 BHMA Certified (Premium Chassis)
Кепилдик жана колдоо
Weiser stands behind the quality of its products. For specific warranty information regarding your Weiser Welcome Home Toluca Lever Lock, please refer to the warranty card included with your purchase or visit the official Weiser webсайт. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.
For technical support, replacement parts, or further assistance, please contact Weiser customer service. Contact information can typically be found on the product packaging or the official Weiser webсайт.
Өндүрүүчү: Weiser
