Introduction
This manual provides essential information for the proper setup, operation, and maintenance of your Fender '65 Princeton Reverb Guitar Amplifier. The '65 Princeton Reverb is a 15-watt all-tube amplifier designed for versatile use in various settings, from home practice to recording studios and small live performances. It features classic Fender tube tone, dynamic clean and overdriven sounds, and integrated long-spring reverb and tube vibrato effects.
Негизги өзгөчөлүктөр төмөнкүлөрдү камтыйт:
- 15-watt all-tube amplification with tube rectification.
- Equipped with a 1-10" Jensen C-10R, 8 Ohm, 40 Watt Speaker with Ceramic Magnet.
- Integrated long-spring Fender reverb and tube vibrato effects.
- а камтыйт amplifier cover and a 2-button footswitch for remote control of reverb and vibrato.
Сүрөт 1: Алдыңкы view of the Fender '65 Princeton Reverb Guitar Ampкөтөргүч, көрсөтүүчүasing its classic black Tolex finish and silver grille cloth.
Жайгашуу
- Пакеттен чыгаруу: Кылдаттык менен алып салуу amplifier from its packaging. Retain all packing materials for future transport or storage.
- Жайгашкан жери: жайгаштырыңыз amplifier on a stable, level surface. Ensure adequate ventilation around the unit to prevent overheating. Avoid placing the ampкөчүргүчтү жылуулук булактарынын жанында же күндүн түз тийген жеринде сактаңыз.
- Кубат туташуу: камсыз кылуу amplifier's power switch is in the 'OFF' position. Connect the supplied power cord to the amplifier's AC inlet and then to a grounded electrical outlet. Verify that the outlet provides the correct voltagсиздин аймак үчүн e.
- Аспап туташуу: Connect your guitar or other instrument to one of the 'INSTRUMENTS' input jacks (Input 1 or Input 2) using a high-quality instrument cable. Input 1 typically offers higher sensitivity than Input 2.
- Footswitch Connection (Optional): If using the included 2-button footswitch, connect it to the 'FOOTSWITCH' jack on the amplifier's rear panel. This allows remote activation of the Reverb and Vibrato effects.
Иштөө нускамалары
менен таанышыңыз amplifier's front panel controls:
- Кубат которгучу: бурат amplifier ON or OFF. Allow a brief warm-up period after turning on.
- Көлөмү: Жалпы өндүрүш деңгээлин көзөмөлдөйт ampөмүрлүү.
- Үч кабат: Adjusts the high-frequency response. Turn clockwise for brighter tones, counter-clockwise for warmer tones.
- Бас: Adjusts the low-frequency response. Turn clockwise for more bass, counter-clockwise for less.
- Реверб: Controls the intensity of the built-in spring reverb effect.
- Ылдамдыгы: Adjusts the rate of the vibrato effect.
- Интенсивдүүлүгү: Adjusts the depth or prominence of the vibrato effect.
Баштапкы кубаттоо:
- Ensure all volume and effect controls are set to their minimum positions.
- Flip the power switch to the 'ON' position. The pilot light will illuminate.
- Allow approximately 30-60 seconds for the tubes to warm up.
- Slowly increase the 'Volume' control to your desired listening level. Adjust 'Treble' and 'Bass' for tonal preference.
- Experiment with the 'Reverb', 'Speed', and 'Intensity' controls to achieve desired effects.

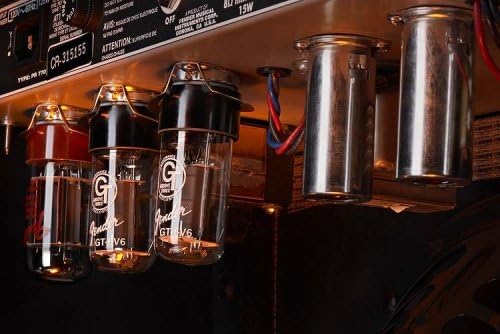

2-сүрөт: Ички view -ныкы amplifier, highlighting the vacuum tubes which are crucial for its tonal characteristics.
Техникалык тейлөө
- Тазалоо: Тазалоо үчүн жумшак, кургак чүпүрөктү колдонуңуз amplifier's exterior. Avoid abrasive cleaners or solvents.
- Түтүккө кам көрүү: Vacuum tubes have a finite lifespan. If you notice a decrease in performance, unusual noise, or a change in tone, tubes may need replacement. Consult a qualified technician for tube replacement.
- Сактагыч: Колдонулбаган учурда, дүкөндү сактаңыз amplifier in a dry, temperature-controlled environment. Use the included amplifier cover to protect it from dust and minor impacts.
- Транспорт: Ар дайым өчүрүп, розеткадан сууруп алыңыз amplifier before moving it. Use proper lifting techniques due to its weight.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Үн чыгышы жок | Power cord disconnected, instrument cable faulty, volume set to zero, speaker disconnected. | Check power and instrument cables. Ensure volume is up. Verify speaker connection. |
| Ызы-чуу же ызы-чуу | Ground loop, faulty instrument cable, proximity to other electronics, worn tubes. | Try a different outlet. Use shielded cables. Move away from other devices. Consult technician for tube inspection. |
| Алсыз же бурмаланган үн | Worn tubes, incorrect instrument input, speaker damage. | Check instrument input. Consult technician for tube or speaker inspection. |
| Reverb or Vibrato not working | Footswitch disconnected or faulty, effect controls set to zero, internal component failure. | Check footswitch connection and functionality. Ensure effect controls are adjusted. Consult technician. |
If troubleshooting steps do not resolve the issue, contact Fender customer support or a qualified service technician.
Техникалык шарттар
- Бренд: Fender
- Модел: '65 Princeton Reverb
- Модель номери: 2172000000
- Чыгуу Wattage: 15 Ватт
- Баяндамачы: 1-10" Jensen C-10R, 8 Ohm, 40 Watt Speaker with Ceramic Magnet
- Продукциянын өлчөмдөрү: 28.25 x 22.5 x 12.25 inches (Length x Height x Depth)
- Элемент Салмагы: 34 фунт
- Түсү: Кара
- Материал: Металл, жыгач
- Шайкеш түзмөктөр: Гитара
- Өндүрүүчү: Fender музыкалык аспаптар корпорациясы
Figure 3: Dimensional diagram of the amplifier, indicating its length, height, and depth.
Кепилдик жана колдоо
Fender products are designed for reliability and performance. For specific warranty information, please refer to the warranty card included with your amplifier or visit the official Fender website. For technical support, service, or replacement parts, please contact Fender customer service through their official channels. Always provide your model number (2172000000) and serial number when seeking support.
Онлайн ресурстар: For additional information, product registration, and support, visit the official Fender webсайт.
