Introduction
The Streamlight ProTac 2L is a compact and powerful everyday carry (EDC) professional flashlight. It features advanced power LED technology and offers three user-selectable programs, providing versatility for various lighting needs. Its small size combined with high output makes it an ideal personal carry light. This manual provides essential information for the safe and effective use of your ProTac 2L flashlight.
Негизги өзгөчөлүктөрү:
- 350 lumens on high mode.
- Compact design, under 5 inches, for easy pocket carry.
- Multiple lighting modes: High, Low, and Strobe.
- Extended runtime of 35 hours on Low mode.
- Durable aluminum construction for longevity.

Figure 1: The Streamlight ProTac 2L professional flashlight, showcasing its compact black aluminum body and pocket clip.
Пакеттин мазмуну
Upon opening your ProTac 2L package, please verify that all the following components are included:
- Streamlight ProTac 2L Flashlight
- Two (2) CR123A Batteries
- Нейлон кабык
- Колдонуучунун колдонмосу (бул колдонмо)

Figure 2: Included accessories: nylon holster and two CR123A batteries, alongside the flashlight.
Жайгашуу
Батарея орнотуу:
The ProTac 2L requires two (2) CR123A Lithium-Ion batteries for operation. Ensure correct polarity when inserting batteries.
- Кол чырактын куйрук капкагын сааттын жебесине каршы буруп чечиңиз.
- Insert two CR123A batteries with the positive (+) end facing towards the head of the flashlight.
- Куйруктун капкагын сааттын жебеси боюнча кайра бекем орнотулганга чейин бураңыз.

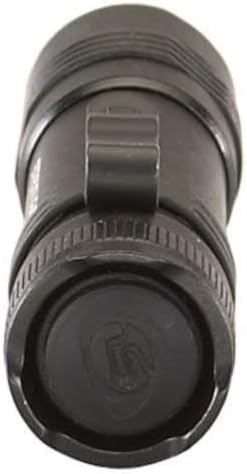

Figure 3: The tail cap of the flashlight, which unscrews for battery access.
Иштөө нускамалары
Күйгүзүү/өчүрүү:
To turn the flashlight on, fully press the tail cap switch until it clicks. To turn it off, press the switch again until it clicks.
Mode Selection (TEN-TAP Programming):
The ProTac 2L features TEN-TAP programming, allowing you to select one of three different operating programs:
- Program 1 (Factory Default): High > Strobe > Low
- 2-программа: Жогорку гана
- 3-программа: Low > High
To change programs, rapidly tap the tail cap switch 9 times (within 0.4 seconds per tap) and hold it down on the 10th tap. The light will then cycle through the available programs. Release the switch when the desired program is active.
Once a program is selected, a quick tap of the switch will activate the first mode in the sequence. Subsequent quick taps will cycle through the modes within that program. A full click will turn the light on or off in the currently selected mode.

Figure 4: Performance specifications for High and Low modes, including lumens, runtime, beam distance, and candela.

Figure 5: The ProTac 2L flashlight being held and illuminating a path in a dark environment.
Техникалык тейлөө
To ensure optimal performance and longevity of your Streamlight ProTac 2L flashlight, follow these maintenance guidelines:
- Тазалоо: Кол чырактын корпусун жумшак менен сүртүңүз, гamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
- O-шакектери: О-шакекчелердин эскиргендигин мезгил-мезгили менен текшерип туруңуз. Суу өткөрбөй тургандыгын сактоо үчүн жука катмар силикон майын сүйкөңүз.
- Батареяга кам көрүү: Remove batteries if the flashlight will not be used for an extended period to prevent leakage. Always use fresh, high-quality CR123A batteries.
- Объектив: Keep the lens clean and free of debris to maximize light output.
Проблемаларды чечүү
If you encounter issues with your ProTac 2L flashlight, try the following steps:
- Жарык жок:
- Батареянын багытын текшериңиз.
- Батареяларды жаңысына алмаштырыңыз.
- Куйрук капкагы толугу менен тартылганын текшериңиз.
- Intermittent Light:
- Clean battery contacts and tail cap threads.
- Батареялар толук заряддалганын же алмаштырылганын текшериңиз.
- Күңүрт жарык:
- Батареяларды алмаштырыңыз.
- Линзаны тазалаңыз.
If problems persist, please contact Streamlight customer support.
Техникалык шарттар

Figure 6: Dimensions of the Streamlight ProTac 2L flashlight.
| Атрибут | Нарк |
|---|---|
| Бренд | Streamlight |
| Модель номери | 88031 |
| Жарыктык | 350 люмен (жогорку) |
| Runtime | 3 hours (High), 35 hours (Low) |
| Жарык булагы түрү | LED |
| Power Source | Батарея менен иштейт |
| Батарея түрү | 2 x CR123A Lithium-Ion (included) |
| Материал | Алюминий |
| Түс | Кара |
| Продукциянын өлчөмдөрү | 4.77"D x 0.79"W x 4.68"H |
| Элемент Салмагы | 2.72 унция |
| Сууга туруктуулук деңгээли | Сууга туруктуу (IPX9) |
| Жарык жол аралык | 159 метр |
| Тtage | 3 вольт (ток) |
Коопсуздук маалыматы
ЭСКЕРТҮҮ: Бул продукт Калифорния штатында ракка жана тубаса кемтиктерге же башка репродуктивдик зыяндарга алып келүүчү химиялык заттарды камтыйт.
Always handle the flashlight and batteries with care. Do not look directly into the light beam, as it can cause temporary vision impairment. Keep out of reach of children. Do not attempt to disassemble the flashlight head or modify its components, as this may void the warranty and pose a safety risk.
Кепилдик жана колдоо
The Streamlight ProTac 2L flashlight is covered by a Чектелген Өмүр бою Кепилдик. This warranty covers defects in material and workmanship for the lifetime of the product, excluding batteries and bulbs, abuse, and normal wear and tear.
For detailed warranty information, service, or technical support, please visit the official Streamlight webсайтына же толук колдонуучу колдонмосунун PDF версиясына кайрылыңыз:
