Introduction
The Logitech Harmony 600 Universal Remote is designed to simplify your home entertainment experience by consolidating control of multiple devices into a single, easy-to-use remote. Its intuitive design, backlit screen, and one-click activity buttons allow for seamless operation of your television, sound system, and other media devices.
This remote replaces up to five other remotes and supports over 5,000 brands and 225,000 devices, ensuring compatibility with your current and future entertainment setup.
Сүрөт 1: Алдыңкы view of the Logitech Harmony 600 Universal Remote. This image displays the remote's full layout, including the LCD screen, activity buttons, navigation controls, and numeric keypad, highlighting its ergonomic shape and button arrangement.
Негизги өзгөчөлүктөрү:
- Controls up to 5 home entertainment devices.
- Backlit keypad for easy use in low light conditions.
- Easy access to movies, TV, music, and other activities with one-click buttons.
- Supports over 5,000 brands and 200,000 devices.
- Features a USB Mini-B port for computer connectivity and programming.
Орнотуу колдонмосу
1. Пакеттин мазмуну
Баштоодон мурун, бардык компоненттер бар экенин текшериңиз:
- Logitech Harmony 600 Universal Remote
- USB Mini-B Cable (for computer connection)
- Колдонуучунун документтери (бул колдонмо)
2. Батареяны орнотуу
The Harmony 600 remote requires two (2) AA batteries (not included) for operation.
- Пульттун артындагы батарея бөлүкчөсүн табыңыз.
- Батареянын капкагын ылдый жылдырыңыз жана аны көтөрүңүз.
- Эки AA батарейкасын салып, оң (+) жана терс (-) терминалдары бөлүмдүн ичиндеги индикаторлорго дал келгенин текшериңиз.
- Батареянын капкагын бекем чыккыча ордуна жылдырыңыз.
2-сүрөт: Каптал view of the Logitech Harmony 600 Universal Remote. This image illustrates the remote's ergonomic design and the location of the battery compartment on the underside, which is accessed from the back.
3. Initial Configuration and Programming
To program your Harmony 600 remote, you will need a computer with internet access. The remote is configured using Logitech's Harmony software.
- Программаны жүктөө: Расмий Logitech Harmony сайтына кириңиз webсайт (logitech.com/harmony) and download the Harmony software for your operating system.
- Пультка туташуу: Connect the Harmony 600 remote to your computer using the provided USB Mini-B cable.
- Программаны ишке киргизүү: Open the Harmony software and follow the on-screen instructions to create an account or log in.
- Түзмөктөрдү кошуу: The software will guide you through adding your home entertainment devices (TV, DVD player, audio receiver, etc.) by brand and model number.
- Иш-аракеттерди түзүү: Define "Activities" such as "Watch TV," "Watch a Movie," or "Listen to Music." The software will automatically configure the remote to turn on the necessary devices and switch to the correct inputs for each activity.
- Алыстан шайкештирүү: Once configuration is complete, sync the settings to your Harmony 600 remote via the USB connection.
Note: Ensure your computer's internet connection is stable during the software download and device configuration process.
Operating Your Harmony 600 Remote
Once configured, the Harmony 600 remote simplifies control of your entertainment system.

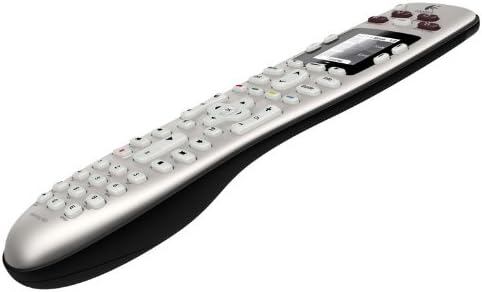

3-сүрөт: Бурчтуу view of the Logitech Harmony 600 Universal Remote. This perspective showcases the remote's ergonomic curve and the arrangement of its buttons, including the activity buttons at the top and the navigation cluster.
1. Using Activity Buttons
The most powerful feature of your Harmony remote is its Activity buttons, located at the top of the remote. Pressing an Activity button (e.g., "Watch TV," "Watch a Movie") will automatically:
- Turn on all necessary devices (e.g., TV, cable box, audio receiver).
- Switch each device to the correct input.
- Map the remote's buttons to the appropriate device (e.g., volume controls the receiver, channel controls the cable box).
2. Navigating the Backlit Screen
The backlit LCD screen displays commands and options relevant to your current activity or device. Use the navigation buttons (up, down, left, right, OK) around the screen to select options or view additional commands.
3. Түзмөктү башкаруу
While in an activity, the remote intelligently controls the correct device. If you need to control a specific device directly (e.g., adjust settings on your TV while watching a movie), you can press the "Devices" button on the screen or a dedicated device button if configured, then select the desired device.
4. Help Feature
If an activity does not start correctly or you encounter an issue, press the "Help" button on the remote. The remote will guide you through troubleshooting steps on its screen to resolve common problems.
Техникалык тейлөө
Пультуңузду тазалоо
To maintain the appearance and functionality of your Harmony 600 remote:
- Use a soft, lint-free cloth to wipe the surface of the remote.
- өжөр тактар үчүн, бир аз гampчүпүрөктү суу менен. Катуу химиялык заттарды же абразивдүү тазалагычтарды колдонуудан алыс болуңуз.
- Нымдуулуктун эч кандай тешиктерге киришине жол бербеңиз.
Батареяны алмаштыруу
When the remote's performance degrades or the screen dims, it's time to replace the batteries. Follow the battery installation steps outlined in the "Setup Guide" section. Always replace both AA batteries simultaneously with new ones.
Проблемаларды чечүү
If you encounter issues with your Logitech Harmony 600 remote, try the following solutions:
| Көйгөй | Мүмкүн чечим |
|---|---|
| Remote is unresponsive or screen is blank. |
|
| Devices do not turn on or switch inputs during an activity. |
|
| Specific buttons do not work for a device. |
|
| Remote loses settings. |
|
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | 915-000113 |
| Продукциянын өлчөмдөрү (L x W x Y) | 5.39 x 18.5 x 9.53 дюйм |
| Элемент Салмагы | 13.6 унция |
| Батареялар талап кылынат | 2 AA батарейкалар (киргизилген эмес) |
| Колдоого алынган түзмөктөрдүн максималдуу саны | 5 |
| Шайкеш түзмөктөр | Television, DVD players, Audio receivers, etc. (configurable via software) |
| Байланыш | Infrared (IR), USB Mini-B (for programming) |
| Түс | Күмүш боз |
| Дата биринчи жеткиликтүү | 23-май, 2010-жыл |
Кепилдик жана колдоо
Кепилдик маалымат
Please note that this product is often sold "as is." For specific warranty details, if any, please refer to the original purchase documentation or contact the retailer from whom the product was acquired. Logitech's official website may provide general warranty terms for their products.
Кардарларды колдоо
For further assistance, technical support, or to access the latest software and drivers for your Harmony 600 remote, please visit the official Logitech support webсайт:
You may also find helpful FAQs and community forums on their webсайт.
