Hikoki 754255 HM Hole Saw Set Instruction Manual

1. Киришүү

Thank you for choosing the Hikoki 754255 HM Hole Saw Set. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your new hole saw set. Please read these instructions carefully before operation and keep them for future reference.

This set is designed for creating clean, precise holes in various materials using a power drill. The carbide-tipped teeth ensure durability and efficient cutting performance.

2. Коопсуздук нускамалары

Always follow basic safety precautions when using power tools and accessories to reduce the risk of injury. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

• Тийиштүү жеке коргонуу каражаттарын (ЖКК) кийиңиз: Always wear safety glasses, hearing protection, and gloves. A dust mask is recommended when cutting materials that produce fine particles.
• Иштетилген бөлүктү бекитиңиз: Ensure the material you are drilling is firmly clampиш учурунда кыймылга жол бербөө үчүн орнотулган же камсыздалган.
• Use the correct drill: Ensure your drill is suitable for the hole saw size and material being cut. Use a drill with a clutch if available, especially for larger hole saws.
• Тоскоолдуктарды текшерүү: Before drilling, ensure there are no electrical wires, pipes, or other obstructions behind the workpiece.
• Бекем кармаңыз: Hold the drill firmly with both hands, especially when starting a cut or when the hole saw binds.
• Start slowly: Begin drilling at a slow speed to allow the pilot bit to engage and the hole saw to start cutting smoothly. Increase speed gradually.
• Apply steady pressure: Do not force the hole saw. Let the tool do the work. Excessive pressure can cause overheating, damage to the saw, or kickback.
• Таштандыларды тазалоо: Periodically clear chips and debris from the cutting area, especially when drilling deep holes. Disconnect power before clearing.
• Муздатууга уруксат берүү: For prolonged use, allow the hole saw to cool down to prevent overheating and premature wear.
• Колдонуудан мурун текшерүү: Before each use, inspect the hole saw for any damage, dull teeth, or cracks. Do not use damaged accessories.

3. Пакеттин мазмуну

The Hikoki 754255 HM Hole Saw Set includes the following items:

• 15-piece combination case
• Carbide-tipped hole saws in the following diameters (mm): 19, 20, 22, 25, 29, 35, 38, 44, 51, 54, 60, 65, 76, 82
• (Note: Specific arbors and pilot bits are typically included in such sets, but not explicitly detailed in the product description. Please refer to the packaging for a complete list.)

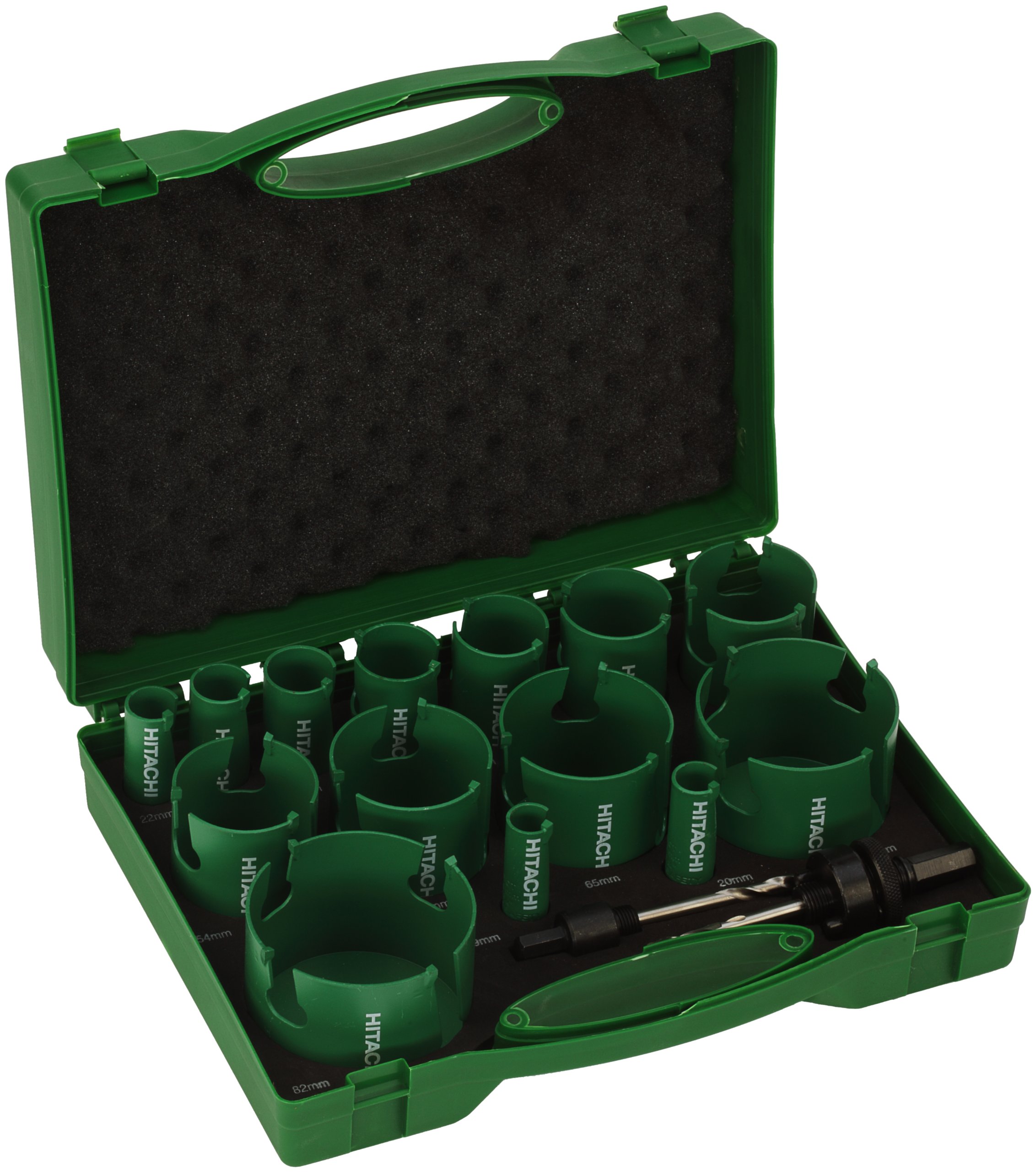

This image shows the Hikoki 754255 HM Hole Saw Set, featuring a collection of carbide-tipped hole saws in a storage case. The saws are designed for cutting various materials.

4. Орнотуу

1. Select the correct hole saw: Choose the hole saw with the desired diameter for your application.
2. Attach the arbor: Thread the selected hole saw onto the appropriate arbor. Ensure it is securely tightened.
3. Insert the pilot bit: Insert the pilot drill bit into the arbor and tighten the grub screw(s) to secure it. The pilot bit should extend slightly beyond the hole saw teeth.
4. Mount to drill: Insert the arbor shank into the chuck of your power drill. Tighten the chuck securely to prevent slippage during operation.
5. Туруктуулугун текшерүү: Before starting, ensure all components are securely fastened and there is no wobble.

5. Иштөө нускамалары

1. Даярдоо бөлүгүн: Mark the center of the desired hole. Secure the workpiece firmly to prevent movement.
2. Set drill speed: Adjust your drill's speed according to the material and hole saw diameter. Generally, larger hole saws and harder materials require lower speeds.
3. Бургулоону баштоо: Position the pilot bit on your marked center. Start the drill at a low speed, applying gentle, steady pressure.
4. Engage the hole saw: Once the pilot bit has penetrated the material, gradually increase the drill speed and maintain steady pressure. Allow the carbide teeth to cut through the material.
5. Maintain control: Keep a firm grip on the drill. Be prepared for potential kickback if the saw binds.
6. Clear the slug: Once the hole is cut, carefully remove the drill and hole saw. The cut material (slug) will typically be inside the hole saw. Use a screwdriver or punch to push it out through the side slots or from the back.

6. Техникалык тейлөө

• Тазалоо: After each use, clean the hole saws and arbors to remove any debris, dust, or residue. A stiff brush can be effective.
• Текшерүү: Regularly inspect the carbide teeth for wear, chips, or damage. Also check the arbor and pilot bit for signs of wear or bending. Replace damaged components immediately.
• Майлоо (эгер бар болсо): For cutting certain metals, a cutting lubricant may be recommended to extend tool life and improve cutting performance. Refer to material-specific guidelines.
• Сактагыч: Store the hole saw set in its original case in a dry, clean environment to prevent rust and damage.

7. Кыйынчылыктарды

8. Техникалык шарттар

• Модел: Hikoki 754255
• Түрү: HM (Carbide-tipped) Hole Saw Set
• Даана саны: 15 (including case and various hole saws)
• Hole Saw Diameters: 19mm, 20mm, 22mm, 25mm, 29mm, 35mm, 38mm, 44mm, 51mm, 54mm, 60mm, 65mm, 76mm, 82mm
• Сунушталган материалдар: Wood, plastic, plasterboard, non-ferrous metals (always verify compatibility for specific materials)

9. Кепилдик жана колдоо

Hikoki products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official Hikoki webсайт. Ар кандай кепилдик дооматтары үчүн сатып алганыңыздын далилин сактаңыз.

For technical support, spare parts, or service inquiries, please contact your local Hikoki dealer or authorized service center. Contact information can typically be found on the official Hikoki webсайтында же продуктунун таңгагында.

Официалдуу Webсайт: www.hikoki-powertools.com
