1. Киришүү
Thank you for choosing the STIGA Ultimate Pro Snow Racer. This manual provides essential information for the safe assembly, operation, and maintenance of your snow sled. Please read all instructions carefully before use to ensure a safe and enjoyable experience.
The STIGA Ultimate Pro Snow Racer features a robust steel frame, a curve ski system for enhanced steering, and a high tensile braking system. It is designed for recreational snow sledding.
2. Маанилүү коопсуздук көрсөтмөлөрү
- Жашы боюнча сунуш: This product is recommended for ages 3 and up. Adult supervision is required for all users, especially younger children.
- Салмак чеги: The snow racer has been tested at 110 lbs. Do not exceed this weight limit.
- Коргоочу шаймандар: Always wear a helmet, gloves, and appropriate winter clothing when operating the snow racer.
- Коопсуз чөйрө: Use the snow racer only in designated sledding areas free from obstacles, traffic, and steep drops. Avoid icy surfaces.
- Тормоз системасы: Familiarize yourself with the high tensile braking system before use. Test brakes on a gentle slope.
- Башкаруу: The two-component white steering wheel includes non-slip grips for added safety. Always maintain control of the steering.
- Бир гана чабандес: This snow racer is designed for one rider. Do not allow multiple riders simultaneously.
3. Орнотуу жана чогултуу
The STIGA Ultimate Pro Snow Racer requires some assembly. Please ensure all parts are present before beginning. Refer to the diagram below for component identification.

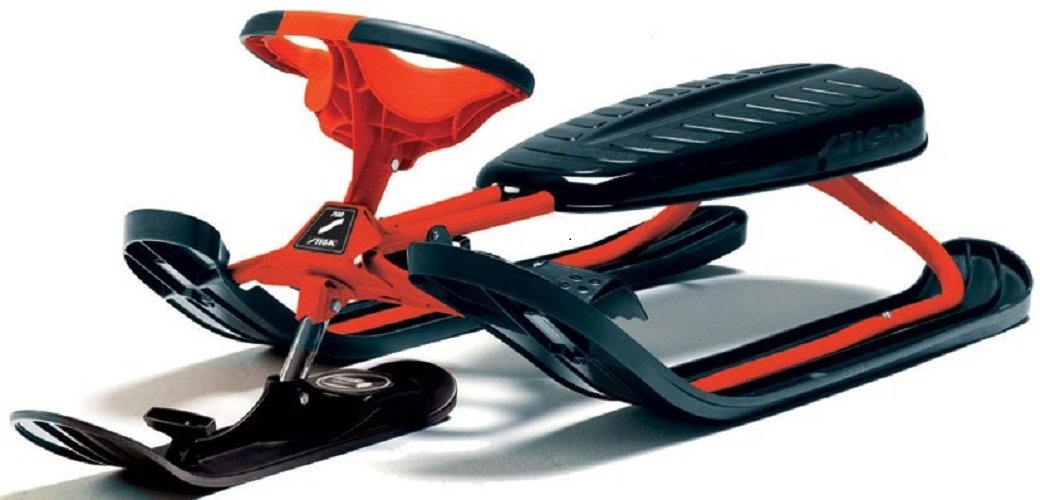

Image 1: Assembled STIGA Ultimate Pro Snow Racer. This image shows the complete snow racer with its steering wheel, skis, and frame.
Чогултуу кадамдары:
- Компоненттерди таңгактан чыгаруу: Carefully remove all parts from the packaging. Verify that all components listed in the parts list (not provided in this manual, refer to product packaging) are present.
- Attach Front Ski: Secure the carving-shaped front ski to the main frame using the provided hardware. Ensure all bolts are tightened securely.
- Руль дөңгөлөгүн орнотуу: Mount the steering wheel onto the steering column. Connect the steering spring mechanism as per the instructions. Ensure the steering wheel rotates freely and the spring provides proper return.
- Attach Side Skis: Fasten the twin-tip side skis to the frame. Confirm they are aligned correctly and move smoothly.
- Connect Braking System: Assemble the high tensile braking system according to the diagrams. Test the brake lever to ensure it engages both rear skis effectively.
- Акыркы текшерүү: Before first use, double-check all connections, bolts, and moving parts to ensure they are secure and functioning correctly.
4. Иштөө нускамалары
Operating the STIGA Ultimate Pro Snow Racer is straightforward, but practice is recommended in a safe area.
Riding the Snow Racer:
- Отуруунун абалы: Sit firmly on the seat, facing forward, with both feet on the footrests or ready to use the brakes.
- Башкаруу: Use the steering wheel to guide the snow racer. The curve ski system is designed for improved maneuverability. Turn the wheel in the desired direction of travel.
- Тормоздоо: To slow down or stop, firmly press down on the brake lever located between your legs. The high tensile braking system will engage the skis to reduce speed.
- Тартуу сымы: The snow racer includes a retractable pull cord for easy transport back up slopes. Ensure the cord is fully retracted when not in use to prevent entanglement.
5. Техникалык тейлөө
Regular maintenance will extend the life of your STIGA Ultimate Pro Snow Racer.
- Тазалоо: After each use, wipe down the snow racer with a damp cloth to remove snow, ice, and dirt. Dry thoroughly to prevent rust, especially on metal components.
- Текшерүү: Periodically inspect all bolts, screws, and connections for tightness. Check the skis for damage or excessive wear. Ensure the steering mechanism and braking system are functioning correctly.
- Сактагыч: Store the snow racer in a dry, sheltered area away from direct sunlight and extreme temperatures when not in use.
- Майлоо: Lightly lubricate moving parts, such as the steering column and brake pivot points, with a silicone-based lubricant if they become stiff.
6. Көйгөйлөрдү чечүү боюнча колдонмо
This section addresses common issues you might encounter with your snow racer.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Steering feels stiff or unresponsive. | Lack of lubrication; debris in steering mechanism; loose connections. | Clean and lubricate the steering column. Check for obstructions. Tighten any loose bolts. |
| Brakes are not engaging effectively. | Brake pads worn; cable loose; ice buildup. | Inspect brake pads for wear and replace if necessary. Check brake cable tension and adjust. Remove any ice or snow from the braking mechanism. |
| Retractable pull cord does not retract. | Spring mechanism dislodged or tangled; debris. | Carefully inspect the pull cord mechanism. If the spring is dislodged, it may be possible to re-seat it (professional repair recommended if unsure). Clear any debris. |
| Snow racer pulls to one side. | Skis misaligned; uneven weight distribution. | Check ski alignment and adjust if needed. Ensure even weight distribution during operation. |
7. Продукттун спецификациялары
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | 73-2311-05 |
| Продукциянын өлчөмдөрү (L x W x Y) | 86.36 x 45.72 x 22.86 см (34 x 18 x 9 дюйм) |
| Элемент Салмагы | 7.12 кг (15.7 фунт) |
| Материал | Эритме болот |
| Жаш аралыгы (сүрөттөө) | Kid (3 years and up) |
| Тормоз системасы | High Tensile |
| Руль | Two-component steering wheel with steering spring |
| Лыжалар | Curve ski system, twin tip skis, carving shaped front ski |
8. Кепилдик жана колдоо
Кепилдик маалыматы:
STIGA products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your purchase or visit the official STIGA webсайт. Ар кандай кепилдик дооматтары үчүн сатып алганыңыздын далилин сактаңыз.
Кардарларды колдоо:
If you have any questions, require assistance with assembly, or need to report a missing part, please contact STIGA customer support. Contact information can typically be found on the product packaging or the official STIGA webсайт.
