Nikko Road Burner Model 8979 RC унаасынын колдонмосу

1. Киришүү

Welcome to the instruction manual for your Nikko Road Burner Model 8979 radio-controlled car. This high-performance RC vehicle is part of the Evo Pro-Line series, designed for precision control and exciting racing. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your Nikko Road Burner to ensure optimal performance and enjoyment.

Please read this manual thoroughly before operating the vehicle and retain it for future reference.

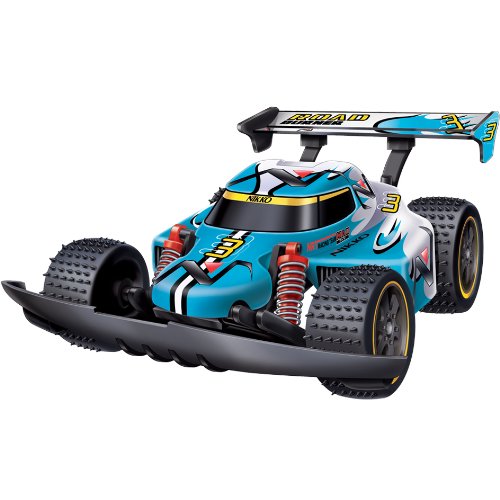

Image 1: The Nikko Road Burner Model 8979 RC Car, a high-speed radio-controlled vehicle with a blue and white body design, large off-road tires, and a rear spoiler.

2. Продукциянын өзгөчөлүктөрү

• Жогорку ылдамдыктагы аткаруу: Achieves speeds of up to 30 km/h for thrilling races.
• Digital Proportional Control: Provides precise steering and throttle response for superior handling.
• Толук асма системасы: Ensures excellent stability and control over various terrains.
• Interchangeable Steering: Allows for customization for both left and right-handed users.
• Exchangeable Components: Features exchangeable tires, motor, and frequency crystals (bands 1 to 6) for customization and multi-player racing.
• Multi-Player Capability: Race with up to 6 players simultaneously without interference by using different frequency crystals.
• Ready-to-Run Package: Includes all necessary batteries and a quick charger for immediate use.

Сүрөт 2: An overview of the Nikko Road Burner's key features and included components, showing the RC car, remote control, rechargeable battery pack, and quick charger, highlighting its 30 km/h speed, digital proportional control, and full suspension.

3. Пакеттин мазмуну

Таңгактан чыгаргандан кийин, төмөнкү нерселердин бардыгы бар экенин текшериңиз:

• Nikko Road Burner Model 8979 RC Vehicle
• Radio Control Transmitter (Remote Control)
• 9.6V Ni-MH Rechargeable Battery Pack (for vehicle)
• Quick Charger (for 9.6V Ni-MH battery pack)
• 9V Battery (for transmitter)

4. Орнотуу

4.1 Унаанын аккумуляторун кубаттоо

1. Connect the 9.6V Ni-MH rechargeable battery pack to the quick charger.
2. Plug the quick charger into a standard wall outlet.
3. Allow approximately 2 hours for a full charge. Do not overcharge.
4. Once charged, disconnect the battery pack from the charger and the charger from the outlet.

4.2 Installing Vehicle Battery

1. Locate the battery compartment on the underside of the Nikko Road Burner vehicle.
2. Батарея уясынын капкагын ачыңыз.
3. Carefully insert the charged 9.6V Ni-MH battery pack, ensuring correct polarity.
4. Батарея уясынын капкагын бекем жабыңыз.

4.3 Installing Transmitter Battery

1. Locate the battery compartment on the back of the radio control transmitter.
2. Батарея уясынын капкагын ачыңыз.
3. Insert the 9V battery, observing the correct polarity (+/-).
4. Батарея уясынын капкагын бекем жабыңыз.

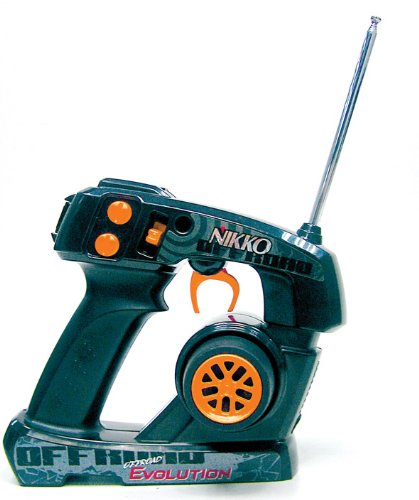

Image 3: The Nikko Road Burner's radio control transmitter, featuring a pistol-grip design with a steering wheel and trigger for precise digital proportional control.

4.4 Frequency Crystal Selection (for multi-player racing)

If racing with multiple players, ensure each vehicle and its corresponding transmitter use a different frequency crystal band (1-6) to avoid interference. Refer to the vehicle and transmitter for crystal slot locations and installation instructions.

4.5 Steering Handedness Adjustment

The transmitter features interchangeable steering for left or right-handed operation. Consult the transmitter's specific instructions for how to adjust the steering wheel position if needed.

5. Операция

5.1 Күйгүзүү

1. Turn on the power switch on the Nikko Road Burner vehicle.
2. Turn on the power switch on the radio control transmitter.
3. The vehicle and transmitter should now be linked.

5.2 Айдоону башкаруу элементтери

• Алдыга артка: Use the trigger on the transmitter. Pull the trigger to move forward, push it away to reverse.
• Сол/оң рул: Use the steering wheel on the transmitter to turn the vehicle left or right.
• Digital Proportional Control: The vehicle's speed and steering angle are proportional to how much you pull the trigger or turn the wheel, allowing for fine control.

5.3 Optimal Operating Environment

• Operate the vehicle on flat, open surfaces free from obstacles.
• Avoid operating near water, sand, or excessive dirt to prevent damage.
• Keep the vehicle within the effective range of the transmitter to maintain control.

5.4 Өчүрүү

1. Turn off the power switch on the Nikko Road Burner vehicle.
2. Turn off the power switch on the radio control transmitter.
3. For long-term storage, remove batteries from both the vehicle and transmitter.

6. Техникалык тейлөө

6.1 Тазалоо

• After each use, gently wipe the vehicle with a dry, soft cloth to remove dust and dirt.
• Do not use water or chemical cleaners, as they can damage electronic components.
• Clean the tires to ensure optimal grip.

6.2 Батареяга кам көрүү

• Always fully charge the 9.6V Ni-MH battery pack before use.
• Батареяларды заряддалып жатканда кароосуз калтырбаңыз.
• Remove batteries from the vehicle and transmitter when not in use for extended periods.
• Dispose of depleted batteries responsibly according to local regulations.

6.3 Сактоо

• Store the Nikko Road Burner and its components in a cool, dry place away from direct sunlight and extreme temperatures.
• Ensure all batteries are removed before long-term storage.

7. Кыйынчылыктарды

If you encounter issues with your Nikko Road Burner, refer to the following common problems and solutions:

• Унаа жооп бербей жатат:
  • Ensure both the vehicle and transmitter are powered on.
  • Check if batteries in both the vehicle and transmitter are fully charged and correctly installed.
  • Verify that the frequency crystals (if applicable) are correctly installed and matched.
• Poor performance or slow speed:
  • Recharge the vehicle's battery pack.
  • Ensure you are operating on a suitable surface (not too rough or soft).
  • Check for any obstructions in the wheels or drivetrain.
• Erratic steering or loss of control:
  • Check for radio interference from other devices.
  • Ensure the vehicle is within the transmitter's operating range.
  • Verify the steering trim on the transmitter is correctly adjusted.

8. Техникалык шарттар

9. Кепилдик жана колдоо

For warranty information, technical support, or replacement parts, please refer to the product packaging or contact Nikko customer service directly. Keep your proof of purchase for warranty claims.
