Introduction
The Genaray Torpedo LED Bi-Color Focusing Flood Light is a versatile and powerful lighting solution designed for both studio and on-location use. Its compact form factor, variable beam spread, and bi-color capabilities make it an essential tool for photographers and videographers. This manual provides detailed instructions for the setup, operation, and maintenance of your Torpedo LED light.
Please read this manual thoroughly before using the product to ensure safe and optimal performance. Keep this manual for future reference.
Продукт бүттүview & Негизги өзгөчөлүктөрү
The Torpedo LED light features a robust design with advanced functionalities:
- Fresnel линзасы: Offers an adjustable beam spread from a wide 75° flood to a tight 15° spot, ideal for various lighting scenarios.
- Bi-Color Output: Color temperature is adjustable from 3200K (warm tungsten) to 5600K (daylight), providing flexibility to match ambient light or other fixtures.
- Жогорку түс тактыгы: Boasts high CRI (Color Rendering Index) and TLCI (Television Lighting Consistency Index) ratings of 95.8/98, ensuring accurate color rendition.
- Кадамсыз күңүрттөө: Brightness can be continuously adjusted from 1% to 100% for precise light control.
- Бир нече кубат параметрлери: Can be powered by the included multi-voltage AC adapter or optional 7.4V NP-F style batteries, and includes a D-Tap cable for V-mount or Gold mount batteries.
- Натыйжалуу муздатуу: Features a thermo-controlled fan that activates when needed, extending LED life to 50,000 hours while operating quietly.
- Light Modifiers: Comes with detachable barndoors for beam shaping, and includes diffusers and color filters for light quality customization.
- Integrated Umbrella Channel: The mounting bracket includes a channel for attaching photographic umbrellas.
Компоненттер жана кутуда эмне бар
Таңгактан чыгаргандан кийин, төмөнкү нерселердин бардыгынын бар экенин текшериңиз:
- Genaray Torpedo LED Bi-Color Focusing Flood Light Unit
- Мульти-томtagэлектрондук AC адаптери
- D-Tap кабели
- Detachable Barndoors
- Diffusers (2x)
- Color Filter Set
- Ташуу кутусу
- Колдонуучунун Колдонмосу (бул документ)

Figure 1: The Genaray Torpedo LED Bi-Color Focusing Flood Light with its barndoors attached, showcasing анын компакттуу дизайны жана бекем түзүлүшү.
Жайгашуу
Follow these steps to set up your Torpedo LED light:
- Жарыкты орнотуу:
Attach the Torpedo light to a standard light stand using the integrated mounting bracket. Secure it by tightening the locking knob on the stand mount. Adjust the tilt angle of the light using the side locking knobs on the yoke.

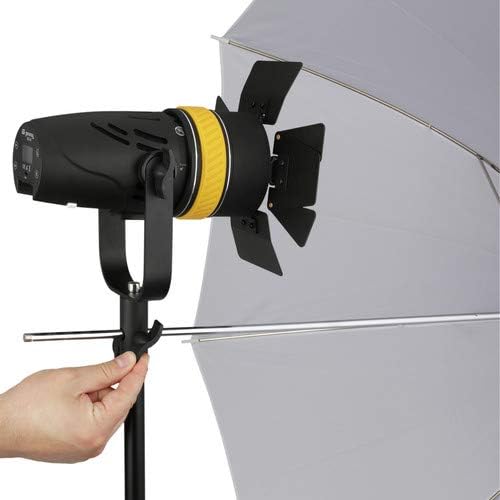

Figure 2: The Torpedo LED light mounted on a light stand, demonstrating its compatibility with standard studio equipment and an umbrella.
- Attaching Barndoors:
Align the barndoors with the front of the light fixture and secure them using the integrated clips or screws. Ensure they are firmly attached before operation.

Сүрөт 3: Алдыңкы view of the Torpedo light with its four-leaf barndoors fully opened, ready for beam shaping.
- Жарыкты иштетүү:
- AC кубаттуулугу: Connect the included multi-voltage AC adapter to the power input port on the light and then plug it into a wall outlet.
- Battery Power (Optional): For portable use, insert compatible 7.4V NP-F style batteries into the battery slots on the rear of the unit. Alternatively, connect a V-mount or Gold mount battery using the provided D-Tap cable. Note: Only use 7.4V NP-F batteries with this unit.
Иштөө нускамалары
Familiarize yourself with the control panel located on the rear of the light unit.

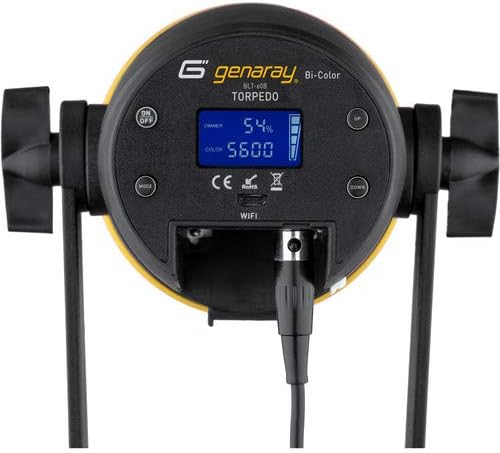

4-сүрөт: Детальдуу view of the Torpedo LED light's control panel, showing the display, power button, mode button, and adjustment buttons for dimmer and color.
1. Күйгүзүү/өчүрүү
басыңыз КҮЙГҮЗҮҮ/ӨЧҮРҮҮ button located on the control panel to power the light on or off. The display will illuminate when the unit is active.
2. Adjusting Brightness (Dimming)
колдонуу UP жана ылдый buttons next to the "DIMMER" indicator on the display to adjust the light intensity from 1% to 100%. The current dimming percentage will be shown on the display.
3. Түс температурасын жөндөө
басыңыз РЕЖИМ button to switch to color temperature adjustment mode. Use the UP жана ылдый buttons next to the "COLOR" indicator to change the color temperature between 3200K and 5600K. The selected Kelvin value will be displayed.
4. Focusing the Beam (Fresnel Lens)
The Torpedo light features an adjustable Fresnel lens. Rotate the yellow ring located near the front of the light fixture to adjust the beam spread. Rotate clockwise for a tighter spot (15°) and counter-clockwise for a wider flood (75°).

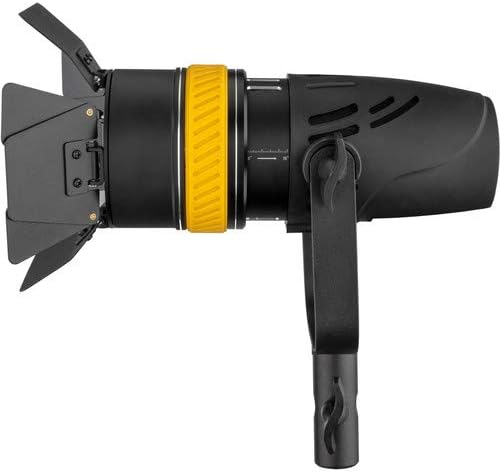

5-сүрөт: Side profile of the Torpedo light, highlighting the yellow focusing ring that adjusts the beam from flood to spot.
5. Using Barndoors and Filters
The included barndoors can be used to shape the light beam and prevent spill. Adjust each leaf individually to control the light spread. The light also supports the use of diffusers and color filters (included) which can be inserted into the accessory slot at the front of the light to modify light quality and color.
Техникалык тейлөө
Proper maintenance ensures the longevity and optimal performance of your Genaray Torpedo LED light:
- Тазалоо: Use a soft, dry cloth to clean the exterior of the light. For the Fresnel lens, use a lens cleaning solution and a microfiber cloth to avoid scratches. Do not use harsh chemicals or abrasive cleaners.
- Желдеткичти тейлөө: The light features a thermo-controlled fan. Ensure the ventilation slots are not obstructed to allow proper airflow. Do not attempt to clean the internal fan yourself; if issues arise, contact customer support.
- Сактагыч: When not in use, store the light in its carrying case in a cool, dry place, away from direct sunlight and excessive humidity.
- Батареяга кам көрүү: If using optional batteries, follow the manufacturer's guidelines for charging, discharging, and storing them. Remove batteries if the light will not be used for an extended period.
Проблемаларды чечүү
If you encounter issues with your Torpedo LED light, refer to the table below for common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Жарык күйбөйт. | No power supply; AC adapter or battery not connected/charged; Power button not pressed. | Ensure AC adapter is securely plugged in or batteries are charged and correctly inserted. Press the ON/OFF button. |
| Жарык күтүлбөгөн жерден бүлбүлдөп же өчүп калат. | Low battery power; Loose power connection; Overheating. | Recharge or replace batteries. Check all power connections. Ensure ventilation slots are clear. |
| Түстүн жарыктыгын же температурасын тууралоо мүмкүн эмес. | Incorrect mode selected; Control panel malfunction. | Press the MODE button to cycle through adjustment modes. If issue persists, contact support. |
| Fan is loud or constantly running. | High ambient temperature; Obstructed ventilation; Internal issue. | Ensure adequate ventilation around the light. Operate in a cooler environment if possible. If persistent, contact support. |
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | BLT-60B |
| Жарык булагы | 60W COB LED Array |
| Эквиваленттүү чыгаруу | 300W Tungsten Fixture |
| Beam Angle | Adjustable 15° (spot) to 75° (flood) |
| Түс температурасы | 3200K to 5600K (Bi-Color) |
| CRI/TLCI Rating | 95.8 / 98 |
| Караңгылык | 1% to 100% Stepless |
| Power Input | AC 100-240V, 50/60Hz (via AC adapter) |
| Батарея шайкештиги | 7.4V NP-F style batteries (optional), V-mount/Gold mount via D-Tap (optional) |
| LED өмүр күтүү | 50,000 саат |
| Муздатуу | Thermo-controlled fan |
| Өлчөмдөр | 8 x 3.7 inches (approximate, light unit only) |
| Пакеттин өлчөмдөрү | 15.4 x 9.5 x 5.8 дюйм |
| Сууга туруктуулук деңгээли | Сууга чыдамдуу эмес |
Кепилдик жана колдоо
Genaray products are designed for reliability and performance. For information regarding warranty coverage, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official Genaray webсайт. Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.
For further assistance, you may contact Genaray customer support directly.
