1. Продукт бүтүп калдыview
The Rittal TopTherm Filter Fan, model 3239110, is designed for efficient ventilation and cooling within industrial enclosures. This light grey unit features a diagonal fan technology that ensures greater pressure stability and constant airflow, even with a contaminated filter mat. Its design prioritizes ease of installation and maintenance, requiring no tools for mounting or filter mat replacement.
Негизги өзгөчөлүктөр төмөнкүлөрдү камтыйт:
- UL type 12; 50/60 hertz compatibility.
- Self-starting shaded pole motor diagonal fan for optimized airflow.
- Efficient power consumption at 19 W/18 W.
- 115 вольтто иштейт.
- Tool-less installation and filter mat replacement.
Сүрөт 1: Алдыңкы view of the Rittal TopTherm Filter Fan (Model 3239110).
2. Коопсуздук нускамалары
Please read and understand all safety instructions before installing, operating, or performing maintenance on the Rittal TopTherm Filter Fan. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Электр коопсуздугу: Ensure power is disconnected from the enclosure before any installation or maintenance work. Only qualified personnel should perform electrical connections.
- Орнотуу: Use appropriate personal protective equipment (PPE) during installation. Ensure the mounting surface is stable and capable of supporting the fan's weight.
- Операция: Do not obstruct the fan's airflow. Keep hands and foreign objects away from moving parts during operation.
- Тейлөө: Always disconnect power before cleaning or replacing the filter mat.
- Курчап турган чөйрө: Operate the fan within its specified temperature range (-5°F to 131°F).
3. Орнотуу боюнча колдонмо
The Rittal TopTherm Filter Fan is designed for quick and easy installation without the need for special tools.
- Даярдоо: Ensure the mounting surface on the enclosure is clean and free of obstructions. Use the provided drilling template to mark the mounting holes accurately.
- Монтаждоо: Insert the filter fan into the prepared opening. The fan is designed for tool-less mounting, typically involving clips or a snap-in mechanism that secures it firmly to the enclosure wall.
- Аба агымынын багыты: The airflow direction can be easily reversed by simply rotating the fan motor. This allows for flexible installation as either an intake or exhaust fan.
- Электр байланышы: Connect the fan to a 115V power supply. Ensure all electrical connections comply with local codes and standards. The fan uses a 3-Pin power connector type.

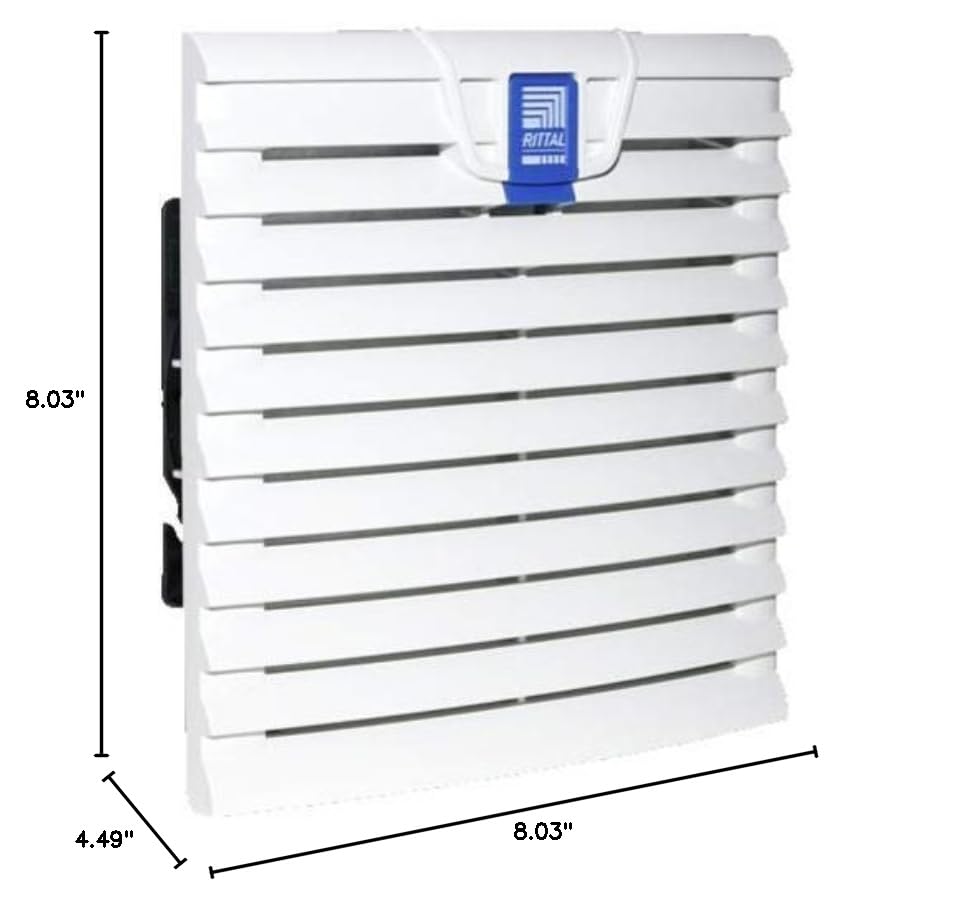

Figure 2: Dimensions of the Rittal TopTherm Filter Fan (8.03"L x 4.49"W x 8.03"H).
4. Операция
Once properly installed and connected to power, the Rittal TopTherm Filter Fan operates automatically to provide ventilation. The diagonal fan technology ensures a consistent airflow even if the filter mat accumulates some dust, maintaining optimal cooling performance for your enclosure.
The fan is designed for continuous operation within its specified environmental conditions. Monitor the enclosure temperature to ensure adequate cooling is being provided.
5. Техникалык тейлөө
Regular maintenance of your Rittal TopTherm Filter Fan is crucial for ensuring its longevity and optimal performance. The primary maintenance task is the replacement of the filter mat.
- Фильтр төшөгүн алмаштыруу: The filter mat should be replaced periodically, depending on the dustiness of the environment. The replacement process is tool-less and straightforward. Simply open the fan cover, remove the old filter mat, and insert a new one.
- Тазалоо: Periodically inspect the fan blades and housing for dust accumulation. If necessary, gently clean with a soft brush or compressed air after disconnecting power.
Эскертүү: Always use genuine Rittal replacement filter mats to ensure proper filtration and airflow.
6. Кыйынчылыктарды
This section provides solutions to common issues you might encounter with your Rittal TopTherm Filter Fan.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| желдеткич иштебейт | No power supply; Loose electrical connection; Fan motor failure. | Check power source and circuit breaker. Verify all electrical connections are secure. If problem persists, contact support. |
| Кыскартылган аба агымы | Clogged filter mat; Obstruction in airflow path; Fan motor issues. | Replace the filter mat. Remove any obstructions from the intake or exhaust. If airflow remains low, contact support. |
| Адаттан тышкаркы ызы -чуу | Loose components; Fan blade obstruction; Motor bearing wear. | Inspect for loose parts or foreign objects. Disconnect power and check fan blades for damage. If noise persists, contact support. |
7. Техникалык шарттар
| Спецификация | Нарк |
|---|---|
| Модель номери | 3239110 |
| Өлчөмдөрү (L x W x Y) | 8.03" x 4.49" x 8.03" (20.4 см x 11.4 см x 20.4 см) |
| Тtage | 115 вольт |
| Номиналдуу ток | 0.24 A / 0.22 А. |
| Энергияны керектөө | 19 Вт / 18 Вт |
| Air Flow Capacity (unimpeded) | 71 CFM (120 м³ / ч) |
| Ызы-чуу деңгээли | 46 / 49 дБ (А) |
| Иштөө температурасы | -5°F – 131°F (-20°C – 55°C) |
| NEMA / IP Rating | IP 54 (NEMA 12) standard; IP 55 with fine filter mat; IP 56 (NEMA 4/4X) with hose-proof hood |
| Өндүрүүчү | Риттал корпорациясы |
| Келип чыккан өлкө | Кытай |
8. Кепилдик жана колдоо
Rittal products are manufactured to high quality standards. For specific warranty information regarding your Rittal TopTherm Filter Fan (Model 3239110), please refer to the documentation included with your purchase or visit the official Rittal webсайт.
For technical support, spare parts, or further assistance, please contact Rittal customer service or visit their official brand store:
