1. Киришүү
This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of the Rittal Top Therm Wall Mounted Air Conditioner, Model 3305540. This unit is designed to provide efficient cooling for industrial enclosures, ensuring optimal operating conditions for sensitive electronic components. Please read this manual thoroughly before installation and operation to ensure safe and correct usage.
2. Коопсуздук маалыматы
Adherence to safety guidelines is crucial for preventing injury and damage to the equipment. Always follow local electrical codes and safety regulations.
- Электр коопсуздугу: Ensure the power supply matches the unit's requirements (400/460V, 50/60 Hz). Disconnect power before any installation, maintenance, or repair work.
- Квалификациялуу кадрларды: Орнотуу жана тейлөө квалификациялуу жана ыйгарым укуктуу персонал тарабынан гана аткарылышы керек.
- Туура Жерге салуу: The unit must be properly grounded to prevent electrical shock.
- Муздаткычты иштетүү: This unit contains R134a refrigerant. Handling of refrigerants should only be done by certified technicians.
- Вентиляция: Ensure adequate air circulation around the unit for proper heat dissipation.
- Салмагы: The unit weighs approximately 99 pounds. Use appropriate lifting techniques and equipment during installation.
3. Орнотуу жана орнотуу
The Rittal Top Therm Air Conditioner is designed for wall mounting and comes fully wired, ready for connection. Drilling templates and assembly hardware are included.
3.1 Таңгактан чыгаруу жана текшерүү
- Агрегатты таңгагынан кылдаттык менен чыгарыңыз.
- Жүк ташууда бузулуу белгилери бар-жогун текшериңиз. Ар кандай бузулуулар жөнүндө дароо ташуучуга кабарлаңыз.
- Таңгактоо тизмесинде көрсөтүлгөн бардык компоненттердин бар экендигин текшериңиз.
3.2 Монтаждоо боюнча нускамалар
The unit measures 15-3/4" (Width) x 37-25/64" (Height) x 10-15/64" (Depth). Ensure the mounting surface is capable of supporting the unit's weight (99 lbs).

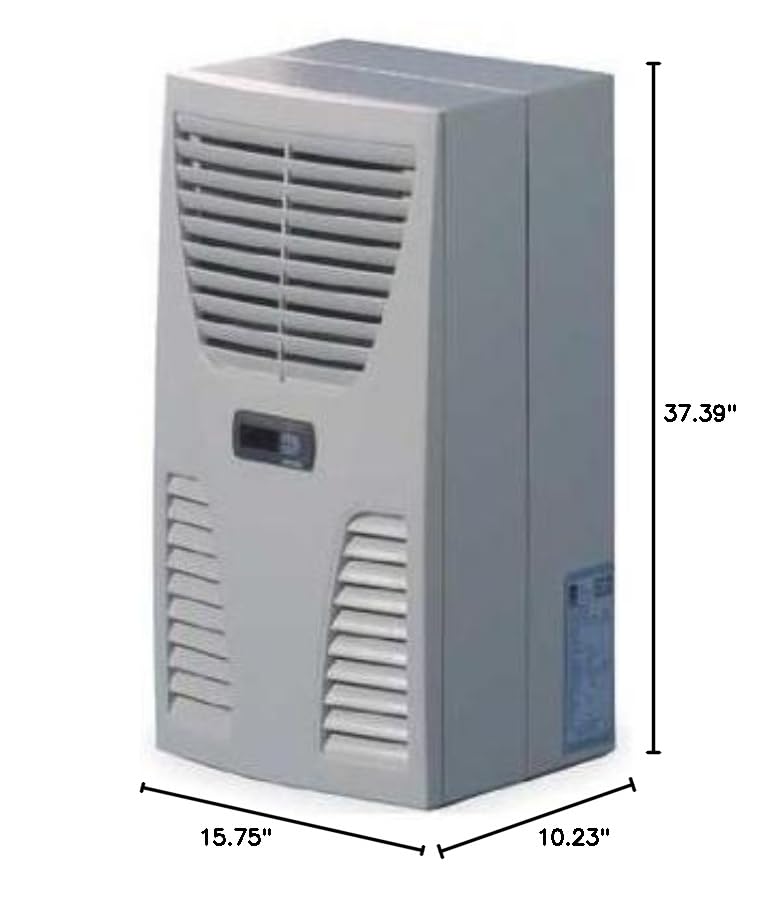

Figure 3.2.1: Rittal 3305540 Air Conditioner with labeled dimensions. The unit is 15.75 inches wide, 37.39 inches high, and 10.23 inches deep.
- Use the provided drilling template to mark the mounting holes on the enclosure or wall.
- Drill the necessary holes according to the template.
- Secure the air conditioner to the mounting surface using the supplied assembly hardware. Ensure a tight and stable fit.
- Verify that the unit is level and securely fastened.
3.3 Электрдик туташуу
The unit features a plug-in terminal strip connection. Ensure all electrical connections are made by a qualified electrician.
- Connect the power supply (400/460V, 50/60 Hz) to the designated terminals.
- Туура жерге туташтырууну камсыз кылуу.
- Install appropriate pre-fuses (T - 10.0 A) as specified.
- Кубатты колдонуудан мурун бардык туташуулар коопсуз экенин текшериңиз.
4. Иштөө нускамалары
The Rittal Top Therm Air Conditioner is equipped with a comfort controller for temperature management.
Сүрөт 4.1.1: Алдыңкы view of the Rittal 3305540 Air Conditioner, showing the comfort controller display and air vents.
4.1 Баштапкы баштоо
- After completing all electrical connections, switch on the main power supply to the unit.
- The comfort controller display will illuminate.
- Allow a few minutes for the system to stabilize.
4.2 Температураны көзөмөлдөө
- The comfort controller allows setting the desired temperature within a range of 68°F to 131°F (20°C to 55°C).
- The factory setting for temperature control is +95°F (35°C).
- Refer to the separate comfort controller manual for detailed instructions on adjusting settings, viewing operational parameters, and accessing advanced features.
5. Техникалык тейлөө
Regular maintenance ensures optimal performance and extends the lifespan of the air conditioner. Always disconnect power before performing any maintenance.
5.1 Фильтрди тазалоо/алмаштыруу
- Check air filters regularly (e.g., monthly, depending on environment).
- Clean filters using compressed air or wash with mild soap and water. Ensure filters are completely dry before reinstallation.
- Replace filters if they are damaged or cannot be cleaned effectively.
5.2 Конденсатты башкаруу
- The unit features an integrated condensate evaporator.
- Periodically check the condensate drain for blockages. Clear any obstructions to ensure proper drainage.
5.3 Жалпы тазалоо
- Агрегаттын сыртын жумшак менен сүртүңүз, гamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
- Ensure air intake and exhaust vents are free from dust and debris.
6. Кыйынчылыктарды
This section provides solutions to common issues. For problems not listed here, contact Rittal technical support.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Түзмөк күйбөйт. | No power supply; Blown fuse; Loose electrical connection. | Check main power supply; Inspect and replace fuses; Verify all electrical connections are secure. |
| Жетишсиз муздатуу. | Dirty air filters; Blocked air vents; Incorrect temperature setting; Refrigerant leak. | Clean or replace air filters; Clear obstructions from vents; Adjust temperature setting; Contact qualified technician for refrigerant check. |
| Ашыкча ызы-чуу. | Loose mounting; Fan obstruction; Worn fan bearings. | Ensure unit is securely mounted; Check for debris in fan; Contact Rittal service for fan inspection. |
| Суунун агып чыгышы. | Blocked condensate drain; Unit not level. | Clear condensate drain; Ensure unit is installed level. |
7. Техникалык шарттар
Detailed technical specifications for the Rittal Top Therm Wall Mounted Air Conditioner, Model 3305540.
| Параметр | Нарк |
|---|---|
| Модель номери | 3305540 |
| Өлчөмдөрү (W x Y x D) | 15.75" x 37.39" x 10.23" (400 мм x 950 мм x 260 мм) |
| Салмагы | 99 фунт (44.9 кг) |
| Тtage | 400/460V |
| Жыштык | 50/60 Гц |
| Номиналдуу ток (Amp) | 2.3 A / 2.6 А. |
| Баштоо агымы | 12.2 A / 11.3 А. |
| Алдын ала сактагыч | T - 10.0 A |
| Cooling Capacity (L35 L35) | 1500/1510 Вт (5123/5157 BTU) |
| Cooling Capacity (L35 L50) | 1230/1250 Вт (4201/4269 BTU) |
| Power Consumption (L35 L35) | 800 Вт / 980 Вт |
| Power Consumption (L35 L50) | 960 Вт / 1150 Вт |
| Муздаткыч | R134a (21.2 унция) |
| Температура диапазону | 68°F – 131°F (20°C – 55°C) |
| Protection Rating (External) | IP 34 (NEMA 2) |
| Protection Rating (Internal) | IP 54 (NEMA 12) |
| Air Displacement (Internal) | 471 cfm |
| Сертификаттар | CE 3 238 305, CSA 1528625, cUL SA 8250, GS 44 315 09 368698-002, UL SA 8250, UL Type 12 |
8. Кепилдик жана колдоо
8.1 Чектелген Кепилдик
The Rittal Top Therm Wall Mounted Air Conditioner, Model 3305540, comes with a limited warranty. Please refer to the warranty card included with your product or visit the official Rittal website for detailed terms and conditions regarding coverage, duration, and limitations.
8.2 Техникалык колдоо
For technical assistance, service requests, or inquiries not covered in this manual, please contact Rittal technical support. Have your model number (3305540) and serial number ready when contacting support.
- Риталдын расмий өкүлү Webсайт: www.rittal.com
- Кардарларды колдоо: Refer to the Rittal website for regional contact information and support channels.
