Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Rittal 3303500 Top Therm Wall Mounted Air Conditioner. Please read this manual thoroughly before installation and operation to ensure proper use and to prevent damage to the unit or injury to personnel.
Сүрөт 1: Алдыңкы view of the Rittal 3303500 Top Therm Wall Mounted Air Conditioner.
Коопсуздук маалыматы
Өрт, электр шок же жаракат алуу коркунучун азайтуу үчүн ар дайым төмөнкү коопсуздук чараларын сактаңыз:
- Агрегаттын туура жерге туташтырылганын текшериңиз.
- Кандайдыр бир техникалык тейлөө же тейлөө иштерин жүргүзүүдөн мурун электр кубатынан ажыратыңыз.
- Do not operate the unit with damaged cords or plugs.
- Бардык тейлөөлөрдү квалификациялуу тейлөө кызматкерлерине тапшырыңыз.
- Аба кирүүчү же чыгуучу жерлерди жаап албаңыз.
Орнотуу жана орнотуу
The Rittal 3303500 unit is designed for wall mounting and comes fully wired and ready for connection. It includes drilling templates and assembly hardware for convenience.
1. таңгактан чыгаруу
- Кондиционерди таңгагынан кылдаттык менен чыгарыңыз.
- Inspect the unit for any signs of damage during transit. Report any damage to the carrier immediately.
- Таңгактоо тизмесинде көрсөтүлгөн бардык компоненттердин бар экендигин текшериңиз.
2. Монтаждоо орду
Select a mounting location that allows for adequate airflow around the unit and provides easy access for maintenance. Ensure the wall can support the unit's weight (approximately 41 lbs).

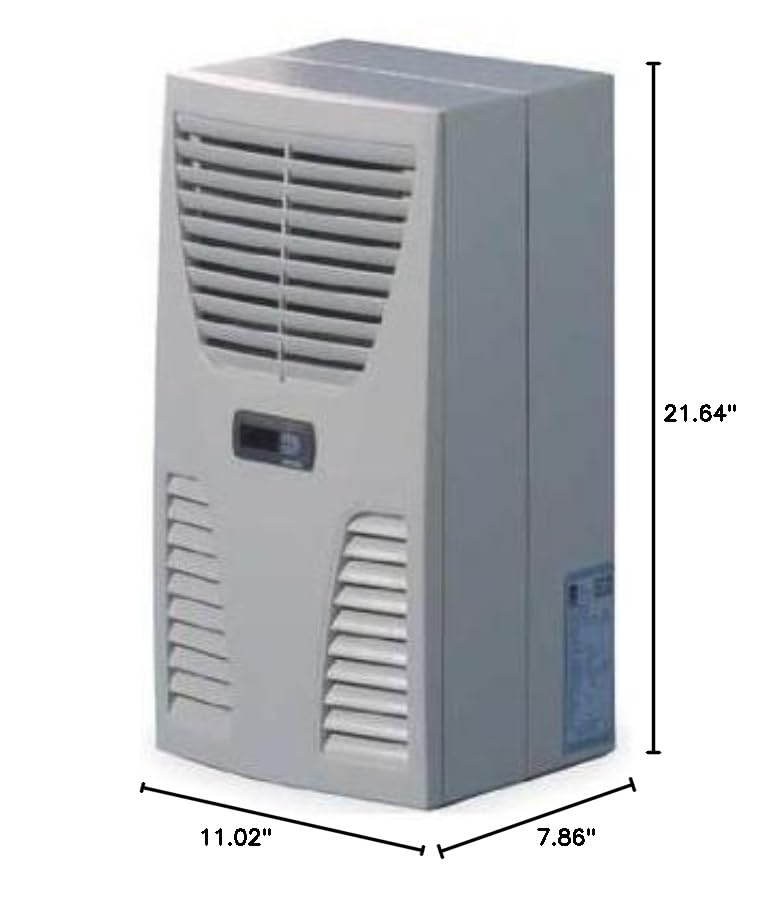

Figure 2: Dimensions of the Rittal 3303500 unit. The unit measures approximately 11.02 inches in width, 21.64 inches in height, and 7.86 inches in depth.
3. Орнотуу кадамдары
- Using the provided drilling template, mark the mounting holes on the wall.
- Drill the necessary holes and secure the mounting hardware.
- Carefully lift and attach the air conditioner to the secured mounting hardware.
- Connect the power supply (230 V, 50/60 Hz) to the plug-in terminal strip. Ensure connections comply with local electrical codes.
Иштөө нускамалары
The Rittal 3303500 features a comfort controller for easy temperature management.
1. Күйгүзүү
Once installed and connected to power, the unit will power on. The comfort controller display will illuminate.
2. Температураны орнотуу
- Use the controls on the comfort controller to adjust the desired temperature.
- The factory setting for the temperature control is 95°F (35°C).
- The operating temperature range is 20°C to +55°C (68°F to 131°F).
3. Аба агымы
The unit's fans provide an air displacement of 203 cfm for the external circuit and 182 cfm for the internal circuit. Ensure no obstructions are present near the air inlets and outlets.
Техникалык тейлөө
Regular maintenance ensures optimal performance and extends the lifespan of your Rittal air conditioner. Always disconnect power before performing maintenance.
1. Фильтрди тазалоо/алмаштыруу
The unit features a nano-coated condenser coil, which helps in reducing maintenance. However, regular inspection of air filters is recommended.
- Check air filters monthly, or more frequently in dusty environments.
- Clean filters using a vacuum cleaner or by washing with mild soap and water. Ensure filters are completely dry before reinstallation.
2. Condenser Coil Inspection
Periodically inspect the nano-coated condenser coil for any debris buildup. While the coating reduces maintenance, severe dust or lint accumulation can impair performance. Clean gently with a soft brush or vacuum if necessary.
3. Жалпы тазалоо
Агрегаттын сыртын жумшак менен сүртүңүз, гamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
Проблемаларды чечүү
This section provides solutions to common issues you may encounter with your Rittal 3303500 air conditioner.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Түзмөк күйбөйт. | No power supply; tripped circuit breaker; loose connection. | Check power cord connection; reset circuit breaker; ensure terminal strip connections are secure. |
| Жетишсиз муздатуу. | Blocked air filters; obstructed air vents; ambient temperature too high. | Clean or replace air filters; clear obstructions from vents; ensure unit is operating within specified temperature range. |
| Түзмөктөн адаттан тыш ызы-чуу. | Loose components; fan obstruction. | Inspect for loose screws or panels; check for debris in fan blades. If noise persists, contact qualified service personnel. |
If the problem persists after attempting these solutions, please contact Rittal customer support or a qualified service technician.
Техникалык шарттар
Detailed technical specifications for the Rittal 3303500 Top Therm Wall Mounted Air Conditioner:
- Модел: 3303500
- Түрү: Wall Mounted Air Conditioner with Comfort Controller
- Cooling Capacity (L 35 L 35): 500/610 W (1708/2083 BTU)
- Тtage: 230 V
- Жыштыгы: 50/60 Гц
- Номиналдуу ток: 2.6 А
- Power Consumption (L 35 L 35): 360 W (50 Hz) / 380 W (60 Hz)
- Хладагент: R134a, 170 g (6.0 oz)
- Иштөө температурасы диапазону: 20°Cден +55°Cге чейин (68°F — 131°F)
- Өлчөмдөрү (W x Y x D): 11-1/64" x 21-41/64" x 7-55/64" (approx. 11.02" x 21.64" x 7.86")
- Салмагы: Болжол менен 41 фунт
- Protection Rating (External Circuit): IP 34 (NEMA 2)
- Protection Rating (Internal Circuit): IP 54 (NEMA 12)
- Air Displacement (External Fan): 203 cfm
- Air Displacement (Internal Fan): 182 cfm
- Өзгөчөлүктөр: Nano coated condenser coil, Comfort Controller
- Түсү: Ачык боз
Кепилдик жана колдоо
For information regarding product warranty, please refer to the warranty card included with your purchase or visit the official Rittal website. For technical support, spare parts, or service inquiries, please contact Rittal customer service.
Риталдын расмий өкүлү Webсайт: www.rittal.com
Колдоо кызматына кайрылганда моделиңиздин номерин (3303500) жана сериялык номериңизди даярдап коюңуз.
