1. Киришүү
This instruction manual provides essential information for the proper installation, operation, maintenance, and troubleshooting of the Gerber Plumbing Ceramic Disc Cartridge, Model DA507906N. This cartridge is designed for use in single handle faucets. Please read this manual thoroughly before beginning any installation or maintenance procedures to ensure safe and correct usage.
2. Продукт бүтүп калдыview
The Gerber Ceramic Disc Cartridge (Model DA507906N) is a replacement component for single handle faucets. It features a durable construction designed for reliable water flow control and temperature mixing. The ceramic disc technology provides a smooth operation and helps prevent leaks, contributing to the longevity of your faucet.

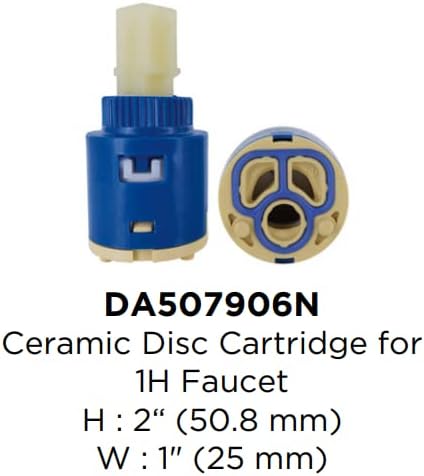

Image 2.1: Gerber Ceramic Disc Cartridge Model DA507906N. This image displays the cartridge itself, showing its design and indicating approximate dimensions: Height 2 inches (50.8 mm), Width 1 inch (25 mm).
Негизги өзгөчөлүктөрү:
- Replacement Component: Specifically designed for single handle faucets.
- Туруктуу материал: Constructed with ceramic discs for long-lasting performance.
- Оңой орнотуу: Engineered for straightforward replacement.
3. Коопсуздук маалыматы
Сантехникалык жабдуулар менен иштөөдө ар дайым төмөнкү коопсуздук чараларын сактаңыз:
- Turn off the main water supply to the faucet before beginning any work.
- Wear appropriate personal protective equipment, such as safety glasses, to prevent injury.
- Жумуш аймагы жакшы жарыктандырылсын жана тоскоолдуктардан таза болсун.
- Эгер кандайдыр бир кадамга ишенбесеңиз, квалификациялуу сантехникке кайрылыңыз.
4. Орнотуу жана орнотуу
This section outlines the general steps for replacing a ceramic disc cartridge in a single handle faucet. Specific faucet designs may vary, so refer to your faucet's original manual if available.
Сүрөт 4.1: Иллюстративдик view of a single handle faucet. This image shows a typical single handle faucet design, with a transparent view of the internal components, including the cartridge location, for reference during installation.
Керектүү куралдар:
- Жөнгө салынуучу ачкыч же кычкач
- Бурагыч (крандын моделине жараша Филлипс же жалпак баштуу)
- Hex key (if required for handle removal)
- Чүпүрөк же сүлгү
- Bucket (to catch residual water)
Орнотуу кадамдары:
- Суу менен камсыздоону өчүрүү: Locate the hot and cold water supply valves under the sink and turn them off completely. Turn on the faucet to drain any remaining water.
- Кран туткасын алып салуу: Depending on your faucet model, you may need to pry off a decorative cap to expose a screw (often a hex screw or Phillips head). Unscrew it and carefully remove the handle.
- Remove Retaining Nut/Cap: Once the handle is off, you will see a retaining nut or cap that holds the cartridge in place. Use an adjustable wrench or pliers to carefully unscrew and remove it.
- Эски картриджди чыгарыңыз: Gently pull the old cartridge straight up and out of the faucet body. You may need to twist it slightly to loosen it. Note its orientation for reference.
- Таза крандын корпусу: Inspect the faucet body for any debris or mineral deposits. Clean the area thoroughly before inserting the new cartridge.
- Жаңы картридж салыңыз: Align the new Gerber DA507906N ceramic disc cartridge with the openings in the faucet body. Ensure it is seated correctly and fully inserted. The orientation should match the old cartridge.
- Коопсуз картридж: Reinstall the retaining nut or cap, tightening it securely with your wrench or pliers. Do not overtighten.
- Кайра бекитүү туткасы: Place the faucet handle back onto the cartridge stem and secure it with the screw. Replace any decorative caps.
- Суу менен камсыздоону калыбына келтирүү: Slowly turn on the hot and cold water supply valves. Check for any leaks around the faucet base and connections.
- Сыноо кран: Turn on the faucet and check for proper water flow and temperature control.
5. Иштөө нускамалары
After successful installation of the Gerber Ceramic Disc Cartridge, operate your single handle faucet as follows:
- Суу агымы: Lift the handle to increase water flow. Lower the handle to decrease or stop water flow.
- Температураны көзөмөлдөө: Move the handle left for hot water and right for cold water. Adjust the handle position to achieve the desired water temperature.
6. Техникалык тейлөө
To ensure optimal performance and longevity of your Gerber Ceramic Disc Cartridge and faucet:
- үзгүлтүксүз тазалоо: Clean the exterior of your faucet regularly with a soft cloth and mild soap. Avoid abrasive cleaners or harsh chemicals, as these can damage the finish.
- Агышууларды текшерүү: Periodically inspect the faucet for any signs of leaks. Address minor leaks promptly to prevent further damage.
- Суунун сапаты: In areas with hard water, mineral buildup can affect cartridge performance. Consider installing a water softener if mineral deposits are a recurring issue.
7. Кыйынчылыктарды
If you encounter issues with your faucet after cartridge replacement, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Faucet leaks from the spout | Cartridge not seated correctly, damaged O-rings, or debris in cartridge. | Turn off water, remove cartridge, inspect for debris or damage, re-seat firmly. Replace O-rings if necessary. |
| Кран туткасынын түбүнөн агып жатат | Retaining nut loose, or O-rings around cartridge stem are worn. | Tighten retaining nut. If leak persists, replace O-rings. |
| Суунун аз агымы | Aerator clogged, or water supply valves not fully open. | Clean or replace faucet aerator. Ensure water supply valves are fully open. |
| Температураны тууралоо кыйынчылыгы | Cartridge installed incorrectly or debris affecting mixing. | Recheck cartridge orientation. Clean cartridge if debris is suspected. |
If these troubleshooting steps do not resolve the issue, it may be necessary to consult a professional plumber or contact Gerber customer support.
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Гербер |
| Модель номери | DA507906N |
| Продукт түрү | Керамикалык диск картридж |
| Сунушталган колдонуу | Bathroom Single Handle Faucets |
| Материал | Brass (internal components/housing) |
| Туткалардын саны | 1 (for single handle faucets) |
| Элемент Салмагы | Болжол менен 0.64 унция (0.04 фунт) |
| Орнотуу түрү | Single Hole (for compatible faucets) |
| Өзгөчө өзгөчөлүк | Орнотуу оңой |
| UPC | 719934005073 |
9. Кепилдик маалыматы
For detailed warranty information regarding the Gerber Plumbing Ceramic Disc Cartridge (Model DA507906N), please refer to the official Gerber website or contact Gerber customer service directly. Warranty terms and conditions may vary.
10. Колдоо жана байланыш маалыматы
If you require further assistance, have questions about installation, or need to report an issue, please contact Gerber customer support:
- Официалдуу Webсайт: Visit www.gerberonline.com продукт жөнүндө маалымат, көп берилүүчү суроолор жана колдоо ресурстары үчүн.
- Кардарларды тейлөө: Чиновниктин байланыш бөлүмүнө кайрылыңыз webтелефон номерлери же электрондук почта колдоо сайты.
