Introduction
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Sealey SA686 Air Impact Wrench. The SA686 is a 1" Sq Drive Compact Air Impact Wrench featuring a Twin Hammer mechanism, designed for heavy-duty fastening and loosening applications. Please read this manual thoroughly before using the tool to ensure proper handling and to prevent injury or damage.
Figure 1: The Sealey SA686 Air Impact Wrench, showcasing its compact design and 1-inch square drive.
Коопсуздук маалыматы
Always observe the following safety precautions to reduce the risk of personal injury or damage to the tool.
- Жеке коргонуу каражаттары: Always wear approved eye protection (safety glasses or goggles) and hearing protection (earplugs or earmuffs) when operating the impact wrench. Gloves are also recommended.
- Аба менен камсыздоо: Ensure the air compressor is capable of providing the required air pressure and volume. Do not exceed the maximum operating pressure of the tool. Use clean, dry, regulated compressed air.
- Шланг жана байланыштар: Inspect air hoses for wear, cuts, or damage before each use. Ensure all connections are secure to prevent accidental disconnection.
- Иш чөйрөсү: Жумушчу жерди таза, жакшы жарык жана тоскоолдуктардан алыс кармаңыз. Адекваттуу вентиляцияны камсыз кылыңыз.
- Коопсуз жумуш бөлүгү: Иштеп жатканда кыймылга жол бербөө үчүн ар дайым даярдалган тетикти бекитиңиз.
- Туура кармоо: Maintain a firm grip on the tool at all times. Be prepared for torque reaction.
- Кокусунан баштоодон сактаныңыз: Ensure the trigger is not depressed when connecting to the air supply or changing accessories.
- Тейлөө: Disconnect the tool from the air supply before performing any maintenance, changing accessories, or storing the tool.
- Курал абалы: Do not use the tool if it is damaged or malfunctioning. Refer to the troubleshooting section or contact qualified service personnel.
- Балдар жана байкоочулар: Балдарды жана жанындагы адамдарды операция аймагынан алыс кармаңыз.
Жайгашуу
- Пакеттен чыгаруу: Carefully remove the impact wrench from its packaging. Inspect the tool for any signs of shipping damage. Report any damage to your supplier immediately.
- Аба менен камсыздоо байланышы:
- Аба компрессоруңуздун өчүрүлгөнүн жана басымы төмөндөгөндүгүн текшериңиз.
- Connect a suitable air hose (minimum 3/8" I.D. recommended for optimal performance) to the air inlet of the impact wrench. The air inlet is typically located at the base of the handle.
- Install an in-line air filter/lubricator unit as close to the tool as possible. This helps to ensure clean, lubricated air, which is crucial for the tool's longevity.
- Set the air pressure regulator on your compressor to the recommended operating pressure (refer to Specifications section).
- Майлоо: Before first use and regularly thereafter, add a few drops of air tool oil into the air inlet. This lubricates the internal components.
- Розетка тиркемеси:
- Select the correct 1" square drive impact socket for your application. Only use impact-grade sockets.
- Push the socket firmly onto the square drive anvil until it clicks into place or is securely seated.
Иштөө нускамалары
Follow these steps for effective and safe operation of your SA686 Air Impact Wrench.
- Багыт көзөмөлдөө: Locate the forward/reverse selector switch, typically near the trigger or at the rear of the tool. Set it to the desired direction (forward for tightening, reverse for loosening).
- Куралды колдонуу: Place the impact socket squarely onto the fastener (nut or bolt head). Ensure the socket is fully engaged.
- Куралды активдештирүү: Depress the trigger to start the tool. The tool will begin to impact, applying torque to the fastener.
- Башкаруу моменти: The SA686 is a powerful tool. For critical torque applications, always use a calibrated torque wrench for final tightening or to verify torque after using the impact wrench. Avoid over-tightening fasteners.
- Loosening Fasteners: For stubborn fasteners, apply steady pressure and allow the tool to impact until the fastener begins to turn.

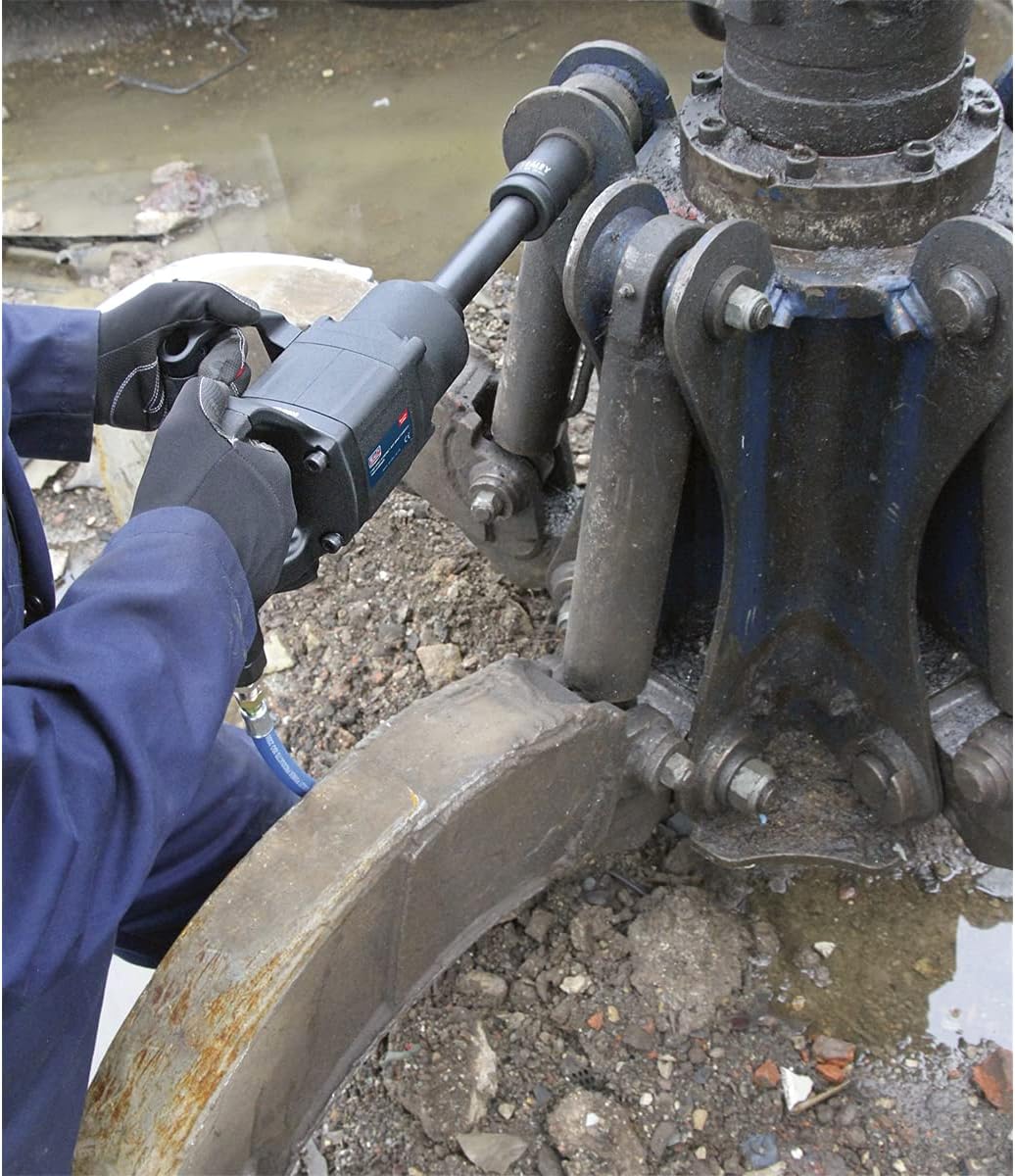

Figure 2: The SA686 in use, demonstrating its application on large industrial fasteners. Note the user's firm grip and protective gloves.
Сүрөт 3: А тарап view of the impact wrench in operation, highlighting the extended anvil and the connection to the air hose.
Figure 4: A closer look at the user's hands on the tool, showing the ergonomic handle and trigger mechanism during use.
Техникалык тейлөө
Regular maintenance ensures the longevity and optimal performance of your air impact wrench.
- Күнүмдүк майлоо: Before each use, or at the start of each shift, add 5-10 drops of high-quality air tool oil into the air inlet. Run the tool for a few seconds to distribute the oil.
- Air Filter/Lubricator: Regularly check and drain any moisture from the air filter. Ensure the lubricator reservoir is filled with appropriate air tool oil.
- Тазалоо: Keep the tool clean and free from dirt, dust, and debris. Wipe down the exterior with a clean cloth. Do not use harsh solvents.
- Anvil текшерүү: Төрт бурчтуу жетектөөчү дөшү мезгил-мезгили менен эскиргендигин же бузулгандыгын текшерип туруңуз. Зарыл болсо, алмаштырыңыз.
- Hose and Fittings: Check air hoses and fittings for leaks, wear, or damage. Replace any compromised components.
- Сактагыч: When not in use, disconnect the tool from the air supply. Store the tool in a clean, dry, and secure location, away from extreme temperatures and corrosive environments.
Проблемаларды чечүү
This section addresses common issues you might encounter with your SA686 Air Impact Wrench.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Курал иштебейт же аз кубаттуулук |
|
|
| Excessive air consumption |
|
|
| Tool runs but does not impact |
|
|
If the problem persists after attempting these solutions, discontinue use and contact Sealey customer support or a qualified service center.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Sealey |
| Модель номери | SA686 |
| Drive Size | 1" Square Drive |
| Механизм | Twin Hammer |
| Материал | Алюминий |
| Иштөө режими | Пневматикалык |
| Элемент Салмагы | 9.21 килограмм (болжол менен 20.3 фунт) |
| Продукциянын өлчөмдөрү | 1.97 x 8.66 x 21.18 дюйм |
| Аяктоо түрү | Powder капталган |
Кепилдик жана колдоо
For warranty information, please refer to the warranty card included with your product or visit the official Sealey webсайт. Кепилдиктин шарттары жана шарттары аймакка жана продуктуга жараша өзгөрүшү мүмкүн.
If you require technical assistance, spare parts, or service for your Sealey SA686 Air Impact Wrench, please contact Sealey customer support directly. Contact details can typically be found on the Sealey webсайтында же продуктунун таңгагында.
Эскертүү: Unauthorized repairs or modifications will void the product warranty.
