Продукт бүттүview
This manual provides essential information for the installation, operation, and maintenance of the Rittal 3286410 Aluminum Metal Filter, designed for use with specific Rittal air conditioner models (SK3305/3328/3329/3332).

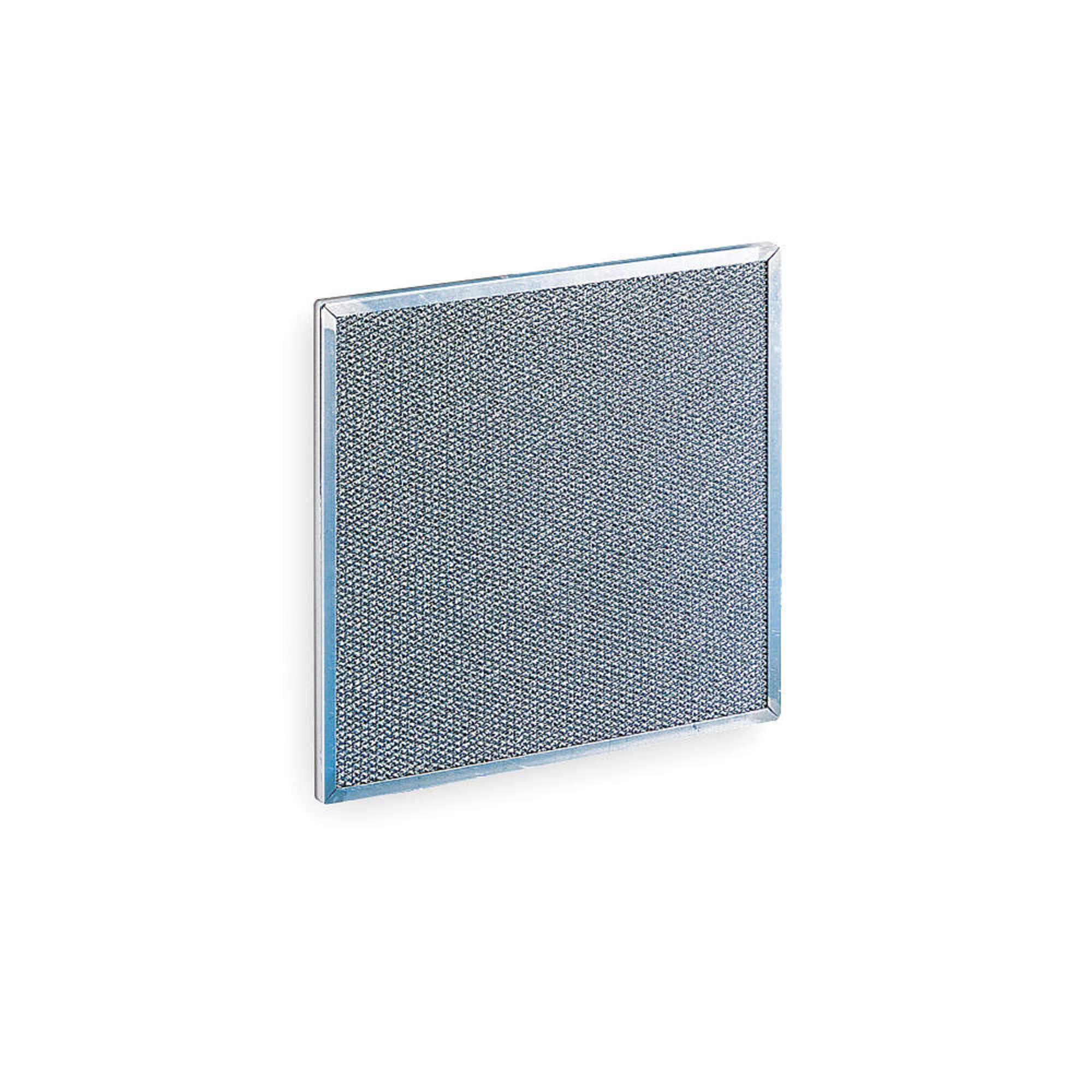

Фронт view of the Rittal 3286410 Aluminum Metal Filter, showcasing its metallic mesh surface and sturdy frame.

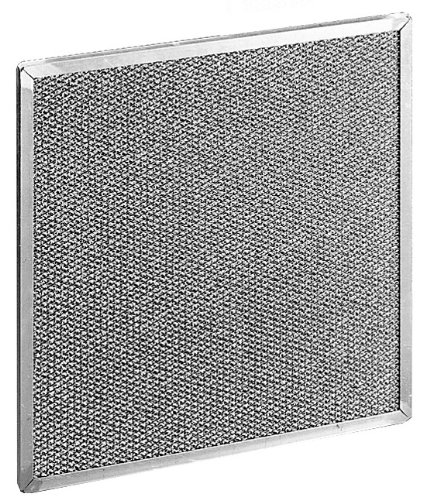

Бурчтуу view of the Rittal 3286410 Aluminum Metal Filter, highlighting its construction and dimensions.
Негизги өзгөчөлүктөрү:
- Designed for Rittal air conditioners models SK3305, SK3328, SK3329, and SK3332.
- Constructed from durable aluminum material.
- Washable design, ideal for oily and damp чөйрөлөр.
- Facilitates easy removal of particles that condense on metal surfaces.
- Dimensions: 10-19/32" width x 13-1/2" height x 25/64" depth.
Орнотуу жана орнотуу
The Rittal 3286410 metal filter is designed for straightforward installation into compatible Rittal air conditioner units. Ensure the air conditioner unit is powered off and disconnected from the main power supply before proceeding with installation.
- Даярдоо: Ensure the air conditioner unit is clean and free of debris in the filter housing area.
- Багыты: Identify the correct orientation of the filter. The filter should slide smoothly into the designated slot.
- Кыстаруу: Carefully slide the Rittal 3286410 filter into the filter housing of your Rittal air conditioner until it is securely seated. Do not force the filter into place.
- Коопсуз: Ensure any retaining clips or latches on the air conditioner's filter housing are engaged to hold the filter firmly.
- Күйгүзүү: Once the filter is securely installed, you may reconnect the air conditioner to the power supply and power it on.
Note: Refer to your specific Rittal air conditioner's manual for detailed instructions on accessing and replacing filters.
Иштөө көрсөтмөлөрү
The Rittal 3286410 metal filter operates passively as part of your air conditioner's filtration system. No direct user operation is required for the filter itself once installed. Its primary function is to capture airborne particles, especially in environments with oil or high humidity.
- The filter is designed to be effective in environments where air or steam may condense on metal surfaces, causing particles to adhere.
- Regular inspection of the filter is recommended to determine cleaning frequency.
- Do not operate the air conditioner without a filter installed, as this can lead to internal contamination and damage to the unit.
Тейлөө жана тазалоо
The Rittal 3286410 is a washable metal filter, designed for easy maintenance and extended lifespan. Regular cleaning is crucial to maintain optimal air conditioner performance and air quality.
Тазалоо процедурасы:
- Өчүрүү: Always turn off and disconnect the air conditioner from the power supply before removing the filter.
- Чыпканы алып салуу: Carefully remove the metal filter from its housing in the air conditioner.
- Жуу: Wash the filter using water, or a grease-dissolving detergent if the environment is oily. The metal mesh allows for easy washing out of trapped particles.
- Чайкоо: Rinse the filter thoroughly with clean water to remove all detergent residue.
- Кургатуу: Allow the filter to air dry completely before reinstallation. Ensure no moisture remains, especially in the mesh, to prevent mold or mildew growth.
- Кайра орнотуу: Once dry, reinsert the filter into the air conditioner unit following the installation steps.
Жыштыгы: The cleaning frequency depends on the operating environment. In very oily or dusty conditions, more frequent cleaning (e.g., monthly) may be necessary. In cleaner environments, quarterly or semi-annual cleaning might suffice. Inspect the filter regularly to determine its condition.
Проблемаларды чечүү
This section addresses common issues related to the Rittal 3286410 metal filter. Most issues are related to filter cleanliness or improper installation.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Reduced Airflow from AC Unit | Filter is clogged with dirt/debris. | Remove and clean the filter thoroughly as per the Maintenance section. Ensure it is completely dry before reinstallation. |
| Unusual Odor from AC Unit | Filter has accumulated mold or mildew due to moisture. | Clean the filter with a mild disinfectant solution and ensure it is completely dry before reinstallation. Check for moisture issues in the AC unit itself. |
| Чыпка туура эмес орнотулган | Incorrect filter model or improper orientation. | Verify that you have the correct Rittal 3286410 filter for your specific air conditioner model (SK3305/3328/3329/3332). Re-check the filter's orientation during installation. |
If issues persist after troubleshooting, consult the user manual for your Rittal air conditioner or contact Rittal customer support.
Техникалык шарттар
| Атрибут | Деталь |
|---|---|
| Модель номери | 3286410 |
| Бренд | Риттал |
| Материал | Алюминий |
| Өлчөмдөрү (туурасы x бийиктиги x тереңдик) | 10-19/32" x 13-1/2" x 25/64" (болжол менен 10.59" x 13.5" x 0.39") |
| Продукциянын өлчөмдөрү (пакеттелген) | 13.54 x 0.39 x 10.55 дюйм |
| Элемент Салмагы | 11.2 унция |
| Compatible AC Models | SK3305, SK3328, SK3329, SK3332 |
| UPC | 639889010987 |
| Өндүрүүчү | Риттал корпорациясы |
| Дата биринчи жеткиликтүү | 15-ноябрь, 2011-жыл |
Кепилдик жана колдоо
For specific warranty information regarding the Rittal 3286410 Aluminum Metal Filter, please refer to the documentation provided with your Rittal air conditioner unit or visit the official Rittal website. Rittal products are known for their quality and durability.
Кардарларды колдоо:
- For technical assistance, product inquiries, or to locate authorized service centers, please visit the Rittal Official Store on Amazon or the main Rittal corporate webсайт.
- When contacting support, please have your product model number (3286410) and the model number of your Rittal air conditioner readily available.
