1. Продукт бүтүп калдыview
The Rittal 3383500 Top Therm Roof Mounted Air Conditioner is designed for efficient cooling of industrial enclosures. Featuring a comfort controller, this unit provides reliable temperature management for sensitive equipment. It is built for durability and ease of installation, offering a robust solution for thermal management.
Негизги өзгөчөлүктөрү:
- Fully wired ready for connection, including drilling templates and assembly hardware.
- Equipped with a nano-coated condenser coil and integrated condensate evaporator.
- Operates on 230 Volt power supply with 50/60 Hertz operating frequency.
- Compact dimensions: 23-1/2" width x 16-21/64" height x 18-11/16" depth.
- Ratings: IP 54, NEMA 12.
- Cooling Capacity: 3688 BTU at 60Hz.

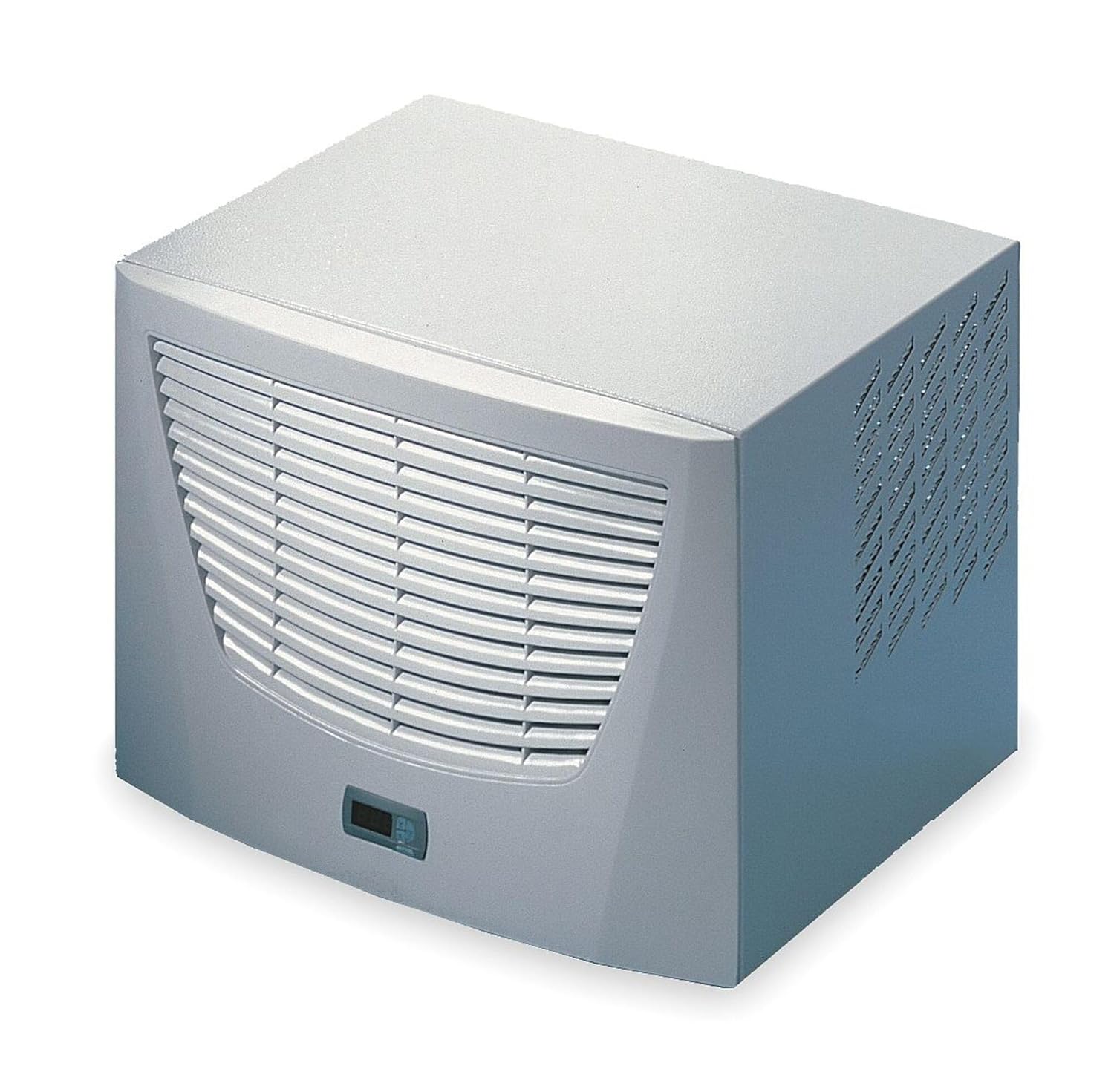

Сүрөт 1: Алдыңкы view of the Rittal 3383500 Top Therm Roof Mounted Air Conditioner, showcasing its light grey finish and front grille.
2. Орнотуу жана орнотуу
Before beginning installation, ensure the power supply is disconnected. This unit is designed for roof mounting on industrial enclosures.
2.1 Орнотууга чейинки текшерүүлөр:
- Verify the enclosure roof can support the unit's weight (approximately 92.5 lbs).
- Confirm power supply matches unit requirements (230V, 50/60Hz).
- Ensure adequate clearance around the unit for proper airflow and maintenance.
2.2 Монтаждоо боюнча нускамалар:
- Use the provided drilling templates to mark and cut the necessary openings on the enclosure roof.
- Carefully position the air conditioner unit over the openings.
- Secure the unit using the supplied assembly hardware. Ensure all fasteners are tightened to prevent vibration and maintain the IP/NEMA rating.
2.3 Электрдик туташуу:
- The unit is fully wired ready for connection. Connect the power supply to the plug-in terminal strip.
- Жергиликтүү электрдик коддорго ылайык туура жерге туташтырууну камсыз кылыңыз.
- Recommended pre-fuse: T 10.0 A.

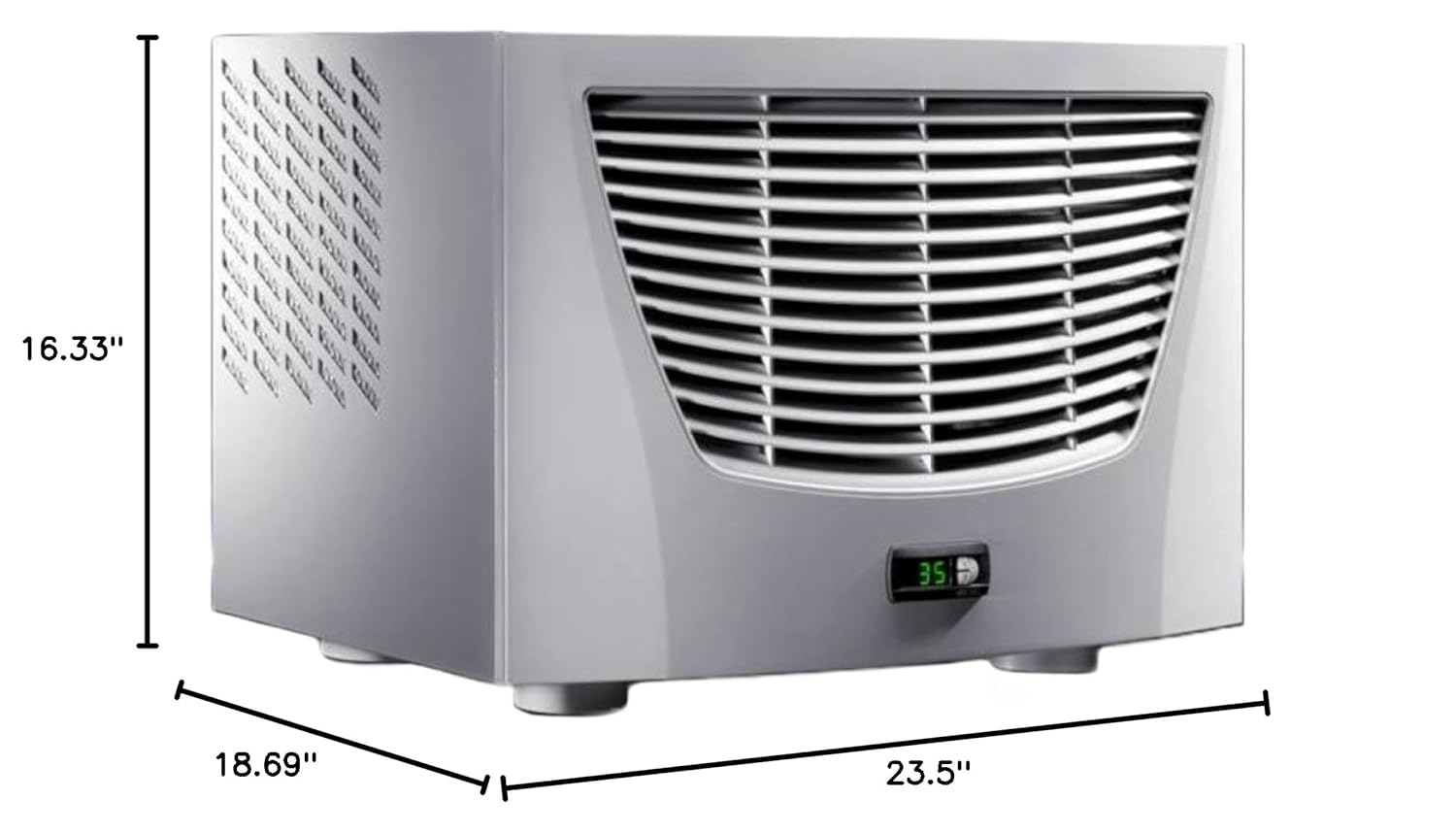

Figure 2: Dimensional drawing of the Rittal 3383500 unit, showing its width (23.5"), height (16.33"), and depth (18.69").
3. Иштөө нускамалары
Rittal 3383500 температураны оңой башкаруу үчүн ыңгайлуулук контроллери менен жабдылган.
3.1 Баштапкы иштетүү:
- After installation and electrical connection, restore power to the unit.
- The comfort controller display will illuminate.
3.2 Температураны орнотуу:
- The factory setting for the comfort controller is 95°F (35°C).
- The temperature setting range is 68°F to 131°F (20°C to 55°C).
- Refer to the comfort controller's specific manual (if provided separately) for detailed instructions on adjusting the setpoint. Generally, buttons on the controller allow for increasinг же жарлыкasing the desired temperature.
3.3 Иштөө режимдери:
The unit operates automatically to maintain the set temperature within the enclosure. It will cycle on and off as needed to achieve optimal cooling.
4. Техникалык тейлөө
Regular maintenance ensures optimal performance and extends the lifespan of your Rittal air conditioner. Always disconnect power before performing any maintenance.
4.1 Filter Cleaning/Replacement:
- Inspect air filters regularly (e.g., monthly or quarterly, depending on environment).
- Clean filters using compressed air or mild detergent and water. Ensure they are completely dry before reinstallation.
- Replace filters if they are damaged or cannot be adequately cleaned.
4.2 Condenser Coil Cleaning:
- The unit features a nano-coated condenser coil, which helps reduce dirt buildup. However, periodic inspection and cleaning are still recommended.
- Gently clean the condenser coil fins with a soft brush or vacuum cleaner to remove dust and debris. Avoid bending the fins.
4.3 Condensate Evaporator:
- The integrated condensate evaporator manages condensation. Periodically check for any blockages or excessive water accumulation.
4.4 General Inspection:
- Check all electrical connections for tightness and signs of wear.
- Inspect the unit for any physical damage or corrosion.
- Ensure proper sealing between the unit and the enclosure to maintain environmental ratings.
5. Кыйынчылыктарды
This section provides solutions to common issues. For problems not listed here, contact Rittal customer support.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Түзмөк күйбөйт. | No power supply; Blown fuse/circuit breaker; Loose electrical connection. | Check power source; Inspect and replace fuse/reset breaker; Verify all connections are secure. |
| Агрегат иштейт, бирок эффективдүү муздабайт. | Dirty air filters; Blocked condenser coil; Incorrect temperature setting; Refrigerant leak (less common). | Clean or replace air filters; Clean condenser coil; Adjust temperature setting; Contact qualified technician for refrigerant issues. |
| Иш учурунда адаттан тыш ызы-чуу. | Loose components; Fan obstruction; Motor issue. | Inspect for loose parts and tighten; Clear any obstructions from fans; If noise persists, contact support. |
| Агрегаттан суу агып жатат. | Blocked condensate drain/evaporator. | Inspect and clear any blockages in the condensate system. |
6. Техникалык шарттар
| Параметр | Нарк |
|---|---|
| Модель номери | 3383500 |
| Бренд | Риттал |
| Өлчөмдөрү (W x Y x D) | 23-1/2" x 16-21/64" x 18-11/16" (59.7 см x 41.5 см x 47.5 см) |
| Салмагы | 92.5 фунт (42 кг) |
| Тtage | 230 V |
| Жыштык | 50/60 Гц |
| Номиналдуу ток | 4.3 A (50Hz) / 4.5 A (60Hz) |
| Баштоо агымы | 15.5 А |
| Алдын ала сактагыч | Т 10.0 А |
| Cooling Capacity (L35 L35) | 1000 W (3415 BTU) / 1080 W (3688 BTU) |
| Power Consumption (L35 L35) | 550 W (50Hz) / 650 W (60Hz) |
| Муздаткыч | R134a, 17.6 унция |
| Температура диапазону | 68°F – 131°F (20°C – 55°C) |
| Protection Rating (External) | IP 34 (NEMA 2) |
| Protection Rating (Internal) | IP 54 (NEMA 12) |
| Air Displacement (External) | 1036 cfm |
| Air Displacement (Internal) | 259 cfm |
7. Кепилдик жана колдоо
For specific warranty information regarding your Rittal 3383500 air conditioner, please refer to the documentation provided with your purchase or contact Rittal directly. Rittal products typically come with a manufacturer's warranty covering defects in materials and workmanship.
Кардарларды колдоо:
If you require technical assistance, have questions about operation, or need to arrange service, please contact Rittal customer support. You can often find contact information on the Rittal official website or through your product distributor.
Жалпы суроолор үчүн, сиз иш сапары менен болот Amazon'догу Rittal дүкөнү.
