Soleus Air WA20250 Астыдан жүктөө ысык жана муздак суу диспенсери Колдонуучунун колдонмосу

1. Киришүү

Thank you for choosing the Soleus Air WA20250 Bottom Loading Hot and Cold Water Dispenser. This manual provides important information for the proper setup, operation, and maintenance of your new appliance. Please read it thoroughly before use and retain it for future reference.

This dispenser is designed to provide convenient access to both hot and cold purified water, featuring a bottom-loading design for easier water bottle replacement.

2. Коопсуздук боюнча маанилүү маалымат

To reduce the risk of injury or property damage, always follow basic safety precautions when using electrical appliances. Read all instructions before using this dispenser.

• Электр коопсуздугу: Plug the dispenser into a grounded 3-prong outlet. Do not remove the grounding prong. Do not use an adapter. Do not use an extension cord.
• Суу коопсуздугу: Use only bottled water. Do not use any other liquids. Ensure the water bottle is properly seated to prevent leaks.
• Ысык суу коопсуздугу: The hot water dispenser can reach temperatures of approximately 190°F (88°C). Exercise extreme caution when dispensing hot water. Keep children away from the hot water faucet.
• Жайгашкан жери: Place the dispenser on a level, stable surface. Keep it away from direct sunlight and heat sources. Ensure adequate ventilation around the unit.
• Тазалоо: Тазалоодон мурун диспенсерди розеткадан сууруп алыңыз. Диспенсерди сууга салбаңыз.
• Кызмат: Do not attempt to repair or disassemble the dispenser yourself. Refer all servicing to qualified personnel.

3. Продукт бүтүп калдыview

Familiarize yourself with the components of your Soleus Air WA20250 water dispenser.

Сүрөт 3.1: Алдыңкы View of the Dispenser. This image shows the front of the Soleus Air WA20250 water dispenser. Visible features include the control panel with a VFD display, hot (red) and cold (blue) water faucets, and the drip tray area. The lower section features the Soleus Air logo and conceals the bottom-loading water bottle compartment.

Сүрөт 3.2: Бурчтуу View of the Dispenser. This image provides an angled perspective of the Soleus Air WA20250, highlighting its sleek, modern design. The side profile and the top panel are visible, along with the front controls and dispensing area.

Image 3.3: Bottom Loading Compartment. This image displays the lower compartment of the dispenser with its door open, revealing a large water bottle placed inside. A pump system is visible, designed to draw water from the bottle up to the dispenser, illustrating the convenient bottom-loading feature.

Негизги компоненттер:

• Башкаруу панели: Features a VFD (Vacuum Fluorescent Display) and buttons for controlling hot and cold water functions.
• Hot Water Faucet: Typically marked with red, dispenses hot water.
• Cold Water Faucet: Typically marked with blue, dispenses cold water.
• Тамчылатма табак: Collects spills and drips from the faucets. Removable for easy cleaning.
• Bottom Loading Compartment: Located at the base, this compartment houses the water bottle, eliminating the need for heavy lifting.
• Электр кабели: Аппараттын арткы жагында жайгашкан.

4. Орнотуу жана орнотуу

1. Пакеттен чыгаруу: Carefully remove the dispenser from its packaging. Retain all packaging materials for future transport or storage.
2. Жайгашкан жери:
   • Диспенсерди толгондо салмагын көтөрө ала турган бекем, түз бетке кой.
   • Ensure there is at least 4 inches (10 cm) of clearance from the back and sides of the dispenser to allow for proper ventilation.
   • Диспенсерди күн нуру түз тийген жерге же жылуулук чыгаруучу шаймандардын жанына койбоңуз.
3. Алгачкы тазалоо: Биринчи жолу колдонуудан мурун, диспенсердин сыртын жумшак,amp cloth. Clean the drip tray.
4. Суу бөтөлкөсүн орнотуу:
   • Open the lower compartment door.
   • Жаңы 3 же 5 галлондук суу бөтөлкөнүн капкагын алып салыңыз.
   • Insert the probe from the dispenser into the opening of the water bottle. Ensure the probe is fully inserted and the bottle is securely seated.
   • Slide the water bottle into the compartment and close the door.
5. Кубат туташуу: Кубат шнурун жерге туташтырылган 115 В, 60 Гц электр розеткасына сайыңыз.
6. Системаны даярдоо:
   • Before turning on the heating or cooling functions, dispense at least 1 liter of water from both the hot and cold faucets to ensure the tanks are filled. This prevents dry heating/cooling, which can damage the unit.
   • Once water flows steadily from both faucets, the system is primed.

5. Операция

After setup and priming, your dispenser is ready for use.

• Күйгүзүү: Ensure the dispenser is plugged in. The VFD display should illuminate.
• Activating Hot/Cold Functions:
  • Locate the hot and cold water activation buttons on the control panel (refer to Image 3.1).
  • Press the respective button to activate the heating or cooling function. Indicator lights on the display will show when the unit is heating or cooling.
  • Allow approximately 15-30 minutes for the water to reach optimal hot or cold temperatures.
• Муздак суу берүү: Place a cup under the cold water faucet (blue). Press and hold the cold water dispensing lever or button until the desired amount of water is dispensed.
• Ысык сууну берүү: Place a cup under the hot water faucet (red). Most hot water faucets have a child-safety lock. Push the safety lock and then press and hold the hot water dispensing lever or button until the desired amount of water is dispensed. Өтө этият болуңуз.
• VFD дисплейи: The VFD display provides information on the dispenser's status, such as heating/cooling indicators or error codes.

6. Техникалык тейлөө

Үзгүлтүксүз тейлөө сиздин суу диспенсериңиздин оптималдуу иштешин жана узак иштөөсүн камсыздайт.

• Тышкы тазалоо: Сырткы беттерин жумшак менен сүртүңүз, гamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
• Тамчылатуучу лотокту тазалоо: The drip tray should be emptied and cleaned regularly to prevent overflow and bacterial growth. Remove the tray, empty it, wash with mild soap and water, rinse thoroughly, and replace.
• Water Bottle Probe Cleaning: Periodically clean the water bottle probe with a mild disinfectant solution.
• Какты тазалоо (Жыл сайын сунушталат): Over time, mineral deposits can build up in the hot water tank.
  • Unplug the dispenser and drain all water from both faucets.
  • Prepare a descaling solution (e.g., a mixture of white vinegar and water, or a commercial descaling agent).
  • Pour the solution into the water reservoir (usually accessed from the top or by carefully removing the probe).
  • Эритмени 30 мүнөттөн бир саатка чейин калтырыңыз.
  • Drain the solution completely from both faucets.
  • Rinse the system thoroughly by filling with clean water and draining several times until no vinegar smell remains.

7. Кыйынчылыктарды

Кардарларды тейлөө кызматына кайрылуудан мурун, кайраview төмөнкү жалпы маселелер жана чечимдер.

8. Техникалык шарттар

Technical specifications for the Soleus Air WA20250 water dispenser.

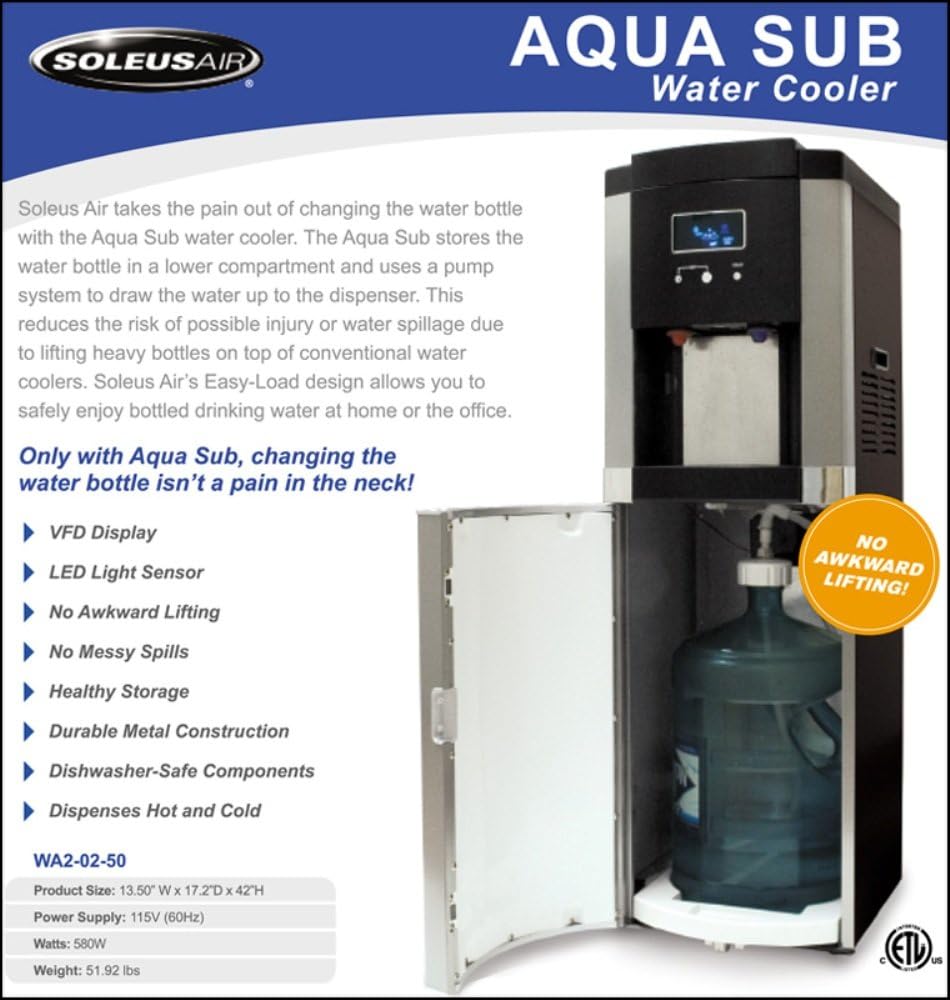

Image 8.1: Product Features and Specifications. This image highlights key features of the Soleus Air Aqua Sub Water Cooler, including VFD Display, LED Light Sensor, No Awkward Lifting, No Messy Spills, Healthy Storage, Durable Metal Construction, Dishwasher-Safe Components, and Dispenses Hot and Cold. It also lists the model number WA2-02-50, Product Size: 13.50" W x 17.2" D x 42" H, Power Supply: 115V (60Hz), Watts: 580W, and Weight: 51.92 lbs.

9. Кепилдик жана Кардарларды колдоо

For warranty information or customer support, please refer to the warranty card included with your product or visit the official Soleus Air webсайт. Сатып алганыңыздын далили катары сатып алуу дүмүрчөгүңүздү сактаңыз.

If you experience any issues not covered in the troubleshooting section, please contact Soleus Air customer service for assistance.
