1. Киришүү
1.1 Продукт бүттүview
The Somfy TR2-U-E-230 Mini is a compact separation relay designed for controlling two independent drives, typically used in applications such as roller shutters or awnings. This device allows for flush-mounted installation, integrating seamlessly into existing electrical systems. It ensures proper electrical isolation and control for connected motors.
1.2 Максаттуу пайдалануу
This separation relay is intended for use in domestic or commercial electrical installations to manage the operation of two 230V AC motors. It is specifically designed for flush-mounted applications where space is limited. The relay facilitates central control while maintaining individual motor operation capabilities.
2. Коопсуздук нускамалары
WARNING: Electrical shock hazard. Installation and maintenance must be performed by a qualified electrician in accordance with all local and national electrical codes.
- Always disconnect power to the circuit before installing, servicing, or removing the device.
- камсыз кылуу волtage matches the device's rated voltage (230V AC).
- Аппаратты нымдуулукка, экстремалдык температурага же коррозиялуу чөйрөгө тийгизбеңиз.
- Verify all connections are secure and correctly wired to prevent short circuits or malfunctions.
- Бул аппарат физикалык, сенсордук же акыл-эс жөндөмү начар же тажрыйбасы жана билими жок адамдар (анын ичинде балдар) тарабынан колдонууга арналбайт, эгерде алардын коопсуздугуна жооптуу адам тарабынан шайманды колдонуу боюнча көрсөтмө болбосо .
3. Продукциянын компоненттери
3.1 Пакеттин мазмуну
- 1x Somfy TR2-U-E-230 Mini Separation Relay
- Орнотуу боюнча колдонмо (бул документ)
3.2 Түзмөк бүттүview

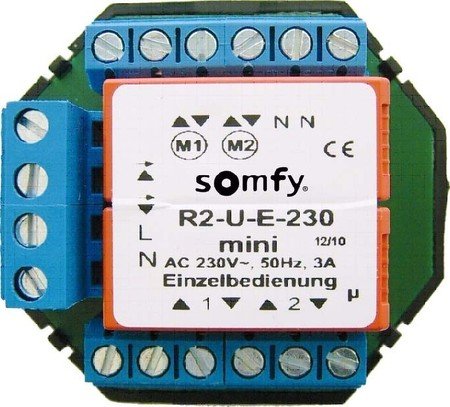

Figure 1: Somfy TR2-U-E-230 Mini Separation Relay
This image displays the Somfy TR2-U-E-230 Mini separation relay. It features blue screw terminals for electrical connections on the top, bottom, and left sides. The central orange-colored module has the Somfy logo and model number 'R2-U-E-230 mini' printed on it. Electrical specifications like 'AC 230V~, 50Hz, 3A' and connection labels 'M1', 'M2', 'L', 'N' are also visible, indicating its function for controlling two motors.
4. Орнотуу
The Somfy TR2-U-E-230 Mini is designed for flush-mounted installation. Follow these steps carefully:
- Электр энергиясын өчүрүү: Before starting any electrical work, ensure the main power supply to the circuit is completely disconnected at the fuse box or circuit breaker.
- Монтаждоо жери: Choose a suitable flush-mounted box or enclosure that provides adequate space for the relay and its wiring, ensuring it is protected from moisture and physical damage.
- Зымдарды туташтыруу: Refer to the wiring diagram (often found on the device itself or in a separate diagram) and the labels on the relay terminals. Connect the power supply (Live 'L' and Neutral 'N') and the motor cables (M1, M2) to the corresponding screw terminals. Ensure all connections are tight and secure.
- L: Live input (230V AC)
- N: Нейтралдуу киргизүү
- M1: Connections for Motor 1 (Up/Down)
- M2: Connections for Motor 2 (Up/Down)
- Central Input: The device supports a central input for simultaneous control of both motors. Connect the central control signal to the designated terminal if applicable.
- Изоляция: After wiring, ensure all exposed wires are properly insulated.
- Коопсуз түзмөк: Carefully place the relay into the flush-mounted box and secure it.
- Электр энергиясын калыбына келтирүү: Орнотуу аяктагандан жана текшерилгенден кийин, чынжырга электр кубатын кайтарыңыз.
5. Операция
The Somfy TR2-U-E-230 Mini separation relay enables manual control of up to two connected motors. Operation typically involves sending control signals (e.g., from switches) to the relay's inputs.
- Individual Motor Control: Each motor (M1 and M2) can be controlled independently using dedicated switches connected to the relay's outputs for each motor. This allows for individual 'Up' and 'Down' commands for Motor 1 and Motor 2.
- Борбордук башкаруу: If wired for central control, a single command can operate both motors simultaneously. The relay's design ensures that individual control remains possible even with a central input connected.
- Коопсуздук өзгөчөлүгү: The separation relay prevents conflicting commands from reaching the motors, ensuring smooth and safe operation, especially when both individual and central controls are present.
6. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Модель номери | TR2-U-E-230 mini |
| Монтаж түрү | Flush орнотулган |
| Номиналдуу томtage | 230 В AC |
| Жыштык | 50 Гц |
| Номиналдуу ток | 5 А |
| Connectable Motors | 2 |
| Central Input | Ооба |
| Secondary Post Input | Жок |
| Байланыш материалы | Silver |
| Байланыш түрү | 1NO 1NC |
| Күч | 1150 Ватт |
| Coil Voltage | 230 вольт |
7. Кыйынчылыктарды
If you encounter issues with your Somfy TR2-U-E-230 Mini separation relay, consider the following common solutions:
- Мотордун реакциясы жок:
- Check if the main power supply to the circuit is active.
- Verify all wiring connections are secure and correctly terminated according to the diagram.
- Ensure the control switches are functioning correctly.
- Incorrect Motor Movement:
- Review the motor wiring to ensure 'Up' and 'Down' connections are not reversed.
- Confirm that the correct control signal is being sent to the intended motor.
- Реле иштетилбейт:
- Киргизилген томду текшериңизtage to the relay (230V AC).
- Реледе көрүнгөн зыяндын бар-жоктугун текшериңиз.
If problems persist after attempting these steps, it is recommended to contact a qualified electrician or Somfy customer support.
8. Техникалык тейлөө
The Somfy TR2-U-E-230 Mini separation relay is designed for maintenance-free operation under normal conditions. However, periodic checks can help ensure its longevity and reliable performance:
- Визуалдык текшерүү: Periodically inspect the device and its wiring for any signs of wear, damage, or loose connections. Ensure no dust or debris has accumulated around the terminals.
- Тазалоо: If necessary, gently clean the exterior of the device with a dry, soft cloth. Do not use liquid cleaners or solvents.
- Экологиялык шарттар: Иштөө чөйрөсү белгиленген температуранын жана нымдуулуктун чегинде сакталышын камсыз кылуу, мөөнөтүнөн мурда бузулуп калбаш үчүн.
Always disconnect power before performing any inspection or cleaning.
9. Кепилдик маалыматы
Specific warranty details for the Somfy TR2-U-E-230 Mini separation relay are not provided within the product information. For warranty claims or information regarding spare parts availability, please refer to your purchase documentation or contact your retailer or Somfy customer service directly.
10. Колдоо
For technical assistance, installation queries, or further product information, please contact Somfy customer support or visit the official Somfy webсайт.
Өндүрүүчү: Somfy
Webсайт: www.somfy.com (Please check for your regional Somfy webсайт)
