Kerbl P100 Willow Pump Instruction Manual

Introduction

This manual provides detailed instructions for the safe and efficient operation, installation, and maintenance of your Kerbl P100 Willow Pump. The P100 is a robust pasture pump designed to provide fresh and clean water for animals, drawing water from depths of up to 8 meters. Its design features an aluminum lever and smooth-mounted pivot points for extremely smooth operation, and a sturdy cast iron drinking bowl.

Коопсуздук нускамалары

Please read all safety instructions carefully before installing or operating the pump. Failure to follow these instructions may result in injury or damage to the product.

• Ensure the pump is installed on a stable, level surface to prevent tipping.
• Колдорду жана кенен кийимдерди иштөө учурунда кыймылдуу бөлүктөрдөн алыс кармаңыз.
• Do not allow children or untrained individuals to operate the pump.
• Regularly inspect the pump for any signs of wear or damage. Do not operate if damaged.
• Ensure proper connection of all pipes and hoses to prevent leaks.

Компоненттер бүттүview

The Kerbl P100 Willow Pump consists of several key components designed for durability and efficient water delivery.

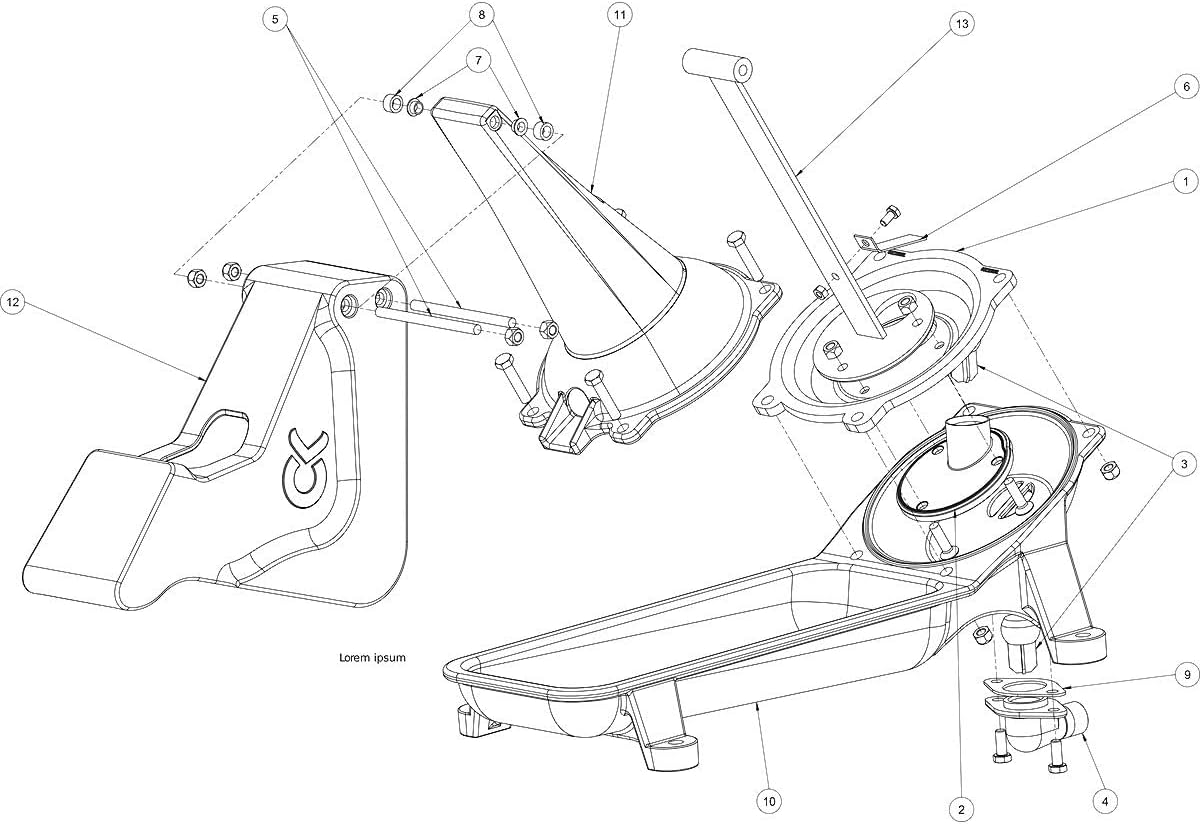

1-сүрөт: жарылган view of the Kerbl P100 Willow Pump, illustrating the various components and their arrangement for assembly and maintenance.

Figure 2: Internal mechanism of the Kerbl P100 Willow Pump, highlighting the lever, piston, and valve system responsible for water suction and delivery.

Негизги компоненттер:

• Насостун корпусу: The main housing, typically made of cast iron, containing the pumping mechanism.
• Lever Arm: The aluminum handle used to operate the pump, providing leverage for water extraction.
• Piston/Diaphragm: Internal component responsible for creating suction and pushing water.
• Клапандар: Inlet and outlet valves that control water flow direction.
• Drinking Bowl: The cast iron basin where water collects for animals to drink.
• Туташуу порту: For attaching the suction pipe (3/4 inch connection).

Орнотуу жана орнотуу

Proper installation is crucial for the optimal performance and longevity of your Kerbl P100 Willow Pump.

Сайт тандоо:

• Choose a firm, level, and stable surface for installation, preferably concrete or a reinforced base.
• Ensure the location is easily accessible for animals and for maintenance.
• The water source (well, pond, etc.) should be within 8 meters vertical depth from the pump's location.

Mounting the Pump:

1. Position the pump on the chosen surface.
2. Mark the drilling points using the pump's base holes. The hole spacing for mounting is 425 x 260 mm.
3. Drill appropriate holes for anchor bolts (not supplied).
4. Securely fasten the pump to the surface using suitable anchor bolts.

Суу линияларын бириктирүү:

1. Connect a suction pipe to the pump's inlet port. The pump is suitable for pipe and hose connections with an inner diameter of 19-25 mm (3/4 to 1 inch).
2. Ensure all connections are airtight to prevent loss of prime. Use appropriate sealants or thread tape.
3. Extend the suction pipe into the water source, ensuring the end is submerged but not resting on the bottom to avoid drawing sediment.

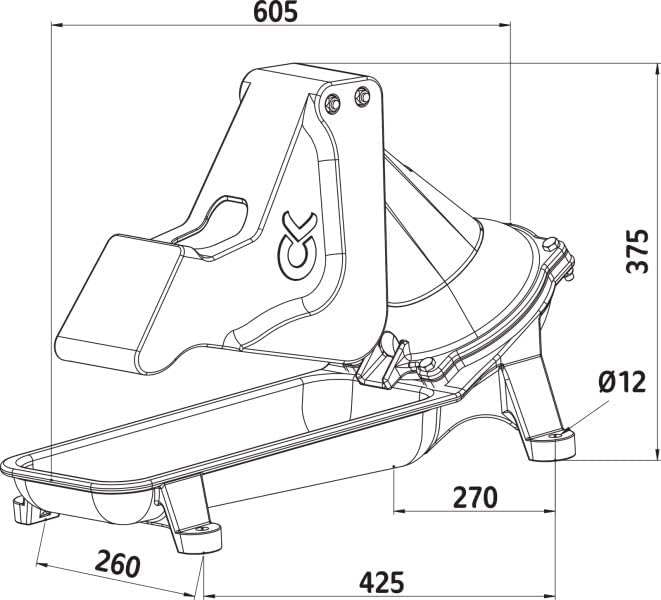

Figure 3: Dimensional drawing of the Kerbl P100 Willow Pump, showing overall dimensions and mounting hole spacing for installation planning.

Иштөө нускамалары

The Kerbl P100 Willow Pump is designed for simple and effective operation.

Насосту толтуруу:

Before first use or if the pump loses its prime, it may need to be primed:

1. Locate the priming port (if available) or the top opening of the pump.
2. Pour clean water into the pump until the chamber is full.
3. Operate the lever arm slowly several times to help draw water up the suction pipe.
4. Repeat if necessary until water flows consistently from the drinking bowl.

Кадимки операция:

1. Ensure the drinking bowl is clear of debris.
2. Grasp the lever arm firmly.
3. Pump the lever arm up and down with a steady, full stroke.
4. Each stroke delivers approximately 0.6 liters of water (depending on suction depth).
5. Continue pumping until the desired amount of fresh water is in the drinking bowl.

Figure 4: The Kerbl P100 Willow Pump, illustrating its robust design and ready state for manual water pumping.

Техникалык тейлөө

Regular maintenance ensures the longevity and efficient performance of your pump.

Күнүмдүк/жумалык техникалык тейлөө:

• Clean Drinking Bowl: Regularly clean the cast iron drinking bowl to prevent algae growth and ensure fresh water for animals.
• Агышууларды текшерүү: Inspect all connections for any signs of water leaks. Tighten connections as needed.
• Таштандыларды тазалоо: Ensure the suction pipe inlet is free from debris that could block water flow.

Ай сайын/сезондук техникалык тейлөө:

• Майлоо: Apply a suitable, food-grade lubricant to the pivot points of the lever arm to ensure smooth operation and prevent wear.
• Inspect Internal Components: Periodically check the piston/diaphragm and valves for wear or damage. Replace if necessary. Refer to the exploded view компонентти аныктоо үчүн диаграмма.
• Кышка даярдоо (эгер бар болсо): In freezing climates, drain the pump completely to prevent damage from ice expansion. Disconnect the suction pipe and allow all water to escape.

Проблемаларды чечүү

This section addresses common issues you might encounter with your Kerbl P100 Willow Pump.

Техникалык шарттар

Кепилдик жана колдоо

For warranty information, technical support, or to order replacement parts, please contact KERBL customer service or your authorized dealer. Keep your purchase receipt as proof of purchase.

Manufacturer: Albert Kerbl GmbH

For further assistance, please visit the official KERBL webсайтына кириңиз же жергиликтүү дистрибьюторуңузга кайрылыңыз.
