1. Продукт бүтүп калдыview
The Scosche GMT2049AB Dash Kit is designed to facilitate the installation of an aftermarket double DIN or single DIN car stereo with a storage pocket into select 1994-2012 GM vehicles. This kit provides a factory-like appearance for your new stereo, ensuring a seamless integration with your vehicle's interior. It is constructed from durable materials to securely hold your stereo.
Пакеттин мазмуну
- Instruction Manual
- Монтаждоо кронштейндери
- Radio Bezels
- Сактоо чөнтөгү
Image 1.1: The Scosche GMT2049AB Dash Kit, including mounting brackets, radio bezels, and a storage pocket for single DIN installations.
2. Шайкештик
Унаа шайкештиги
This dash kit is compatible with select 1994-2012 GM vehicles that do not have factory navigation systems. It is crucial to verify your vehicle's specific make, model, and year against the provided fit guide to ensure proper fitment.
Image 2.1: Part 1 of the vehicle compatibility list, detailing compatible Buick, Cadillac, Chevrolet, and Geo models from 1994-2012.

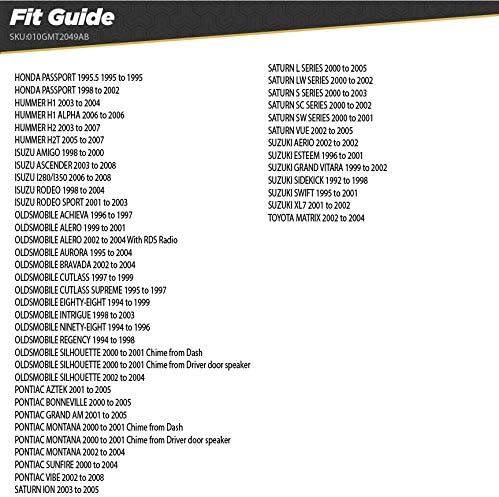

Image 2.2: Part 2 of the vehicle compatibility list, detailing compatible Honda, Hummer, Isuzu, Oldsmobile, Pontiac, Saturn, Suzuki, and Toyota models from 1994-2012.
Stereo Compatibility
Scosche Double DIN Kits are designed to fit true double DIN stereos with a maximum faceplate opening of 96.8mm x 173mm (approximately 3 13/16 inches x 6 13/16 inches). Some radios labeled as double DIN may be oversized and require minor trimming of the kit for a proper fit. Always measure your aftermarket stereo's faceplate dimensions before installation.
Image 2.3: Diagram illustrating the standard double DIN opening dimensions of 96.8mm (3 13/16 inches) by 173mm (6 13/16 inches).
3. Орнотуу боюнча колдонмо
Бул бөлүмдө жалпы маалымат берилетview of the installation process. For detailed, step-by-step instructions specific to your vehicle and stereo, please refer to the comprehensive instruction manual included in your package.
Жалпы орнотуу кадамдары:
- Унаа даярдоо: Disconnect the vehicle's battery. Carefully remove the factory radio and any surrounding dash trim panels.
- Assemble Dash Kit: Depending on whether you are installing a double DIN or single DIN stereo, assemble the appropriate mounting brackets and radio bezels from the kit. If installing a single DIN stereo, attach the storage pocket.
- Коопсуз стерео: Mount your aftermarket stereo to the assembled dash kit using the provided hardware. Ensure the stereo is securely fastened and aligned correctly within the kit.
- Зымдарды туташтыруу: Connect the aftermarket stereo's wiring harness to the vehicle's wiring harness. This may require a separate wiring adapter (sold separately) for proper integration.
- Сыноо функциясы: Before fully reassembling the dash, temporarily connect the battery and test the stereo's functionality (power, audio, balance, fader, etc.).
- Тирчени кайра чогултуу: Once functionality is confirmed, carefully reinstall the dash kit assembly into the vehicle's dashboard opening. Reattach all removed trim panels and reconnect the vehicle's battery.
4. Продукттун спецификациялары
| Модель номери | GMT2049AB |
| Продукциянын өлчөмдөрү | 3.25 x 4.5 x 9 дюйм |
| Элемент Салмагы | 6.6 унция |
| Түс | Кара |
| Материал | High-quality materials (typically ABS plastic) |
| Шайкештик | Select 1994-2012 GM Vehicles (Non-Factory Nav Models) |
5. Кыйынчылыктарды
Орнотуу учурунда же андан кийин көйгөйлөргө туш болсоңуз, төмөнкү жалпы көйгөйлөрдү чечүү кадамдарын карап көрүңүз:
- Dash kit does not fit: Double-check the vehicle compatibility list and ensure your vehicle is listed. Verify that your aftermarket stereo's faceplate dimensions do not exceed the kit's maximum opening (96.8mm x 173mm). Minor trimming may be required for some oversized stereos.
- Stereo not powering on: Ensure all wiring connections are secure and correctly matched. Verify that the vehicle's battery is fully charged and properly reconnected. Check all fuses related to the radio and vehicle power.
- Loose fit or rattling: Ensure all mounting brackets and screws are tightened securely. Verify that the dash kit is properly seated and clipped into the vehicle's dashboard.
- Жетишпеген бөлүктөр: Refer to the "Package Contents" section. If any components are missing, contact Scosche customer support.
For more specific issues or advanced troubleshooting, consult the detailed instruction manual provided with the kit or contact Scosche technical support.
6. Кепилдик жана техникалык колдоо
The Scosche GMT2049AB Dash Kit is backed by Scosche's Limited Lifetime Warranty, ensuring quality and reliability. Scosche also provides Lifetime Technical Support to assist with any installation questions or product-related inquiries you may have.
For warranty claims or technical assistance, please visit the official Scosche website or refer to the contact information provided in your product packaging. You can also find more information and support resources at the Scosche бренд дүкөнү.
