PWR+ AC Power Adapter for Yamaha Keyboards: Instruction Manual

Introduction

This instruction manual provides essential information for the safe and effective use of your PWR+ AC Power Adapter. This adapter is designed to provide reliable power to a wide range of Yamaha keyboard models, including the PA-130, PA-150, and other compatible series. Please read this manual thoroughly before use and retain it for future reference.

Продукт бүттүview

The PWR+ AC Power Adapter is a compact and efficient power supply unit. It features a durable design and an extra-long cord for convenience. A blue LED indicator light confirms power delivery.

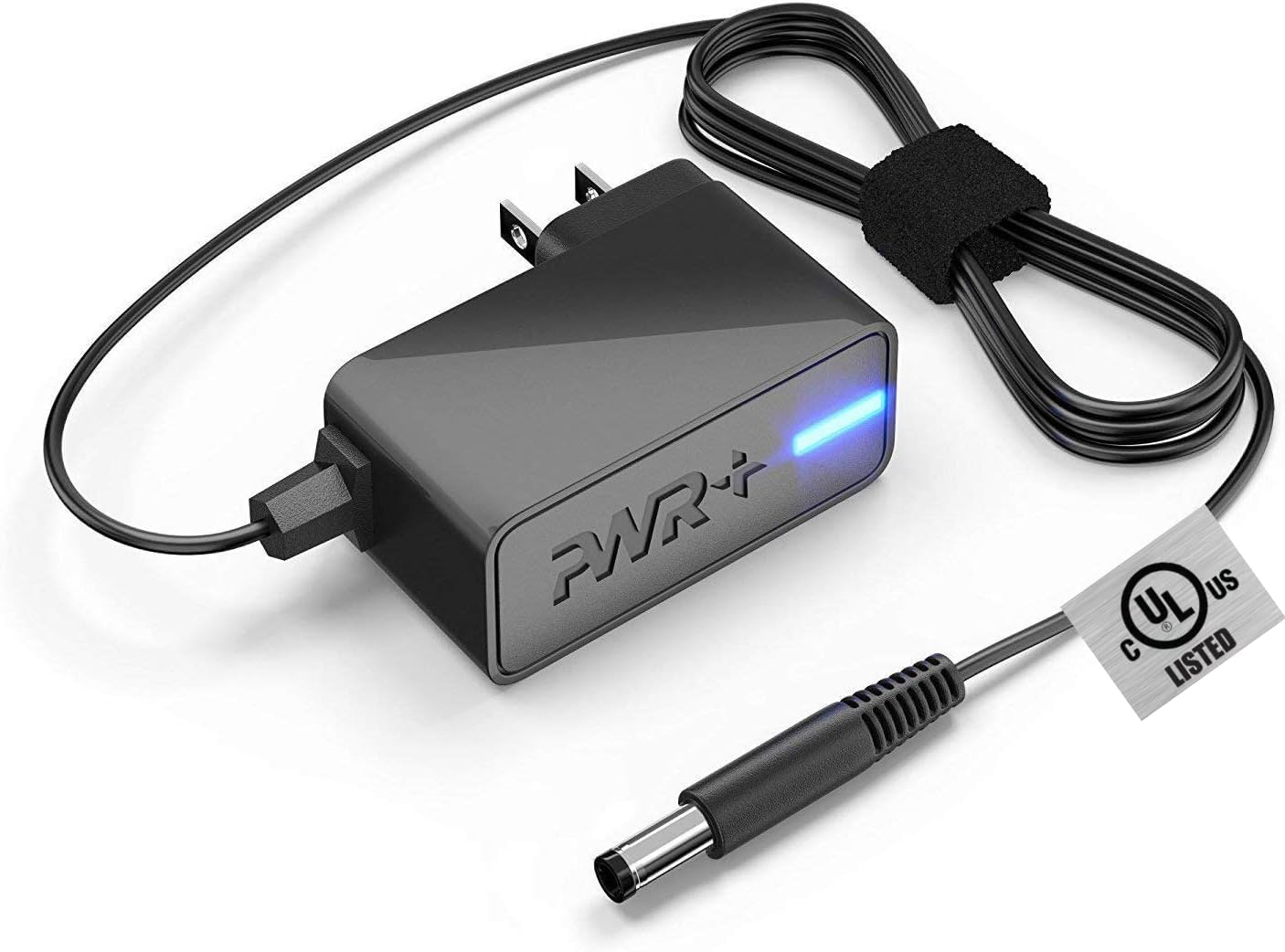

Figure 1: The PWR+ AC power adapter with its coiled cord and blue LED indicator. This adapter is designed for various Yamaha keyboard models.

Сүрөт 2: Жакын пландан view of the UL Listed safety certification tag on the adapter's cable, ensuring compliance with safety standards.

Орнотуу нускамалары

1. Шайкештикти текшерүү: Ensure your Yamaha keyboard model is listed as compatible with this 12V 2A adapter. Refer to the 'Specifications' section or your keyboard's manual.
2. Розеткага туташуу: Plug the AC power adapter into a standard 100-240V wall outlet. The blue LED indicator on the adapter will illuminate, confirming power is being received.
3. Баскычтопко туташуу: Locate the DC IN port on your Yamaha keyboard. Carefully insert the barrel connector of the power adapter into this port. Ensure a secure connection.
4. Күчтүү баскычтоп: Once connected, power on your Yamaha keyboard using its dedicated power button.

Иштөө нускамалары

Once the PWR+ AC Power Adapter is correctly connected to both the power outlet and your Yamaha keyboard, the keyboard should power on normally. The adapter provides a stable 12V 2A output, suitable for continuous operation of your device. Always ensure the adapter is placed in a well-ventilated area to prevent overheating.

Техникалык тейлөө

• Тазалоо: Disconnect the adapter from the power source and your device before cleaning. Use a soft, dry cloth to wipe the adapter. Do not use liquid cleaners or aerosols.
• Сактагыч: When not in use, store the adapter in a cool, dry place. Avoid tightly coiling the cable to prevent damage.
• Колдонуу: Do not expose the adapter to moisture, extreme temperatures, or direct sunlight. Avoid dropping or subjecting the adapter to strong impacts.
• Кабельге кам көрүү: Regularly inspect the cable for any signs of wear, cuts, or fraying. If damage is observed, discontinue use and replace the adapter.

Проблемаларды чечүү

• No Power to Keyboard:
  • Check if the adapter's blue LED indicator is lit. If not, ensure the adapter is securely plugged into a working wall outlet.
  • Verify the barrel connector is fully inserted into the keyboard's DC IN port.
  • Confirm the keyboard's power switch is in the 'ON' position.
  • Розетканын иштеп жатканын текшерүү үчүн аны башка түзмөк менен текшериңиз.
• Үзгүлтүктүү кубаттуулук:
  • Бардык байланыштардын бекем жана бош эмес экенине ынаныңыз.
  • Кабельде көрүнгөн зыяндын бар-жоктугун текшериңиз.
• Адаптердин ысып кетиши:
  • Адаптер жакшы желдетилген жана жабылбаган жерде экенин текшериңиз.
  • Ашыкча ысып кете берсе, колдонууну токтотуп, колдоо бөлүмүнө кайрылыңыз.

Техникалык шарттар

Кепилдик жана колдоо

This PWR+ AC Power Adapter comes with a 2 жылдык узартылган кепилдик. For warranty claims, technical support, or any inquiries, please refer to the contact information provided with your product packaging or visit the official PWR+ webсайт.
