Introduction
This manual provides detailed instructions for the safe and effective use of your ATERA Strada Evo 2 022700 Bicycle Tow Bar Rack. Please read this manual thoroughly before installation and operation to ensure proper function and safety.
The ATERA Strada Evo 2 is designed for secure transport of bicycles on vehicles equipped with a tow bar. It features a robust construction with high-grade aluminum components and a user-friendly design for easy mounting and bicycle loading.
Коопсуздук маалыматы
Маанилүү коопсуздук көрсөтмөлөрү:
- Always ensure the rack is securely attached to the tow bar before loading bicycles.
- 60 кг максималдуу жүк көтөрүмдүүлүктөн ашпаңыз.
- Ensure all bicycles are properly secured to the rack using the provided straps and clamps.
- Check all connections and fastenings regularly, especially before and during long journeys.
- Be aware of the increased vehicle length and height when the rack and bicycles are mounted.
- Drive cautiously, especially when cornering, braking, and in windy conditions.
- The rear lights must be visible and functional. Ensure the rack's lights are connected and working.
- Refer to your vehicle's owner's manual for specific tow bar load limits and recommendations.
Продукт компоненттери
The ATERA Strada Evo 2 022700 Bicycle Tow Bar Rack includes the following main components:
- Main frame with tow bar coupling mechanism
- Wheel trays with adjustable straps
- Detachable, lockable frame holders (distance holders)
- Integrated rear lights and license plate holder
- Electrical connector for vehicle (7-pin or 13-pin, depending on model/adapter)
- Кулпулоо механизми үчүн ачкычтар

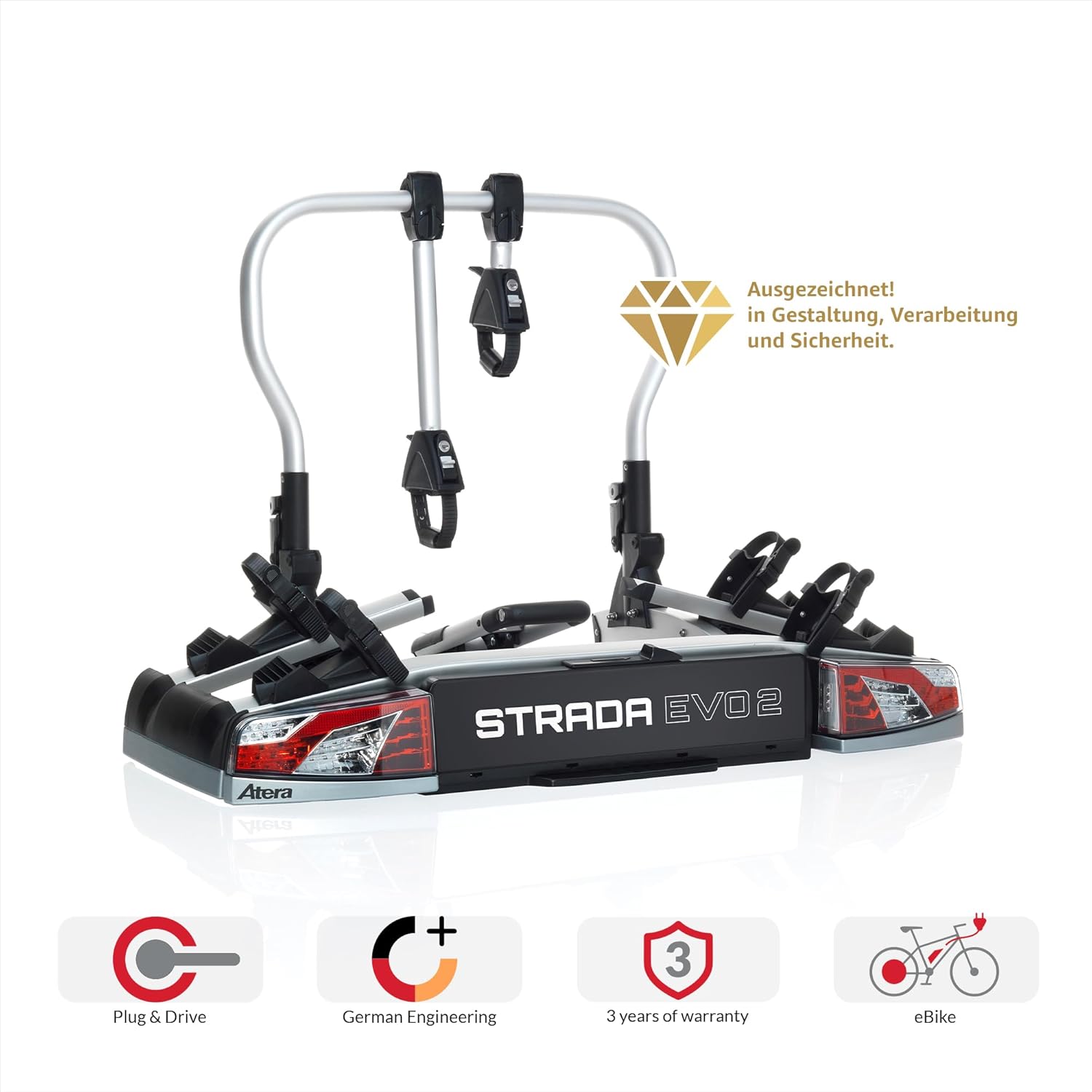

Сүрөт: бүттүview of the ATERA Strada Evo 2 Bicycle Tow Bar Rack, showing its main frame, wheel trays, and integrated rear lights.
Орнотуу жана орнотуу
Follow these steps to correctly install the ATERA Strada Evo 2 on your vehicle's tow bar:
- Prepare the Tow Bar: Ensure the tow bar is clean and free of grease or dirt.
- Mount the Rack: Position the rack over the tow ball. Engage the coupling mechanism by pressing down firmly until it locks into place. A click sound indicates secure attachment.
- Коопсуздукту текшерүү: Attempt to lift the rack to confirm it is firmly attached and does not wobble.
- Электр розеткасын туташтыруу: Insert the electrical plug from the rack into your vehicle's tow bar socket.
- Сыноо жарыктары: Verify that all rear lights (brake lights, turn signals, tail lights) on the rack are functioning correctly.
- Adjust Wheel Trays: Adjust the position of the wheel trays to accommodate the wheelbase of your bicycles.
- Install Frame Holders: Attach the detachable frame holders to the main support frame. These will secure the bicycle frames.
Image: The ATERA Strada Evo 2 rack securely mounted on a vehicle's tow bar, viewфронттон келген.
Image: Diagram illustrating the key dimensions of the ATERA Strada Evo 2 rack, including width and height, important for vehicle clearance.
Иштөө нускамалары
Велосипеддерди жүктөө
- Position First Bike: Place the first bicycle into the inner wheel trays.
- Коопсуз кадр: Use a detachable frame holder to clamp the bicycle's frame securely to the main support bar. Ensure the clamp is tight but does not damage the frame.
- Коопсуз дөңгөлөктөр: Fasten the wheels into the wheel trays using the provided straps.
- Load Additional Bikes: Repeat the process for additional bicycles, ensuring even weight distribution and that bikes do not interfere with each other. The rack can be extended to carry up to 3 bikes.
- Акыркы текшерүү: Before driving, double-check all frame holders and wheel straps for tightness. Ensure no parts of the bicycles are obstructing vehicle lights or license plate.
Tilting Function (for trunk access)
The ATERA Strada Evo 2 features a convenient tilt function allowing access to your vehicle's trunk even with bicycles loaded.
- To tilt the rack, locate the release mechanism (often a foot pedal or lever) near the tow bar coupling.
- Activate the release and gently tilt the rack downwards.
- After accessing the trunk, push the rack back up until it locks securely in its upright position.
Сүрөт: Жакын план view of the bicycle frame and wheel attachment points on the ATERA Strada Evo 2, showing how bikes are secured.
Image: Diagram illustrating the maximum load capacity of 60 kg for the ATERA Strada Evo 2, and how it can accommodate multiple bicycles.

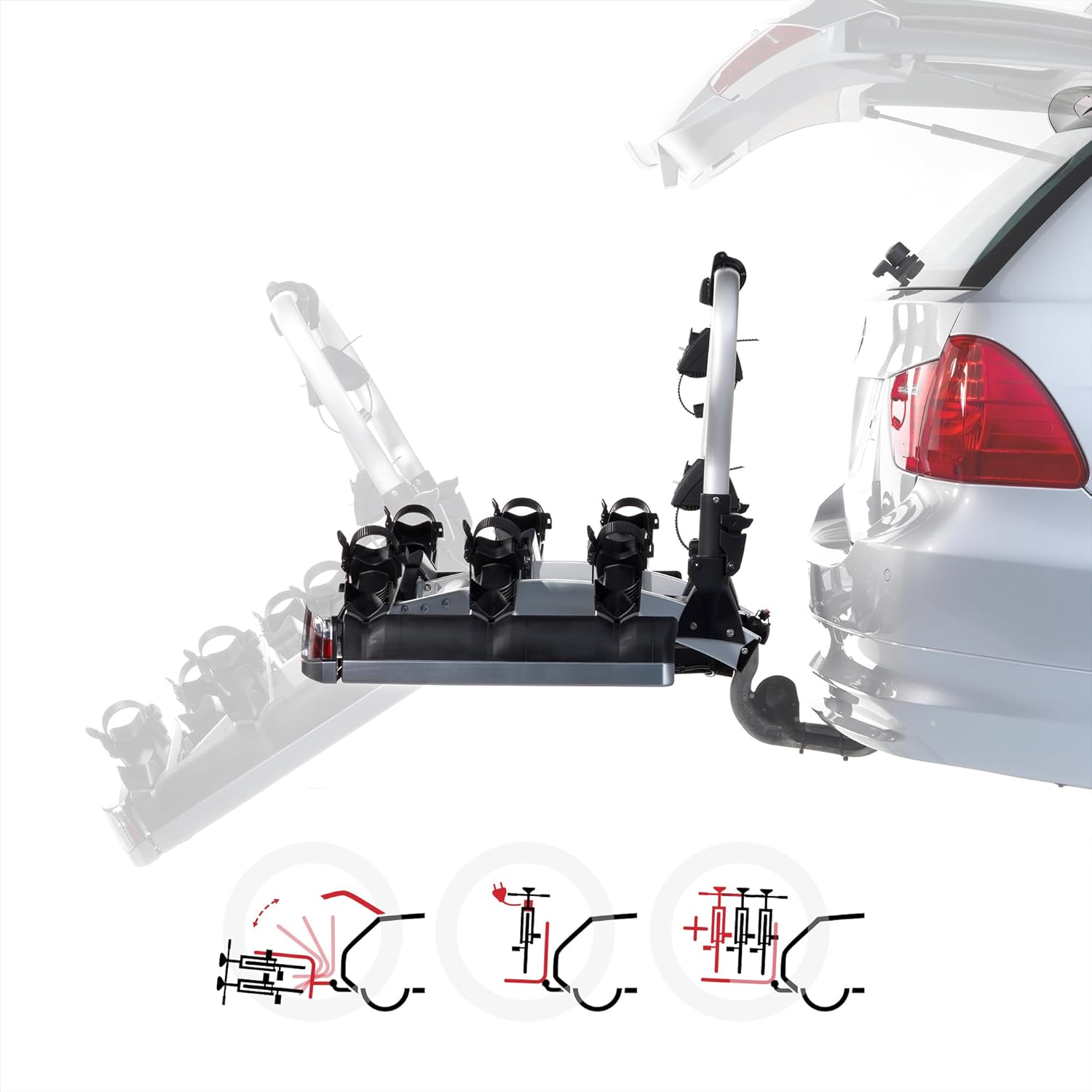

Image: Sequence showing the tilting function of the ATERA Strada Evo 2, allowing access to the vehicle's trunk even with bikes loaded.
Техникалык тейлөө
Regular maintenance ensures the longevity and safe operation of your ATERA Strada Evo 2 rack.
- Тазалоо: Clean the rack with mild soap and water after use, especially if exposed to road salt or dirt. Rinse thoroughly and dry.
- Майлоо: Periodically lubricate moving parts, such as the tilting mechanism and locking points, with a suitable lubricant to ensure smooth operation.
- Текшерүү: Regularly inspect all bolts, nuts, straps, and clamps for wear, damage, or looseness. Tighten any loose fasteners. Replace worn or damaged parts immediately.
- Электр байланыштары: Keep the electrical plug and socket clean and dry. Apply dielectric grease to the pins if necessary to prevent corrosion.
- Сактагыч: When not in use, store the rack in a dry, protected area to prevent corrosion and damage.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Rack wobbles on tow bar | Not securely clamped; tow ball dirty/greasy | Ensure coupling mechanism is fully engaged. Clean tow ball thoroughly. |
| Жарыктар иштебейт | Electrical plug not fully inserted; blown fuse in vehicle/rack; damaged wiring | Check plug connection. Inspect vehicle and rack fuses. Check for visible wiring damage. Consult a professional if needed. |
| Bicycles not stable | Frame holders or wheel straps loose/incorrectly positioned | Tighten all frame holders and wheel straps. Ensure bikes are positioned correctly and evenly. |
| Tilting mechanism stiff | Lack of lubrication; dirt/debris | Clean and lubricate the tilting mechanism. |
Техникалык шарттар
- Модел: ATERA Strada Evo 2 022700
- Монтаж түрү: Rear, Tow Bar
- Жүктөө жөндөмдүүлүгү: 60 кг (132.3 фунт)
- Number of Bikes: 2 (extendable to 3)
- Өлчөмдөрү (L x W x Y): 42.52 x 12.99 x 23.23 дюйм (болжол менен 108 x 33 x 59 см)
- Элемент Салмагы: 35.9 фунт (болжол менен 16.3 кг)
- Материал: High-grade aluminum, stainless steel
- Түсү: Silber (Silver)
- Жарыктар: Integrated rear lights with modern clear-class look
- Өзгөчөлүктөрү: Detachable, lockable distance holders; Roll bearing pull-out for smooth operation; Tilting function for trunk access.
Кепилдик маалымат
The ATERA Strada Evo 2 022700 Bicycle Tow Bar Rack comes with a 3 жылдык кепилдик сатып алынган күндөн тартып. Бул кепилдик нормалдуу колдонууда материалдардагы жана жасалгадагы өндүрүштүк кемчиликтерди камтыйт.
The warranty does not cover damage caused by improper installation, misuse, neglect, accidents, modifications, or normal wear and tear. Please retain your proof of purchase for warranty claims.
Кардарларды колдоо
For technical assistance, spare parts, or warranty claims, please contact ATERA customer support through their official webсайт же ыйгарым укуктуу дилерлер.
Webсайт: www.atera.de
