1. Киришүү
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Rev-A-Shelf Lazy Daisy Polymer Kidney-Shaped 2-Shelf Lazy Susan. Designed to enhance accessibility and organization in corner base cabinets, this unit features durable polymer shelves and an independent rotating post system.
Негизги өзгөчөлүктөрү:
- (2) White Polymer Kidney-Shaped shelves with telescoping post and mounting hardware.
- Independently rotating molded Polymer hardware for easy access.
- Top shelf is adjustable after installation.
- Designed specifically for corner base cabinets with hinged doors (does not attach to the door).
- Adjustable post accommodates interior cabinet heights from 26" to 31".
- Constructed from injection molded polymer plastic for durability.
2. Продукт бүтүп калдыview & Компоненттери
The Lazy Daisy Lazy Susan consists of two kidney-shaped polymer shelves mounted on a central telescoping post. Each shelf rotates independently, providing optimal access to items stored in your corner cabinet.
1-сүрөт: The Rev-A-Shelf Lazy Daisy Polymer Kidney-Shaped 2-Shelf Lazy Susan, showcasing its two white polymer shelves and central telescoping post.

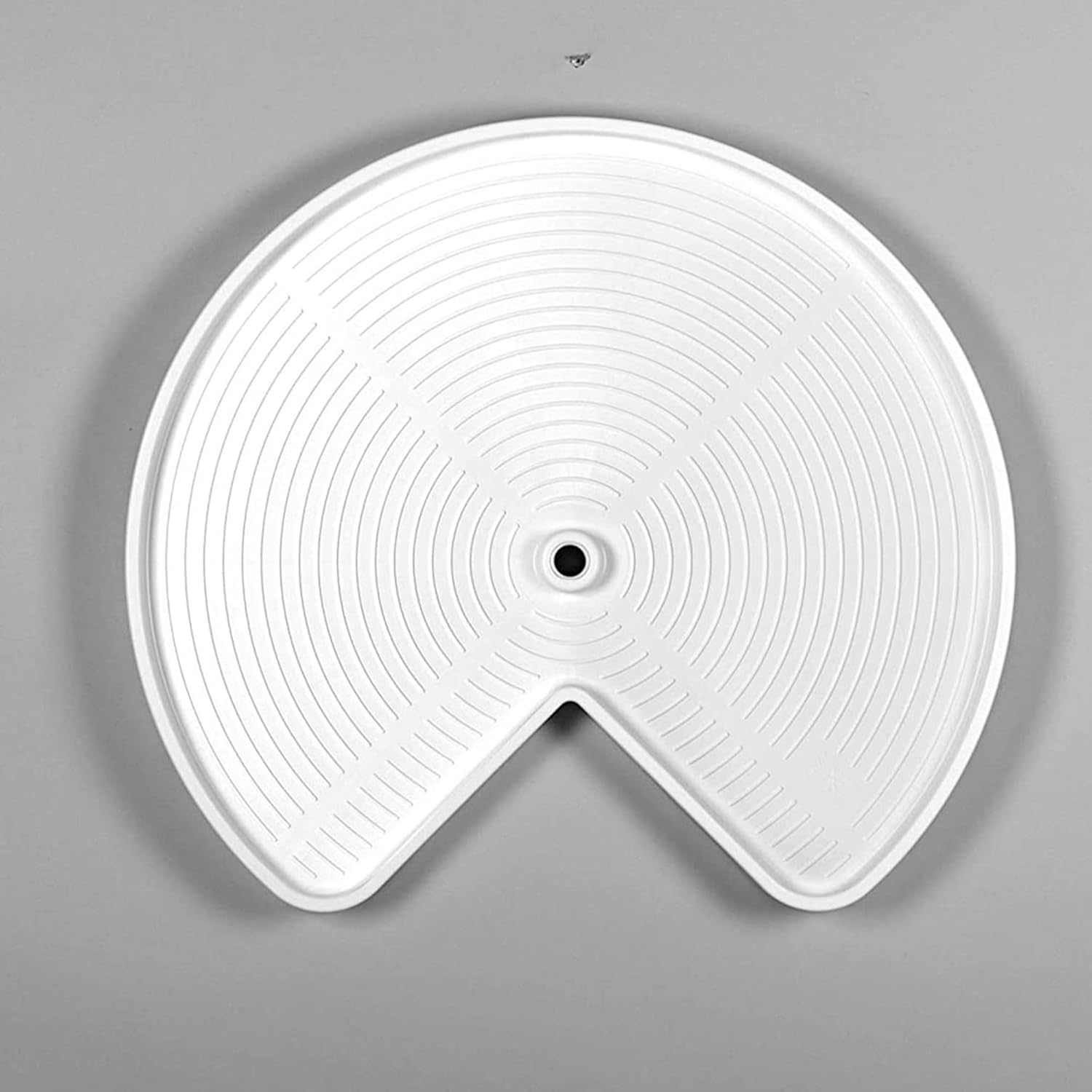

2-сүрөт: Асты view of a single kidney-shaped shelf, highlighting the textured surface designed to prevent items from sliding during rotation.
3-сүрөт: Close-up of the adjustable pin mechanism on the central pole, used to secure the shelves at desired heights.
3. Орнотуу жана орнотуу
Proper measurement and assembly are crucial for optimal performance. This Lazy Susan is designed for corner base cabinets where the door is hinged and does not attach to the Lazy Susan itself.
3.1. Measuring Your Cabinet
Сатып алуудан мурунasing or installing, accurately measure your cabinet opening to ensure compatibility. Refer to the diagrams below for guidance.
4-сүрөт: Guide to determine the correct Lazy Susan shape based on your cabinet style (Kidney for hinged corner doors).

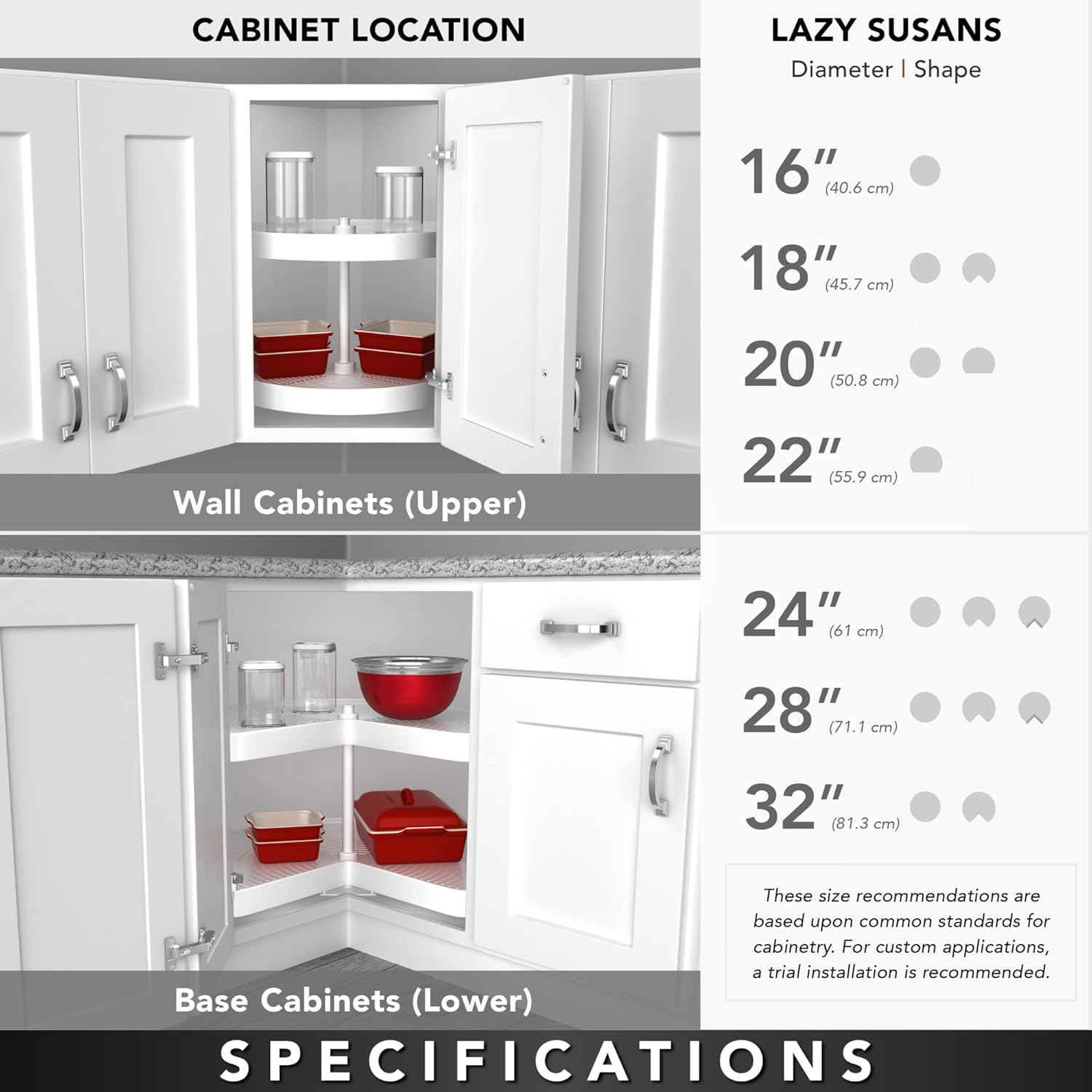

5-сүрөт: Size recommendations for Lazy Susans based on cabinet location (Upper Wall vs. Lower Base) and available diameters.
6-сүрөт: Detailed instructions on measuring the width, depth, and height of your cabinet opening, considering framed vs. frameless styles and potential obstructions.
3.2. Орнотуу процесси
The Lazy Susan must be assembled inside the cabinet before final installation. The adjustable post accommodates interior cabinet heights between 26" and 31".
For visual guidance on measuring and installation, please refer to the following official videos:
Видео 1: "Rev-A-Shelf Lazy Susan How to Measure Video" - This video provides detailed instructions on how to accurately measure your cabinet to select the correct Lazy Susan size.
Видео 2: "How to Measure your Cabinet Opening" - A general guide on measuring cabinet openings for various Rev-A-Shelf products, applicable to Lazy Susans.
Видео 3: "24" Corner Cabinet Lazy Susan" - This video demonstrates the installation process for a corner cabinet Lazy Susan, providing practical steps.
4. Операция
To access items, simply open your cabinet door and gently rotate either the top or bottom shelf independently. The smooth rotation mechanism allows for full access to all stored contents, even those at the back of the cabinet. The textured surface of the shelves helps prevent items from sliding during rotation.
5. Техникалык тейлөө
To clean your Lazy Susan, wipe the polymer shelves with a damp cloth and mild soap. Avoid abrasive cleaners or harsh chemicals, as these may damage the finish. Ensure the telescoping post and rotating mechanisms are free from debris to maintain smooth operation.
6. Кыйынчылыктарды
- Shelves not rotating smoothly: Check for any obstructions around or under the shelves. Ensure the central post is securely fastened at both the top and bottom, and that the shelves are correctly seated on their pins.
- Items sliding off shelves: The shelves feature a textured surface to minimize sliding. Ensure items are placed securely and are not excessively tall or unstable.
- Shelf height adjustment: The top shelf can be adjusted after installation. Refer to the installation instructions for details on how to release and re-secure the shelf at a different height.
7. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Rev-A-Shelf |
| Модель номери | LD-2472-28-11-1 |
| Материал | Полипропилен (PP) |
| Түс | Ак |
| Элемент Салмагы | 8.69 фунт |
| Элементтин диаметри | 28 дюйм |
| UPC | 090713002637 |
| Жөнгө салынуучу бийиктик | Accommodates 26" to 31" interior cabinet height |
| Текче түрү | Kidney-Shaped, 2-Shelf |
8. Кепилдик жана колдоо
For warranty information, technical support, or replacement parts, please contact Rev-A-Shelf customer service directly. Keep your purchase receipt and model number handy for faster service.
