1. Киришүү
This manual provides essential information for the proper installation, operation, and maintenance of your Walker Ultra EPA 54771 Direct Fit Catalytic Converter. This product is designed to meet EPA emission standards for specific vehicle applications, ensuring compliance and optimal performance.
The Walker Ultra catalytic converter is engineered for direct-fit replacement, meaning it is designed to bolt directly into your vehicle's exhaust system without requiring specialized fabrication or welding. Adherence to these instructions will help ensure the longevity and effectiveness of the catalytic converter.

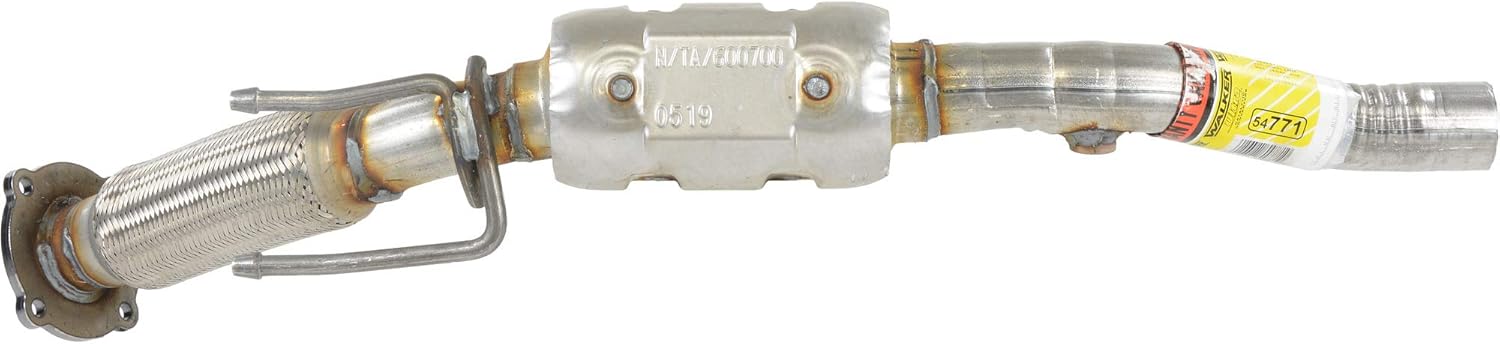

Image 1.1: The Walker Ultra EPA 54771 Direct Fit Catalytic Converter, showing its overall structure including the main converter body and connecting pipes.
2. Унаа шайкештиги
This Walker Ultra EPA 54771 Direct Fit Catalytic Converter is specifically designed for the following vehicle:
- Жасаңыз: Volkswagen
- Модел: Beetle
- Жылдар: 2006-2010
Important: Before installation, verify compatibility using the vehicle's year, make, model, engine, and trim information. Consult your vehicle's service manual or a qualified mechanic if unsure.
3. Продукциянын өзгөчөлүктөрү
The Walker Ultra EPA 54771 Catalytic Converter incorporates several design elements to ensure reliable performance and compliance:
- EPAга шайкеш келет: Designed for use on OBDII vehicles (1996 and newer) to meet federal emission standards. Always consult your state's aftermarket converter regulations for specific details.
- Түздөн-түз ылайыктуу дизайн: Features OE-style hangers, brackets, routings, and heat shields for a bolt-on replacement solution. This design eliminates the need for specialized fabrication or welding during installation.
- Кепилденген аткаруу: Utilizes OE-style high-technology washcoat and an optimal precious metal load to achieve the required reduction in tailpipe emissions, matching the vehicle's original specifications. This helps keep the Check Engine Light off for emissions-related codes.
- Күчтүү жана туруктуу: Constructed with thick OE-style flanges, hangers, and brackets to ensure structural integrity and long-term durability.
- OE стилиндеги жылуулук калкандары: Includes aluminized heat shields, where originally equipped, to protect the vehicle's undercarriage from the heat generated by the converter.
3.1-сүрөт: Конвертер үчүн эч кандай үзгүлтүккө учуроо мезгилинин кереги жок экенин көрсөткөн иллюстрация, ал дароо иштетүүгө даяр.
Image 3.2: Visual representation of the converter's ability to prevent the Check Engine Light from illuminating due to emissions codes.
Сүрөт 3.3: Жакын пландан view of the robust flanges, highlighting the strong and durable construction for secure connections.
Image 3.4: The CARB Compliant logo, indicating adherence to California Air Resources Board standards for specific applications.
4. Орнотуу боюнча колдонмо
Installation of the Walker Ultra EPA 54771 Catalytic Converter is designed to be a direct-fit, bolt-on process. However, it is recommended that installation be performed by a qualified automotive technician. Always follow proper safety procedures when working under a vehicle.
4.1. Коопсуздук чаралары
- Ensure the vehicle is cooled down before beginning work to avoid burns from hot exhaust components.
- Lift the vehicle securely using appropriate jacks and jack stands. Never work under a vehicle supported only by a jack.
- Тиешелүү жеке коргоочу шаймандарды, анын ичинде коопсуздук көз айнектерин жана кол каптарды кийиңиз.
- Disconnect the vehicle's battery before starting any electrical work, if applicable.
4.2. Керектүү куралдар
Standard automotive hand tools, including wrenches, sockets, and possibly a penetrating lubricant for rusted bolts.
4.3. Орнотуу кадамдары
- Унааны даярдоо: Park the vehicle on a level surface, engage the parking brake, and securely lift it.
- Locate Existing Converter: Identify the current catalytic converter in the exhaust system.
- Disconnect Sensors (if applicable): Carefully disconnect any oxygen sensors or other electrical connections attached to the existing converter.
- Эски конвертерди алып салуу: Loosen and remove the bolts connecting the old catalytic converter to the exhaust manifold and the rest of the exhaust system. Use penetrating lubricant if bolts are seized. Carefully detach the converter from hangers.
- Текшерүү жана тазалоо: Inspect the mating surfaces of the exhaust pipes and manifold for rust or damage. Clean as necessary to ensure a proper seal.
- Жаңы конвертерди орнотуу: Position the new Walker Ultra EPA 54771 converter into place, aligning the flanges and hangers. Securely fasten the new converter using new gaskets and bolts (often recommended for a leak-free seal).
- Reconnect Sensors: Reconnect any oxygen sensors or electrical connections that were detached. Ensure they are properly tightened and routed.
- Акыркы текшерүүлөр: Double-check all connections for tightness. Ensure the converter is properly supported by its hangers and has adequate clearance from other vehicle components.
- Төмөнкү унаа: Carefully lower the vehicle.
Image 4.1: A technician installing an exhaust component, demonstrating the typical process of fitting a direct-fit catalytic converter.
5. Операция
The catalytic converter is a crucial component of your vehicle's exhaust system, responsible for reducing harmful pollutants in the engine's exhaust gases. It achieves this through chemical reactions that convert toxic gases (carbon monoxide, nitrogen oxides, and unburnt hydrocarbons) into less harmful substances (carbon dioxide, nitrogen, and water vapor).
The Walker Ultra EPA 54771 is designed to operate efficiently once the engine reaches its normal operating temperature. Its advanced washcoat technology and precious metal loading ensure optimal conversion rates, contributing to cleaner emissions and maintaining your vehicle's compliance with environmental regulations.
Video 5.1: An informational video detailing the features and benefits of Walker Ultra Catalytic Converters, including their role in emissions reduction and EPA compliance.
6. Техникалык тейлөө
Catalytic converters are generally maintenance-free components. However, their longevity and efficiency are directly linked to the overall health of your vehicle's engine and exhaust system. To ensure optimal performance of your Walker Ultra catalytic converter:
- Үзгүлтүксүз кыймылдаткычты тейлөө: Adhere to your vehicle manufacturer's recommended service schedule, including oil changes, spark plug replacement, and air filter checks. A well-tuned engine prevents unburnt fuel from reaching and damaging the converter.
- Кыймылдаткычтын бузулууларын тез арада оңдоңуз: If your Check Engine Light illuminates, have the vehicle diagnosed and repaired immediately. Issues like misfires, rich fuel mixtures, or faulty oxygen sensors can lead to converter overheating and failure.
- Контаминанттардан алыс болуңуз: Prevent the use of leaded fuels or certain fuel additives not approved for catalytic converter-equipped vehicles, as these can poison the catalyst.
- Түтүн чыгаруу системасын текшерүү: Periodically check the entire exhaust system for leaks, damage, or loose connections.
7. Кыйынчылыктарды
If you experience issues after installing your catalytic converter, consider the following common scenarios:
- Кыймылдаткычты текшерүү жарыгы (CEL) күйүп турат:
- Себеби: Often triggered by emissions-related codes (e.g., P0420, P0430 for catalyst efficiency below threshold). This can indicate an issue with the converter itself or, more commonly, an underlying engine problem affecting the converter's operation.
- Чечим: Have the vehicle's diagnostic trouble codes (DTCs) read by a qualified technician. Address any engine performance issues (misfires, oxygen sensor failures, exhaust leaks) that could be causing the CEL. Ensure all oxygen sensors are properly installed and functioning.
- Түтүн чыгаруучу түтүктөн чыккан шыбырт эткен үн:
- Себеби: May indicate a loose heat shield or, in rare cases, a broken internal ceramic substrate within the converter.
- Чечим: Inspect heat shields for loose fasteners. If the noise persists and is internal, the converter may need inspection.
- Reduced Engine Performance or Exhaust Restriction:
- Себеби: A severely clogged catalytic converter can restrict exhaust flow, leading to reduced engine power, poor fuel economy, and overheating.
- Чечим: This is typically a symptom of a larger engine problem. Diagnosis by a professional is required to determine if the converter is indeed clogged and to identify the root cause.
Image 7.1: An illuminated Check Engine Light on a vehicle's dashboard, indicating a potential issue with the emissions system or engine.
8. Техникалык шарттар
| Атрибут | Деталь |
|---|---|
| Бренд | Уокер |
| Модель номери | 54771 |
| Элемент Салмагы | 6 фунт |
| Продукциянын өлчөмдөрү | 38 x 9 x 9 дюйм |
| Outlet (OD) | 2.125 дюйм |
| Шайкештик | EPAга шайкеш келет (OBDII унаалары үчүн, 1996 жана андан кийинки) |
| Дизайн түрү | Түз орнотуучу болт-кошуу |
9. Кепилдик жана колдоо
For specific warranty information regarding your Walker Ultra EPA 54771 Catalytic Converter, please refer to the documentation included with your purchase or visit the official Walker Exhaust webсайт. Кепилдик шарттары, адатта, кадимки колдонуу жана тейлөө учурундагы өндүрүштүк кемчиликтерди жана материалдык кемчиликтерди камтыйт.
For technical support or assistance with installation, it is recommended to contact a certified automotive professional or the manufacturer's customer service department.
10. Proposition 65 Warning
ЭСКЕРТҮҮ: Бул продукт сизге химиялык заттардын, анын ичинде Коргошундун таасирин тийгизиши мүмкүн, ал Калифорния штатында рак жана тубаса кемтик же башка репродуктивдүү зыян алып келээри белгилүү. Көбүрөөк маалымат алуу үчүн өтүңүз www.P65Warnings.ca.gov.
