Toro 91-2256-03 21-Inch Mulching Blade Instruction Manual

Продукт бүттүview

This manual provides instructions for the safe and proper installation and maintenance of the Toro 91-2256-03 21-Inch Mulching Blade. This is a genuine OEM replacement part designed for specific Toro lawn mower models.

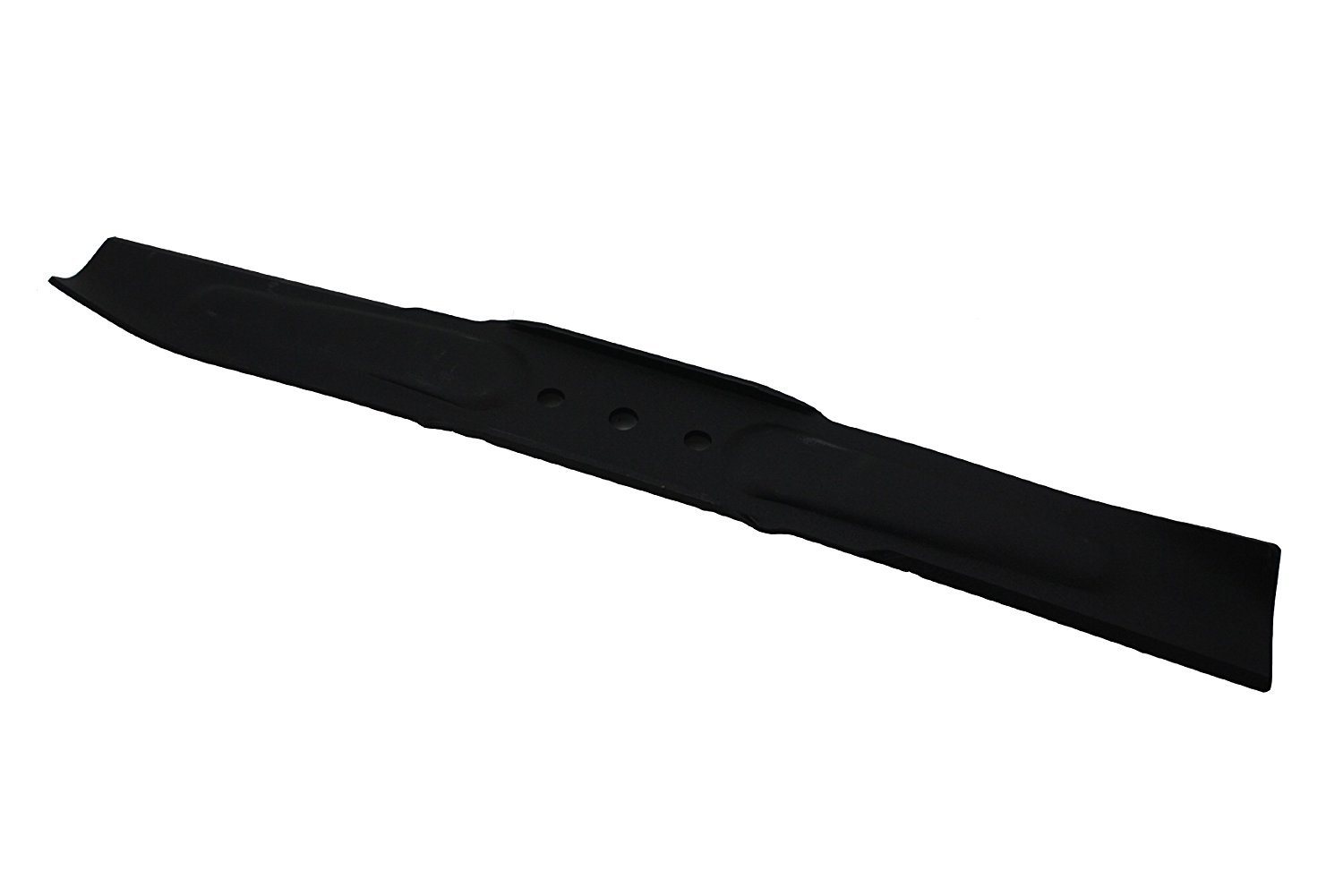

Image: Toro 91-2256-03 21-Inch Mulching Blade. This image displays the blade's shape and design, indicating its mulching capabilities with a curved profile and cutting edges.

Бөлүмдүн номери: 91-2256-03

Бөлүк номерлерин алмаштырат: 91-2256, 75-9420, 14-9419, 14-1659

Шайкеш моделдер:

• 20210, 20214, 20215, 20217, 20320, 20324, 20325, 20326, 20329, 20431, 20432, 20433, 20434, 20435, 20437, 20438
• 22031, 22040, 22043, 220436, 20764B, 22160, 22161, 22162, 22166, 22167TE
• 22175, 22176, 22176TE, 22177, 22177TE, 22178, 22178TE, 22179TE, 22187, 22187TE, 22188, 22188TE, 22189, 22189TE, 22190, 22191, 22192, 22195, 22196, 22197, 22198

Коопсуздук маалыматы

ЭСКЕРТҮҮ:

• Always disconnect the spark plug wire before performing any maintenance or installation on your lawn mower to prevent accidental starting.
• Wear heavy-duty gloves and eye protection when handling the blade, as it is sharp and can cause serious injury.
• Ensure the mower is on a flat, stable surface before beginning work.
• Refer to your lawn mower's owner's manual for specific safety precautions and instructions.

Орнотуу жана орнотуу

1. Чапкычты даярдаңыз:

   Park the lawn mower on a level surface. Disconnect the spark plug wire and secure it away from the spark plug to prevent accidental starting. If the mower has a fuel shut-off valve, turn it to the "OFF" position. Allow the engine to cool completely.
2. Tilt the Mower:

   Carefully tilt the mower onto its side, ensuring the carburetor and air filter are facing upwards to prevent fuel or oil leakage. Block the wheels to prevent movement.

3. Эски бычакты алып салуу:

   Using a wrench or socket, loosen the blade bolt that secures the old blade to the engine shaft. You may need a block of wood to hold the blade steady while loosening the bolt. Remove the old blade, washer, and any other hardware.

4. Компоненттерди текшерүү:

   Inspect the blade adapter, washers, and blade bolt for wear or damage. Replace any worn parts. Clean any grass clippings or debris from the underside of the mower deck and around the blade adapter.
5. New Blade орнотуу:

   Position the new Toro 91-2256-03 blade onto the blade adapter, ensuring the cutting edges face the correct direction (usually indicated by an arrow or "grass side" marking on the blade or adapter). The blade should fit snugly onto the adapter's alignment pins or star pattern. Place the washer(s) and blade bolt back on, then tighten the blade bolt securely. Refer to your mower's manual for the correct torque specification. Over-tightening or under-tightening can be dangerous.

6. Акыркы текшерүү:

   Return the mower to its upright position. Reconnect the spark plug wire. Ensure all tools are removed from the work area.

Иштетүү жөнүндө ойлор

Once the new blade is installed, ensure it is balanced and properly secured before operating the mower. An unbalanced blade can cause excessive vibration, damage to the mower, and an uneven cut. If you notice unusual vibration after installation, stop the engine immediately and re-check the blade installation.

This mulching blade is designed to cut grass into fine clippings, which are then returned to the lawn as natural fertilizer. For optimal mulching performance, mow when the grass is dry and avoid cutting more than one-third of the grass blade length at a time.

Техникалык тейлөө

• Бычакты курчутуу:

  Regularly inspect the blade for sharpness and damage. A dull blade tears grass, leading to an unhealthy lawn. Sharpen the blade using a file or grinding wheel, maintaining the original cutting angle. Ensure the blade remains balanced after sharpening. If you are unsure, consult a professional.
• Бычакты алмаштыруу:

  Replace the blade if it is bent, cracked, or severely worn. A damaged blade can be dangerous and affect cutting performance. Always use genuine Toro replacement parts for optimal fit and performance.

• Тазалоо:

  After each use, disconnect the spark plug wire and clean the underside of the mower deck and the blade to remove grass clippings and debris. This prevents rust and maintains efficient operation.

Проблемаларды чечүү

Excessive Vibration After Blade Installation:

Мүмкүн болгон себеп: Blade not properly seated, blade bolt loose, or blade unbalanced.

Чечим: Disconnect spark plug wire. Re-check blade installation, ensuring it is correctly aligned and the bolt is tightened to specifications. If the blade was sharpened, verify it is balanced. Replace the blade if it is bent or damaged.

Poor Cutting Performance (Torn Grass):

Мүмкүн болгон себеп: Жалгыз бычак.

Чечим: Sharpen or replace the blade. Ensure the cutting edges are sharp and free from nicks.

Mower Not Mulching Effectively:

Мүмкүн болгон себеп: Grass too tall or wet, or blade is dull.

Чечим: Mow when grass is dry. Avoid cutting more than one-third of the grass height at a time. Sharpen or replace the blade.

Техникалык шарттар

Кепилдик жана колдоо

This Toro OEM part is typically covered by the standard Toro parts warranty. For specific warranty details, please refer to the documentation provided with your original lawn mower or contact Toro customer support directly. Keep your purchase receipt as proof of purchase.

Техникалык жардам же кошумча суроолор боюнча расмий Toro сайтына кириңиз website or contact their customer service department. Always provide your product model number and the blade part number (91-2256-03) when seeking support.

Торо расмий Webсайт: www.toro.com
