POWERTEC OS1000004 Oscillating Sander Rubber Drum 5-Piece Set

1. Продукт бүтүп калдыview

The POWERTEC Oscillating Sander Rubber Drum 5-Piece Set is designed for professional woodworkers and hobbyist craftsmen. This set provides a range of rubber sanding drums to achieve smoother contours and work-piece edges, minimizing uneven grooves or burn marks. It includes five commonly used spindle sizes, offering versatility for various sanding tasks.

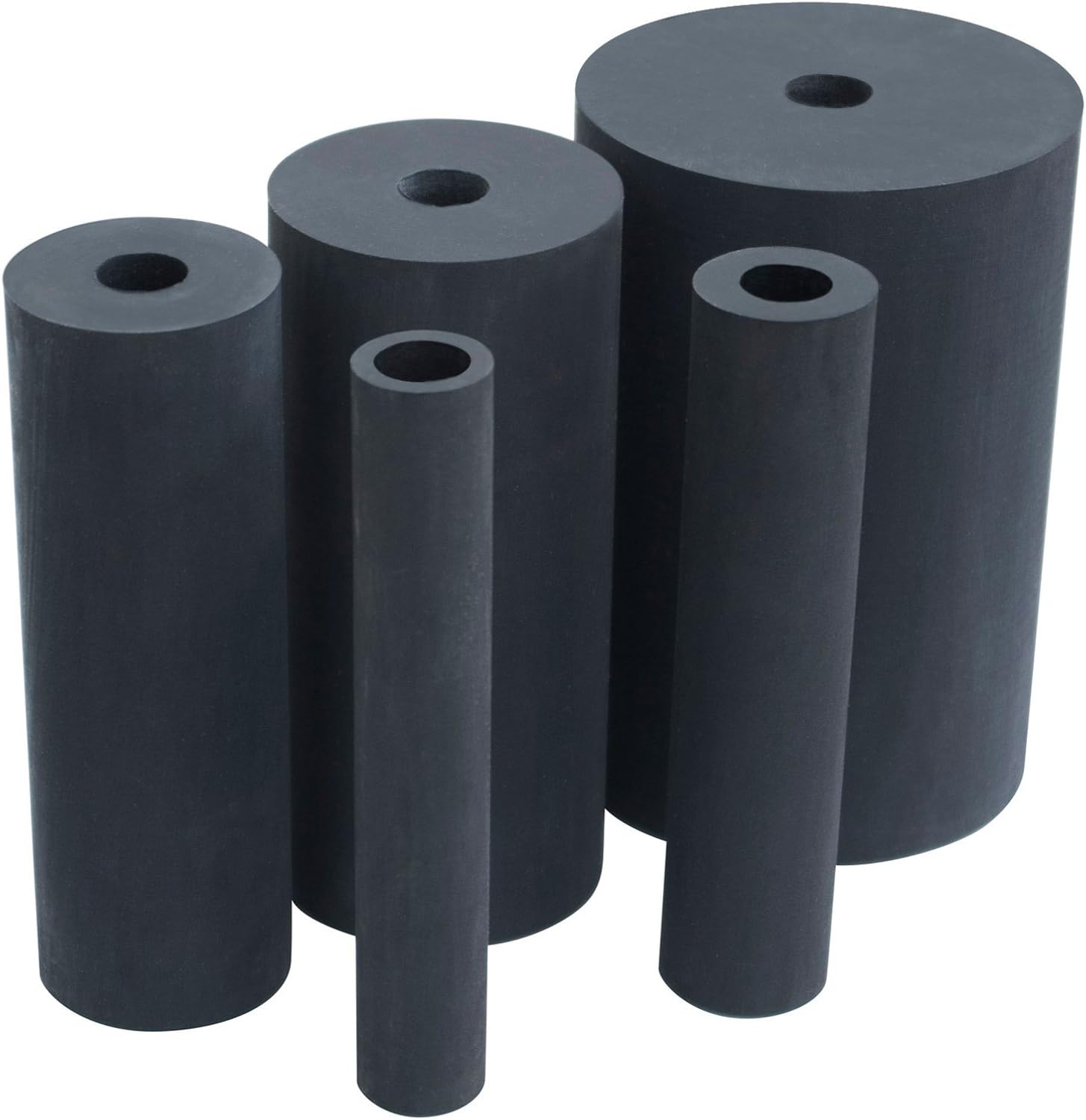

Figure 1.1: The POWERTEC 5-piece rubber drum set, showing the different sizes included for diverse sanding needs.

1.1 Set Contents

• Five (5) rubber drum spindles with individual diameters: 3/4 inch, 1 inch, 1-1/2 inch, 2 inch, and 3 inch.
• Each drum features a universal 1/2-inch inner center hole size for secure fitting.

1.2 Продукттун өзгөчөлүктөрү

• Функционалдык: Ideal for contouring irregular shapes and achieving smooth, sanded board edges without creating sanding grooves.
• Узактыгы: Constructed from sturdy rubber material for fixed flexibility, repeated use, and long-term durability.

2. Шайкештик

The rubber drums are designed for broad compatibility with various rotary sanding tools and machines that accommodate a 1/2-inch arbor. This includes, but is not limited to, drill presses, spindle sanders, and hand drills.

2.1 Compatible Brands and Models

These drums are suitable as replacement parts for many popular brands and models, including:

• POWERTEC (e.g., OS1000, OS1400)
• Харбор жүк
• уста
• Ridgid
• НН
• And other brands with compatible 1/2-inch arbors.

3. Орнотуу

Proper setup of the rubber drums is crucial for safe and effective operation. Ensure your sanding tool is unplugged or powered off before beginning installation.

3.1 Attaching Sanding Sleeves

1. Select the appropriate rubber drum size for your sanding task.
2. Choose a sanding sleeve that matches the diameter of the selected rubber drum.
3. Carefully slide the sanding sleeve over the rubber drum. Ensure the sleeve fits snugly and is evenly seated on the drum. The rubber material provides a slight give to hold the sleeve securely without slippage.

3.2 Installing Drums onto Tool Arbor

1. Identify the 1/2-inch arbor on your oscillating sander, drill press, or other compatible rotary tool.
2. Align the 1/2-inch inner center hole of the rubber drum with the tool's arbor.
3. Slide the drum onto the arbor until it is fully seated. Ensure it is secure and does not wobble. Some tools may require a retaining nut or collar; refer to your tool's manual for specific instructions.
4. Verify that the drum and sanding sleeve are firmly attached before powering on the tool.

3.1-сүрөт: Мисample of rubber drums and sanding sleeves stored within an oscillating sander, demonstrating how they fit into the tool's design.

4. Иштөө нускамалары

These rubber drums are designed to facilitate smooth and precise sanding. Always wear appropriate personal protective equipment (PPE), including eye protection and dust masks, when operating power tools.

4.1 Жалпы пайдалануу боюнча көрсөтмөлөр

• Материалдык шайкештик: Suitable for sanding various materials, including wood, stone, and other compatible surfaces.
• Contouring: The oscillating motion (when used with an oscillating sander) combined with the cylindrical shape of the drums is ideal for sanding curved edges and intricate contours.
• Жуп басым: Apply consistent, light pressure to the workpiece against the rotating drum. Avoid excessive force, which can lead to uneven sanding, premature wear of the sanding sleeve, or damage to the workpiece.
• Кыймыл: Move the workpiece smoothly and continuously across the drum's surface to prevent localized heating and burn marks.
• Чаңды чогултуу: Utilize your sanding tool's dust collection system or work in a well-ventilated area to manage dust generated during operation.

5. Техникалык тейлөө

Regular maintenance of your rubber drums will ensure their longevity and optimal performance.

5.1 Тазалоо жана сактоо

• Ар бир колдонуудан кийин: Remove the sanding sleeve from the rubber drum. Use a brush or compressed air to remove any accumulated dust or debris from the drum's surface.
• Текшерүү: Periodically inspect the rubber drums for any signs of wear, cracking, or deformation. While designed for durability, extreme conditions or misuse can cause damage.
• Сактагыч: Store the rubber drums in a clean, dry place away from direct sunlight and extreme temperatures. Keeping them in their original packaging or a dedicated storage container can protect them from damage and dust.

5.2 Replacing Sanding Sleeves

Sanding sleeves are consumable items and should be replaced when they become dull, torn, or clogged with sanding residue. Always use sleeves that are specifically designed for oscillating sander drums and match the drum's diameter.

6. Кыйынчылыктарды

This section addresses common issues you might encounter when using the rubber drums.

6.1 Жалпы маселелер жана чечимдер

7. Техникалык шарттар

Detailed technical specifications for the POWERTEC OS1000004 Oscillating Sander Rubber Drum 5-Piece Set.

8. Кепилдик жана колдоо

Продукциянын кепилдиги, кайтарып берүү же техникалык колдоо боюнча маалымат алуу үчүн, расмий POWERTEC сайтына кайрылыңыз webсайтка же түздөн-түз кардарларды тейлөөгө кайрылыңыз. Сатып алганыңыздын далили катары сатып алуу дүмүрчөгүңүздү сактаңыз.

POWERTEC is committed to providing high-quality woodworking tools and accessories. For further assistance, visit the Amazon'догу POWERTEC дүкөнү же алардын кызмат адамы webсайт.
