Yato YT-3714 Tile Cutting Wheel Instruction Manual

1. Продукт бүтүп калдыview

The Yato YT-3714 is a high-quality replacement tile cutting wheel designed for use with specific Yato manual tile cutters. This wheel is engineered for precision and durability, ensuring clean and efficient cuts on various types of tiles.

• Шайкештик: Specifically designed for Yato tile cutters including models YT-3704, YT-3705, YT-3706, YT-3707, and YT-3708.
• Материал: Constructed from high-quality tungsten carbide (YG-6X) for superior hardness and wear resistance.
• Каптоо: Features a Titanium (Ti) coating to enhance durability and cutting performance.
• Өлчөмдөрү: Measures 22mm in diameter, 11mm in width, and 2.0mm in thickness.

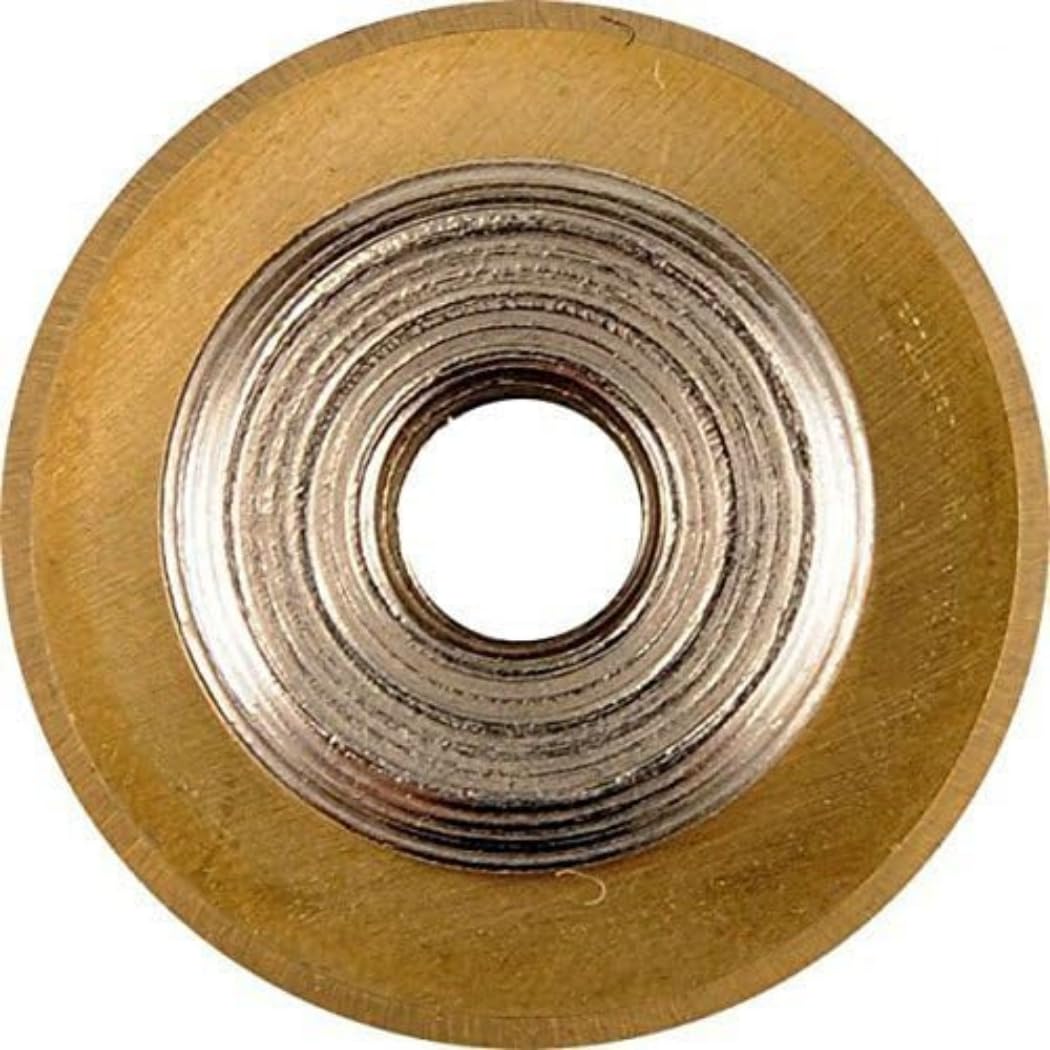

This image displays the Yato YT-3714 tile cutting wheel. It features a circular design with a brass-colored base and a prominent silver-colored cutting edge made from tungsten carbide. A central hole is present for mounting onto compatible tile cutters. The wheel's dimensions are 22x11x2.0mm.

2. Коопсуздук нускамалары

Always prioritize safety when working with cutting tools. Adhere to the following guidelines to prevent injury and ensure proper operation:

• Колдонмолорду окуңуз: Always read and understand the instruction manual for your specific Yato tile cutter before installing or using this cutting wheel.
• Жеке коргонуу каражаттары (ЖКК): Wear appropriate safety glasses or goggles to protect your eyes from flying debris. Gloves are recommended to protect hands.
• Жабдууларды текшерүү: Before each use, inspect the cutting wheel for any signs of damage, cracks, or excessive wear. Do not use a damaged wheel.
• Коопсуз жумуш бөлүгү: Ensure the tile is properly secured on the tile cutter to prevent movement during scoring.
• Туура орнотуу: Ensure the cutting wheel is correctly and securely installed on the tile cutter according to the tile cutter's instructions.
• Таза кармоо: Keep hands and other body parts clear of the cutting path during operation.
• Сактагыч: Store cutting wheels in a dry, safe place away from children and unauthorized users.

3. Орнотуу жана орнотуу

This section outlines the general procedure for installing the YT-3714 cutting wheel onto a compatible Yato tile cutter. Refer to your specific tile cutter's manual for detailed instructions.

1. Power Off/Unplug: Ensure your tile cutter is turned off and, if applicable, unplugged from any power source before beginning installation.
2. Эски дөңгөлөктү алып салуу: Locate the cutting wheel assembly on your Yato tile cutter. Depending on the model, you may need to loosen a screw or release a clip to remove the old or worn-out cutting wheel.
3. Таза аймак: Clean any debris or dust from the wheel mounting area to ensure a proper fit for the new wheel.
4. Жаңы дөңгөлөк орнотуу: Carefully place the Yato YT-3714 cutting wheel onto the axle or mounting pin, ensuring it sits flush and is correctly oriented.
5. Коопсуз дөңгөлөк: Re-secure the wheel using the screw, clip, or other fastening mechanism provided with your tile cutter. Ensure it is tightened sufficiently to prevent wobble but not overtightened, which could damage the wheel or assembly.
6. Сыноо кыймылы: Gently move the cutting handle to ensure the new wheel rotates freely and tracks correctly along the guide rail.

4. Иштөө нускамалары

Once the YT-3714 cutting wheel is correctly installed, follow these general steps for scoring and breaking tiles. Always refer to your specific Yato tile cutter's operating manual for precise instructions.

1. Prepare Tile: Place the tile firmly on the tile cutter's bed, aligning the desired cut line with the cutter's guide. Ensure the tile is stable and will not shift during scoring.
2. Position Cutting Wheel: Bring the cutting wheel into contact with the tile at the edge furthest from you, directly on the marked cut line.
3. Басым жасаңыз жана упай топтоңуз: Apply steady, even downward pressure on the cutting handle and push the cutting wheel across the tile in a single, continuous motion towards you. A distinct scoring line should be visible on the tile surface. Avoid multiple passes, as this can lead to chipping.
4. Break Tile: Once the score line is complete, position the tile so the score line is directly over the breaking bar or mechanism of your tile cutter. Apply quick, firm downward pressure to the breaking handle to snap the tile along the score line.
5. Inspect Cut: Carefully remove the two pieces of tile and inspect the cut edge for cleanliness.

5. Техникалык тейлөө

Proper maintenance extends the life of your YT-3714 cutting wheel and ensures consistent performance.

• Колдонгондон кийин тазалоо: After each use, wipe the cutting wheel and the surrounding assembly area with a clean, dry cloth to remove tile dust and debris.
• эскирүү үчүн текшерүү: Regularly inspect the cutting edge for signs of dullness, chipping, or damage. A dull wheel will produce rough cuts and require more effort.
• Майлоо (эгер бар болсо): Some tile cutter mechanisms may benefit from occasional lubrication. Refer to your tile cutter's manual for specific lubrication recommendations, ensuring no lubricant gets on the cutting edge itself.
• Сактагыч: Store the cutting wheel, either installed or separately, in a dry environment to prevent corrosion. Keep it protected from impacts that could damage the delicate cutting edge.
• Алмаштыруу: Replace the cutting wheel when it becomes dull or damaged to maintain optimal cutting performance and safety.

6. Кыйынчылыктарды

If you encounter issues while using the YT-3714 cutting wheel, consider the following common problems and solutions:

7. Техникалык шарттар

8. Кепилдик жана колдоо

For information regarding warranty coverage, product support, or to purchase replacement parts, please contact Yato directly or refer to the documentation provided with your original Yato tile cutter. Keep your purchase receipt as proof of purchase.

Өндүрүүчүнүн байланышы: Please visit the official Yato website for contact details and support information.
