1. Киришүү
Thank you for choosing the Mebus Radio-Controlled Bathroom Clock Model 41124. This instruction manual provides essential information for the proper setup, operation, and maintenance of your new clock. Designed for humid environments, this clock offers precise timekeeping and an integrated digital temperature display, ensuring convenience and functionality in your bathroom.

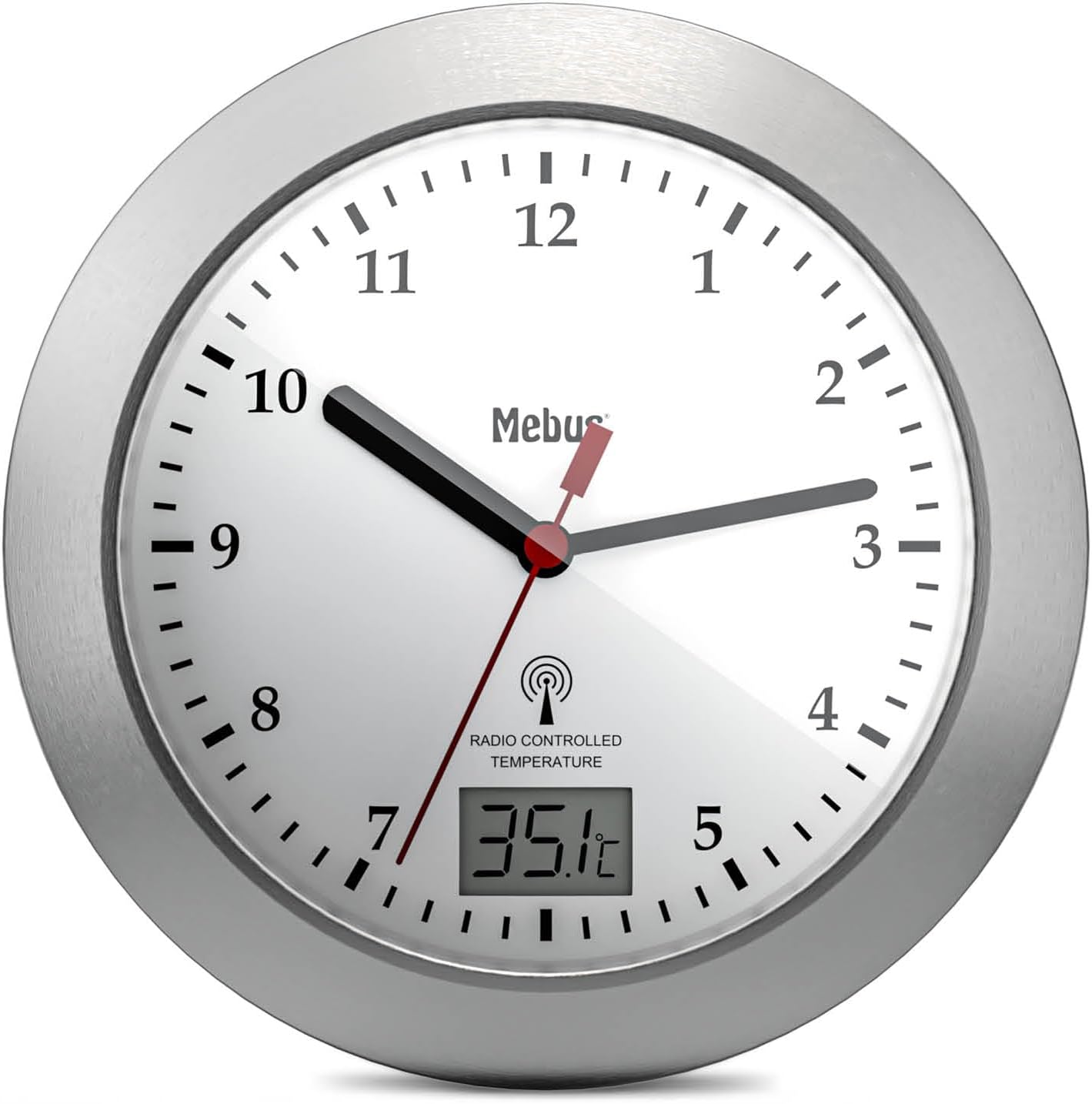

Сүрөт 1.1: Фронт view of the Mebus Radio-Controlled Bathroom Clock Model 41124, showing the analog dial, digital temperature display, and radio control symbol.
2. Коопсуздук маалыматы
- Do not expose the clock to extreme temperatures or direct sunlight for prolonged periods.
- Батарея бөлүмүнүн суу өткөрбөй тургандыгын камсыз кылуу үчүн бекем жабылганын текшериңиз.
- Саатты өз алдынча бөлүктөргө бөлүүгө же оңдоого аракет кылбаңыз. Тейлөө үчүн квалификациялуу адистерге кайрылыңыз.
- Батареяларды балдар жетпеген жерде сактаңыз. Колдонулган батарейкаларды жергиликтүү эрежелерге ылайык таштаңыз.
- Clean the clock with a soft, damp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
3. Пакеттин мазмуну
Пакетте бардык буюмдар бар экенин текшериңиз:
- Mebus Radio-Controlled Bathroom Clock Model 41124
- Integrated Suction Cups (4 units)
- Колдонуучунун Колдонмосу (бул документ)
Эскертүү: 1x AA battery is required for operation and is not included in the package.
4. Орнотуу
4.1. Батареяны орнотуу
- Сааттын артындагы батарея бөлүкчөсүнүн капкагын табыңыз.
- Этияттык менен капкакты ачыңыз.
- Insert one (1) AA battery, ensuring the correct polarity (+/-) as indicated inside the compartment.
- Close the battery compartment cover securely to maintain water resistance.
Сүрөт 4.1: Арткы view of the clock, highlighting the battery compartment and the four integrated suction cups for mounting.
4.2. Initial Time Setting (Radio Control)
After battery installation, the clock will automatically attempt to receive the DCF77 radio signal to set the correct time. This process may take several minutes, especially during the first setup. Ensure the clock is placed in an area with good signal reception, away from electronic interference.
- The clock hands will move to the 12 o'clock position and then begin searching for the radio signal.
- Once the signal is received, the clock will automatically adjust to the precise local time, including daylight saving time changes.
- If the signal is not received within 10-15 minutes, try moving the clock to a different location, preferably near a window, and away from other electronic devices.
Сүрөт 4.2: Visual representation of the radio-controlled time synchronization, ensuring accurate time.
4.3. Монтаждоо параметрлери
The Mebus 41124 clock offers versatile mounting options:
- Соручу чөйчөктү орнотуу: The four powerful integrated suction cups allow for secure attachment to smooth, non-porous surfaces like tiles or mirrors in your bathroom. Ensure the surface is clean and dry before applying.
- Дубалга илинүүчү: The clock also features a hanging slot on the back for traditional wall mounting using a nail or screw (not included).
- Столдун үстүнө жайгаштыруу: A built-in stand allows the clock to be placed on a flat surface, such as a shelf or countertop.
Сүрөт 4.3: The clock displayed in different settings, demonstrating its flexibility for suction cup mounting, wall hanging, or freestanding use.
5. Иштөө нускамалары
5.1. Убакытты окуу
The clock features an analog display with hour, minute, and second hands. The radio-controlled mechanism ensures the time is always accurate and automatically adjusts for daylight saving time.
5.2. Reading the Temperature
The integrated digital display at the bottom of the clock face shows the current ambient temperature in Celsius. This feature provides additional comfort and information for your bathroom environment.
Сүрөт 5.1: А деталдуу view of the digital thermometer, showing the temperature reading and its benefits.
6. Техникалык тейлөө
6.1. Тазалоо
To clean the clock, gently wipe the surface with a soft, slightly damp cloth. Do not use harsh chemicals, abrasive cleaners, or spray directly onto the clock, as this may damage the finish or internal components.
6.2. Батареяны алмаштыруу
When the clock hands stop moving or the temperature display fades, it is time to replace the battery. Follow the battery installation steps in Section 4.1. Always use a fresh AA battery of good quality.
7. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Саат убакытты автоматтык түрдө койбойт. | Weak or no radio signal; battery low. | Replace battery. Move clock to a location with better signal reception (e.g., near a window, away from electronics). Allow up to 24 hours for signal acquisition. |
| Temperature display is incorrect or blank. | Low battery; sensor malfunction. | Батареяны алмаштырыңыз. Эгерде көйгөй чечилбесе, кардарларды тейлөө кызматына кайрылыңыз. |
| Suction cups not holding securely. | Surface is dirty, wet, or porous; suction cups are damaged. | Clean and dry the mounting surface thoroughly. Ensure the surface is smooth and non-porous. Press firmly to remove air. If damaged, suction cups may need replacement (contact support). |
| Clock hands are loose or not moving. | Internal mechanism issue; battery low. | Replace battery. If the problem continues, the clock may be faulty. |
8. Техникалык шарттар
| Бренд | Mebus |
| Модель номери | 41124 |
| Түс | White (with aluminum frame) |
| Өлчөмдөрү (L x W x Y) | 17 x 3.81 x 17 см (болжол менен 6.7 x 1.5 x 6.7 дюйм) |
| Салмагы | 310 грамм (болжол менен 0.68 фунт) |
| Материал | Алюминий (рамка) |
| Дисплей түрү | Analog (time), Digital (temperature) |
| Өзгөчөлүктөр | Radio-controlled time, Integrated thermometer, Suction cups, Waterproof design |
| Power Source | 1 x AA Батарея (киргизилген эмес) |
| Максаттуу колдонуу | Indoor (Bathroom) |
| Келип чыккан өлкө | Кытай |
Сүрөт 8.1: Visual representation of the clock's dimensions (17 cm diameter) and weight (330g), along with power source details.
9. Кепилдик жана колдоо
Specific warranty details for the Mebus Radio-Controlled Bathroom Clock Model 41124 are not provided within the product information. For warranty claims, technical support, or inquiries regarding spare parts, please refer to your purchase documentation or contact the retailer or manufacturer directly.
Manufacturer: Mebus
