1. Киришүү
This manual provides essential information for the proper installation, operation, and maintenance of your DOMETIC 3310741.016 Air Distribution Box (ADB) with manual controls. This unit is designed for use in recreational vehicles (RVs), trailers, and campers to effectively distribute conditioned air from your roof-mounted air conditioner.
Please read this manual thoroughly before attempting installation or operation to ensure safe and efficient use of the product. Retain this manual for future reference.
2. Продукт бүтүп калдыview
The DOMETIC 3310741.016 ADB is a polar white air distribution box featuring manual controls. It is designed to integrate with compatible Dometic RV air conditioning units, providing adjustable airflow and temperature control within your vehicle's interior. The unit is engineered for quiet operation, enhancing comfort.

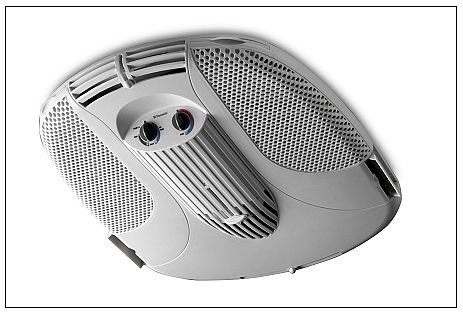

Image of the Dometic 3310741.016 Air Distribution Box, showing the polar white exterior and the two manual control knobs for fan speed and temperature/mode settings.
3. Коопсуздук маалыматы
Ар дайым төмөнкү коопсуздук чараларын сактаңыз:
- Disconnect all power to the RV's air conditioning system before performing any installation, maintenance, or troubleshooting.
- Бардык зымдарды туташтыруу коопсуз жана жергиликтүү жана улуттук электр коддоруна ылайык экенин текшериңиз.
- Электрдик жумуштарды квалификациялуу кызматкерлер гана аткарышы керек.
- Do not operate the unit if any part is damaged or missing.
- Keep hands and foreign objects away from moving parts and air vents.
4. Орнотуу
The DOMETIC 3310741.016 ADB is designed for straightforward installation. Refer to the separate, detailed installation instructions provided with your Dometic air conditioning unit for comprehensive steps and diagrams.
Орнотуудагы маанилүү ойлор:
- Roof Thickness: If your RV's roof thickness exceeds 6 inches, an extended mounting kit (Dometic part number 3101538.001) may be required to ensure proper and secure installation. Consult your installation instructions for specific measurements and requirements.
- Монтаждоо болттору: Ensure that the mounting bolts provided are of adequate length for your specific roof thickness. In some cases, longer bolts may be necessary to achieve a secure fit.
- Control Knob Alignment: During installation of the ceiling cover, ensure that the control knob connectors are properly aligned and adjusted to their fully extended length before attaching the knobs. This will prevent issues with knobs being difficult to turn or not fitting correctly.
5. Операция
The DOMETIC 3310741.016 ADB features intuitive manual controls for adjusting your RV's climate.
Башкаруу баскычтары:
The unit is equipped with two manual rotary knobs:
- Left Knob (Fan Speed): This knob controls the fan speed of your air conditioning unit. Rotate it to select desired fan settings (e.g., Low, Medium, High, Auto).
- Right Knob (Mode/Temperature): This knob typically controls the operating mode (e.g., Cool, Fan Only, Heat - if applicable to your AC unit) and temperature settings. Rotate it to select your preferred comfort level.
Adjust the louvers on the ADB to direct airflow as needed for optimal comfort and air distribution within your RV.
6. Техникалык тейлөө
Regular maintenance ensures the longevity and efficient operation of your ADB.
- Тазалоо: Periodically clean the exterior of the ADB with a soft, damp кездеме. Абразивдүү тазалагычтардан же эриткичтерден качыңыз.
- Аба чыпкалары: Check and clean or replace the air filters (if present in your AC unit or ADB) according to your air conditioner's manual. Clean filters improve airflow and efficiency.
- Вентиляция: Ensure that all air vents and grilles on the ADB are free from obstructions to maintain proper airflow.
7. Кыйынчылыктарды
If you encounter issues with your DOMETIC 3310741.016 ADB, refer to the following common troubleshooting tips:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Control knobs are hard to turn or do not align. | Improper alignment during installation; connectors not fully extended. | Remove knobs and ceiling cover. Ensure knob connectors are fully extended and properly seated before reattaching. |
| Poor airflow from the ADB. | Obstructed vents; dirty air filters (if applicable); fan speed set too low. | Check for obstructions in vents. Clean or replace air filters. Increase fan speed using the left control knob. |
| Unit does not respond to controls. | No power to the AC unit; loose wiring connection. | Check RV's power supply and circuit breakers. Verify all wiring connections are secure (consult a qualified technician if unsure). |
If problems persist after attempting these solutions, contact Dometic customer support or a certified RV technician.
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модел | 3310741.016 |
| Бренд | ИЧКИ |
| Өндүрүүчү бөлүгүнүн номери | 3310741.016 |
| Элемент Салмагы | 8.73 фунт |
| Продукциянын өлчөмдөрү | 27 x 9 x 5 дюйм |
| Өзгөчөлүктөр | Тынч иштөө |
| Тtage | 110 вольт |
| Power Source | Электр зымдары |
| Башкаруу ыкмасы | Manual Knobs |
| Форма фактору | Split System (Air Distribution Box) |
| Дата биринчи жеткиликтүү | 6-ноябрь, 2012-жыл |
9. Кепилдик маалыматы
This DOMETIC product is covered by a Limited Warranty. For specific details regarding warranty coverage, terms, and conditions, please refer to the warranty documentation included with your original purchase or visit the official Dometic webсайт. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.
10. Колдоо жана байланыш
For technical assistance, replacement parts, or further inquiries, please contact Dometic customer support. You can find contact information on the official Dometic webсайтында же продуктунун баштапкы таңгагында.
Dometic Customer Service: www.dometic.com/en-us/support
