Steamfast SF-540 Deluxe Fabric Steamer User Manual

1. Продукт бүтүп калдыview

The Steamfast SF-540 Deluxe Fabric Steamer is designed for enhanced steaming, featuring a super-capacity water tank and a cool-touch fabric hose. This appliance utilizes hot steam to penetrate deep into fabrics, relaxing fibers and releasing wrinkles efficiently. It offers a faster alternative to traditional ironing and helps freshen clothes in seconds. The steamer is suitable for a wide range of fabrics, from delicate materials to heavier items like drapes and upholstery.

Figure 1: Steamfast SF-540 Deluxe Fabric Steamer

This image displays the complete Steamfast SF-540 Deluxe Fabric Steamer, showcasing its white base, silver telescopic pole, and grey steam nozzle with a white tip. The hose connecting the nozzle to the base is visible, along with green clips on the pole for accessories.

Common Uses:

• Shirts & Blouses
• Pants & Skirts
• Көйнөктөр
• Пальто
• Curtains & Drapes
• Кездеме эмеректери
• Table Linens

Продукт өзгөчөлүктөрү:

• Garment Clip: Designed to pull garments taut, facilitating easier wrinkle removal and the creation of crisp creases.
• Crease Tool: Pinches fabric against the steam nozzle to help form sharp creases.
• Press Pad: Transforms your free hand into a portable ironing surface for precise steaming.
• Attachable Fabric Brush: Used to brush away particles such as lint, hairs, and loose threads from fabrics.
• Clothes Hanger: Provides support for garments during steaming and collapses for convenient storage.
• Телескопиялык уюл: Detachable and adjustable, allowing for various heights to ensure optimal user comfort and compact storage.
• Алынуучу суу багы: Features a 78 oz. capacity for easy refilling.
• Жөнөкөй маневр: Equipped with large wheels on the back of the steamer for effortless movement.

2-сүрөт: Көп функциялуу аксессуарлар

This image highlights the four main accessories included with the Steamfast SF-540: a fabric brush, a crease tool, garment clips, and a clothes hanger. These accessories enhance the steamer's versatility for various fabric care needs.

2. Орнотуу нускамалары

1. Компоненттерди таңгактан чыгаруу: Carefully remove all components from the packaging. Ensure all parts, including the base unit, telescopic pole, steam hose with nozzle, and accessories (garment clip, crease tool, press pad, fabric brush, clothes hanger), are present.
2. Телескопиялык мамыны чогултуу: Insert the telescopic pole into the designated opening on the base unit. Extend the pole to your desired height and secure it using the locking mechanisms.
3. Attach Clothes Hanger: Place the clothes hanger attachment onto the top of the telescopic pole. This provides a convenient place to hang garments during steaming.
4. Буу түтүгүн туташтырыңыз: Securely attach the steam hose to the steam outlet on the base unit. Ensure it is firmly connected to prevent steam leakage.
5. Сууну толтуруу: Remove the 78 oz. capacity water tank from the base unit. Fill the tank with clean, distilled water to prevent mineral buildup and extend the life of the steamer. Reinsert the filled water tank into the base unit, ensuring it is properly seated.
6. Буу чыгаргычтын абалы: Place the steamer on a flat, stable surface near an electrical outlet. Ensure there is enough space around the unit for safe operation and garment handling.

Figure 3: Removable Water Tank

This image shows a close-up side view of the Steamfast SF-540's base, highlighting the transparent, removable water tank. The large wheels for maneuverability are also visible.

3. Иштөө нускамалары

1. Күйгүзүү: Plug the steamer into a standard 120V / 60HZ / 12.5A electrical outlet. Turn on the power switch. The steamer has a heating time of approximately 45 seconds.
2. Кийимди даярдоо: Hang the garment on the integrated clothes hanger or use the garment clips to hold fabric taut.
3. Бууну баштоо: Once steam begins to emit from the nozzle, hold the steam nozzle a few inches away from the fabric. Move the nozzle slowly up and down the garment, allowing the steam to penetrate the fibers.
4. Кошумча аксессуарларды колдонуңуз:
   • For stubborn wrinkles, gently press the nozzle directly against the fabric.
   • тиркөө Fabric Brush to remove lint, hair, and loose threads while steaming.
   • колдонуу Бырышуу куралы to create crisp creases on pants or sleeves by pinching the fabric between the tool and the nozzle.
   • For precision steaming, place the Pad баскычын басыңыз behind the fabric and steam against it.
5. Үзгүлтүксүз буулоо: The 78 oz. water tank provides up to 80 minutes of continuous steam. Monitor the water level and refill as needed.
6. Бүтүрүү: After steaming, allow the garment to cool and dry completely before wearing or storing to prevent re-wrinkling.

Figure 4: Steaming a Garment

This image shows a user effectively steaming a light-colored jacket, demonstrating the ease of use and the smooth results achieved with the Steamfast SF-540 Deluxe Fabric Steamer.

Figure 5: Steam Nozzle and Applications

Жакын план view of the Steamfast SF-540's steam nozzle, showing the steam vents and various icons representing its applications, such as curtains, dresses, shirts, upholstery, pillows, and bedding.

4. Техникалык тейлөө жана кам көрүү

Proper maintenance ensures the longevity and optimal performance of your Steamfast SF-540 Deluxe Fabric Steamer. Always unplug the unit and allow it to cool completely before performing any maintenance.

• Суу багы: Always use distilled water to minimize mineral buildup. If tap water is used, regular descaling is recommended.
• Тазалоо: To descale, fill the water tank with a solution of equal parts white vinegar and water. Run the steamer until half the solution is used, then turn off and let it sit for 30 minutes. Finish steaming the remaining solution, then rinse the tank and run a full tank of clean distilled water through the unit.
• Тышкы тазалоо: Пароходтун сыртын жумшак, гamp кездеме. Катуу химиялык заттарды же абразивдүү тазалагычтарды колдонбоңуз.
• Шланга жана мурун: Periodically check the hose and nozzle for any blockages or damage. Ensure the steam vents on the nozzle are clear.
• Сактагыч: When not in use, empty the water tank and store the steamer in a cool, dry place. The telescopic pole can be collapsed for compact storage.

Эскертүү: The product specifications mention "Hand Wash" for care instructions, which typically refers to the accessories or removable parts that may come into contact with fabric. Always refer to specific care instructions for individual components if provided.

5. Кыйынчылыктарды

If you encounter issues with your Steamfast SF-540 Deluxe Fabric Steamer, please refer to the following common troubleshooting tips:

• No Steam or Low Steam:
  • Check if the water tank is empty or low. Refill with distilled water.
  • Түзмөктүн розеткага туура сайылганын жана күйгүзүлгөнүн текшериңиз.
  • Allow sufficient time for the steamer to heat up (approx. 45 seconds).
  • Mineral buildup can restrict steam flow. Perform a descaling procedure as outlined in the Maintenance section.
• Water Spitting or Gurgling:
  • This can occur if the hose is kinked or held too low, allowing condensation to build up. Hold the hose upright to allow condensation to drain back into the unit.
  • Excessive mineral buildup can also cause spitting. Perform a descaling procedure.
• агып жатат:
  • Ensure the water tank is correctly seated and sealed.
  • Check all connections, especially where the hose connects to the base, for tightness.
  • Internal leaks may indicate a more serious issue. Discontinue use and contact customer support.
• Wrinkles Not Removing Effectively:
  • Ensure the steam nozzle is close enough to the fabric.
  • Stretch the fabric taut while steaming.
  • Use appropriate accessories like the fabric brush or crease tool for better results.

If problems persist after attempting these solutions, please contact Steamfast Customer Support for further assistance.

6. Техникалык шарттар

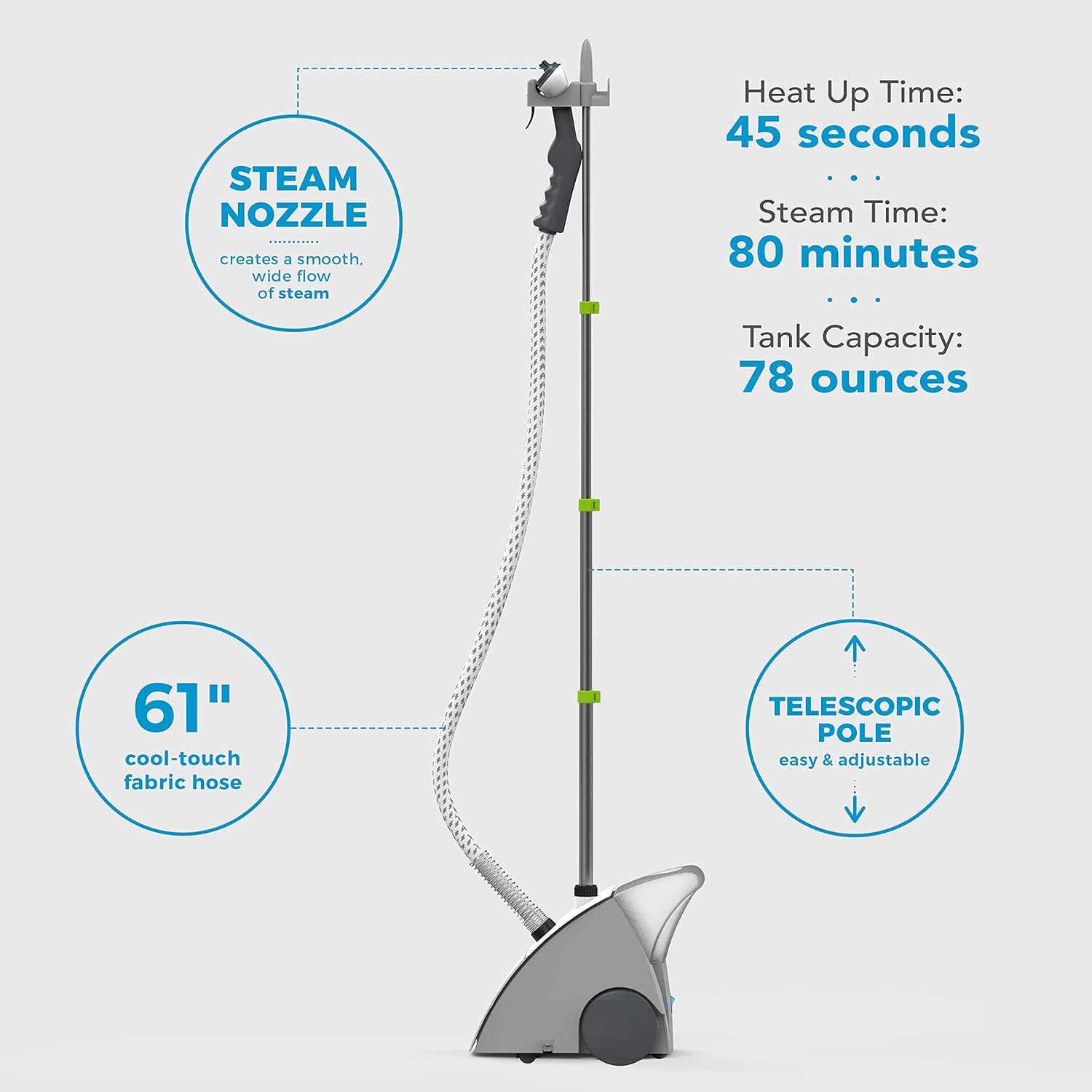

Figure 6: Key Specifications Infographic

This infographic visually summarizes key performance specifications of the Steamfast SF-540, including its rapid heat-up time, extended steam duration, large tank capacity, and adjustable telescopic pole.

7. Кепилдик жана колдоо

The Steamfast SF-540 Deluxe Fabric Steamer comes with a 1 жылдык чектелген кепилдик through Steamfast. This warranty covers defects in materials and workmanship under normal use.

For warranty claims, technical support, or any questions regarding your product, please contact Steamfast Customer Support. Refer to the official Steamfast webакыркы байланыш маалыматы үчүн сайтка же продуктунун таңгагына кайрылыңыз.

Маанилүү эл аралык эскертүү: Бул буюм АКШнын көлөмүнө жооп берүү үчүн жасалганtagталаптарына жооп берет жана көлөмдү өзгөрткөн же өзгөрткөн тышкы түзмөктөр менен бирге колдонулганда туура иштебей калышы мүмкүнtagже электр энергиясынын жыштыгы. Продукцияны АКШдан тышкары туура эмес колдонуу же жөнөтүү бардык кепилдиктерди жокко чыгарат.
