1. Киришүү
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Beverage-Air HF3-5G 3 Section Glass Door Reach-In Freezer. Please read this manual thoroughly before installing or operating the unit. Keep this manual for future reference.
The Beverage-Air HF3-5G is a commercial-grade reach-in freezer designed for professional food service environments. It features three glass doors, a robust refrigeration system, and ampле сактоо сыйымдуулугу.
2. Коопсуздук маалыматы
ЭСКЕРТҮҮ: Электр шок коркунучу. Тейлөөдөн мурун электр кубатын өчүрүңүз.
Observe all safety precautions to prevent injury or damage to the unit. This appliance is intended for commercial use only. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Агрегаттын туура жерге туташтырылганын текшериңиз.
- Электр шнурунун же сайгычтын бузулушу менен аппаратты иштетпеңиз.
- Вентиляция тешиктерин тоскоолдуктардан алыс кармаңыз.
- Эритүү процессин тездетүү үчүн өндүрүүчү сунуштагандан башка механикалык түзүлүштөрдү же башка каражаттарды колдонбоңуз.
- Монтаждоо жана тейлөөнү квалификациялуу кызматкерлер гана аткарышы керек.
3. Таңгактан чыгаруу жана орнотуу (орнотуу)
3.1 Пакеттен чыгаруу
Carefully remove all packaging materials. Inspect the freezer for any shipping damage. Report any damage immediately to the carrier and your dealer. Do not discard packaging materials until the unit has been inspected.
3.2 Жайгашкан жери
Place the freezer on a strong, level surface capable of supporting its weight (873 lbs empty). Ensure adequate clearance around the unit for proper ventilation. Avoid direct sunlight or proximity to heat-generating equipment.
3.3 Электрдик туташуу
The unit requires a 208/230V electrical circuit and is designed for field wiring (requires a 4-wire electrical circuit, hard-wired). Consult a qualified electrician for proper installation. Ensure the power supply matches the specifications on the unit's data plate.
3.4 Leveling and Casters
The freezer comes with 6-inch casters for mobility. Ensure the unit is level to allow proper door closure and drainage. Use a spirit level and adjust the casters as needed.

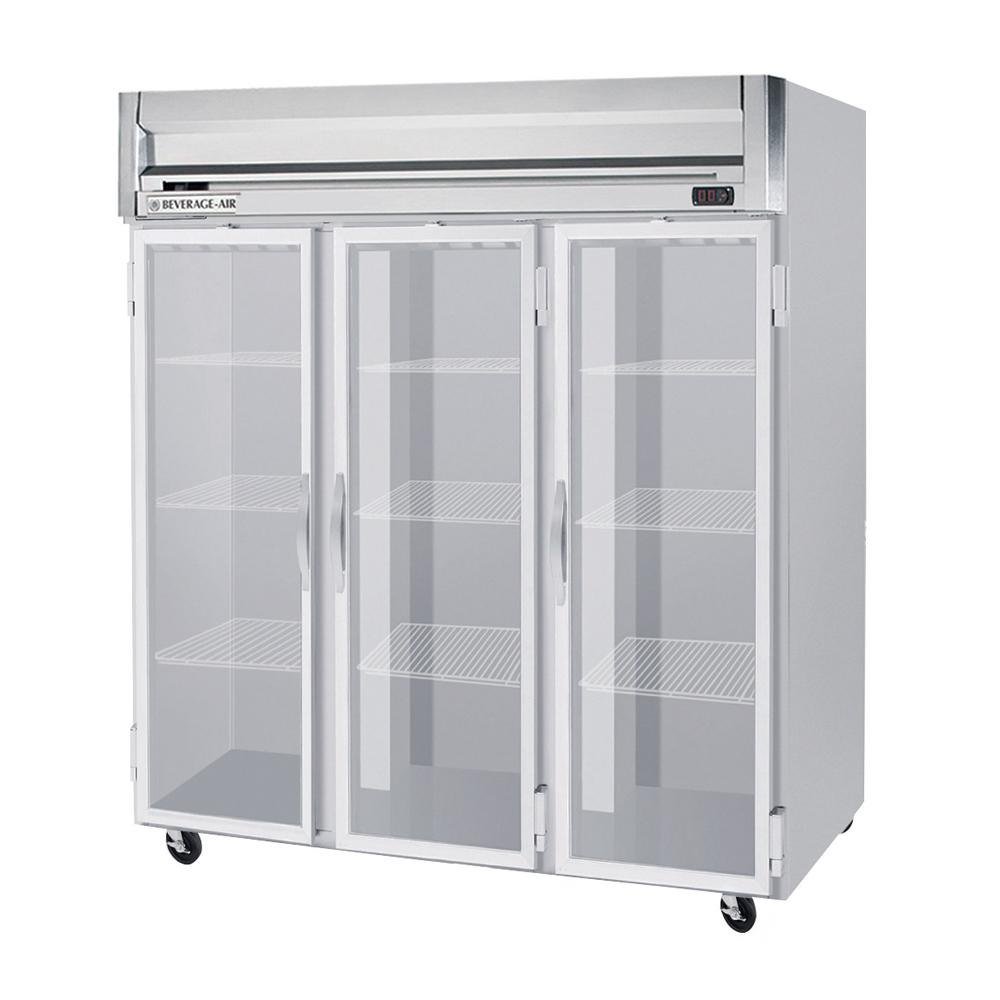

Figure 1: Beverage-Air HF3-5G 3 Section Glass Door Reach-In Freezer. This image shows the exterior of the freezer with its three glass doors and stainless steel front.
4. Операция
4.1 Баштапкы баштоо
After installation, allow the unit to sit for at least 2 hours before connecting to power. This allows refrigerants to settle. Plug in the unit or ensure the hard-wired connection is complete. The freezer will begin to cool.
4.2 Температураны көзөмөлдөө
The freezer features an electronic control with a digital display. The unit is designed to hold temperatures at or near 0°F (-18°C). Refer to the separate controller manual for detailed instructions on adjusting temperature settings and other parameters.
4.3 Тоңдургучту жүктөө
Load products evenly on the epoxy-coated steel wire shelves. Do not block the air circulation paths inside the freezer. The shelves are adjustable in 1/2-inch increments to accommodate various product sizes.
4.4 Автоматтык эритүү
This unit is equipped with an automatic defrost system. Defrost cycles occur periodically to prevent ice buildup on the evaporator coil. During defrost, the internal temperature may rise slightly, but it will return to the set point after the cycle completes.
5. Техникалык тейлөө
Regular maintenance ensures optimal performance and extends the life of your freezer. Always disconnect power before performing any maintenance.
5.1 Интерьерди тазалоо
Clean the interior regularly with a mild soap and water solution. Rinse thoroughly and dry with a soft cloth. Do not use abrasive cleaners or scouring pads.
5.2 Сырты тазалоо
Wipe down the stainless steel front and gray painted sides with a soft cloth and mild detergent. For stubborn stains on stainless steel, use a non-abrasive stainless steel cleaner. Clean the glass doors with a glass cleaner.
5.3 Конденсатордун катушкаларын тазалоо
The condenser coil should be cleaned every 30 days or as needed. A dirty condenser coil reduces efficiency and can lead to compressor failure. Access the condenser coil by removing the front grille or access panel. Use a stiff brush or vacuum cleaner to remove dust and debris.
5.4 Эшиктин прокладкалары
Inspect door gaskets regularly for tears or damage. Clean gaskets with warm water and mild soap. Replace damaged gaskets promptly to maintain proper sealing and energy efficiency.
6. Кыйынчылыктарды
Кызматка чакыруудан мурун, кайраview төмөнкү жалпы маселелер жана чечимдер:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Муздаткыч муздабайт | No power; thermostat set too high; dirty condenser coil; door left open. | Check power supply; adjust thermostat; clean condenser; ensure doors are closed. |
| Аяздын ашыкча топтолушу | Door gasket leaking; frequent door openings; faulty defrost system. | Inspect/replace gaskets; minimize door openings; contact service for defrost issues. |
| Бирдиги ызы -чуу | Loose components; unit not level; fan motor issue. | Check for loose parts; level the unit; contact service if fan is faulty. |
| Полго суу | Бүктелген дренаждык линия; ашыкча нымдуулук. | Clear drain line; ensure proper ventilation. |
Эгер көйгөйдү чечүү кадамдары маселени чечпесе, квалификациялуу тейлөө техникине кайрылыңыз.
7. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Модел | HF3-5G |
| Кубаттуулугу | 74.0 Cu. Ft. |
| Өлчөмдөрү (W x D x H) | 81 x 35 x 82 дюйм |
| Салмагы | 873 фунт. |
| Электрдик | 208/230V; 1 HP; designed for field wiring (requires 4-wire electrical circuit, hard-wired) |
| Эритүү түрү | Автоматтык |
| эшиктер | 3 Glass Swing Doors with 120° Stay Open Feature |
| Текчелер | Epoxy-coated steel wire, adjustable in 1/2" increments (3 per door) |
| Интерьер | Aluminum with Interior Lighting |
| Сырткы | Stainless steel front, gray painted sides |
| Casters | 6 дюймдук |
8. Кепилдик жана колдоо
For warranty information, please refer to the warranty card included with your product or visit the official Beverage-Air webсайт. Сатып алганыңыздын далили катары сатып алуу дүмүрчөгүңүздү сактаңыз.
For technical support or service inquiries, please contact your authorized Beverage-Air dealer or the manufacturer's customer service department. When contacting support, please have your model number (HF3-5G) and serial number ready.
Note: Warranty terms and conditions may vary by region and purchase date.
