1. Киришүү
The Festool MFT/3 Multifunction Table is designed to provide a versatile and stable workspace for various woodworking tasks, including cutting, sanding, and assembly. Its modular design allows for integration with other Festool system components, enhancing precision and efficiency. This manual provides instructions for the safe and effective use of your MFT/3.
2. Коопсуздук маалыматы
Always observe the following safety precautions when operating the Festool MFT/3 Multifunction Table:
- Колдонуудан мурун столдун туруктуу, тегиз бетке коюлганын текшериңиз.
- Verify all locking mechanisms for legs and accessories are securely engaged.
- 264 фунттан (120 кг) ашпаңыз.
- Keep the work area clear of obstructions and debris.
- Always wear appropriate personal protective equipment (PPE), such as safety glasses, when operating power tools on the table.
- Refer to the safety instructions of any power tools used in conjunction with the MFT/3.
3. Пакеттин мазмуну
Your Festool MFT/3 Multifunction Table package includes the following components:
- MFT/3 Table Frame with Perforated Top
- Folding Legs (4 units)
- Жөнгө салынуучу токтотуу
- Angle Unit (Protractor Head)
- Fence Rail
- Fence Rail Clamp
- FS 1080 Guide Rail
- Guide Rail Supports (2 units)
4. Орнотуу
4.1 Таблицаны ачуу
Carefully remove the MFT/3 from its packaging. Unfold the legs and ensure they are securely locked into position. The table can be set up at two different working heights by adjusting the leg configuration.
Figure 1: The Festool MFT/3 Multifunction Table in its assembled state, ready for use.
4.2 Аксессуарларды тиркөө
The perforated top and side channels are designed for easy attachment of various accessories. Insert the adjustable stop, angle unit, fence rail, and guide rail supports as needed for your specific task. Ensure all components are firmly secured.
4.3 Squaring the Guide Rail
For accurate cuts, it is crucial to square the FS 1080 guide rail to the fence. Use a reliable square to check the alignment and make any necessary adjustments to the guide rail supports or fence rail position before beginning work. This step ensures precise and repeatable results.
Figure 2: The MFT/3 with the FS 1080 guide rail and other accessories attached, demonstrating a typical setup for cutting operations.
5. Иштөө нускамалары
5.1 Securing Workpieces
The MFT/3 features a perforated top with 20mm holes and side channels for versatile clamping options. Use Festool clamps or compatible bench dogs to secure your workpiece firmly to the table surface. This prevents movement during operations, ensuring safety and precision.

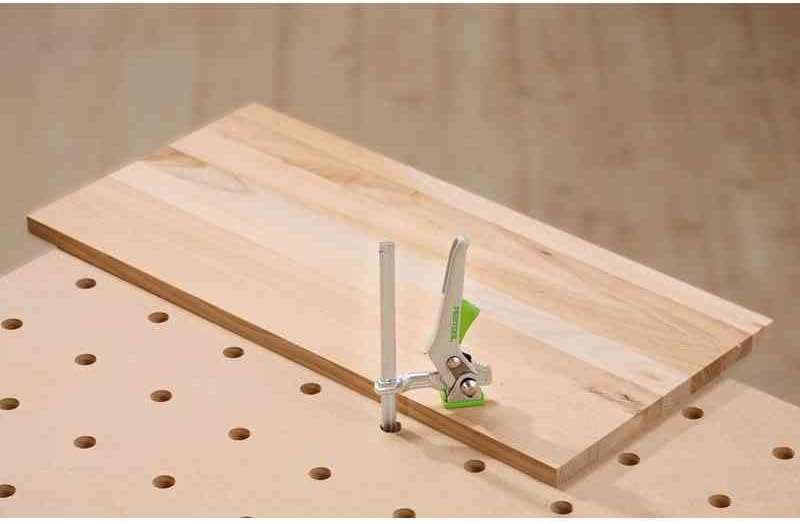

Figure 3: A wooden board secured to the MFT/3 using a clamp inserted into the perforated top, illustrating a common clampыкма.

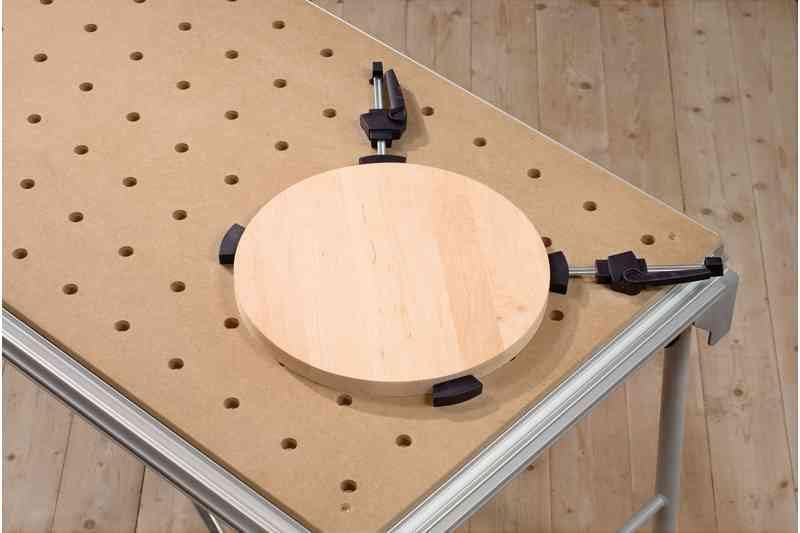

Figure 4: A round workpiece clamped to the MFT/3, demonstrating the flexibility of the clamping system for various shapes.
5.2 Cutting Operations
Utilize the FS 1080 guide rail in conjunction with a compatible plunge saw or router for precise and repeatable cuts. Position the guide rail and secure it with clamps. Ensure the workpiece is stable before making any cuts.
Figure 5: A user performing a precise cut on a large panel using a track saw guided by the FS 1080 rail on the MFT/3.
5.3 Sanding and Assembly
The stable surface of the MFT/3 is ideal for sanding and assembly tasks. Secure smaller workpieces using the clamping system to prevent movement and ensure consistent results.

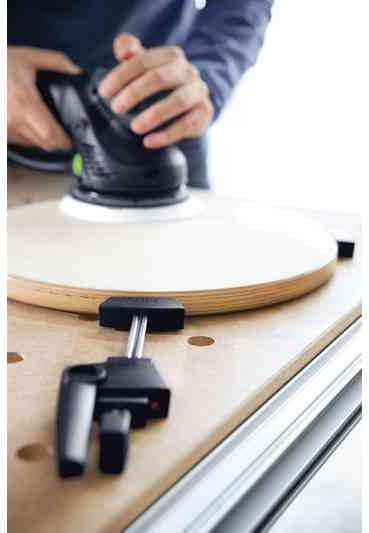

Сүрөт 6: Жакын пландан view of a hand sander being used on a workpiece securely clamped to the MFT/3, highlighting stability for finishing tasks.
5.4 Көчүрүү
The MFT/3 is designed for portability. Its folding legs allow for compact storage and easy transport to various job sites.
Figure 7: A user carrying the MFT/3 in its folded configuration, demonstrating its portability for transport between locations.
6. Техникалык тейлөө
6.1 Тазалоо
Regularly clean the table surface and frame to remove sawdust and debris. Use a damp cloth and mild detergent if necessary. Avoid abrasive cleaners that could damage the surface.
6.2 Perforated Top Replacement
The MDF perforated top is a consumable part and can be replaced if it becomes damaged or worn. Contact Festool customer support or an authorized dealer for replacement tops and instructions.
7. Кыйынчылыктарды
7.1 Guide Rail Movement
If the guide rail exhibits excessive movement even when locked, ensure that the guide rail supports are correctly installed and tightened. For enhanced stability, consider purchasing an optional stabilizer bar accessory from Festool.
7.2 Table Instability
If the table feels unstable, verify that all four legs are fully extended and securely locked. Ensure the table is on a flat, even surface. An optional stabilizer bar accessory can also significantly improve overall table rigidity, especially when applying significant force during operations.
8. Техникалык шарттар
| Бренд | Festool |
| Модель номери | 495315 |
| Материал | Металл |
| Элемент Салмагы | 61.6 фунт (28 килограмм) |
| Продукциянын өлчөмдөрү | 49 x 33.5 x 10 дюйм |
| Жүктөө жөндөмдүүлүгү | 264 фунт |
| Ассамблея талап кылынат | Ооба |
| Өндүрүүчү | Tooltechnic Systems LLC |
9. Кепилдик жана колдоо
Festool offers comprehensive support for its products. This includes a 30-day money-back guarantee and a 3-year satisfaction guarantee. For technical assistance, parts, or warranty claims, please contact Festool's dedicated expert support.
For additional detailed information, please refer to the official user manual PDF: Festool MFT/3 User Manual (PDF)
